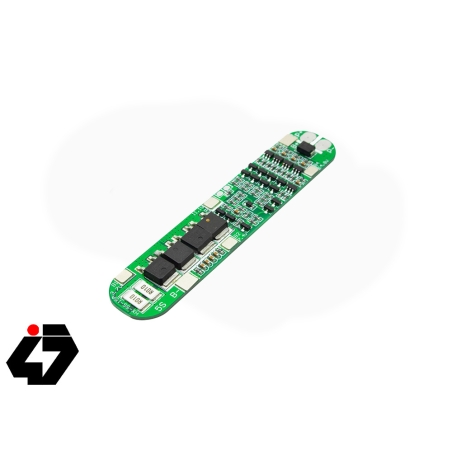

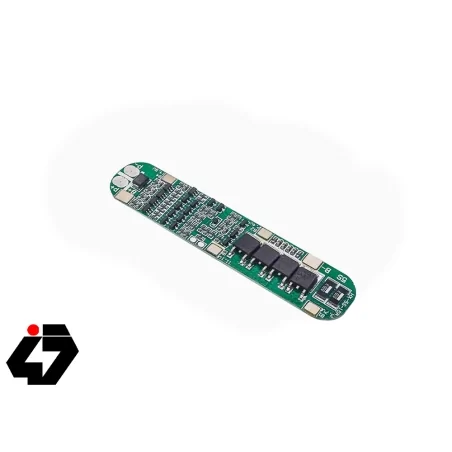

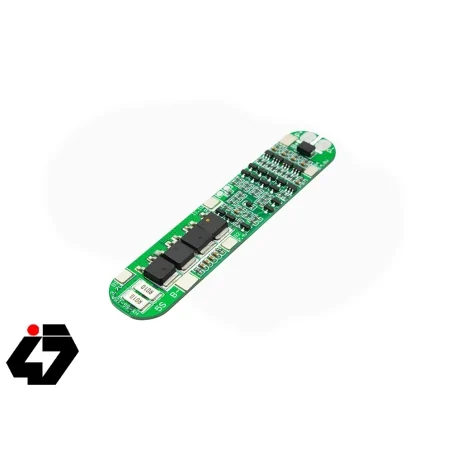

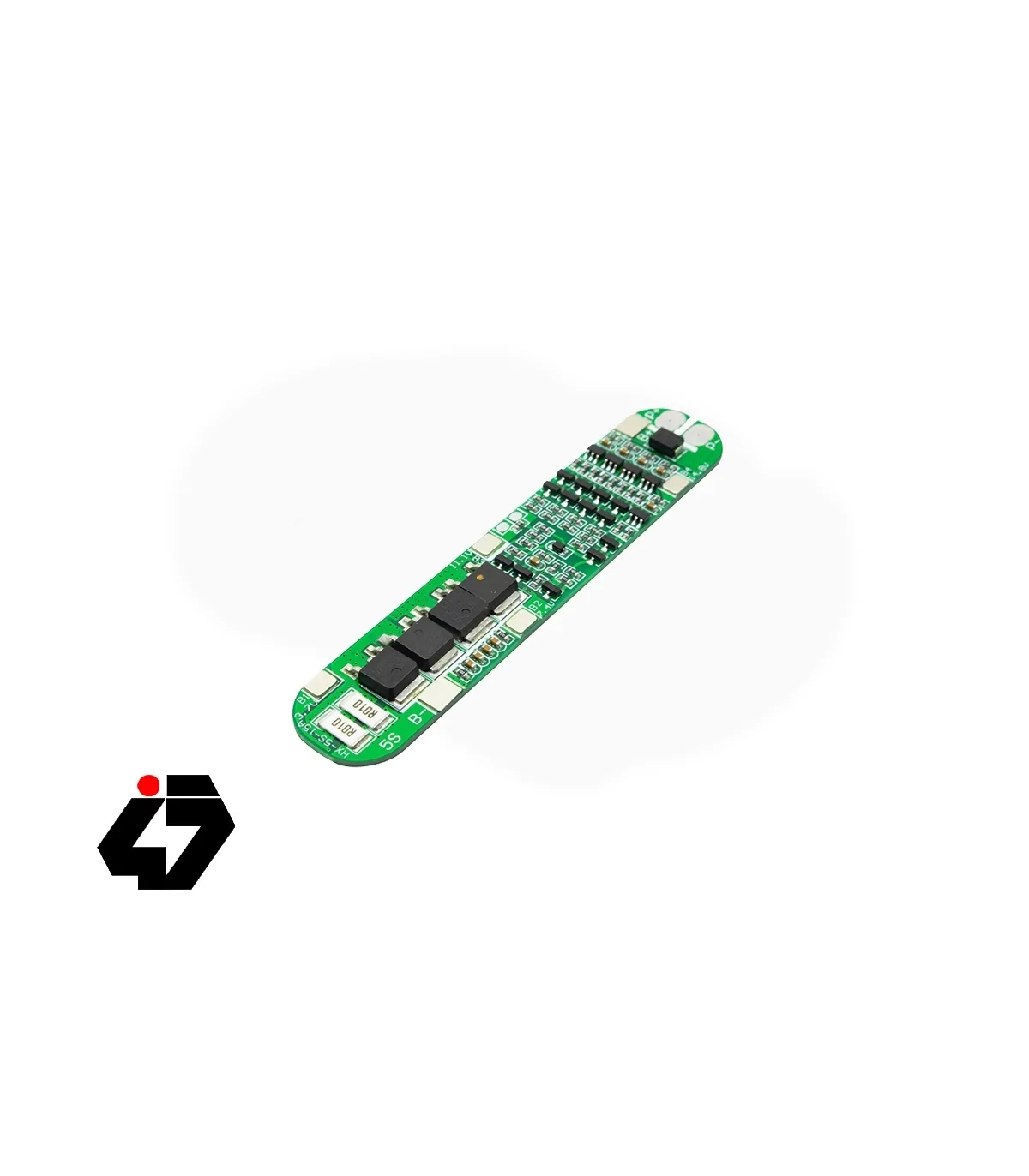

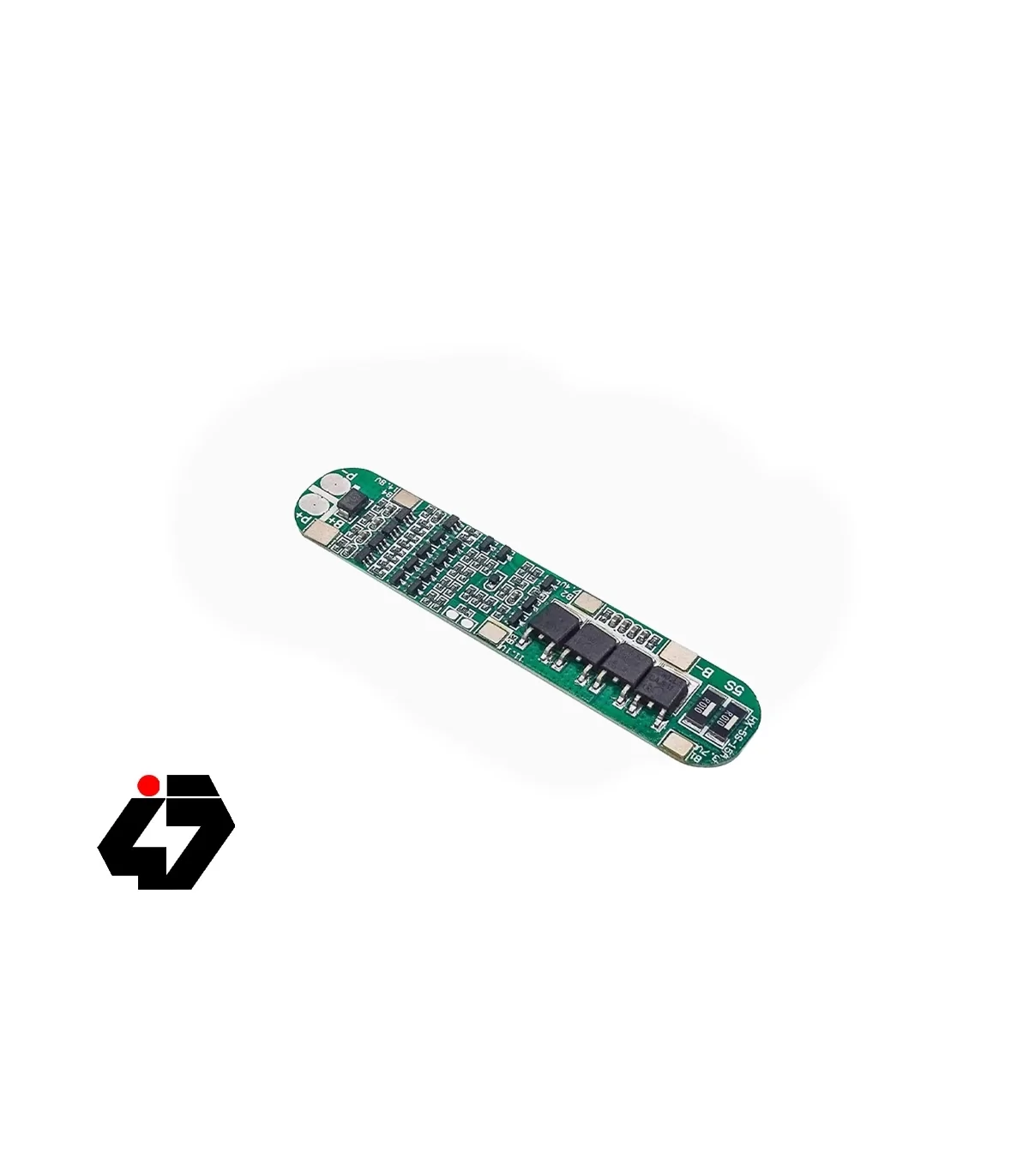

ماژول محافظ شارژ باتری لیتیومی 5 سل 15A

This board is 5 string 3.7V/4.2V lithium battery protection board

High current protection board, continuous 15A current

Protection board with overcharge protection, over-discharge protection, over-current protection, short circuit protection.

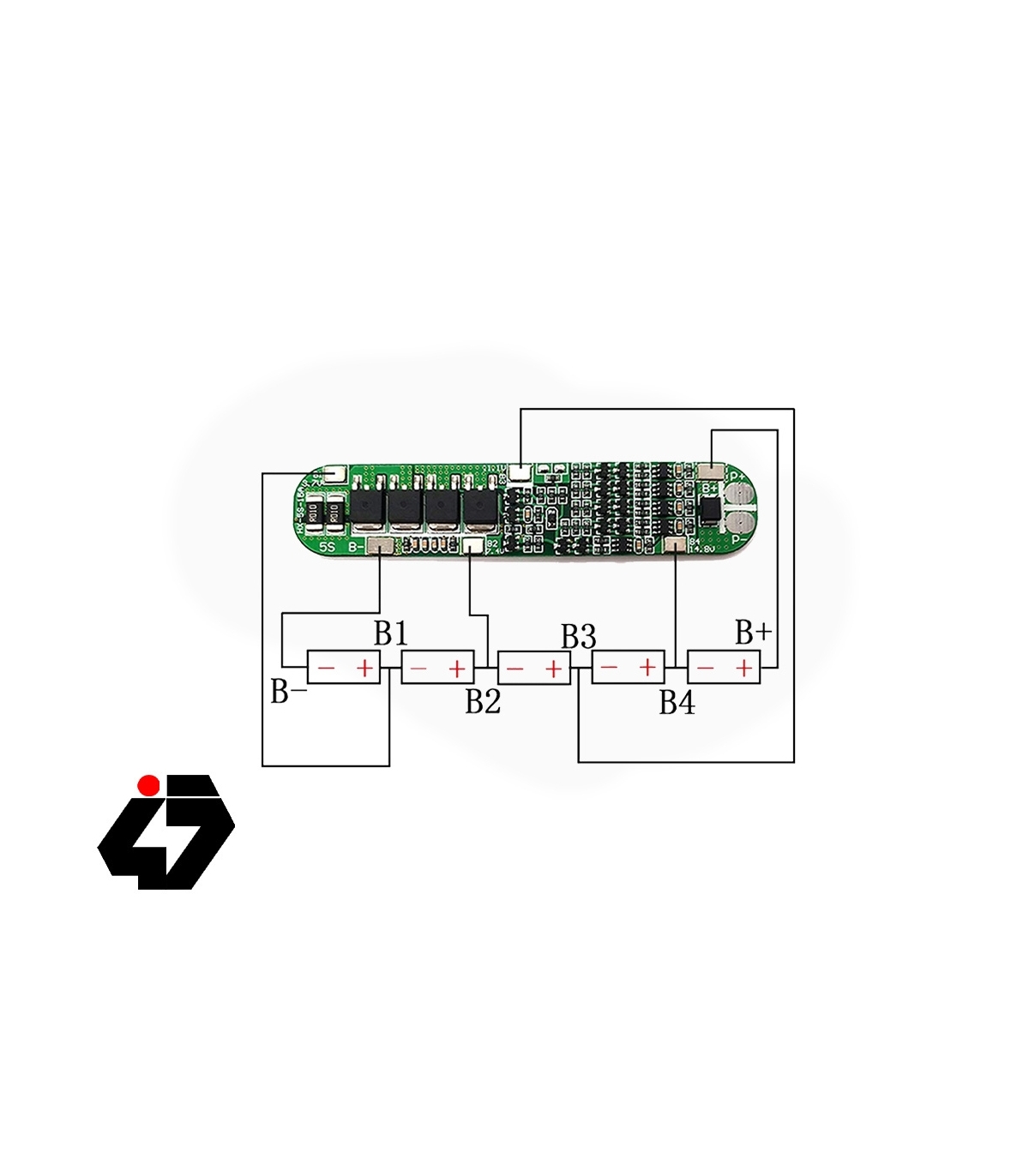

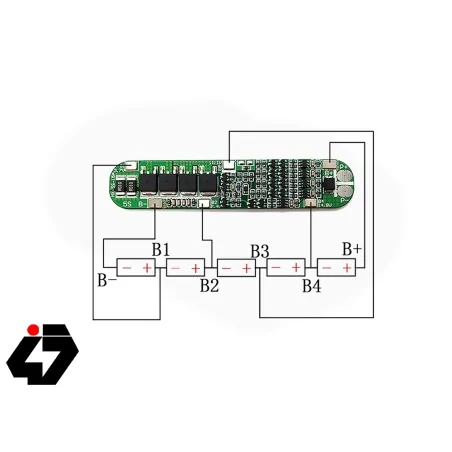

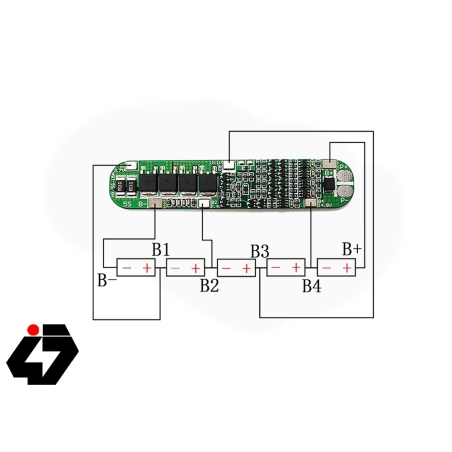

P+ P- is the abbreviation of PACK+ PACK-, that is, the output of positive and negative poles

B+ B-is the abbreviation of battery, which is the positive and negative pole of the battery.

Continuous discharge current:15A(max)

Instantaneous discharge current:25A

Charge voltage: 21V

Charging current: 15A(max)

Over-charge detect:4.28±0.05 V

Protect delay: 0.5S

Over-charge release: 4.28±0.05V

Over-discharge detect: 2.55±0.08V

Detect delay: 250uS

Detect voltage:150mV

Detect delay: 9MS

Current detect: 30±3A
