ماژول مبدل DC-DC افزاینده XL6009/LM2577

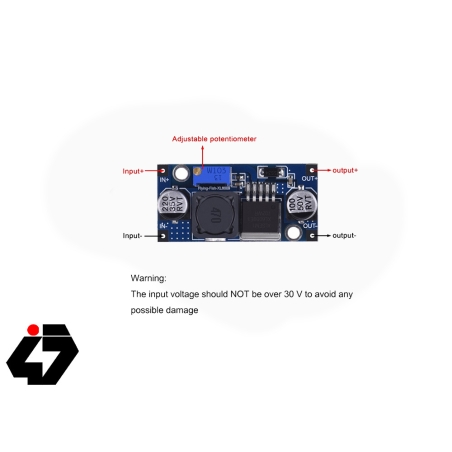

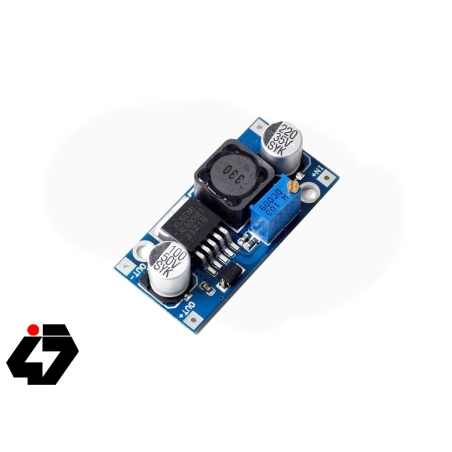

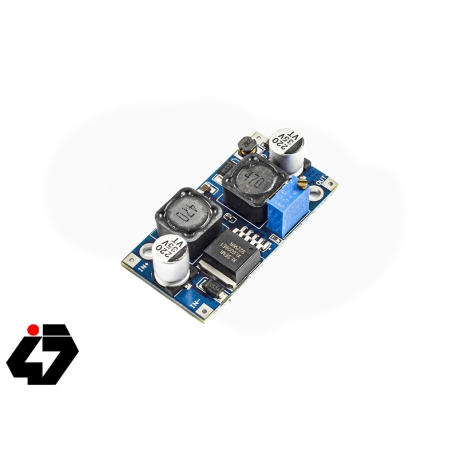

This is a high-performance switching current 3A boost (BOOST) module. The module uses the second generation of high-frequency switching technology XL6009E1 core chip, performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance.

Module Properties: non-isolated step-up module (the BOOST)

5-32V input voltage

Output voltage: continuously adjustable (5-35V)

Output Current: 2.5A (MAX)

Input Current: 3A (peak to 5A) (5A current chips)

Output power: natural cooling real power of 15W, plus heat sink 25W (MAX)

Maximum output power = input voltage * 5A * conversion efficiency

Output power limit (conditions: heat well):

Input 5V output 12V 1.2A

Input 5V output 24V 0.6A

Input 7.4V output 12V 2A

Enter the 7.4V output 19V 1.2A

Enter the 7.4V output 24V 0.9A

Input 12V output 19V 2A

Input 12V output 24V 1.5A

Conversion efficiency: 92% (Highest)

Switching Frequency: 400KHz

Output ripple: 50mV (Maximum)

Load regulation: ±0.5%

Voltage Regulation: ±0.5%

Operating temperature: industrial grade (-40 ° C to +85 ° C)

(ambient temperature over 40 degrees, to reduce power use, or to enhance heat dissipation)

Size 48*23*14（L * W * H）（mm）
