ولتمتر روپنلی دیجیتالی UP5135 200V DC

Power Supply: DC: 5V, or AC: 7-12V, or AC: 120V-500Vmeasurement displa

Frequency range: 50HZ±10%

Power consumption: ≤1.5VA

Accuracy: 0.2%±3 characters

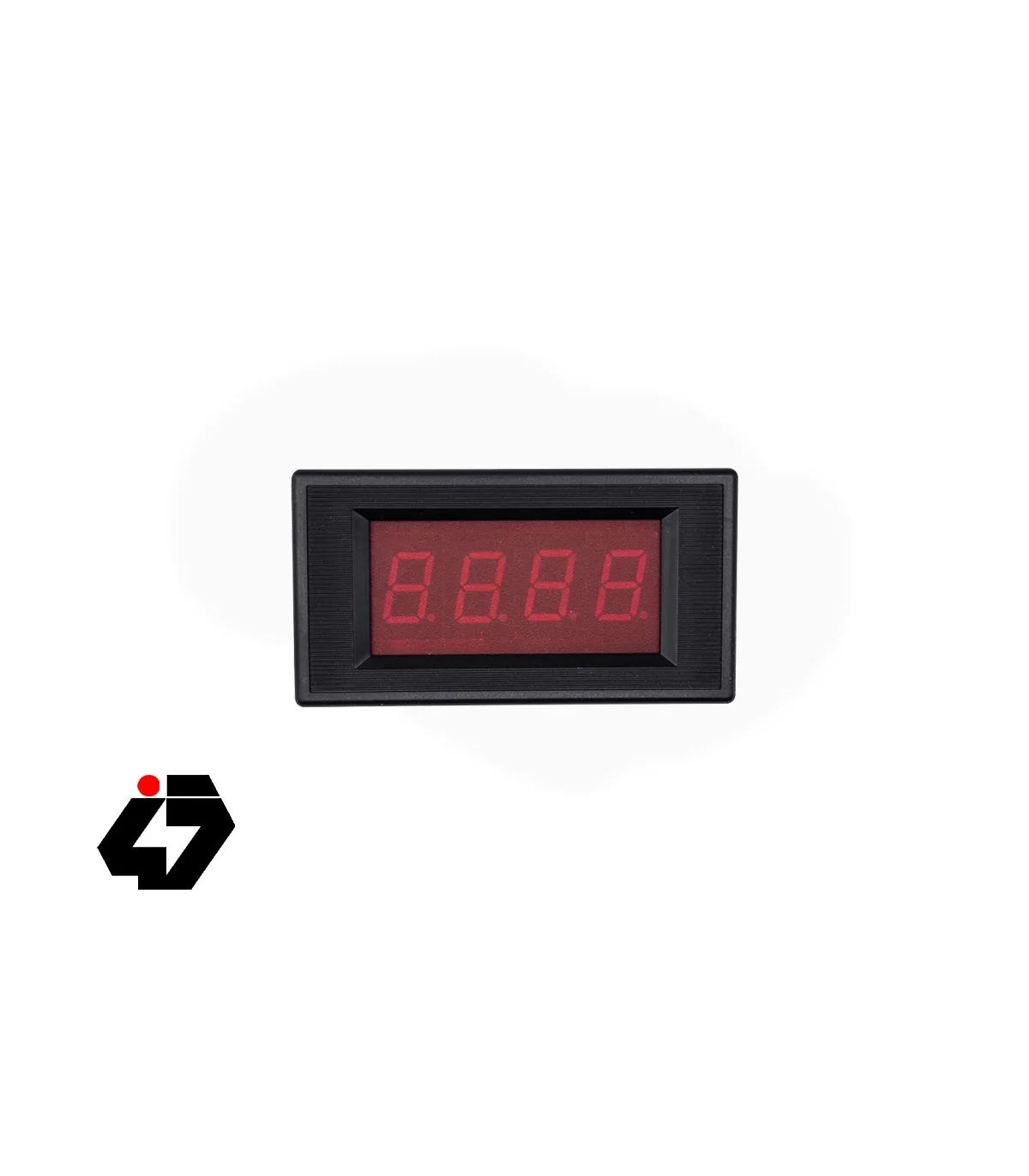

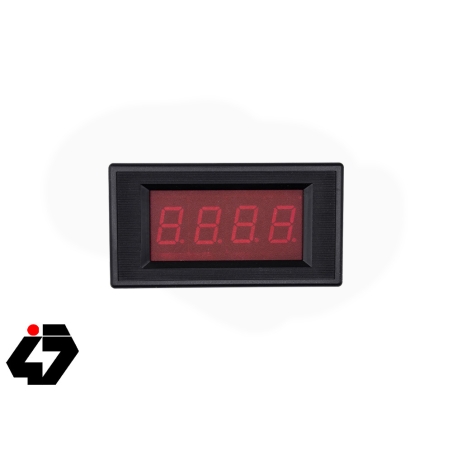

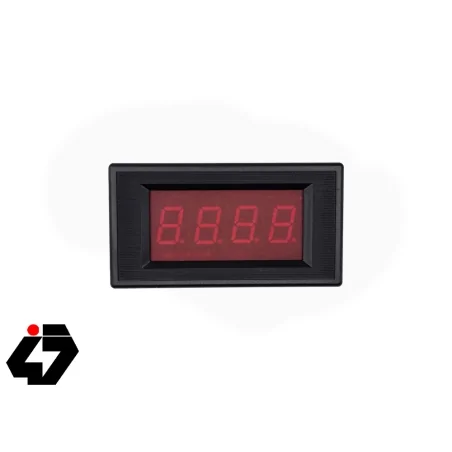

LED: highlight 0.56 display, one second’s data update

Over range indication: 1 or -1

Display range: 0-1.999

Overload: for continuous 1.2 times, and for instantaneous: voltage 2 times/5S, current 5 times/5S.

Isolation voltage: 2KV/50HZ/1min

Insulation resistance: ≥100MΩ

Average working time without breakdown: ≥5000H

Working conditions: temperature: -25℃~55℃;

relative humidity: ≤93% with no corrosive gas

Altitude: ≤2500M

Time aging: all the products have been time-aged, so that it can stably work in a long-term to reduce the impact of external environment on the meter, offering users a satisfactory product.

Note:

 Should be used in the temperature range: -25℃~55℃, humidity: ≤80%, to prevent undesirable phenomena caused by temperature changes.

 Take care of vibration and shock.

 Do not use it in places with dust, gas and chemicals harmful for electrical products.

. If the abnormal voltage is caused by the magnetic field, high frequency devices, high voltage spark, lightning and etc, please use the external power line filter or non-linear resistors to interfere and absorb the circuit.

 The signal input line should be as short as possible, and

st machine. (1, 2, 3, 4 steps is the module input power, output no-load not connected to the LED lamps).
