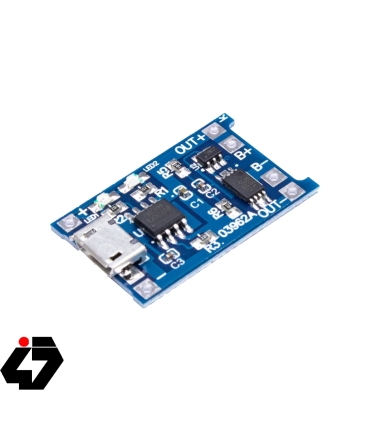

شارژر 5V 1A میکرو USB باتری های لیتیومی به همراه محافظ
مناسب برای شارژ باتری های لیتیومی با خروجی 1 آمپر دارای دو نشانگر LED جهت نمایش وضعیت باتری و محافظ شارژ و دشارژ
با این ماژول می توانید به راحتی باتری های لیتیومی را شارژ کنید. همانطور که در تصویر می بینید ماژول تغذیه ی 5 ولتی خود را از طریق سوکت USB تامین می کند و همچنین می توانید از پین های کناری سوکت جهت اعمال ولتاژ استفاده کنید. شارژر دارای دو نشانگر LED جهت نمایش وضعیت باتری و محافظ شارژ و دشارژ است
Introduction

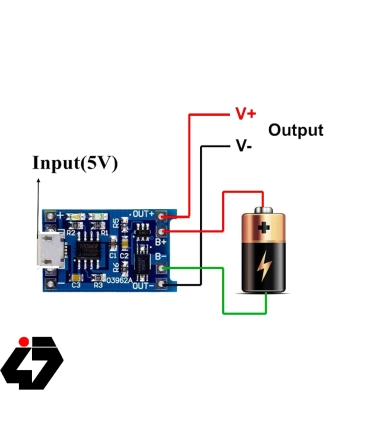

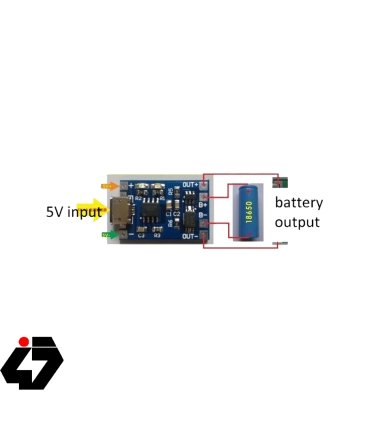

Micro USB is connected to the phone charger
Li-Ion battery pole is connected to B + and B-
Electrical loads such as lights, toys, mobile phones, etc., connected to the OUT + and out-, so that over current protection and over-discharge function. When bypassed directly to B + and B- The protection function will not work and could potentially damage the Li-Ion battery.
Tips: The current recommended input cas about 37% of the battery capacity. When the battery was about to be charged with a capacity of 1000mAh, charge current 400mA input is enough.
Specification
Charge the module Linear charging.
Current- 1A adjustable.
Charge precision- 1.5%.
Input voltage- 4.5V-5.5V.
Full charge voltage- 4.2V.
Led indicator- red is charging Green is full charged.
Interface- micro USB input.
Work temperature- -10 to +85.
Inversed polarity- NO.
Size- small about 26mm x 17mm
مشخصات
- ابعاد
- 26mm. 17mm سانتی متر
- ولتاژ ورودی ( کاری )
- 4.5V-5.5V
- دمای کاری
- 10الی 85+. سانتی گراد
- نشانگر
- قرمز در حال شارژ شدن است سبز شارژ کامل است.
- ورودی
- ورودی میکرو USB.
- ولتاژ شارژ
- 4.2V
- دقت در شارژ
- 1.5 درصد
