ماژول رگولاتور کاهنده 8 آمپر 200 وات XL4016E1

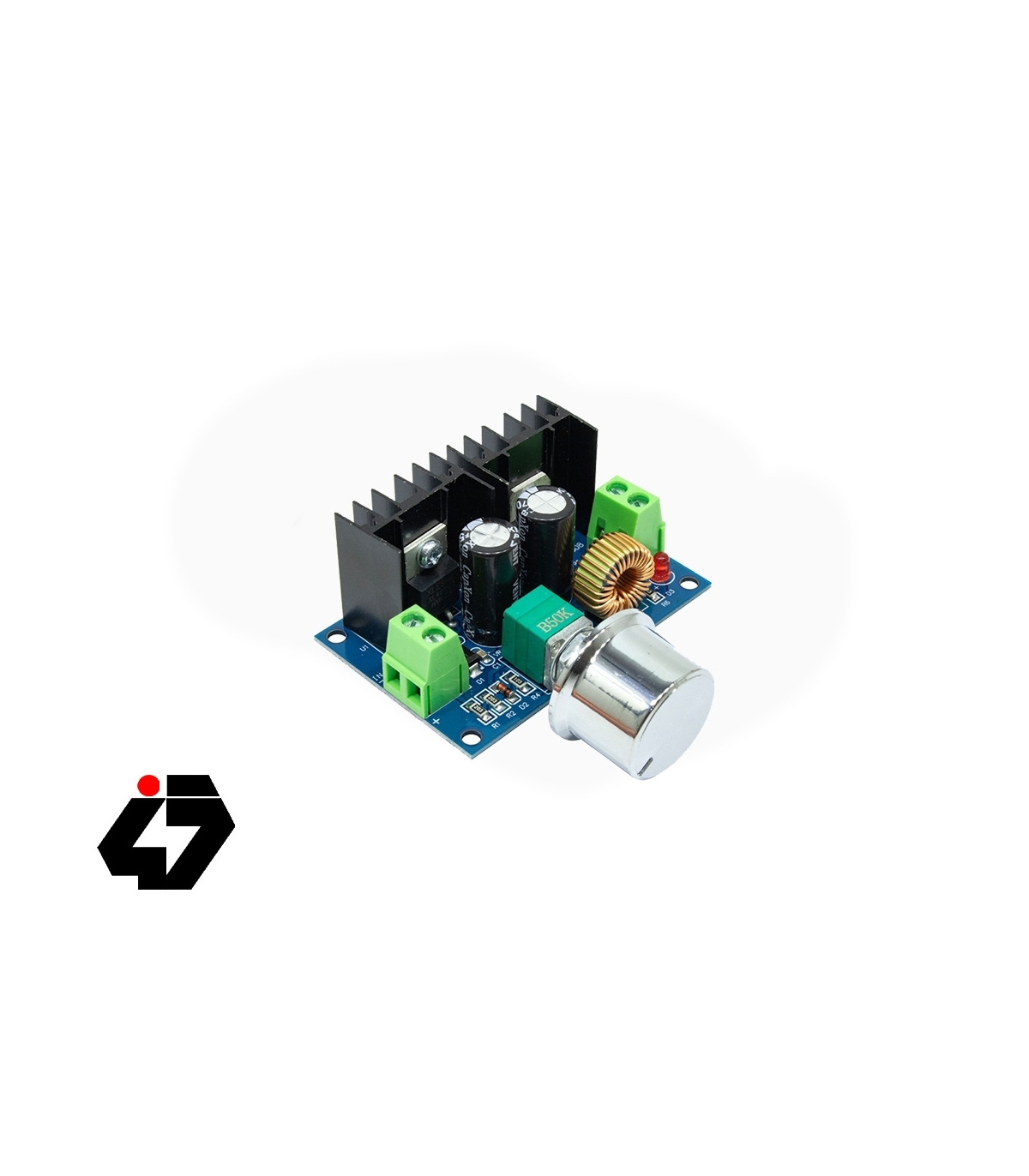

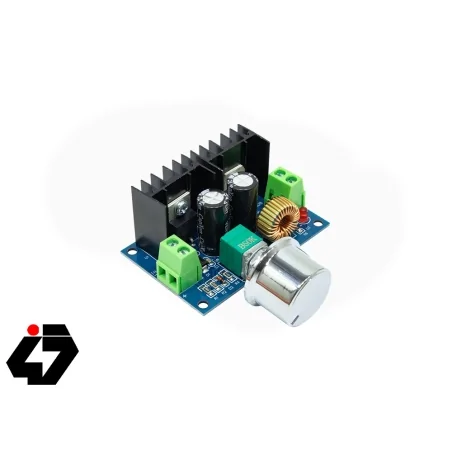

1Pcs XH-M401 DC-DC Buck Module XL4016E1 High-Power DC Voltage Regulator 8A With Regulator

This product uses XL4016 switch regulator chip, with MBR10200 dual rectifier, the input up to 40V, the output 1.25-36V continuously adjustable

It can be adjusted or turned off by the knob, more convenient to operate

Output current up to 8A. Using when Use fan ! Long-term work recommended within 5A!

With multiple protection: over-current protection, over-temperature protection and short circuit protection, etc., more safe to use.

Product Name: DC voltage regulator

Regulating mode: PWM modulation

Input voltage: DC4-40V

Output range: DC1.25-36V

Current: 8A

Power: 200W

Conversion efficiency: 94%

Switching frequency: 180KHz

Dimensions: 61 * 41 * 27mm
