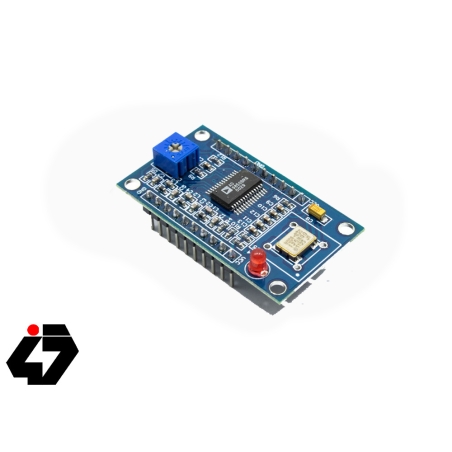

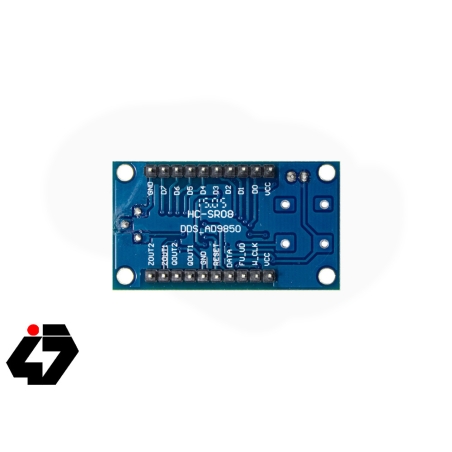

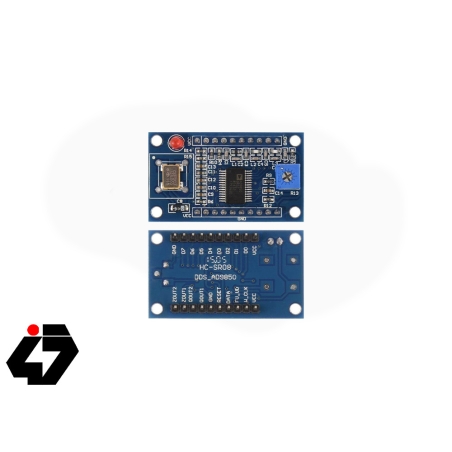

ماژول سیگنال ژنراتور AD9850

سیگنال ژنراتورهای آزمایشگاهی

اسیلاتورهای دستگاه های مخابراتی

Module can output sine and square wave, two sine and two square wave output.

AD9850: 0-40MHz

AD9851: 0-70MHz

After the 20-30MHz frequency harmonics increases, the waveform will become unclean.

Square wave: 0-1MHz

The use of 70MHz low-pass filter, so that the waveform better than SN

 Pin (PIN12) leads generated DA benchmark, easy to do the output waveform amplitude adjustment application.

 Reference input voltage comparator is generated by a variable resistor, adjust the resistance can get different duty cycle square wave

 AD9850 module uses the 125MHz active crystal, AD9851 module using the active crystal 30MH
