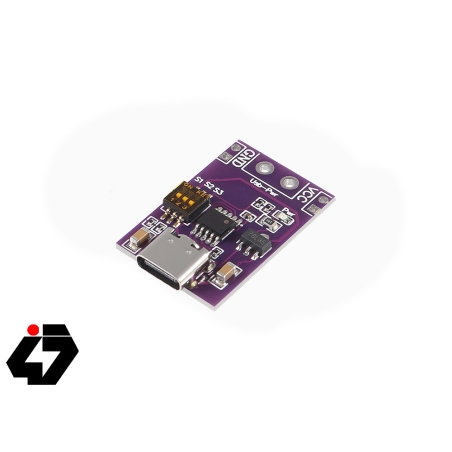

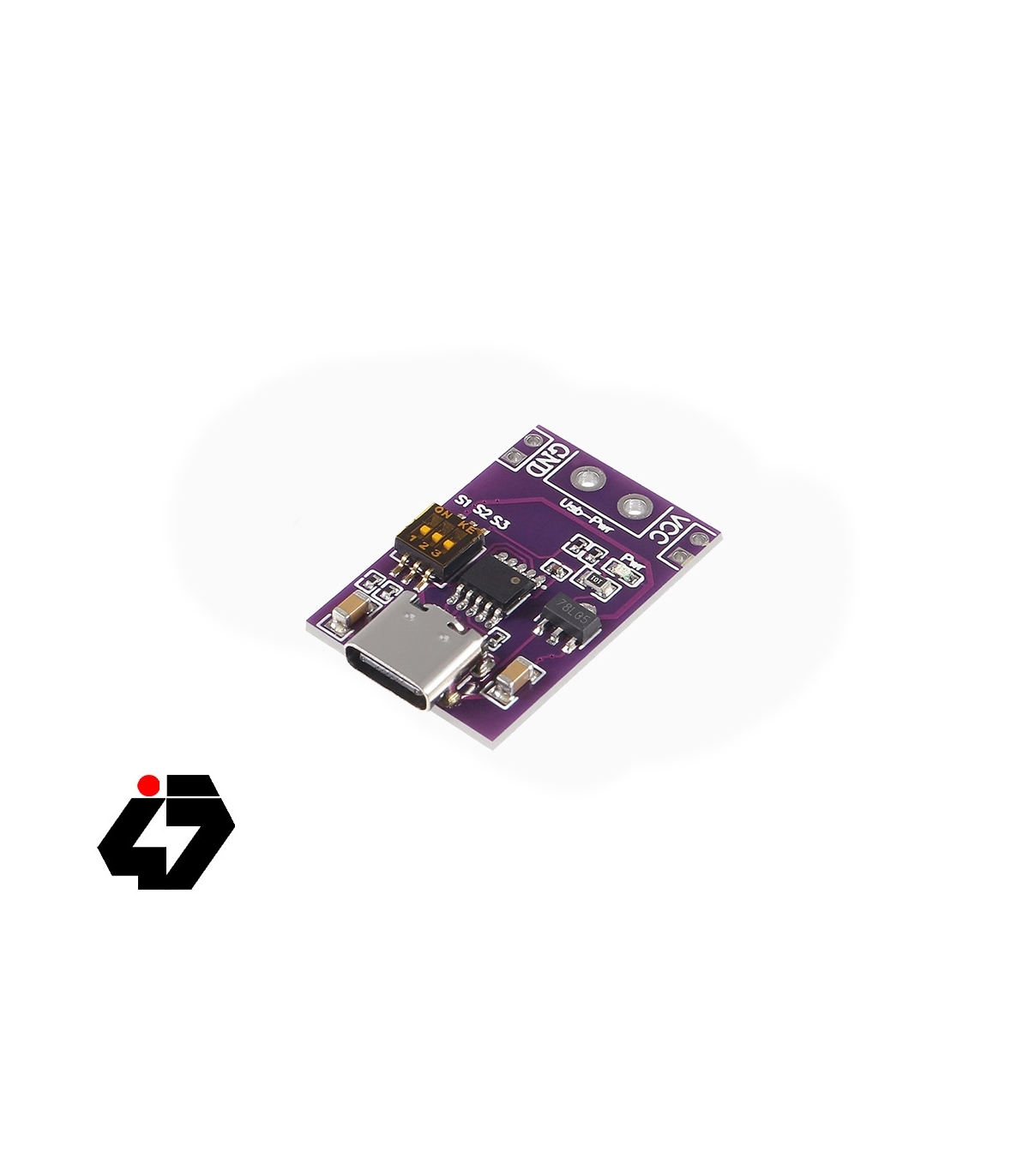

ماژول تستر انواع پروتکل های فست شارژ PD/QC/AFC

5V, 9V, 12V, 15V, 20V voltage

PD/QC/AFC Fast charge decoy trigger

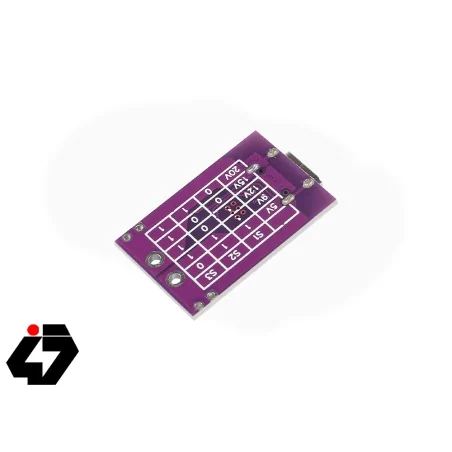

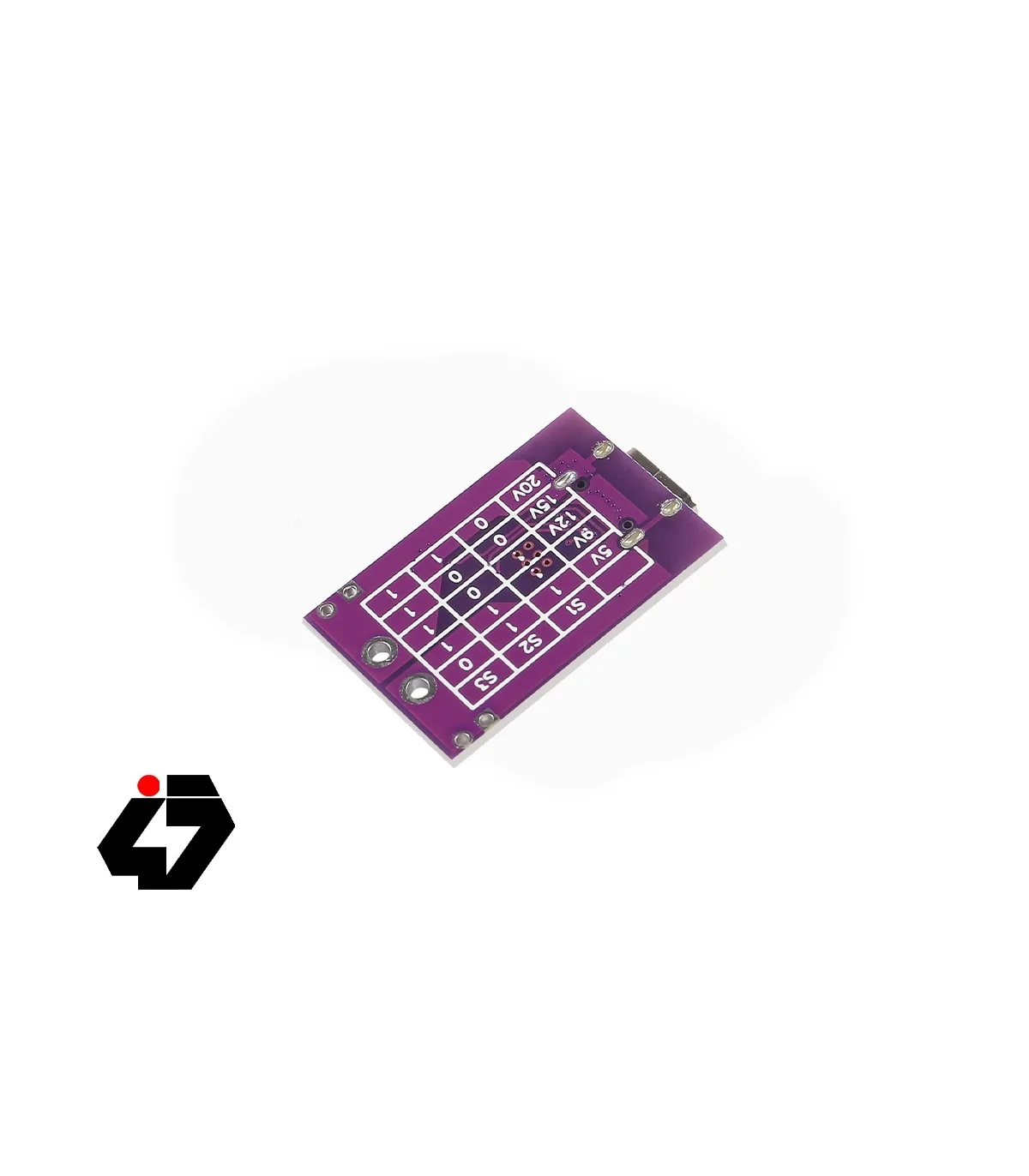

Fast charging protocols: PD2.0/PD3.0, QC2.0/QC3.0, and AFC Voltage: 5V, 9V, 12V, 15V, 20V(voltage step is not supported) Voltage regulation: According to the table on the back of the board, adjust the dip switch to control the voltage output

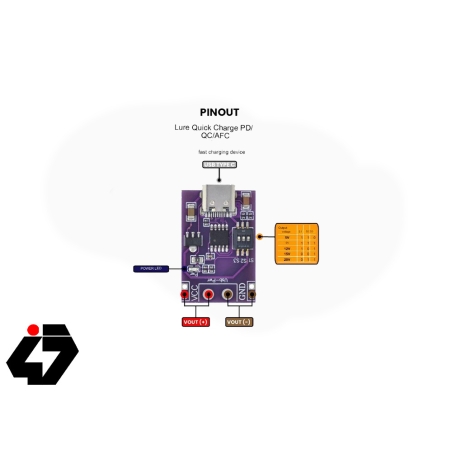

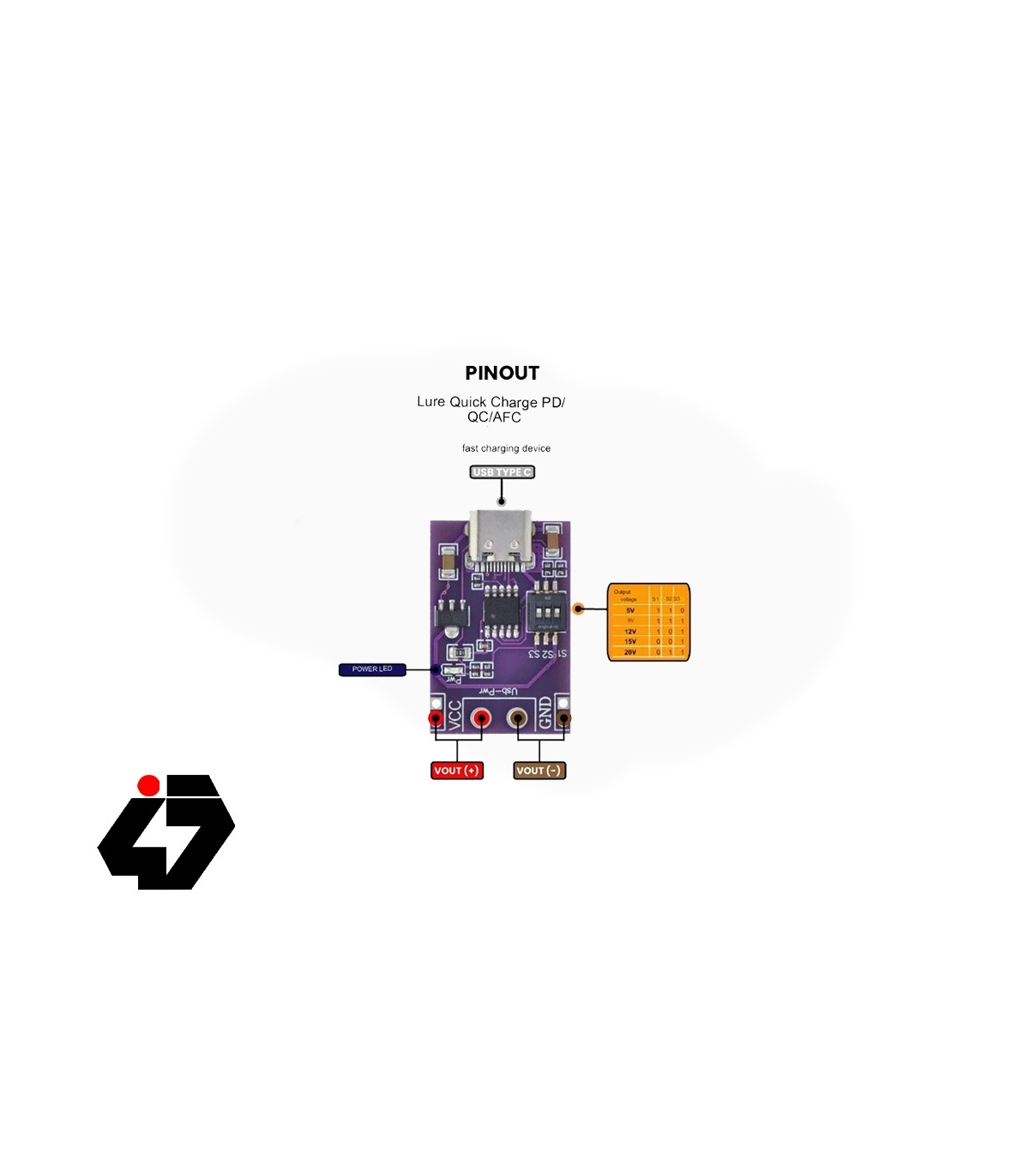

Voltage adjustment method: According to the table on the back of the board, adjust the DIP switch to control the voltage output

After adjusting the DIP switch, since there is no voltage indicator, it is recommended to use a multimeter to measure the voltage before connecting to the application circuit.

If the DIP switch is not adjusted according to the table, the module will output any one of the above voltages.

Material: ABS

1 x Power change board module

Only the above package content, other products are not included.

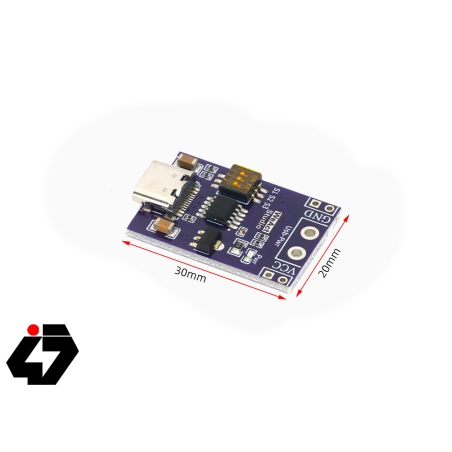

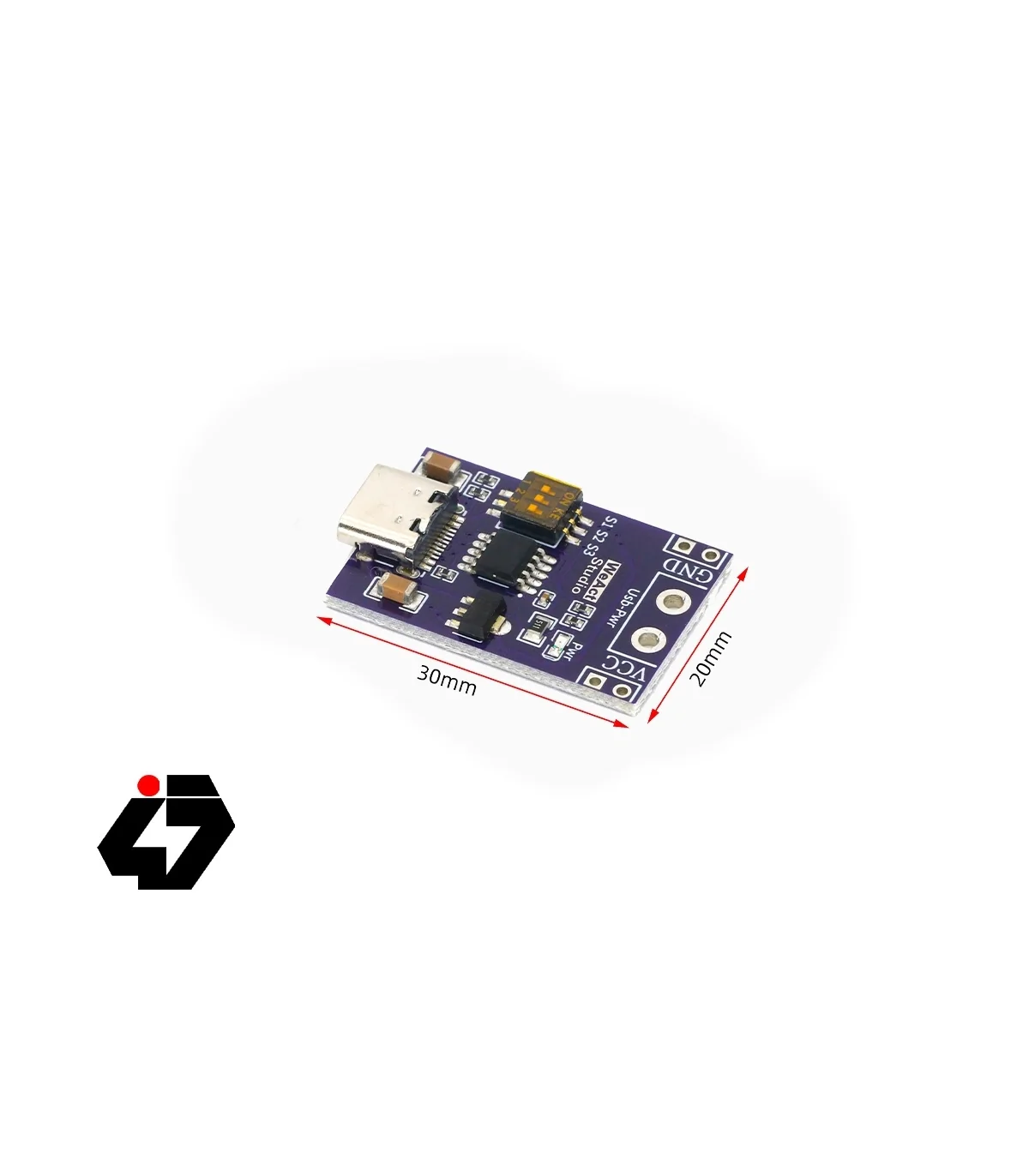

Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
