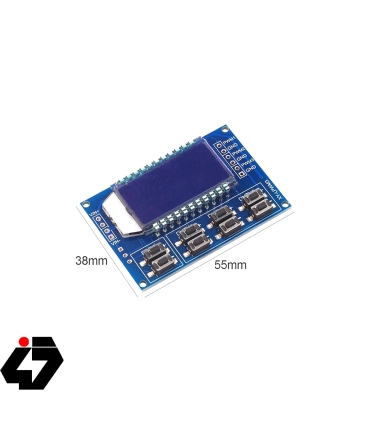

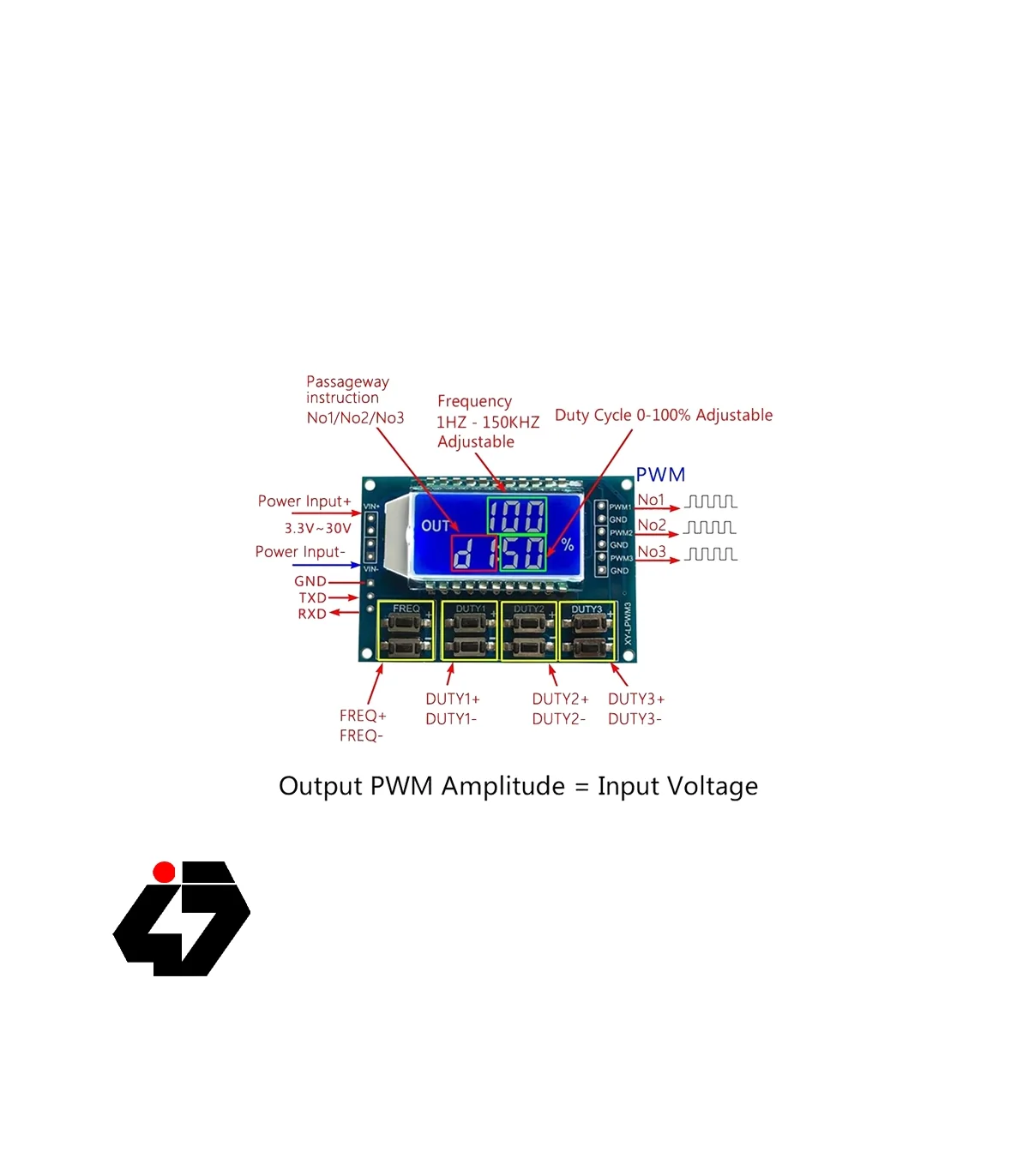

ماژول سیگنال ژنراتور PWM سه کاناله دارای قابلیت تولید پالس مربعی قابل تنظیم میباشد که با استفاده ازسه کانال PWM مستقل، به طور همزمان می توان مقدار Duty Cycle و فرکانس را تنظیم کرد.این ماژول دارای دقت بسیار بالا و دامنه فرکانس بسیار گستردهای میباشد. از ماژول سیگنال ژنراتور میتوان برای تولید پالسهای قابل تنظیم و کنترل مدارهای مرتبط استفاده کرد.
Specification

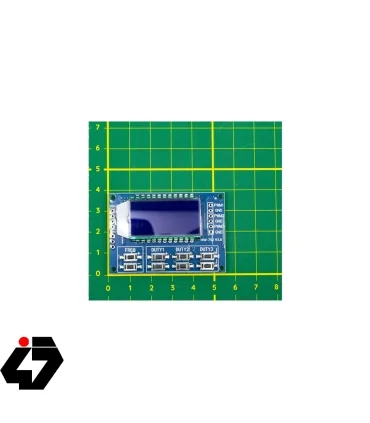

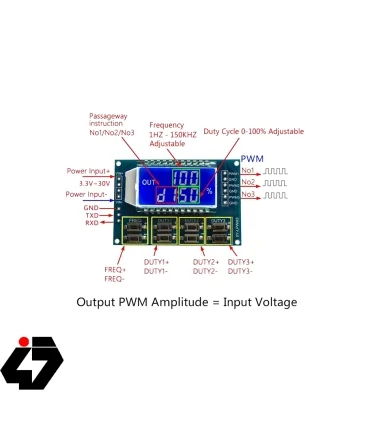

1. Three-way PWM output, adjustable frequency, three-way frequency output, duty cycle can be adjusted independently, suitable for most occasions;
2. LCD liquid crystal display frequency and duty cycle, very clear, very easy to adjust
3. Wide frequency range and high accuracy;
4. Serial communication
First, module description

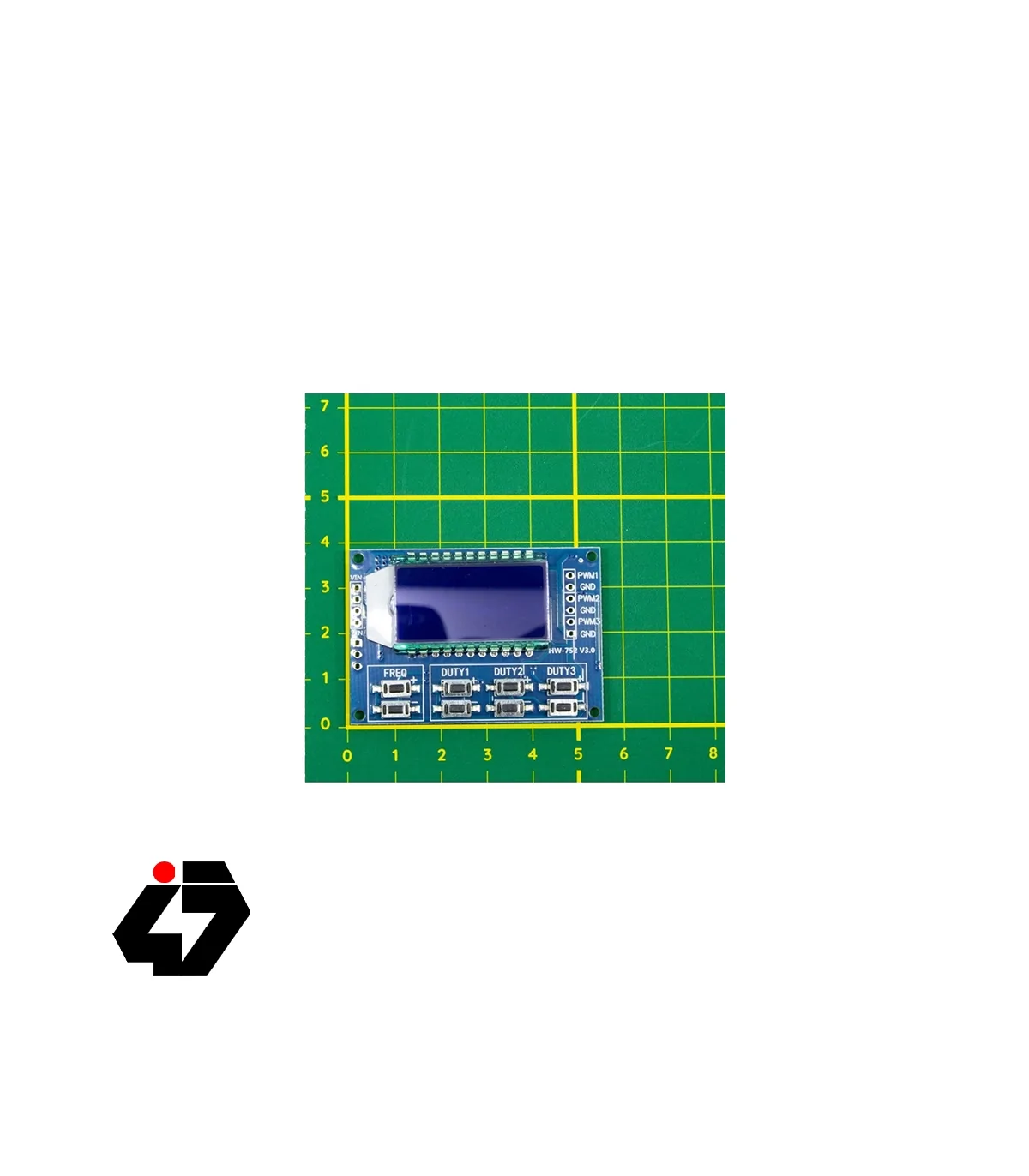

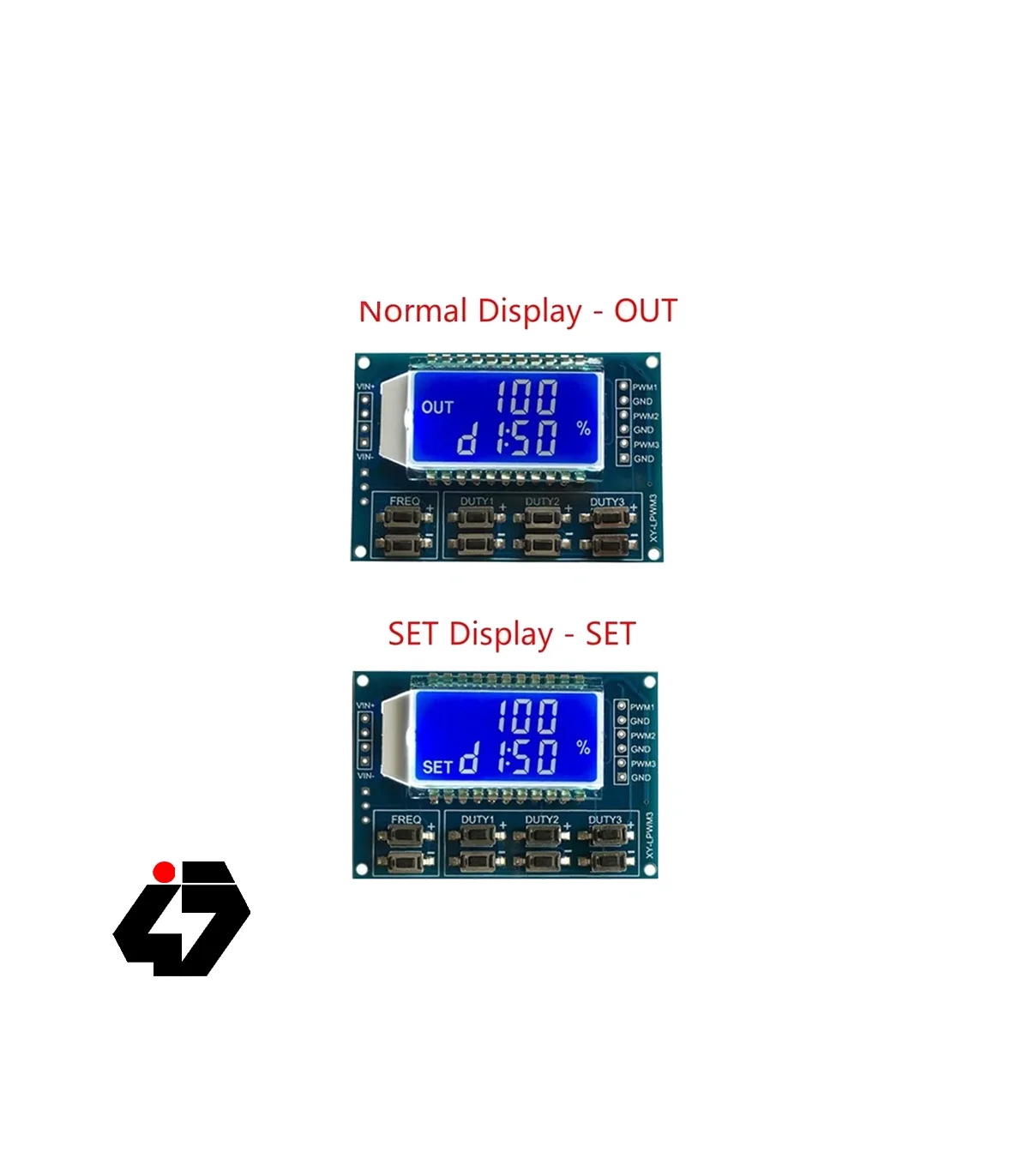

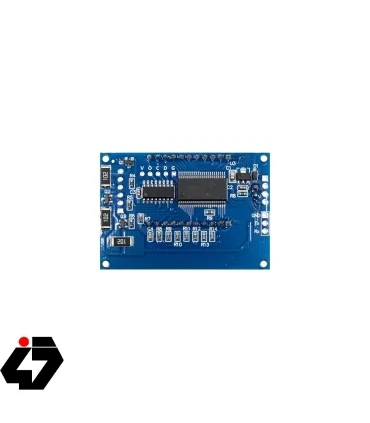

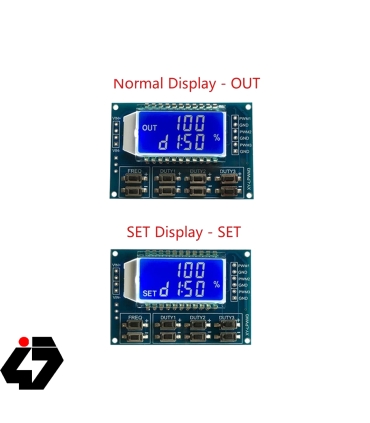

3-way PWM output, wide frequency range, duty cycle can be adjusted independently in real time;
Duty cycle values range from 0 to 100%, where 100% is expressed in A%.
All setting parameters are saved after power off.
Second, the parameter settings
The module has 8 independent keys to set the frequency and duty cycle, support short press (increase or decrease a unit) and long press (fast increase or decrease), it is very simple, set parameters automatically save, power off is not Lost.
The 3-way duty-cycle button can be pressed at the same time, real-time adjustment, LCD display is the duty cycle of the last pressed button, real-time is very strong, can be used as a simple several-way duty cycle scan.

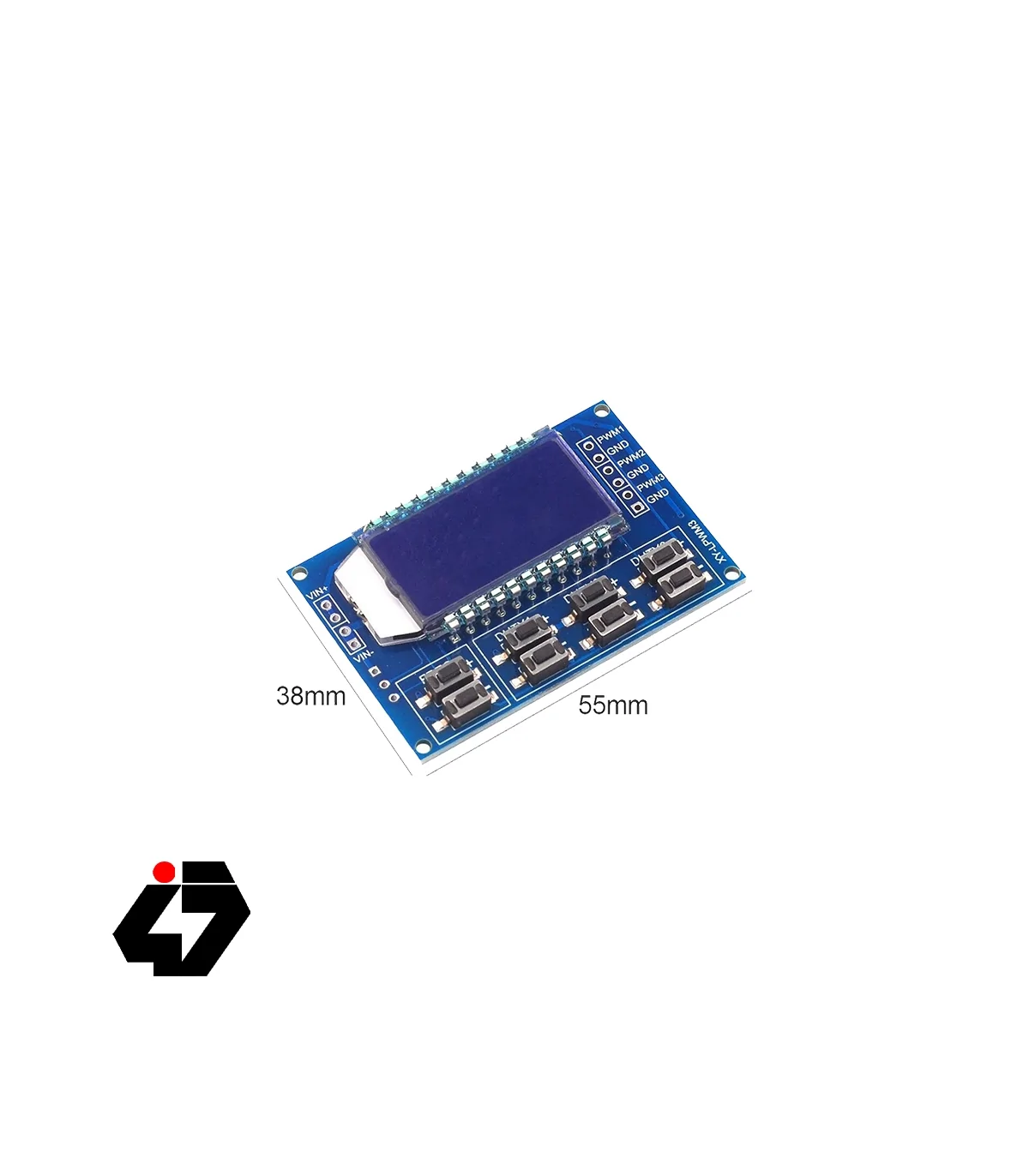

Third, the module parameters:
1. Working voltage: 3.3~30V;
2. Frequency range: 1Hz~150KHz;
3. Frequency accuracy: The accuracy in each range is about 2%;
4. Signal load capacity: The output current can be around 5~30ma;
5. Output amplitude: PWM amplitude and supply voltage are equal;
6. Ambient temperature: -20~+70¡ãC.
Fourth, the scope of application:
1. It is used as a square wave signal generator to generate square wave signals for experimental development and use;
2. Used to generate a square wave signal to control the motor driver;
3. Generate adjustable pulses for use by the MCU;
4. Generate adjustable pulses, control the
مشخصات
- ولتاژ ورودی ( کاری )
- 3.3 الی 30 ولت
- فرکانس
- 1 الی 150 کیلو هرتز
- جریان خروجی
- 5 الی 30 میلی آمپر
