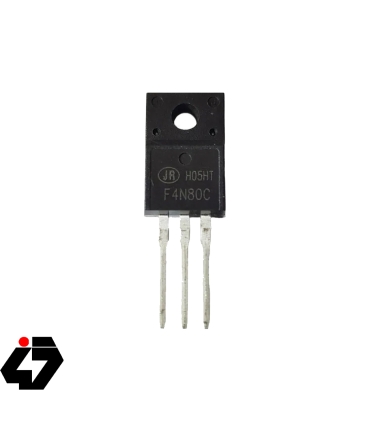

ترانزیستور 4N80 TO-220F

TR 4N80 TO-220F

N–Channel Enhancement–Mode Silicon Gate

This high voltage MOSFET uses an advanced termination

scheme to provide enhanced voltage–blocking capability without

degrading performance over time. In addition, this advanced TMOS

E–FET is designed to withstand high energy in the avalanche and

commutation modes. The new energy efficient design also offers a

drain–to–source diode with a fast recovery time. Designed for high

voltage, high speed switching applications in power supplies,

converters and PWM motor controls, these devices are particularly

well suited for bridge circuits where diode speed and commutating

safe operating areas are critical and offer additional safety margin

against unexpected voltage transients.

• Robust High Voltage Termination

• Avalanche Energy Specified

• Source–to–Drain Diode Recovery Time Comparable to a

Discrete Fast Recovery Diode

• Diode is Characterized for Use in Bridge Circuits

• IDSS and VDS(on) Specified at Elevated Temperature
