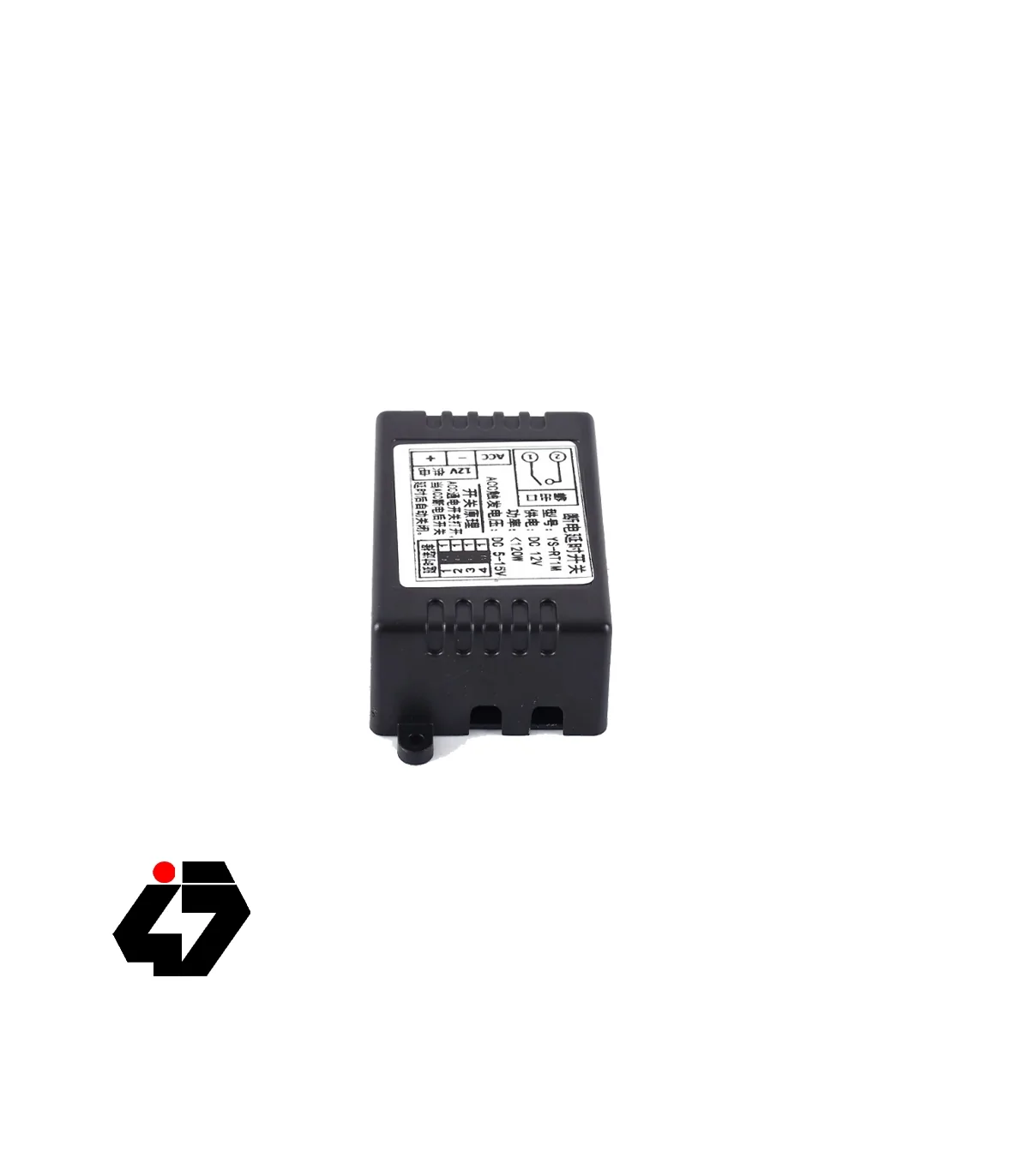

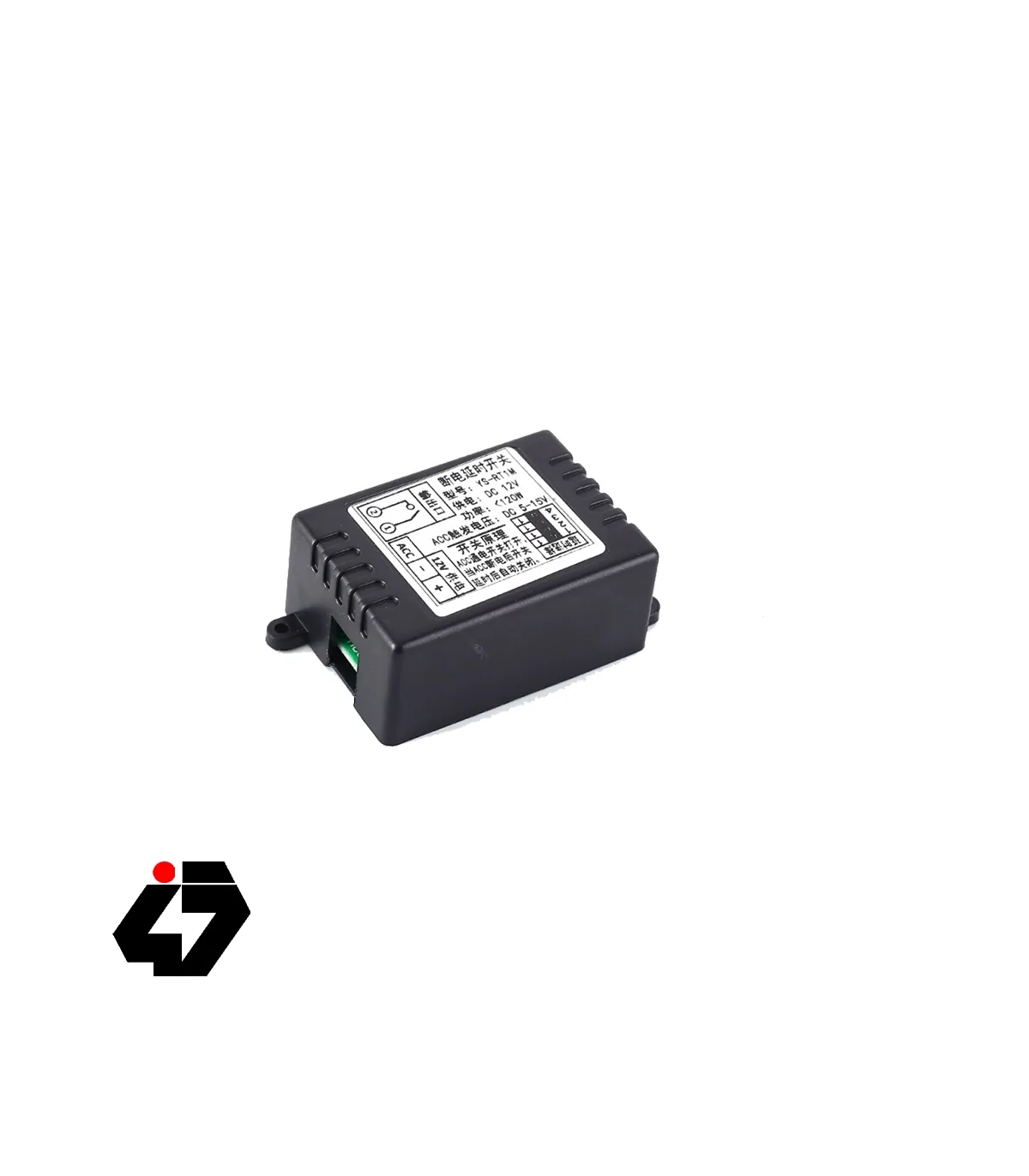

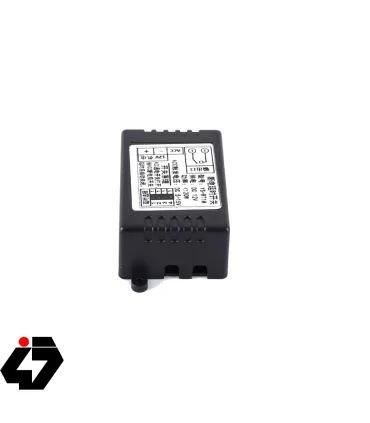

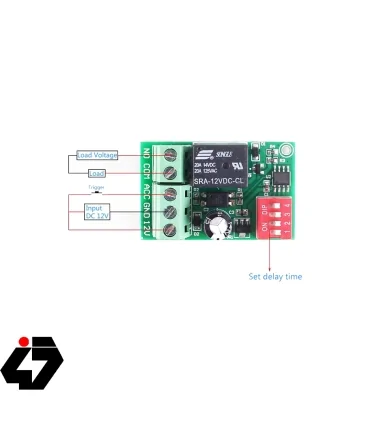

ماژول رله 12 ولت تاخیر در قطع مدل YS-RT1M

Introduction

This switch is triggered after the switch is opened and then closed after a delay, when the power supply port is connected After the power is turned on, the trigger port accepts 5-15V voltage to trigger the switch will be activated turning on and counting after the set time.Close automatically. (So ​​that this switch can achieve small current control large current or the control line is on and off to achieve the effect of tripping the load).

Specification

Name : Auto power off delay switch

Model : YS-RT1M

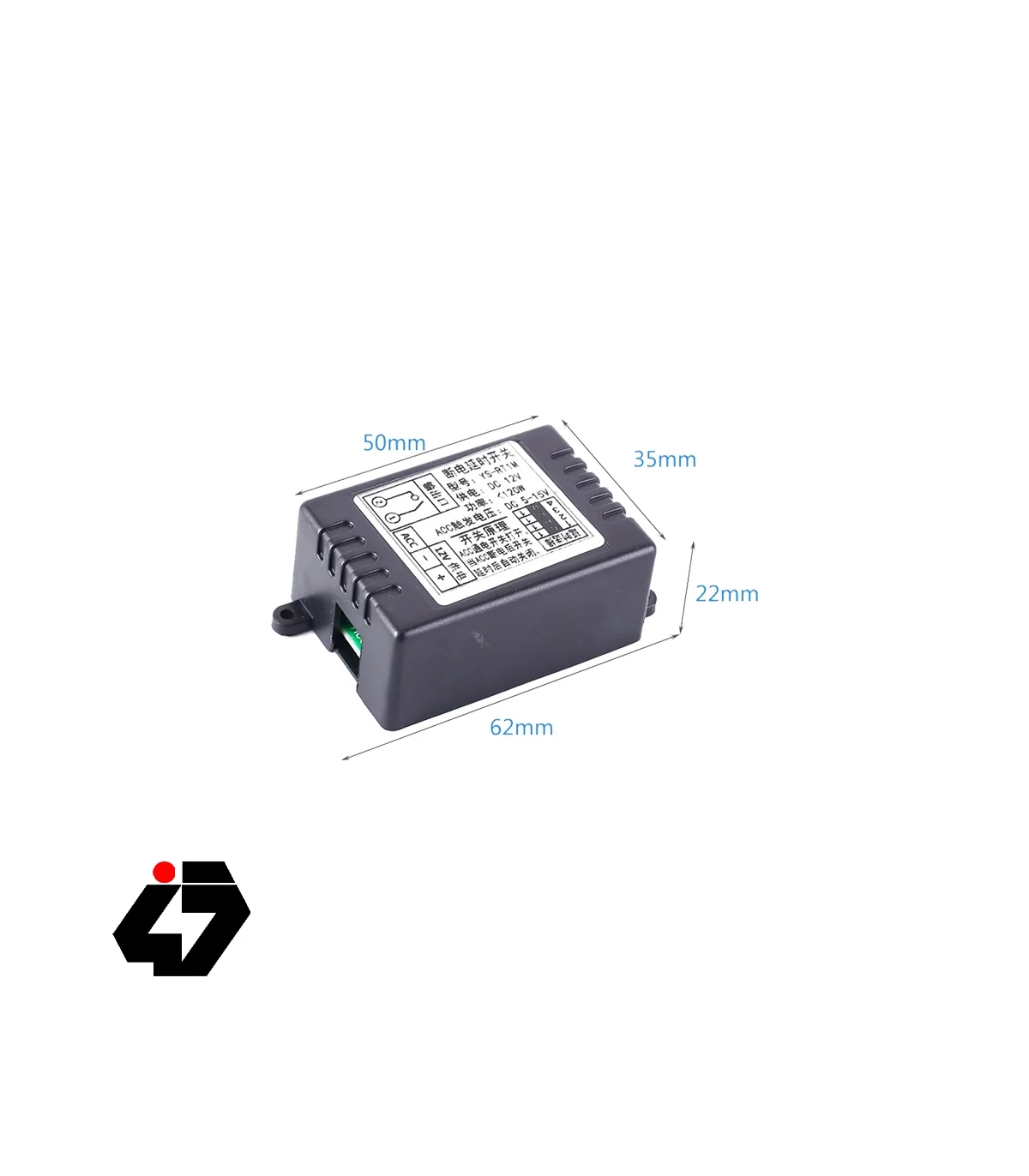

Specification : 50x35x22mm

Supply voltage : DC 12V

Working current : 68ma (current after the trigger switch is turned on )

Standby current : 2.7mA

Output terminal control voltage : DC 0-14V, AC 0-125V

Output control current : <11A

Working temperature : -20 ℃ to 70 ℃

Working principle : After the device is connected to the power supply, the trigger port provides voltage trigger, and the switch is automatically closed after a delay period.
