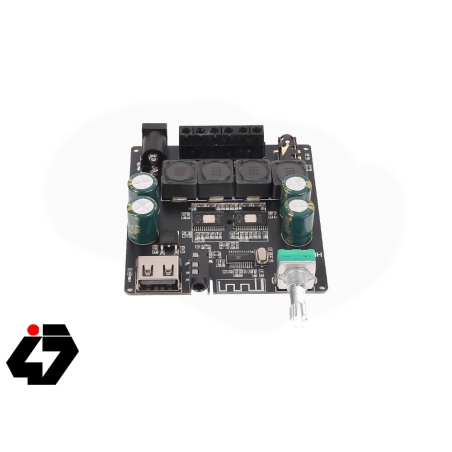

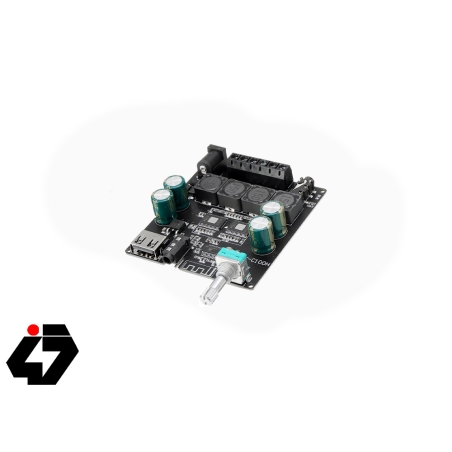

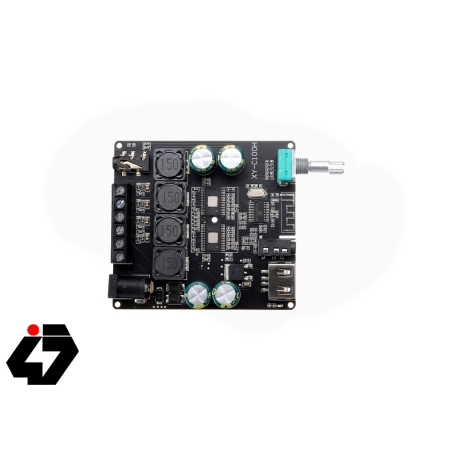

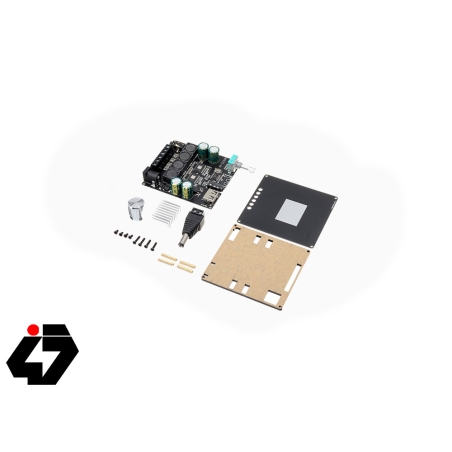

ماژول آمپلی فایر بلوتوثی 2X100W مدل XY-C100H با توان خروجی متغیر

XY-C100H is a high-power Stereo Bluetooth Audio module. Two channel audio signal output. Built-in amplifier module, so it can connect to speaker directly. It is ideal for DIY wireless Bluetooth speakers and transponders.

It can work with Sinilink App which can display can monitor current voice source and change equalizer.

Product Name: XY-C100H 100W*2 HiFi Bluetooth Amplifier Module

Item No.: XY-C100H

Working voltage: DC 5.0V~26V

Amplificateur IC:TPA3116D2

Control type: Sinilink Bluetooth/APP control

Audio input type: Bluetooth / AUX / U-disk / PC USB sound card

version Bluetooth: BLE 5.0

Communication distance: 15 meters (Max)

Channel: dual channel stereo output

Output impedance: 4ohm~16ohm

Matching speaker: 10W~300W

Sortie Audio: sortie audio Active/Passive

Output power:

Output power 30W*2 at 12V 8ohm

Output power 40W*2 at 12V 4ohm

Output power 36W*2 at 15V 8ohm

Output power 60W*2 at 15V 4ohm

Output power 64W*2 at 19V 8ohm

Output power 90W*2 at 19V 4ohm

Output power 80W*2 at 24V 8ohm

Output power 100W*2 at 24V 4ohm

reverse connection protection: yes

overheating protection: yes

short circuit protection: yes

overvoltage protection: yes

undervoltage protection: yes

Operating temperature range: -40℃~85℃

Working humidity range: 5%-95% RH

Module size: 70*65*18mm

Sensitivity: -80dBm

Frequency range: 2.4-2.480GHz

External interface: I2C, SPI and UART interface

Audio performance Audio decoding SBC

SNR: ≥60dB

Module size : 25X13.5X1.8mm
