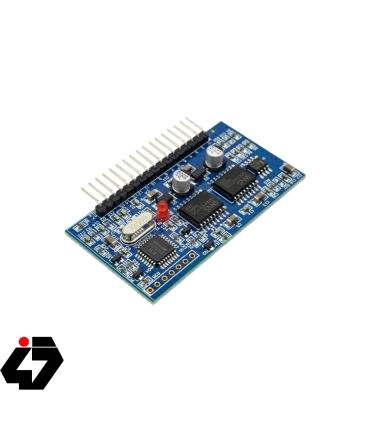

ماژول اینورتر موج سینوسی خالص EGS002

این مدار ساده اینورتر سینوسی بدون برنامه ریزی است که با استفاده از آن میتوان یک اینورتر سینوسی خالص بدون نیاز به پروگرم کردن داشت. با استفاده از ASIC EG8010 به عنوان تراشه کنترل و IR2113S به عنوان درایور استفاده میشود. این برد قادر است حفاظت ولتاژ، جریان، دما، کنترل فن و نمایشگر LED را انجام دهد، همچنین با اتصال به یک LCD ما قادر خواهیم بود میزان ولتاژ، جریان، دما و فرکانس خروجی را مانیتور کنیم. با استفاده از جامپر میتوانیم عملکردهای برد را محدود و یا گسترش دهیم.

مشخصات

 منبع تغذیه 5V

 4 پین مجموعه فرکانس خروجی موج سینوسی خالص:

 یکپارچه و مدولاسیون دو قطبی

 همراه با کنترل دودمان، پین 4 زمان:

 نوسانگر کریستالی 12 مگاهرتزی خارجی

 فرکانس حامل PWM برابر 23.4KHz است

 دارای فیدبک ولتاژ، جریان و دما

 دارای مدار محافظ Overvoltage, under voltage, overcurrent, overheating

 دارای ارتباط سریال برای تنظیم ولتاژ خروجی، فرکانس و سایر پارامترها

کاربرد

• اینورتر موج سینوسی تک فاز

• PV Inverter

• اینورتر قدرت باد

• سیستم UPS

• سیستم ژنراتور دیجیتال

• کنترل سرعت موتور تک فاز

• اینورتر تک فاز

• دینام موج سینوسی

• رگولاتور موج سینوسی

• ژنراتور موج سینوسی

Introduction

The EG8010 is digital, a function very well its own control of the dead time sinusoidal inverter chip generator, used in two stages DC-DC-AC structure energy conversion or single-stage DC-AC Industrial transformer Boost architecture, external 12 MHz crystal oscillator, to achieve high accuracy and the harmonic distortion is very small, 50 Hz or 60 Hz pure sine wave inverter ASIC. The chip uses CMOS technology, SPWM internal integration, a sinus generator, a dead time control circuit, a multiplier ratio range, a soft start circuit, a protection circuit, an RS232 serial interface, and a serial LCD display of the function driver module 1602.

Specification

Power supply 5 V

4 pin set of pure sine wave output frequency

50 Hz Pure sine wave fixed frequency 60 Hz Pure sine wave fixed frequency 0-100 Hz

Pure Sine Wave Adjustable 0-400 Hz Pure Sine Wave Adjustable

Unipolar and Bipolar Modulations

Comes with deadband control, pin 4 dead time

300nS dead time 500nS dead time 1,0us dead time 1,5us dead time

External crystal oscillator 12 MHz

PWM carrier frequency 23.4 kHz

Current temperature real-time feedback

overvoltage, undervoltage, overcurrent and overheat protection

Soft start mode pin response time setting 1 s

Serial connection for setting output voltage, frequency and other parameters

External serial module 1602 displays the inverter

Information on voltage, frequency, temperature and current

Applications

Single-phase pure sine-wave inverter

PV inverter

Wind Inverter

Uninterruptible Power UPS Systems

System digital generator

If power

Single-phase motor speed regulator

Single-phase inverter

Sine wave dimmer

Sine wave regulator

Sine wave generator

ادامه مطلبShow less
جزئیات محصول
473011007088

مشخصات

منبع تغذیه
5V
