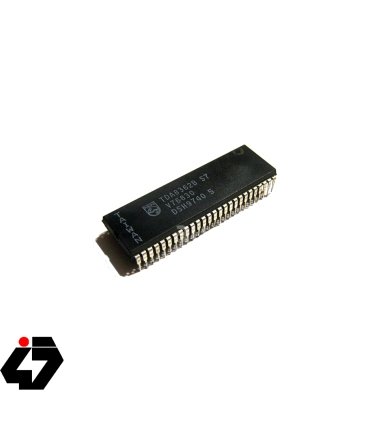

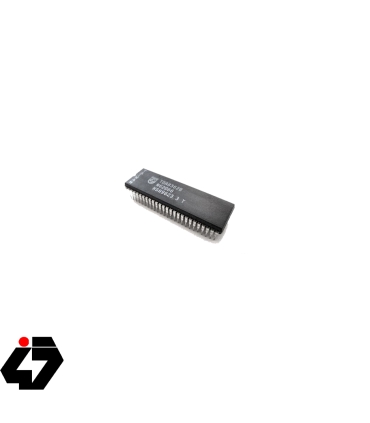

تراشه آمپلی فایر TDA8362B

TDA8362 Features

 Multistandard vision IF circuit (positive and negative modulation)

 PAL/NTSC colour decoder with automatic search system

Source selection for external A/V inputs (separate Y/C signals can also be applied)

 Easy interfacing with the TDA8395 (SECAM decoder) for multistandard applications.

RGB control circuit with linear RGB inputs and fast blanking

Horizontal synchronization with two control loops and alignment-free horizontal oscillator without external components

Vertical count-down circuit (50/60 Hz) and vertical preamplifier

Low dissipation (700 mW)

 Small amount of peripheral components compared with competition ICs

 Vision IF amplifier with high sensitivity and good differential gain and phase

 Integrated chrominance trap and bandpass filters (automatically calibrated)
