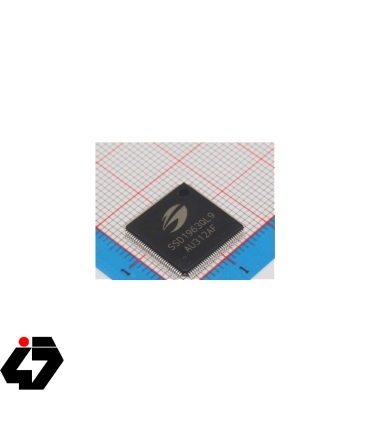

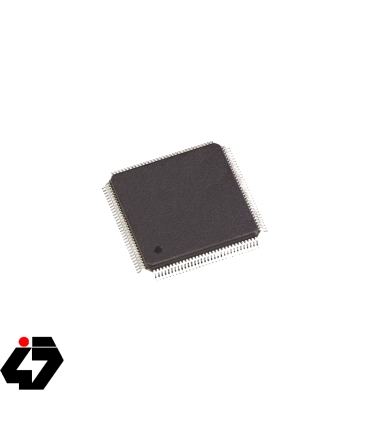

تراشه SSD1963QL9 درایور LCD4.3 و LCD7 پکیج LQFP-128

شما با این درایور می توانید به کمک میکروکنترلرهای avr,8051,pic,arm به سادگی السید های تا رزولیشن 864x480x24bit راه اندازی کنید

Introduction

SSD1963 is a display controller of 1215K byte frame buffer to support up to 864 x 480 x 24bit graphics

content. It also equips parallel MCU interfaces in different bus width to receive graphics data and command

from MCU. Its display interface supports common RAM-less LCD driver of color depth up to 24 bit-perpixel.

Specification

• Display feature

− Built-in 1215K bytes frame buffer. Support up to 864 x 480 at 24bpp display

− Support TFT 18/24-bit generic RGB and TTL interface panel

− Support 8-bit RGB interface

− Hardware rotation of 0, 90, 180, 270 degree

− Hardware display mirroring

− Hardware windowing

− Programmable brightness, contrast and saturation control

− Dynamic Backlight Control (DBC) via PWM signal

• MCU connectivity

− 8/9/16/18/24-bit MCU interface

− Tearing effect signal

• I/O Connectivity

− 4 GPIO pins

• Built-in clock generator

• Deep sleep mode for power saving

• Core supply power (VDDPLL and VDDD): 1.2V±0.1V

• I/O supply power(VDDIO): 1.65V to 3.6V

• LCD interface supply power (VDDLCD): 1.65V to 3.6V
