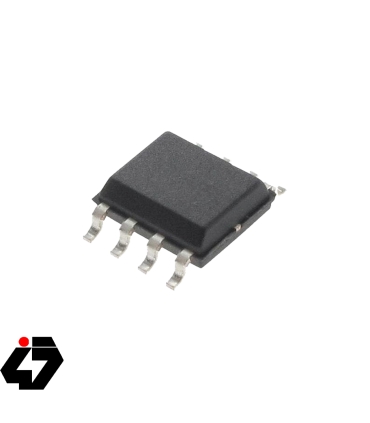

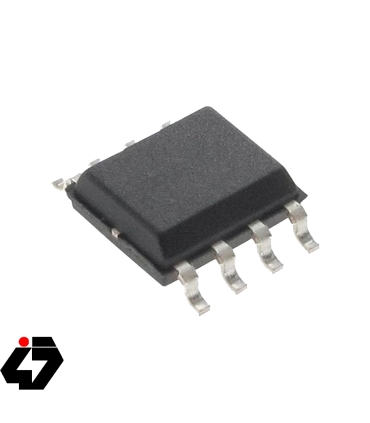

تراشه حافظه AT24C02 پکیج SO-8

Specification

Manufacturer: Microchip

Product Category: EEPROM

RoHS: N

Mounting Style: Through Hole

Interface Type: 2-Wire, I2C

Memory Size: 2 kbit

Organization: 256 x 8

Supply Voltage - Min: 4.5 V

Supply Voltage - Max: 5.5 V

Minimum Operating Temperature: 0 C

Maximum Operating Temperature: + 70 C

Maximum Clock Frequency: 400 kHz

Access Time: 900 ns

Data Retention: 100 Year

Supply Current - Max: 3 mA

Active Read Current - Max: 3 mA

Brand: Microchip Technology

Height: 3.3 mm

Length: 9.27 mm

Operating Supply Current: 3 mA

Operating Supply Voltage: 1.8 V, 5.5 V

Product Type: EEPROM

Subcategory: Memory & Data Storage

Width: 6.35 mm

Unit Weight: 0.032805 oz
