آی سی CXP80720-188Q

 آی سی  CXP80720-188Q

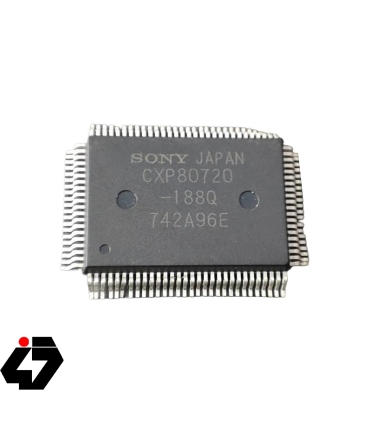

IC  CXP80720-188Q

Description

The CXP80712A/80716A/80720A/80724A is a CMOS

8-bit microcomputer which consists of A/D converter,

serial interface, timer/counter, time base timer, vector

interruption, high precision timing pattern generation

circuit, PWM generator, PWM for tuner, VISS/VASS

circuit, 32kHz timer/event counter, remote control

receiving circuit, VCR vertical sync separation circuit

and the measuring circuit which measure signals of

capstan FG and drum FG/PG and other servo systems,

as well as basic configurations like 8-bit CPU, ROM,

RAM and I/O port. They are integrated into a single chip.

Also CXP80712A/80716A/80720A/80724A provides

sleep/stop function which enables to lower power

consumption and ultra-low speed instruction mode in

32kHz operation.
