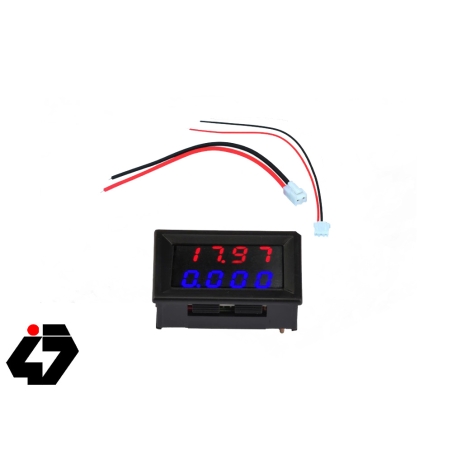

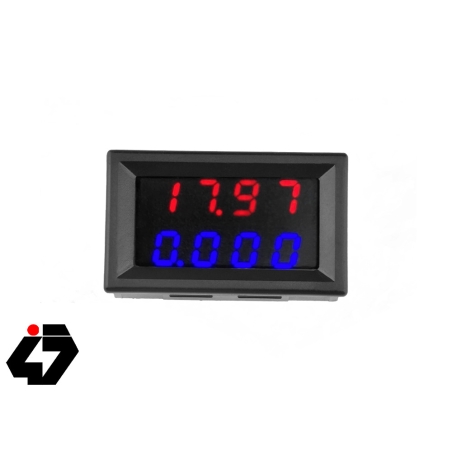

ولتمتر و آمپرمتر روپنلی دو رنگ قرمز و آبی مدل CX0143A

CX0143A voltmeter and ammeter module with 4 digits can measure 0 to 500 volts DC up to a maximum of 10 amperes. The digits of this module are red and blue, and the voltage and current are differentiated in this module, which users can easily use.

0-100v 0-200v

4-bit 5-wire voltmeter ammeter:

High precision 4 digital display

Working voltage: DC 4V-28V

In operation:<20ma

Display: 0.28" two colors, blue and red. Red and red

Measuring range: DC 0-200V 0-100V 0-10A built-in shunt

Operating temperature: -10 ~ 65 ℃

Working pressure: 80~106 kpa

Size: 48 x 29 x 20mm

Current: Range x 0.08% + 2 digits

Voltage: Range x 0.08% + 2 digits

0-500v

Product selling points:

0.28 inch 4 digit red and blue display

 Operating voltage DC5-24V

Voltage measurement range DC0-500V

Current measurement range 0-10a

Measurement error range ± 0.5%

Features

 0.28 inch 4-digit red and blue display

 Operating voltage DC5-24V

 Voltage measurement range DC0-500V

 Current measurement range 0-10A

 Measurement error range ± 0.5%

Parameters

Product name: 4-digit DC voltage and ammeter

Working voltage: DC5-24V

Current range: 0-10A

Voltage range: DC0-500V

Voltage error range: ± 0.5%

Current error range: ± 0.5%

Operating environment: -10 ℃ ~ 60 ℃

Working current: 20ma
