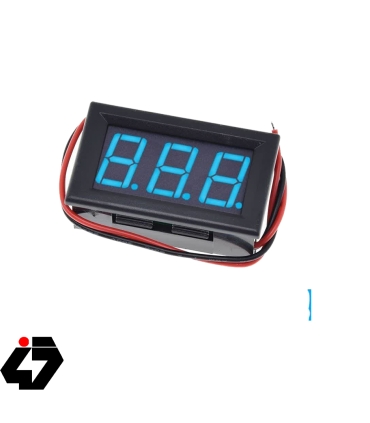

ولت متر پنلی آبی AC سایز 0.56 (70 تا 500 ولت)
ولتمتر AC 70V-500V پنلی با نمایشگر LED آبی رنگ 0.56 اینچی
ولت متر پنلی آبی AC سایز 0.56 (70 تا 500 ولت)
نمایشگر ولتاژ AC در صنعت موارد استفاده زیادی دارد. این ماژول پنلی کوچک قادر به اندازه گیری ولتاژ AC با محدوده اندازه گیری ولتاژ 70 تا 500 ولت است. این ماژول را می توان در انواع قاب و جعبههای صنعتی توزیع برق جانمایی کرد.
این ماژول ولت متر نیازی به منبع تغذیه اضافی ندارد و از همان ولتاژ AC جهت اندازه گیری، به عنوان منبع تغذیه نیز استفاده می شود.
کاربردها
ستفاده در پروژه های دانشجویی
استفاده در صانیع
استفاده در ساختمان و کارخانه ها و تابلو برق ها
Product Description
AC 70-500V 0.56″ Inch LED Digital Voltmeter Voltage Meter Volt Tester 2 Wires Blue Display 110V 220V 380V
Description
1. Operating voltage: no need to connect to any power supply, two-wire system
2. The two-wire voltage meter design, the wiring is simple, easy to install

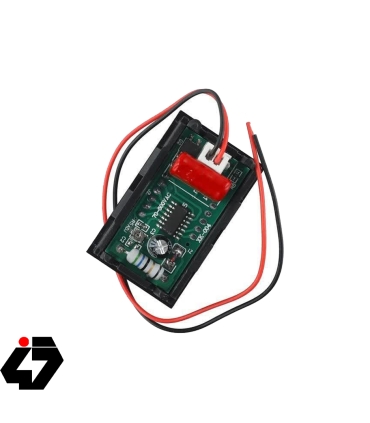

3. When there is a slight error, you can calibrate it through the circuit board, “fine-tuning” potentiometer for calibration
Specifications
Measuring range: AC70V-500V
Power supply range
No additional power supply needed, direct use of the measured voltage as a power supply, range: AC30V-500V
Maximum input
AC500V. Note: Input voltage higher than 500V may be permanently damaged!
. Allowable error: 1%(+/-digit);
5. Input impedance> 1M ohms
. Refresh speed: About 200mS / time
.Display mode: 3 digits ” 0.56 ” LED digital tube
. Display color: Blue
Option color: if you need blue or green color, please contact our sales manager
Lead length: about: 20cm
Outside dimensions: about: 48 x 29 x 22 mm / 1.89 x 1.17 x 0.87 in
Hole Size: about 46 x 27 mm / 1.81 x 1.06 in
. Net weight: about 28g
. Operating temperature: -10℃~65℃ (14°F-140°F)
