آمپرمتر ولتمتر DC روپنلی 50 آمپر 0v-100v همراه با شنت

آمپرمتر ولتمتر DC روپنلی 50 آمپر 0v-100v شنت خور

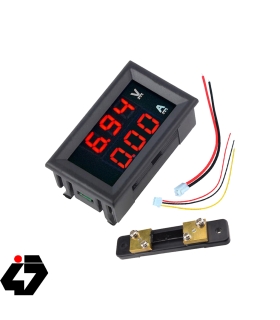

آمپرمتر ولتمتر DC روپنلی 50 آمپر 0v-100v به همراه شنت یک ماژول ویژه است که برای اندازه‌گیری همزمان جریان و ولتاژ در مدارهای جریان مستقیم (DC) طراحی شده است. با محدوده‌ای از 0V تا 100V و ظرفیت 50 آمپر، این دستگاه به مجموعه‌ای گسترده از کاربردها پاسخ می‌دهد.

 Description

Display: three 0.28" LED digital tube

Display color: Red and Blue (two-color display)

Refresh rate: about 300mS / times

Measure accuracy: 1% (± 1 digit)

Operating temperature: -10 to 65° c

Operating Humidity: 10 to 80% (non-condensing)

Working pressure: 80 to 106 kPa

Applications: Suitable for automotive/electric cars/motorcycles battery monitoring or other products voltage current measurement

Wiring

Black line (thin): vacant or buck circuit (module) negative

Red line (thin): power supply+

Black line (thick): COM, common measuring

Red line (thick): PW+, measuring terminal voltage input positive

Yellow line (thick): IN+, current input+

(Please refer to the wiring diagrams for more details)

Notice

The voltage between the thin red and thin black lines must be within DC 4-30V

The ammeter can only be connected to the negative of the device under test

Exceeds 5A, long-term full load working continuously, it is recommended that the measurement side of the leads are directly soldered to the socket

When the black thin line vacant, it is better to use insulating tape around the exposed part of the wire, to prevent short circuits

If just be used as a voltmeter, it is recommended that the yellow line and the black line were connected together, to prevent the ammeter digital flashing

It is unsuitable to use this meter to test current less than 10A

You can buy DC voltmeter ammeter 0-10A here

Quantity:1Set
