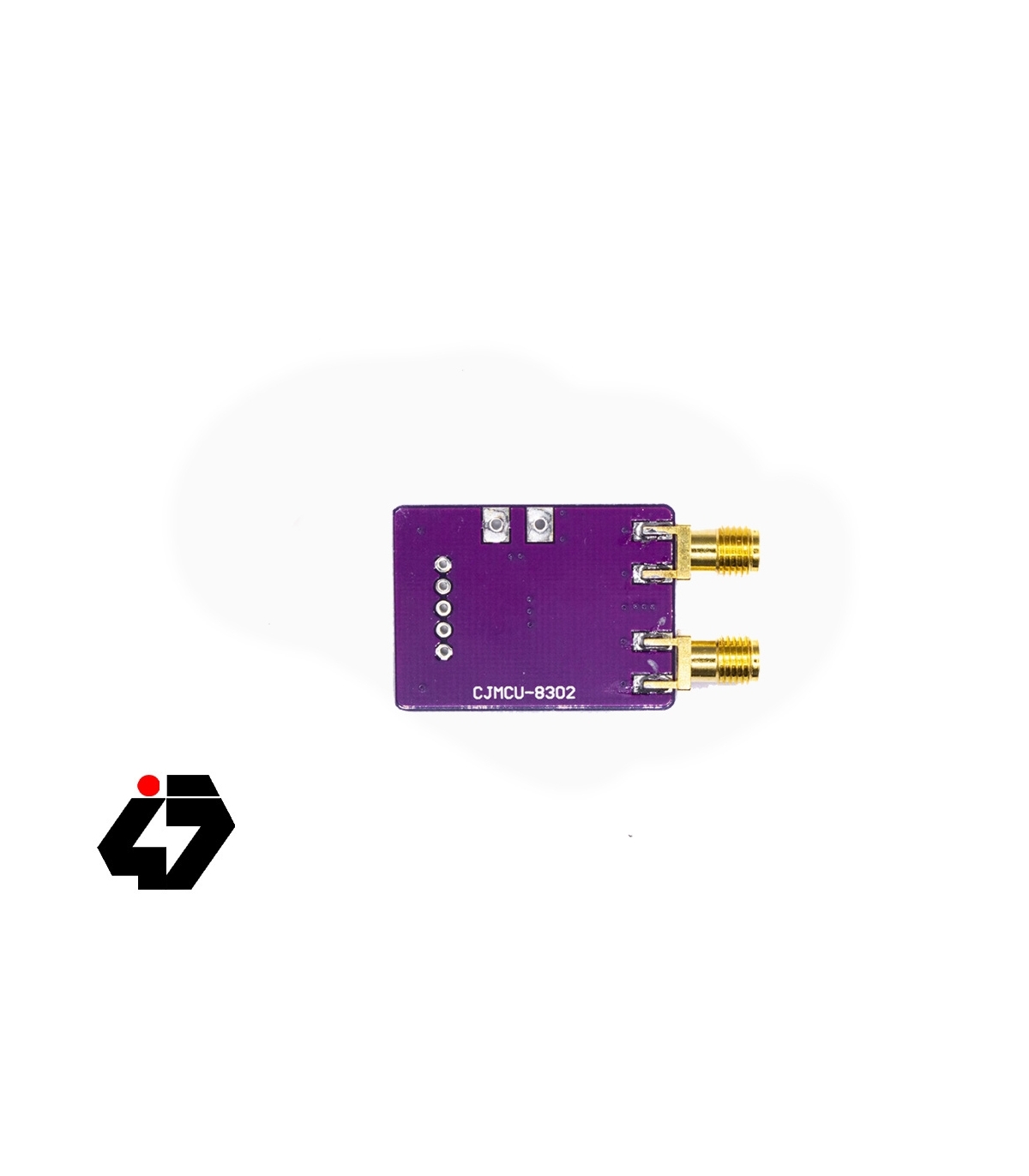

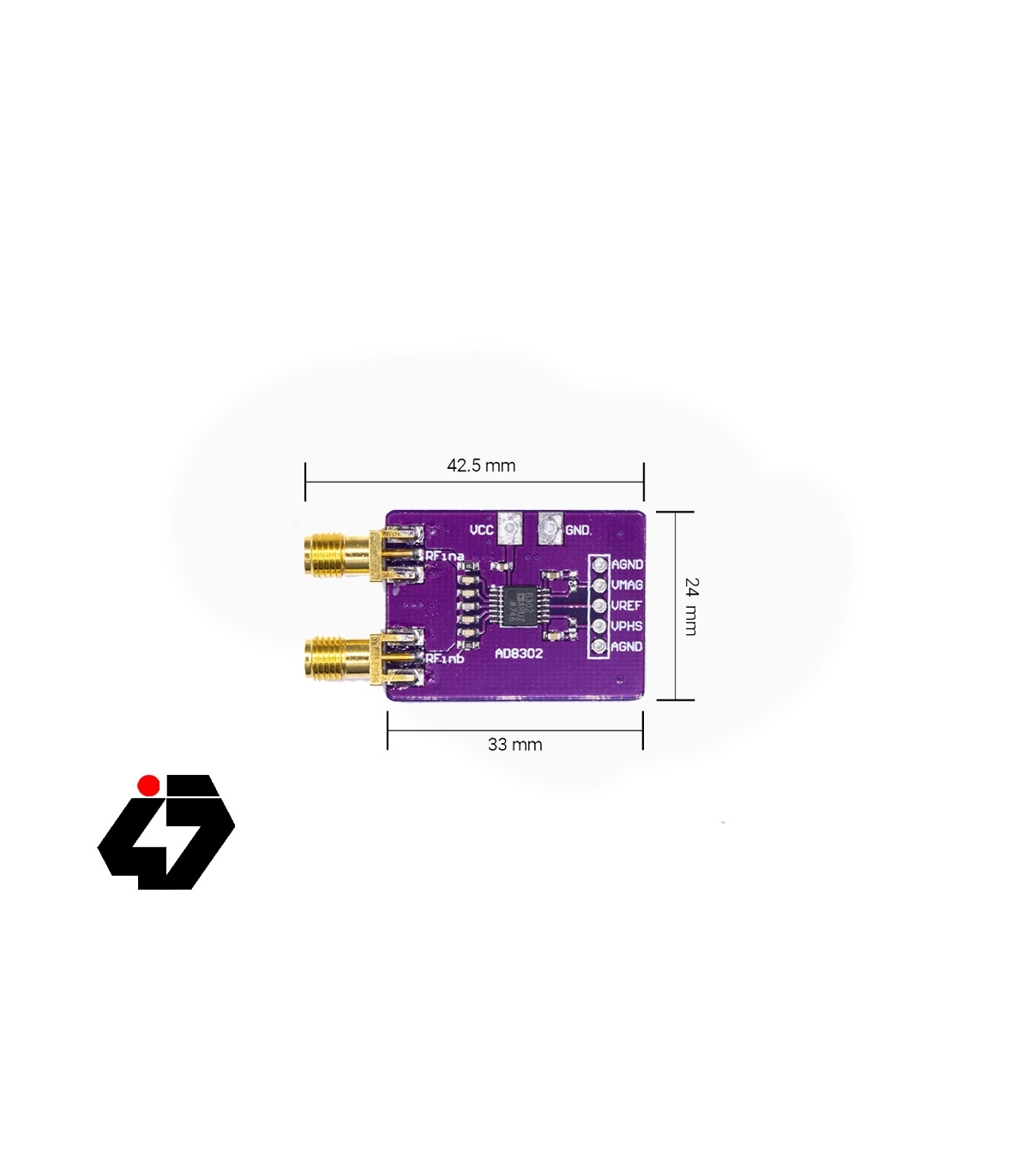

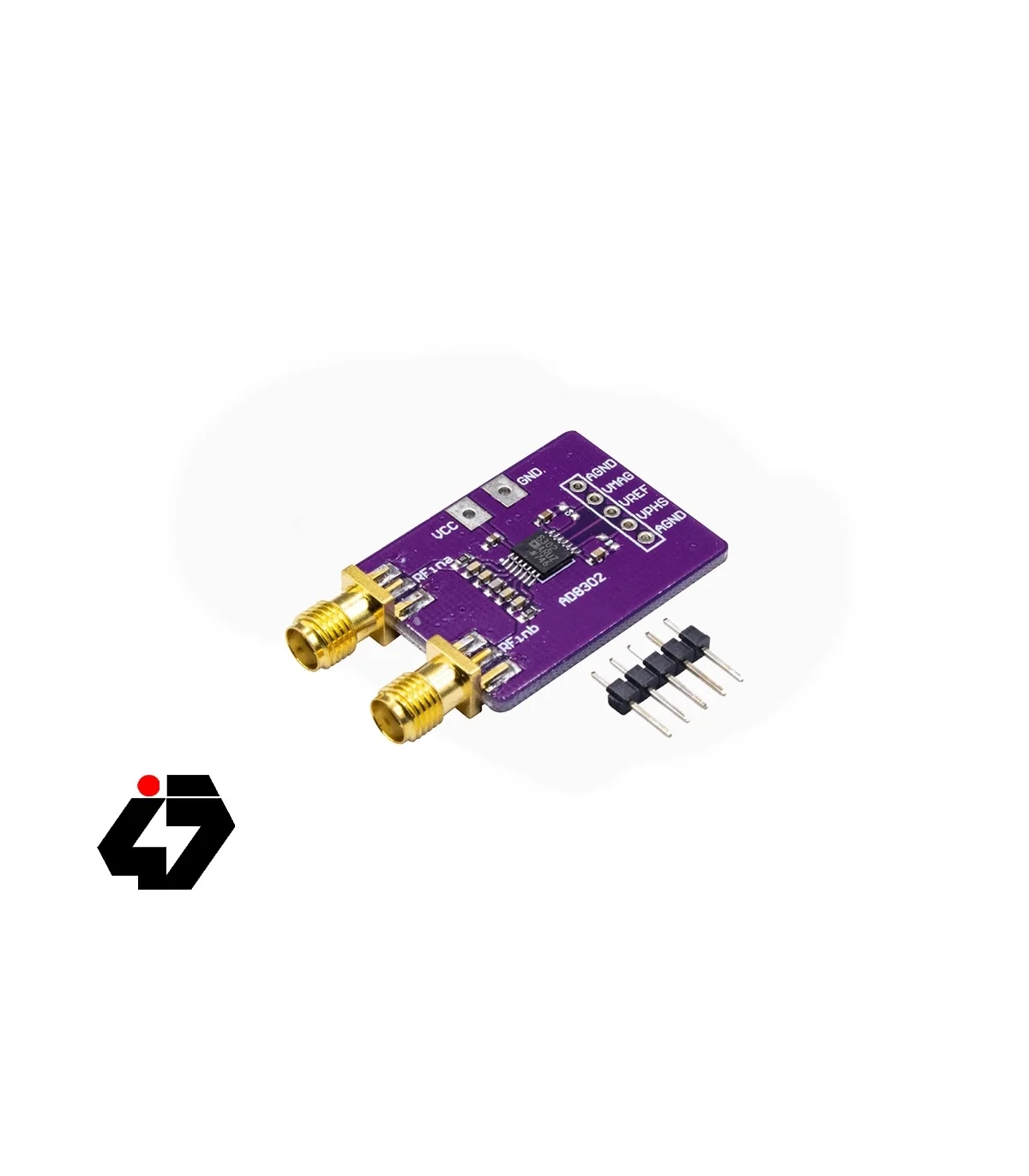

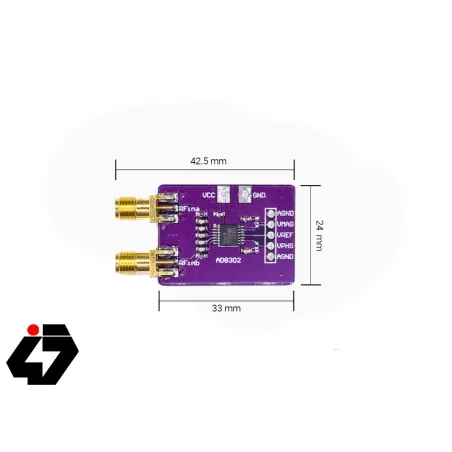

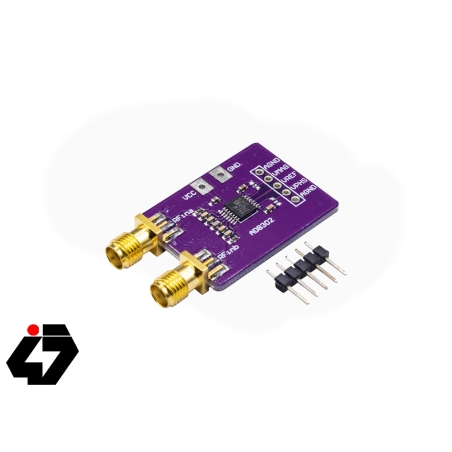

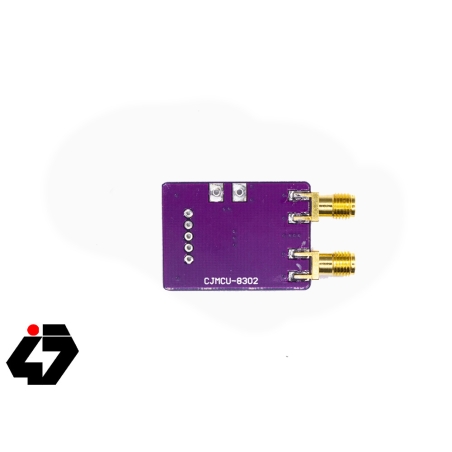

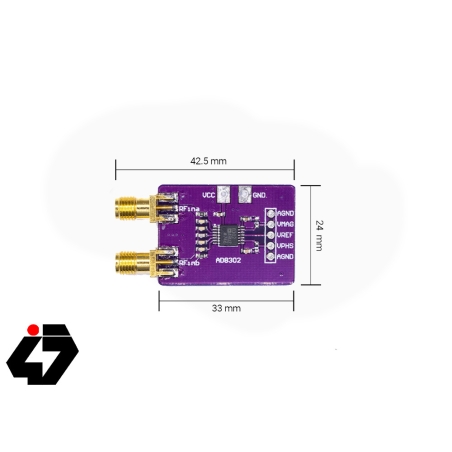

ماژول تشخیص بهره ، اتلاف و فاز AD8302

 Measures Gain/Loss and Phase up to 2.7 GHz

 Dual Demodulating Log Amps and Phase Detector

 Input Range –60 dBm to 0 dBm in a 50ohm System

 Accurate Gain Measurement Scaling (30 mV/dB) Typical Nonlinearity < 0.5 dB

 Accurate Phase Measurement Scaling (10 mV/Degree) Typical Nonlinearity < 1 Degree

 Measurement/Controller/Level Comparator Modes

 Operates from Supply Voltages of 2.7 V–5.5 V

 Stable 1.8 V Reference Voltage Output

 Small Signal Envelope Bandwidth from DC to 30 MHz

 Working voltage:5V

 RF/IF PA Linearization

 Precise RF Power Control

 Remote System Monitoring and Diagnostics

 Return Loss/VSWR Measurements

 Log Ratio Function for AC Signals
