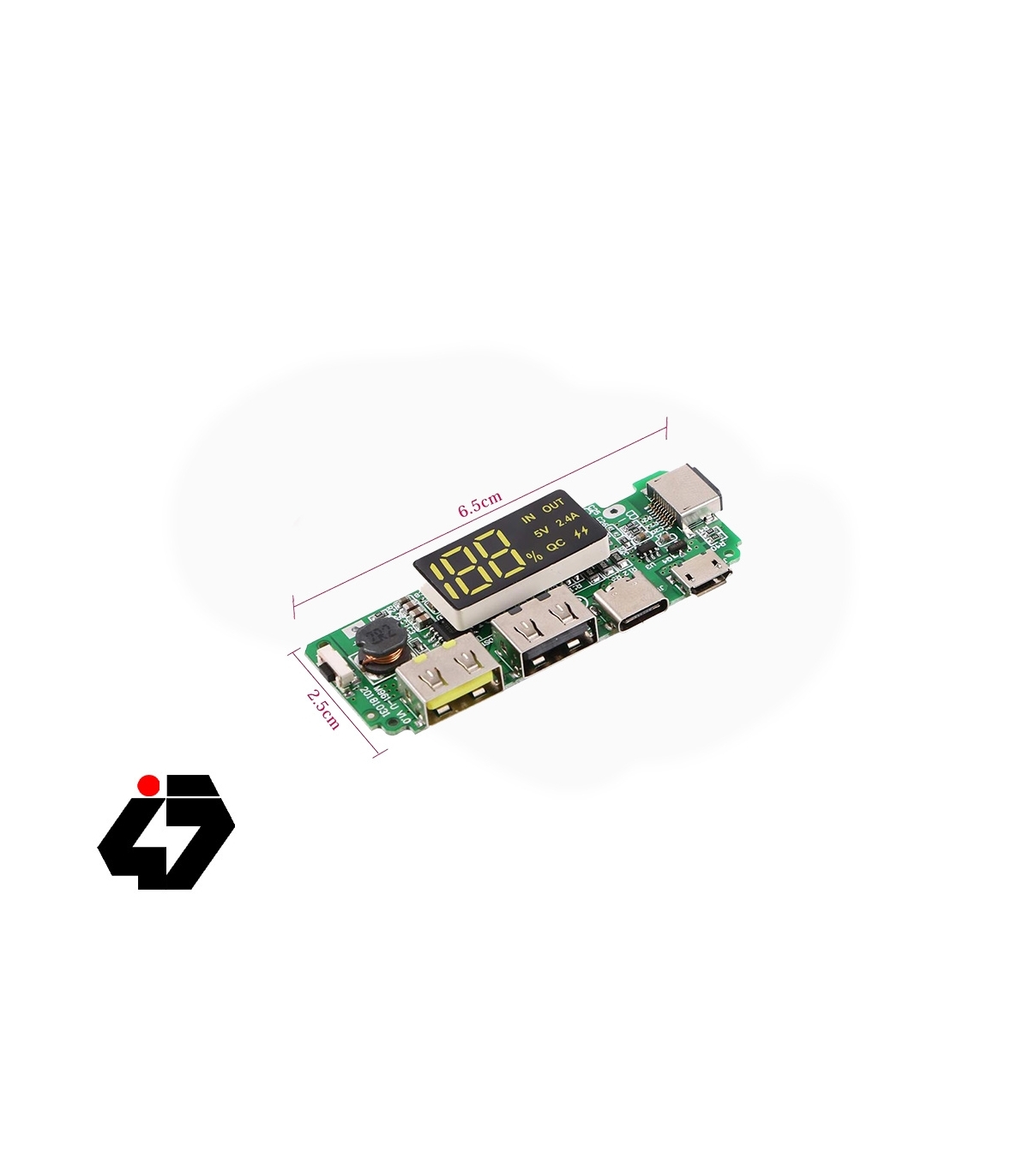

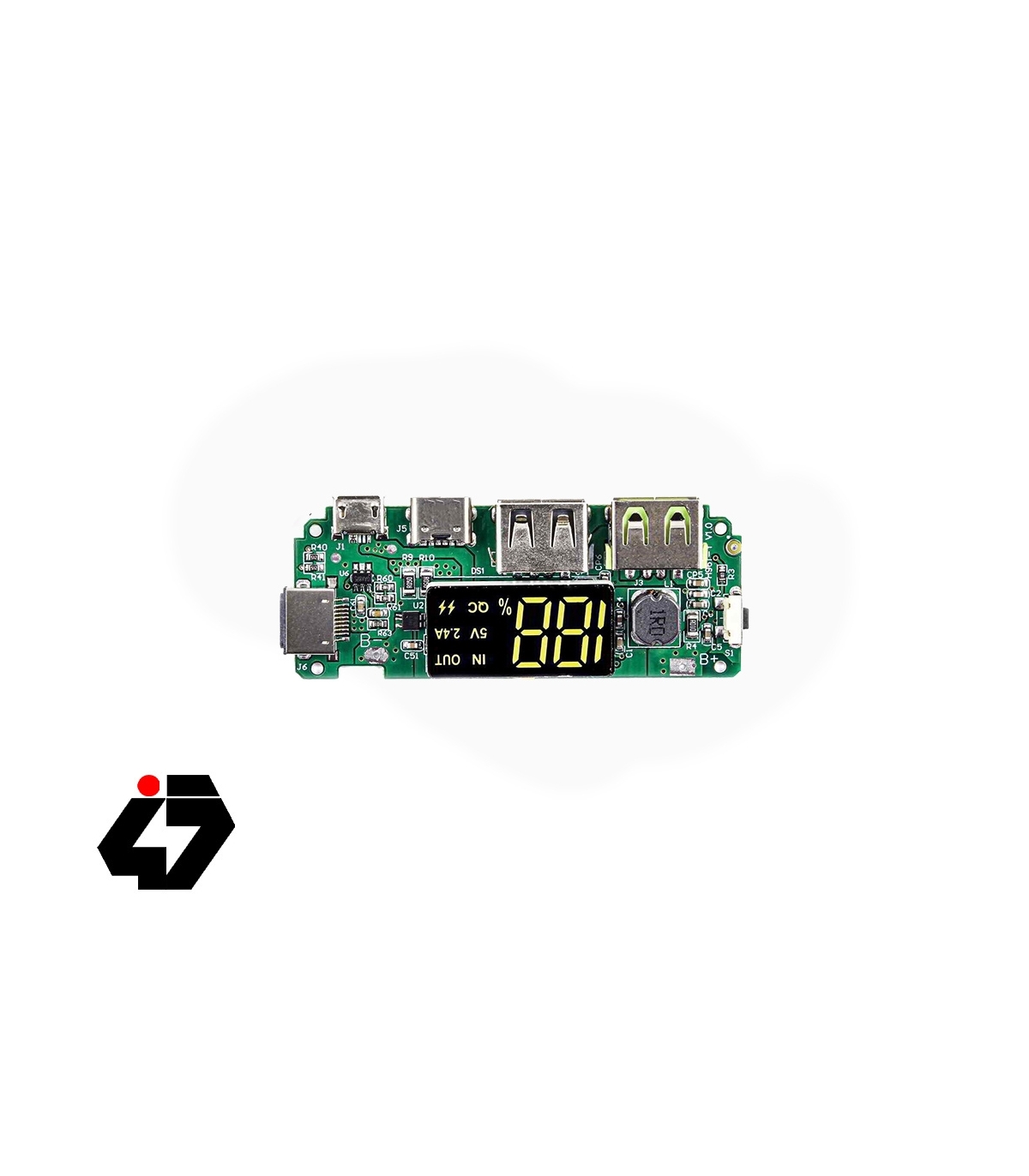

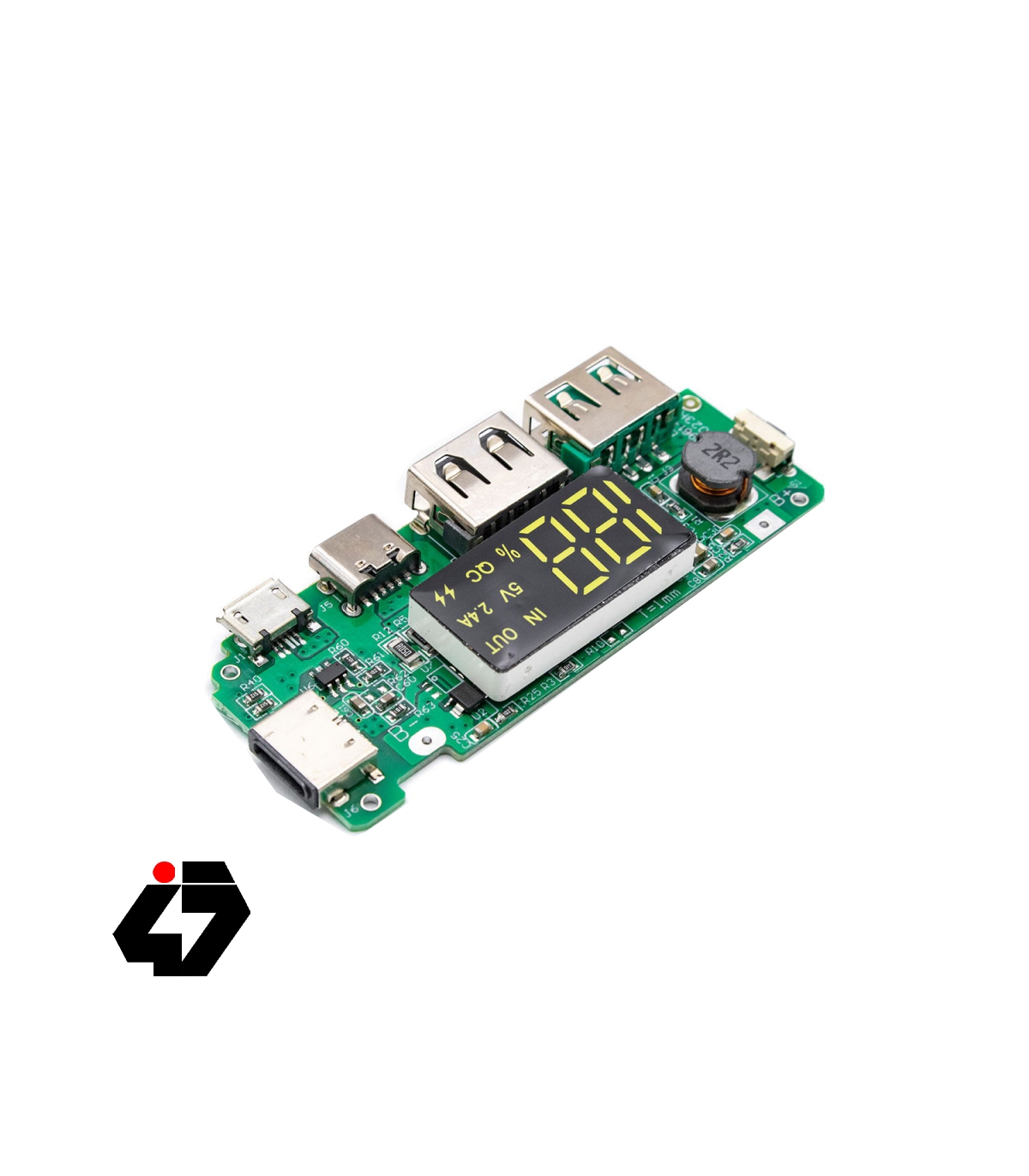

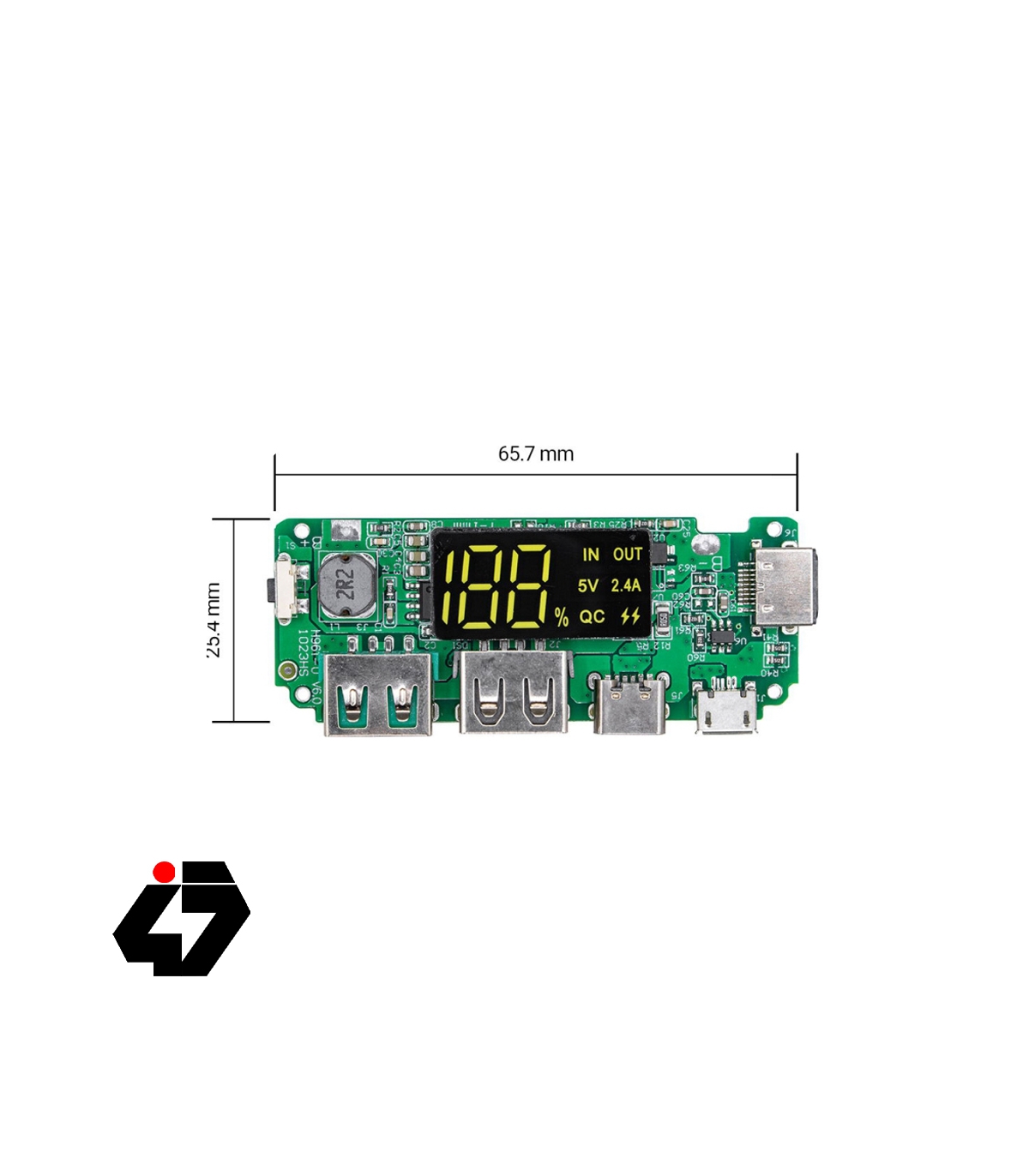

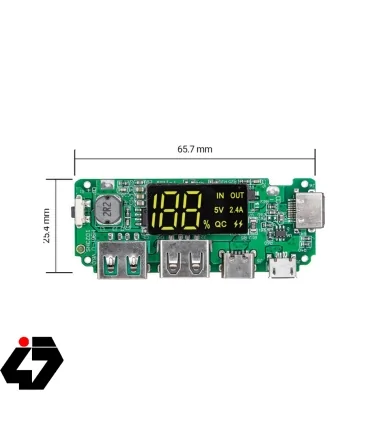

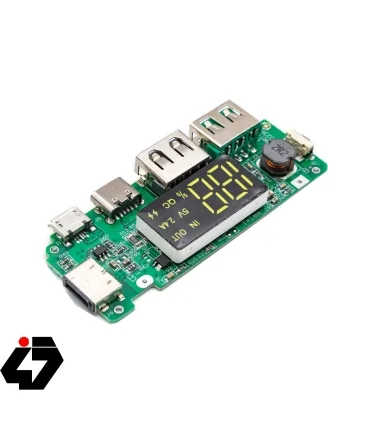

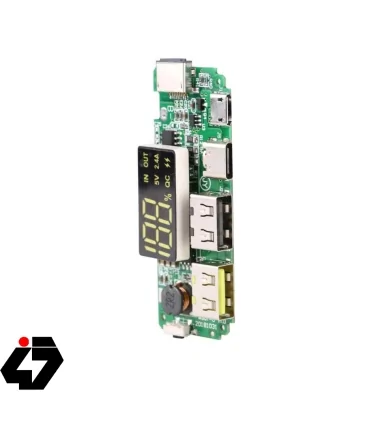

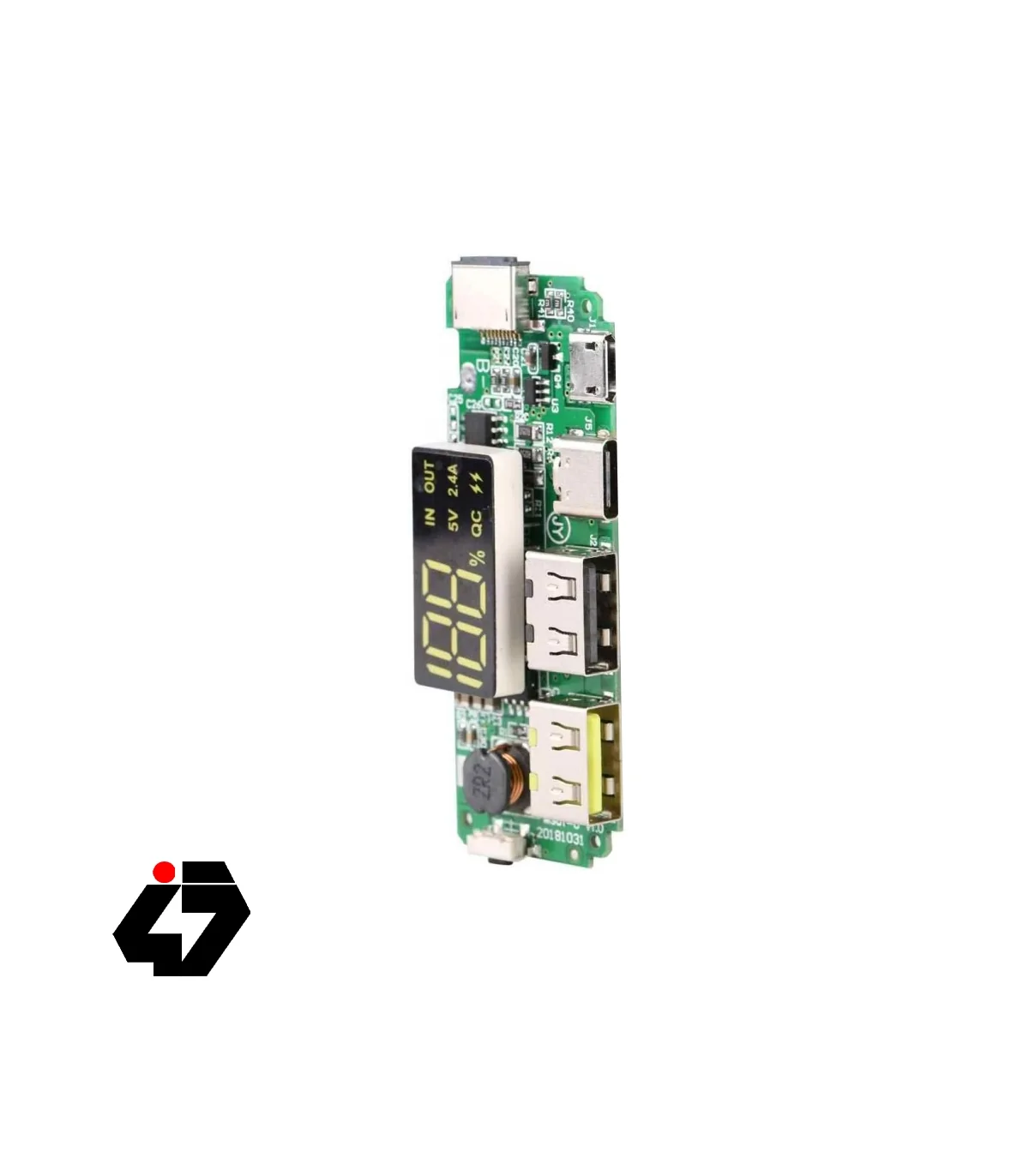

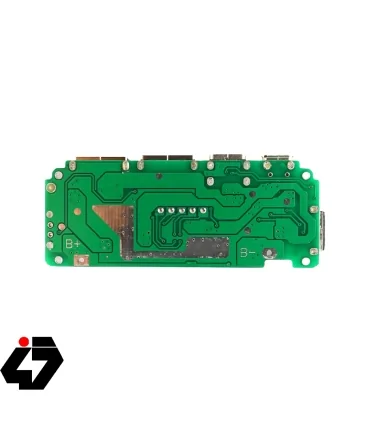

ماژول ساخت پاوربانک دارای نمایشگر H961

Model: H961-U

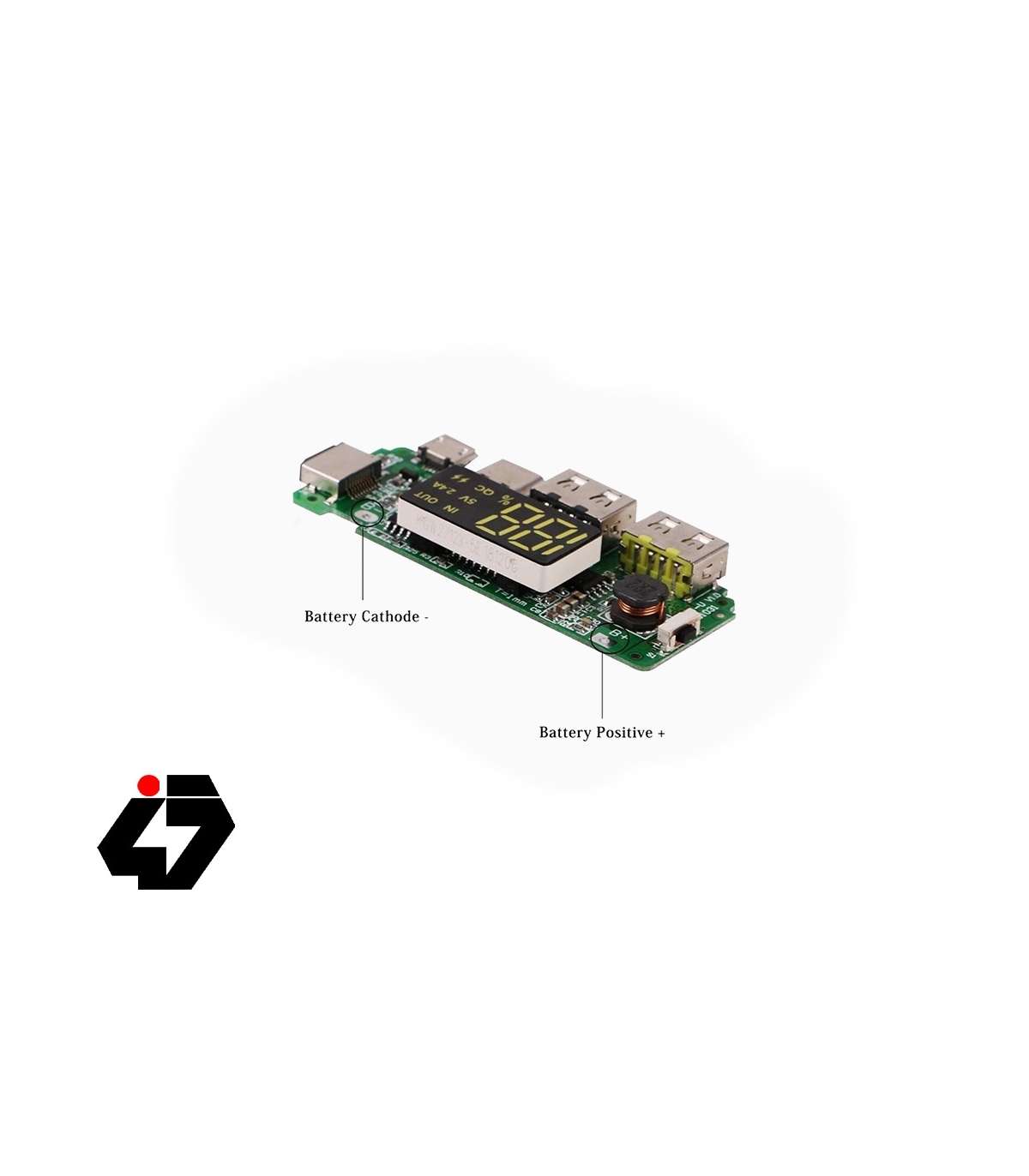

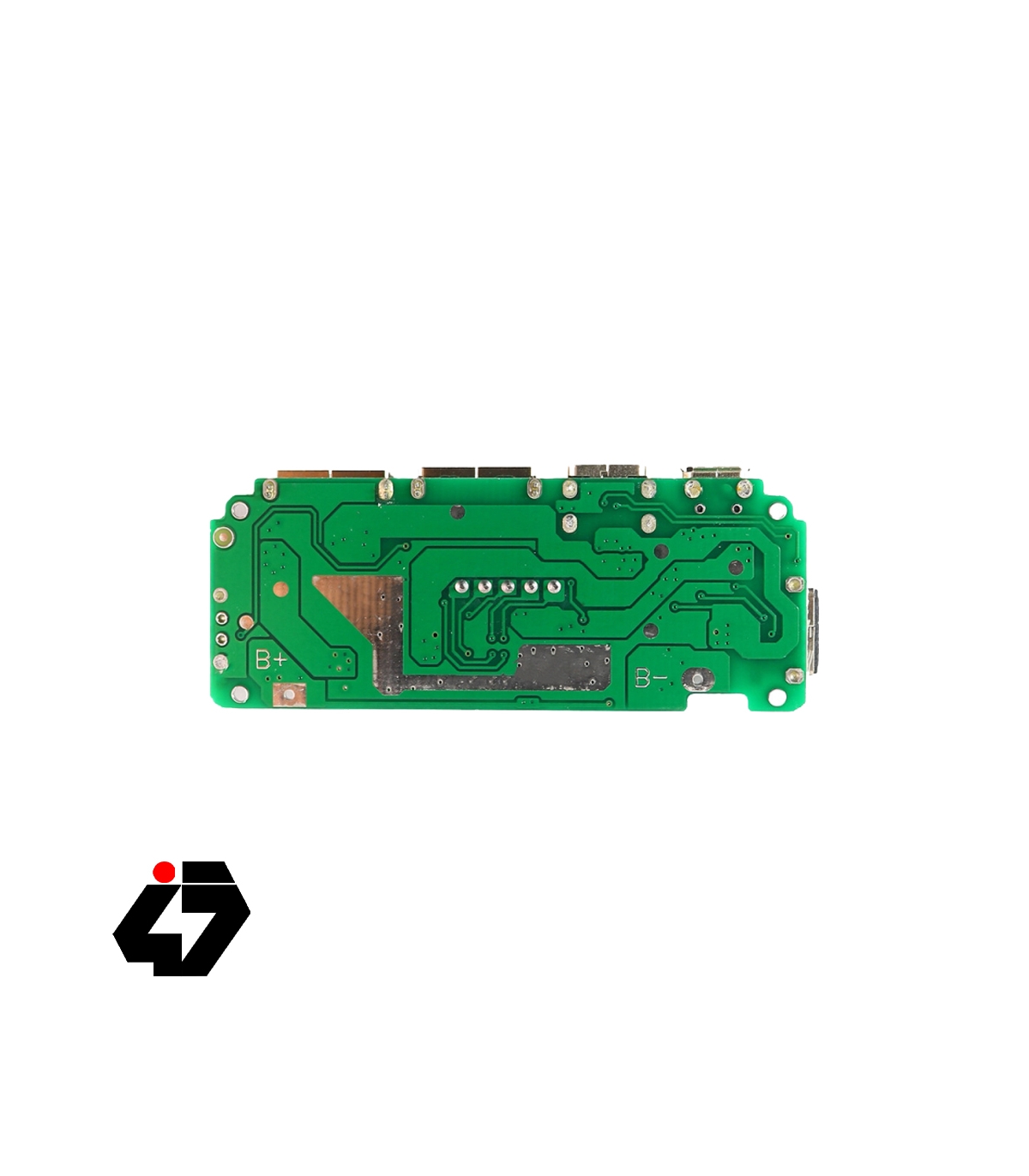

input Voltage B+ to B-; 3.0-4.2V

Overcharge

Detection voltage: 4.20±0.05V

Release voltage: 4.100±0.05V

Detection delay time<200 ms

Over-discharge

Detection voltage: 3.0±0.10V

Release voltage: 3.10±0.10V

Detection delay time<100 ms

Outputconstant current: constant current;2A

Short circuit protection

Short detection delay time<50uS

Release Conditions: Cut offload

Normal current consumption

Normal current consumption of PCM: Max 60uA

Standby current consumption: Max 50uA

0V charger: allowed 0V change; Y

Suggest working conditions

max continuous charge/discharge current: 1.5/2A

suggest working temperature: -5-45℃

IR resistance: IR of PCM≤65 mΩ

Weight: Approx. 15g / 0.5oz
