ماژول افزاینده DC به DC جریان 5 آمپر XL6019

ماژول افزاینده DC به DC جریان 5 آمپر XL6019

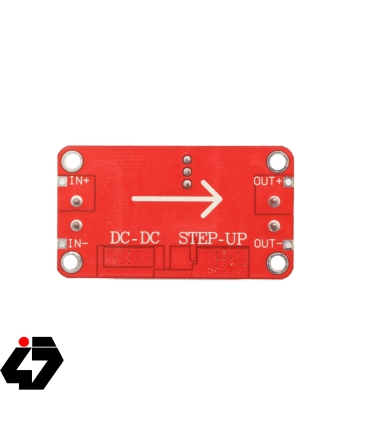

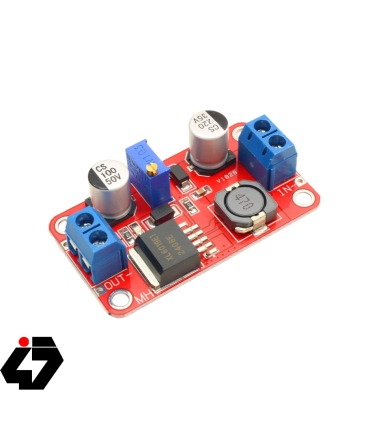

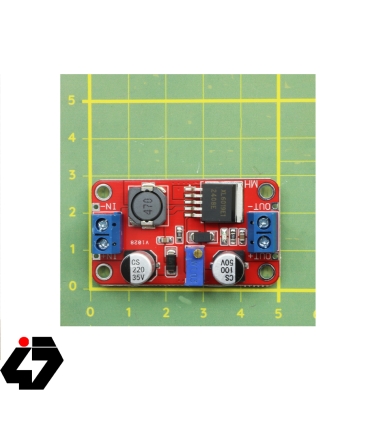

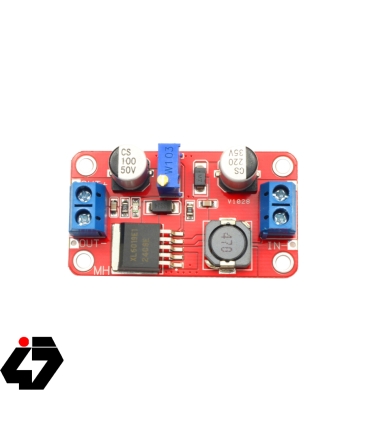

ماژول XL6019 یک افزاینده ولتاژ DC به DC است که به شما امکان می‌دهد ولتاژ ورودی را به ولتاژ خروجی بالاتری افزایش دهید. این ماژول مجهز به یک مولتی ترن برای تنظیم ولتاژ خروجی بوده و می‌تواند ولتاژ ورودی در بازه 3 تا 32 ولت را به خروجی قابل تنظیم بین 5 تا 40 ولت تبدیل کند. با حداکثر جریان خروجی 5 آمپر، این ماژول انتخابی مناسب برای پروژه‌های الکترونیکی با نیاز به توان بالا محسوب می‌شود.

کاربردها

تأمین برق برای سیستم‌های باتری‌خور

ساخت منابع تغذیه قابل تنظیم

تأمین ولتاژ پایدار و متغیر برای تجهیزات مختلف

ماژول XL6019 دارای بازدهی بالای تا 94% است که موجب کاهش اتلاف انرژی می‌شود. همچنین، فرکانس سوئیچینگ بالای 400 کیلوهرتز این ماژول، امکان استفاده از قطعات خارجی کوچک‌تر و طراحی فشرده‌تر را فراهم می‌کند. وجود قابلیت‌های حفاظتی مانند حفاظت در برابر اضافه بار و اتصال کوتاه، امنیت بیشتری برای تجهیزات الکترونیکی شما تضمین می‌کند.

introduction

Boost your project's power capabilities with the XL6019 DC-DC Adjustable Boost Power Module- 5A. This robust module is engineered to elevate a lower input voltage to a higher output voltage, adjustable via a built-in potentiometer. It's capable of handling a wide input voltage range from 3V to 32V and can efficiently boost this to an output voltage ranging from 5V up to 40V, making it incredibly adaptable for many different electronic applications. The module can deliver up to 5A output current, providing substantial power for your more demanding projects.

The XL6019 DC-DC Adjustable Boost Power Module- 5A stands out with its high efficiency, capable of reaching up to 94%. It's designed with a high switching frequency of 400kHz, which allows for smaller external components, leading to a more compact overall design. Additionally, the module includes various protection features such as over-current and short-circuit protection, ensuring your electronic creations are safe during operation. Whether you’re working on battery-powered projects, constructing a DIY power supply, or need an adjustable voltage source, this power module is a reliable and powerful solution that will keep your devices running smoothly.

Specification

1. Adopt the conventional BOOST fully integrated constant voltage output solution, internally integrated MOSFET, few peripheral devices, and low system cost

2. Wide voltage range input, input voltage up to 35V

3. The output voltage is adjustable and can support up to 40V4. Built-in over-temperature protection, over-current protection, full set of reliability protection circuits, high reliability

5. The system conversion efficiency can be over 90%, which is convenient for thermal design

6. TO263-5L standard package, suitable for boost applications within 30W

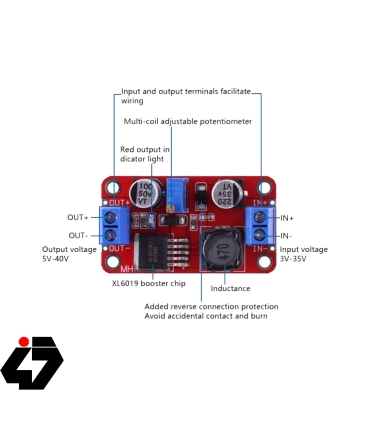

Setup

1. Connect the power supply (3-35V), the power indicator light is on, and the module is working normally.

2. Adjust the blue potentiometer knob (generally, rotate counterclockwise to increase the voltage, and clockwise to decrease the voltage) and use a multimeter to monitor the output voltage until the required voltage is reached

For long-term operation, it is recommended to use a current withi

Heat sink (output above 10W); Since it is a boost module, in order to ensure stable output

Please keep the voltage difference at least 1.5V

Car-mounted voltage-stabilized power supply, just connect the input end of this module to the power supply, you can adjust the potentiometer, the output voltage can be adjusted arbitrarily between 5V-30V, it can power your mobile phone, MP3, MP4, PSP charging and many other devices, it is very simple and convenient

To power electronic devices, when the device requires 5V-35V power supply and the corresponding voltage power supply is in hand, this module can be used to easily adjust the voltage to the required voltage to solve the problem

System working voltage test: when doing projects, you can use this module to debug various voltage test system working voltage ranges, which is very easy and convenient
