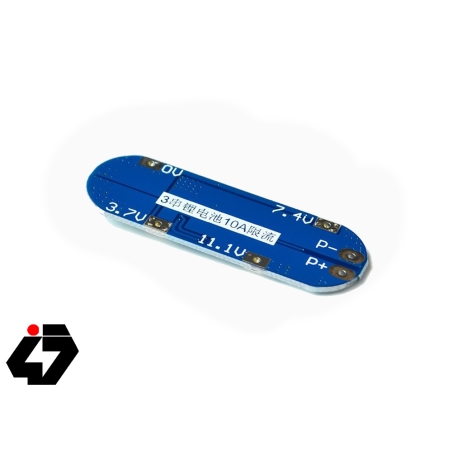

ماژول محافظ شارژ باتری لیتیومی 3 سل 10A مدل FL10A

Model: HX-3S-FL10-A

Dimension: 53 x 14 x 4 mm

Weight: 3.5 g

Over Voltage Range: 4.25-4.35V ±0.05V

Over Discharge Voltage Range: 2.3-3.0V ±0.05V

Maximum Operating Current: 6-8A

Maximum Transient Current: 10-13A

Quiescent Current: <30uA

Internal resistance: <100mΩ

Charging Voltage: 12.6 – 13V

Working Temperature: -40~+50℃

Storage Condition: -40~ +80℃

Effective Life: > 30000 hours

Short circuit protection: Yes, delayed self recovery
