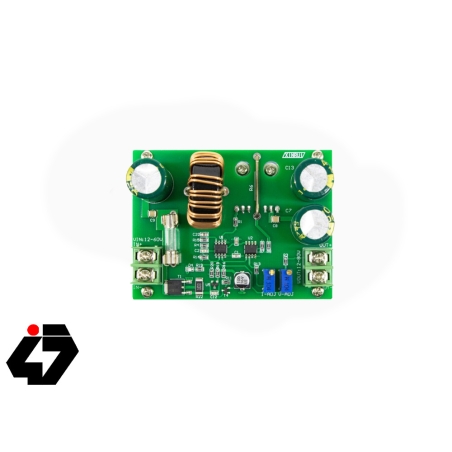

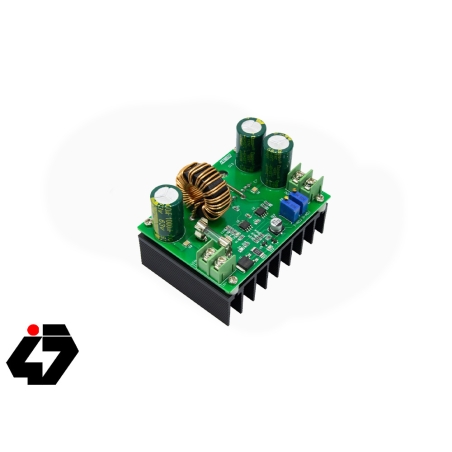

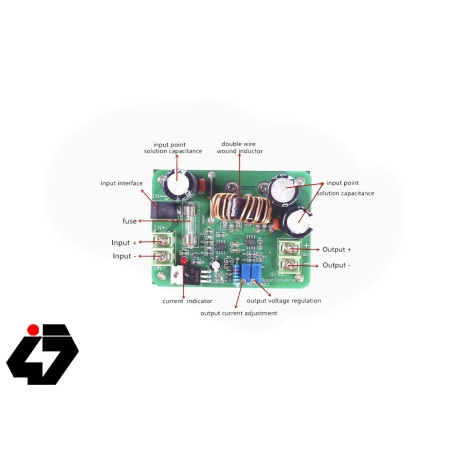

ماژول مبدل DC-DC افزاینده ولتاژ 600W 10A با امکان کنترل جریان خروجی

12-60 VDC input (for wide input voltage range applications).

15A (MAX) more than 10A, please strengthen heat dissipation.

15A (The higher the output voltage, the higher the static overcurrent will rise when 12V rise to 20V).

For applications where the input voltage is lower than the output voltage, 12-80VDC can be adjusted continuously. It cannot be lowered.

When 10A MAX exceeds 10A, please strengthen the heat dissipation (related to the inlet and outlet differential pressure, the larger the differential pressure, the smaller the output current)

Maximum output power = input voltage × 10A, such as: input 12V*10A=120W, input 24Vx10A=240W, input 36V*10A=360W, input 48V*10A=480W, input 60V*10A=600W.

The charger can be charged with a 12V power supply for batteries larger than 12V such as 24V batteries, and the charging current can be adjusted.

The power supply for electronic devices can work normally as long as the voltage is adjusted to the required voltage and the current does not exceed the rated current.

System front-end power supply: In a project, when the input is 10V-18V, the system board needs about 24V power supply, and the power supply is very large. The usual DC-DC module power is too low best choice, do not need to debug to work directly on the computer, easy to achieve high efficiency and high power boost.
