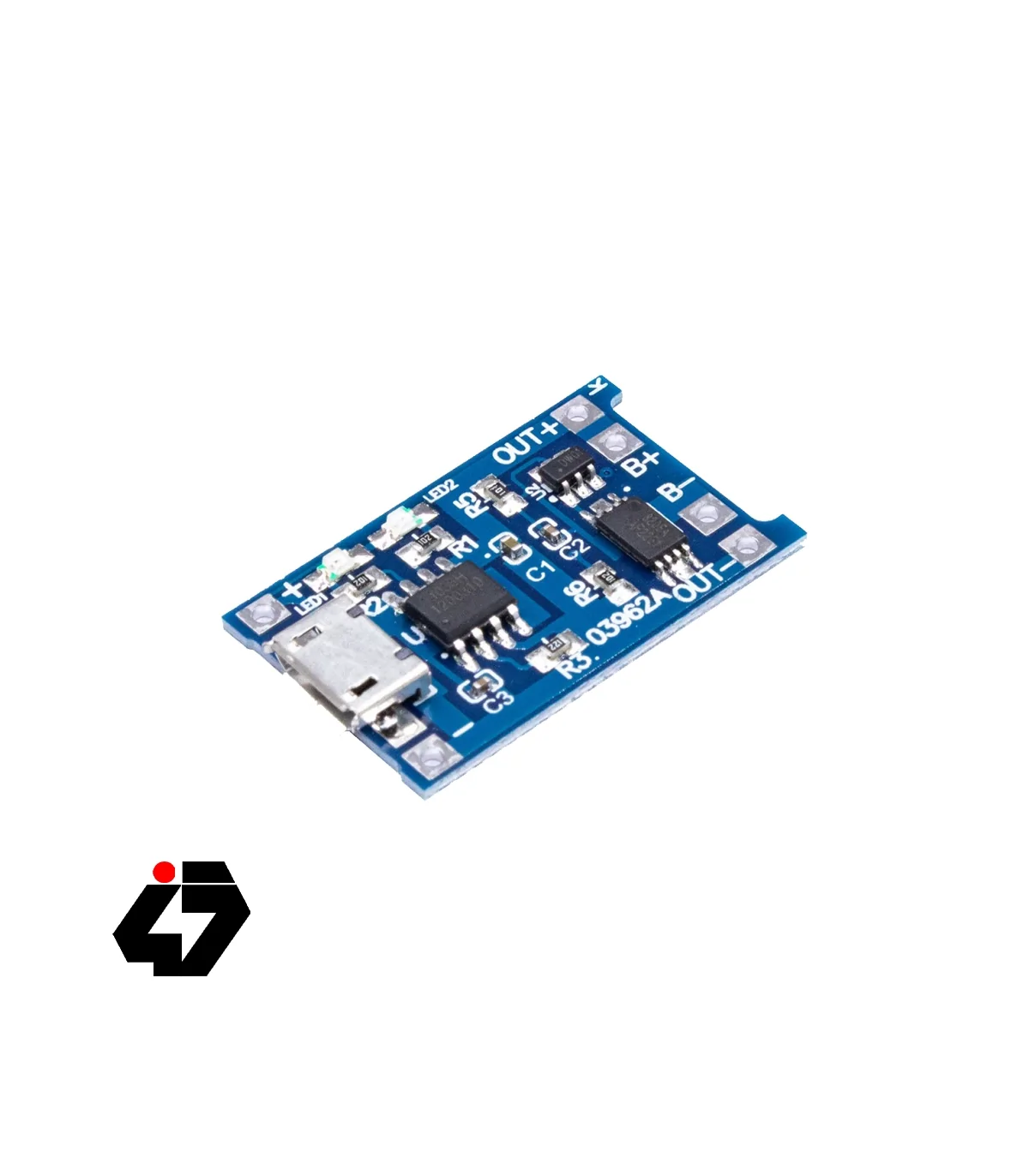

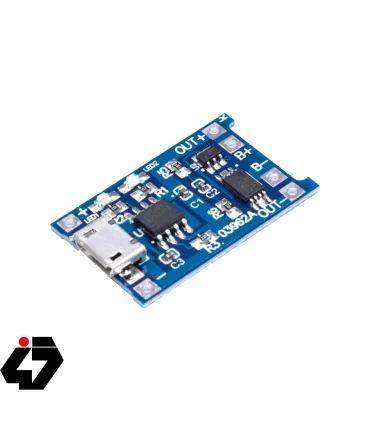

شارژر 5V 1A میکرو USB باتری های لیتیومی TP4056 به همراه محافظ

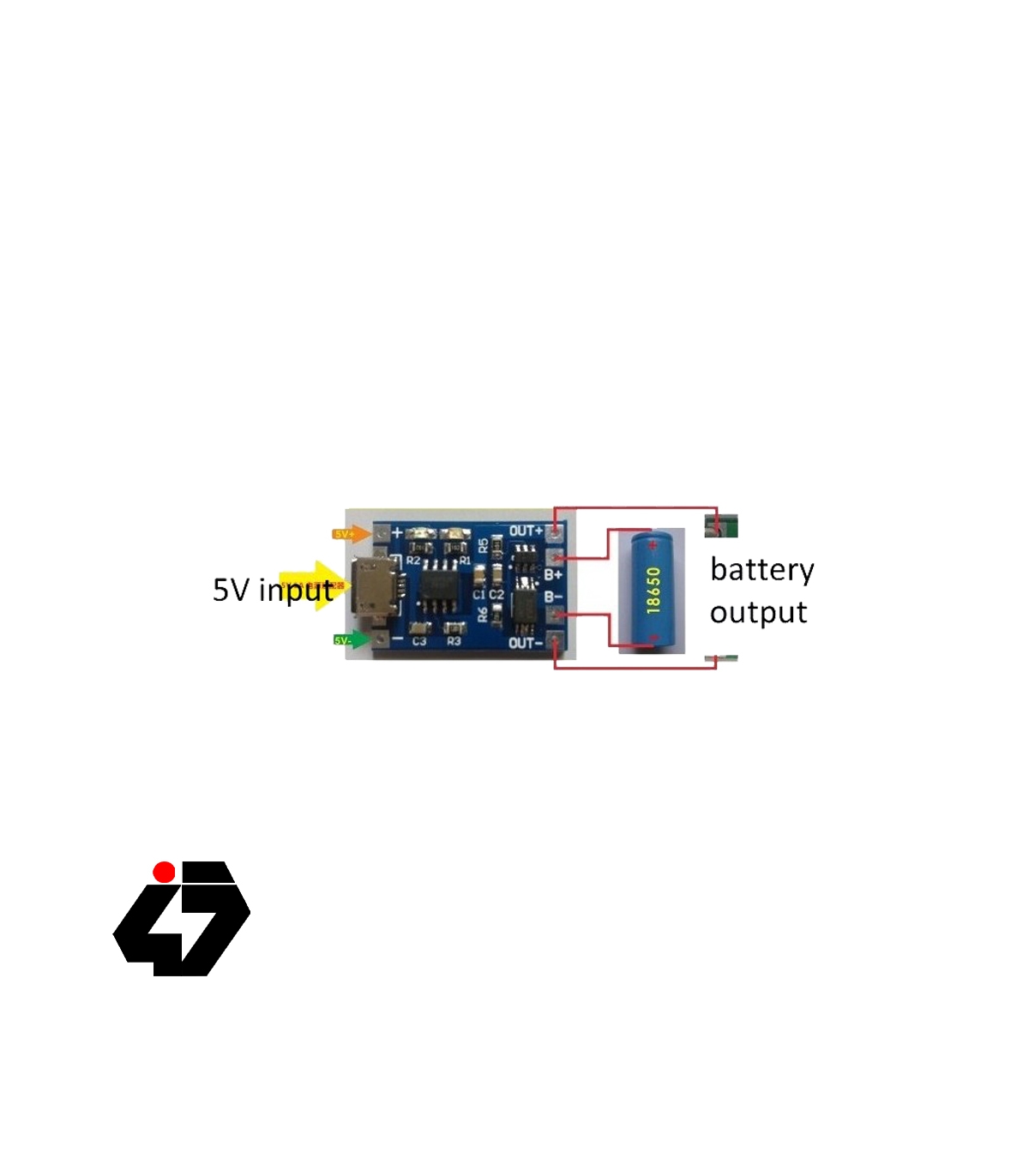

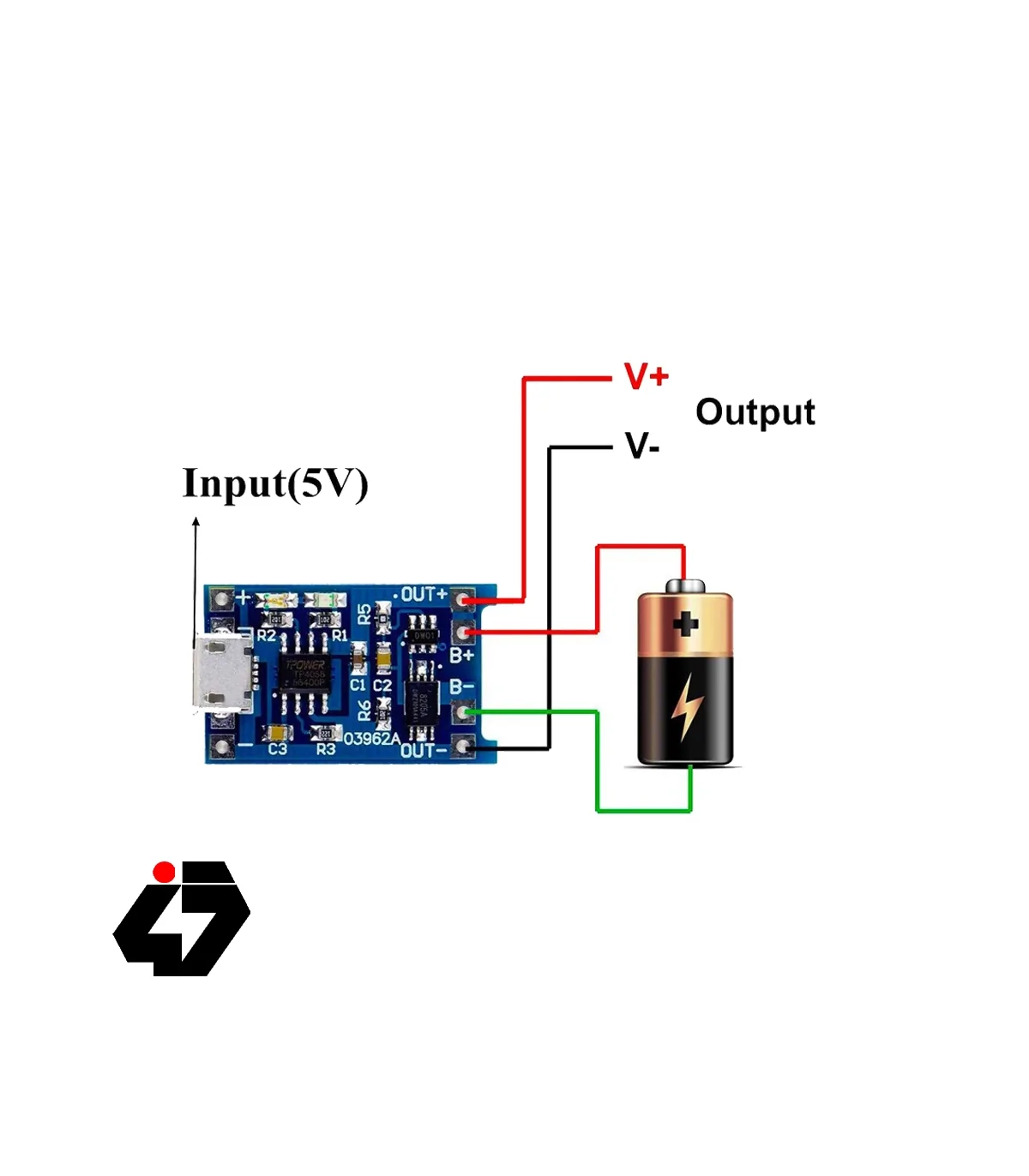

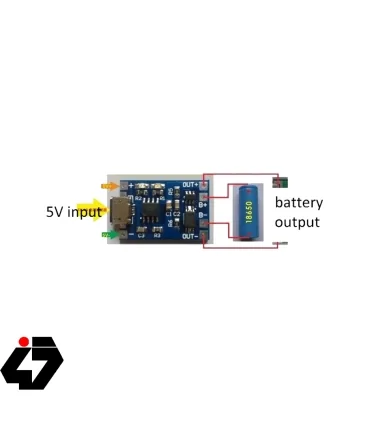

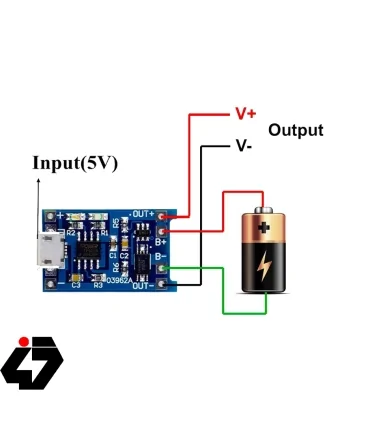

 Micro USB is connected to the phone charger

Li-Ion battery pole is connected to B + and B-

Electrical loads such as lights, toys, mobile phones, etc., connected to the OUT + and out-, so that over current protection and over-discharge function. When bypassed directly to B + and B- The protection function will not work and could potentially damage the Li-Ion battery.

Tips: The current recommended input cas about 37% of the battery capacity. When the battery was about to be charged with a capacity of 1000mAh, charge current 400mA input is enough.

Charge the module Linear charging.

 Current- 1A adjustable.

 Charge precision- 1.5%.

 Input voltage- 4.5V-5.5V.

 Full charge voltage- 4.2V.

 Led indicator- red is charging Green is full charged.

 Interface- micro USB input.

 Work temperature- -10 to +85.

 Inversed polarity- NO.

Size- small about 26mm x 17mm
