ماژول تقویت کننده سیگنال AD620 با قابلیت تنظیم

ماژول تقویت‌کننده سیگنال AD620 مناسب برای تقویت ولتاژهای میکرو‌ولت و میلی‌ولتی با ولتاژ کاری 12-3 ولت و بهره تقویت کنندگی 1000-1.5 مرتبه

ادامه مطلبShow less
145,100 تومان بدون مالیات
مرجع:
473011007151
دوست داشتن0
اضافه به مقایسه0
افزودن به فهرست علاقه‌مندی‌ها
توضیحات

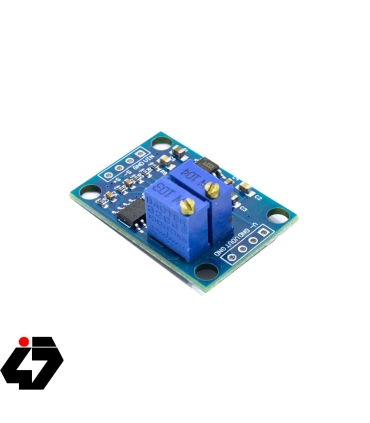

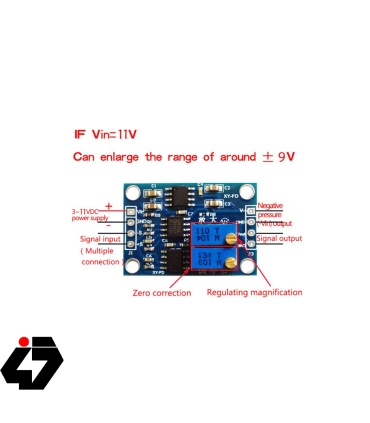

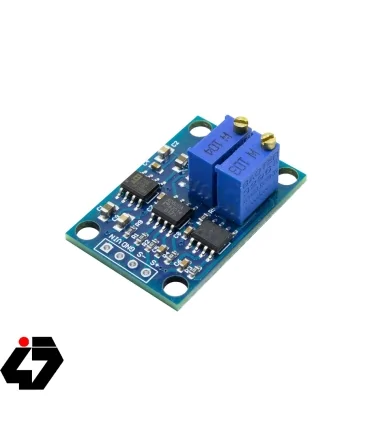

ماژول تقویت‌کننده سیگنال AD620 یک تقویت‌کننده ولتاژ برای تقویت ولتاژهای میکرو‌ولت و میلی‌ولتی است. ضریب تقویت این Op-Amp بین 1.5 تا 1000 مرتبه است. دقت بالا، آفست پایین و خطی بودن از ویژگی‌های این قطعه است. یک پتانسیومتر برای کالیبراسیون و بهبود دقت و یک پتانسیومتر برای تنظیم بهره تقویت‌کنندگی بر روی ماژول تعبیه شده‌است. این ماژول برای تقویت سیگنال‌های AC و DC کاربرد دارد. همچنین سیگنال خروجی دارای اعوجاج کوچک، فرکانس بالا و فیلتر نویز است و برای تقویت سیگنال های کوچک مناسب تر است.

کاربردها

سنسور وزن

 تجهیزات پزشکی

سیستم‌های جمع‌آوری داده

کنترل فرآیند صنعتی

تجهیزات قابل حمل

Introduction

AD620 is used as main amplifier with magnification 1.5-10000 times, high sensitivity, low offset and better linearity. Adjustable zero to increase accuracy. High precision, low offset, can be used for AC, DC microvolt, millivolt voltage amplifier, small signal amplification of AC and DC, microvolt, millivolt voltage amplification. Wide input range This product uses AD620 to amplify and amplify microvolts and millivolts. Compared with the LM358 in the market, it has high amplification precision and good linearity and the maximum voltage output range is ±10V. The magnification potentiometer is used to amplify the input signal, and the magnification is up to 1000 times, which can be adjusted with just one potentiometer. Adjust the zero point by adjusting the adjustable zero point potentiometer, improve accuracy, and there will be no zero drift phenomenon, to meet customer needs. The negative voltage output module uses 7660A negative voltage chip output negative voltage (-Vin), which can be supplied to customers to drive other dual power loads. Small size 32*22mm and four 3mm positioning holes. 2.54mm standard spacing evenly distributed around both sides and two lines.

Specification

Input voltage: 3-12VDC (batch can be customized)

Magnification: 1.5-1000 times adjustable, zero adjustable

Signal input voltage: 100uV-300mV

Signal output range: ± (Vin - 2V)

Negative pressure output: greater than -vin. Due to the internal resistance of the negative voltage chip output, the actual output is greater than -vin, the load power is larger, the negative pressure drop is larger

Offset voltage: 50μV

Input bias current: 1.0nA (max)

Common mode rejection rate: 100dB

Offset voltage shift: 0.6 μV/° c (max)

Stable, time: max 2 µm/month

Size: 32*22mm

The output signal has small distortion, high frequency and noise filtering, and is more suitable for amplifying small signals.

Features

1.Wide Input Range: adopt AD620 amplification ,and the max voltage output range is +/-10V

2.Amplification Times: adopt potentiometer for amplifying input signals, and the amplification times can be up to 1000 times

3.Adjustable Zero Point: use zero potentiometer to adjust the zero point  if improves the precision, it won’t lead to zero point drifting

4.Negative Voltage Output: adopt 7660A negative voltage chip output negative voltage (-Vin)

5.Smalle Size:32*22mm,and the pitch is 2.54mm

ادامه مطلبShow less
جزئیات محصول
473011007151

مشخصات

ابعاد
32 * 22 میلی متر
ولتاژ ورودی ( کاری )
3 الی 12 ولت DC
بزرگنمایی
1.5-1000 برابر قابل تنظیم
ولتاژ ورودی سیگنال
100uV-300mV
ولتاژ افست
50μV
جریان بایاس ورودی
1.0nA (حداکثر)
پیوست‌ها
data sheet AD620
دیتاشیت ماژول تقویت کننده سیگنال AD620 با قابلیت تنظیم
