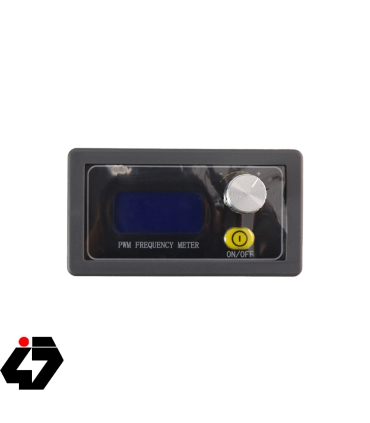

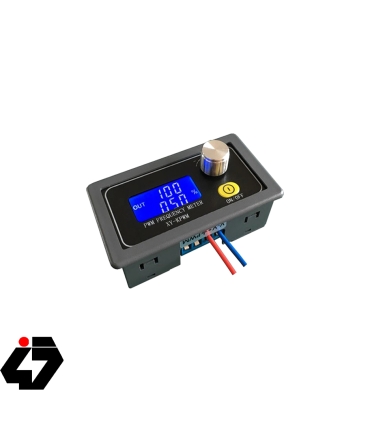

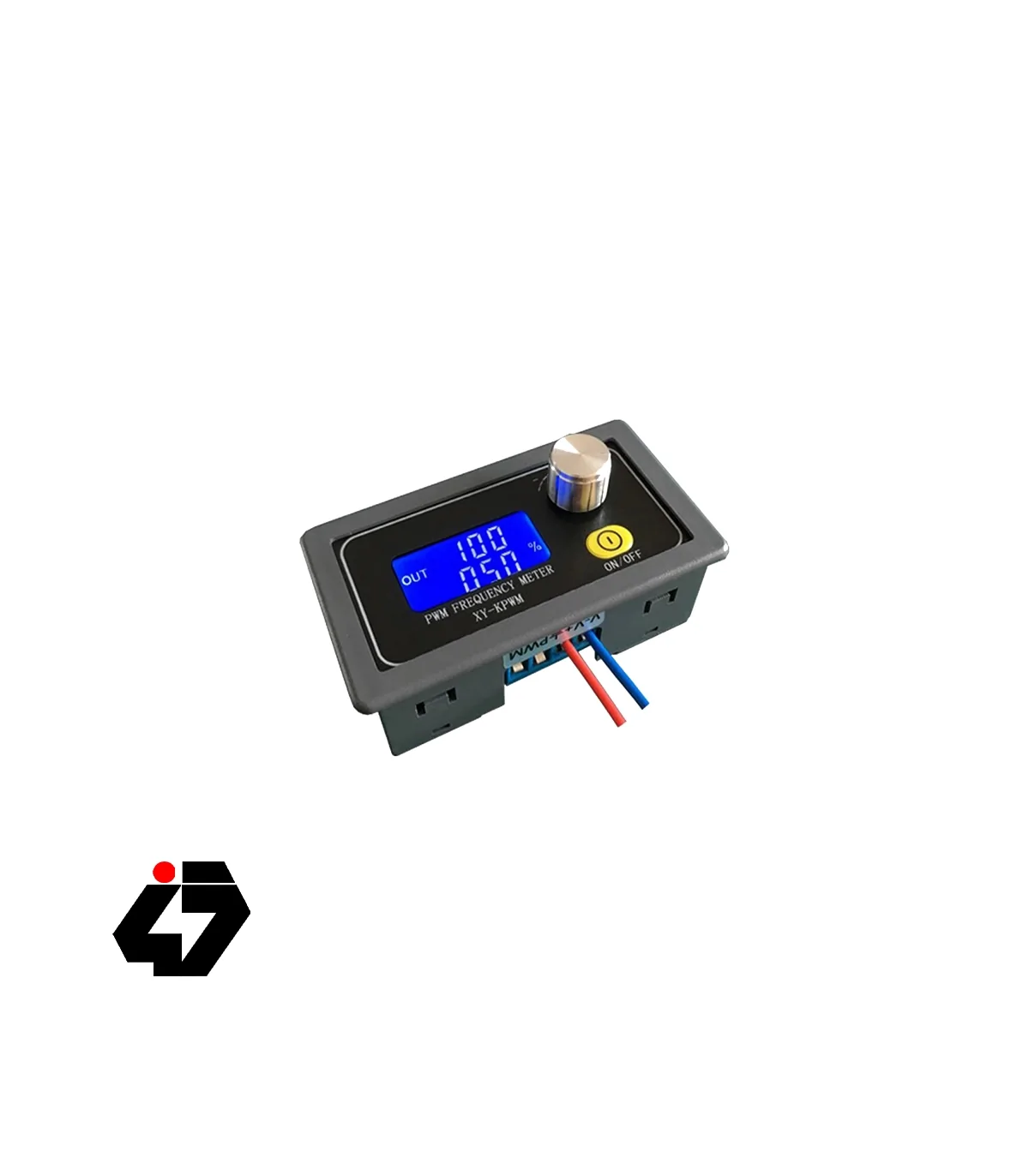

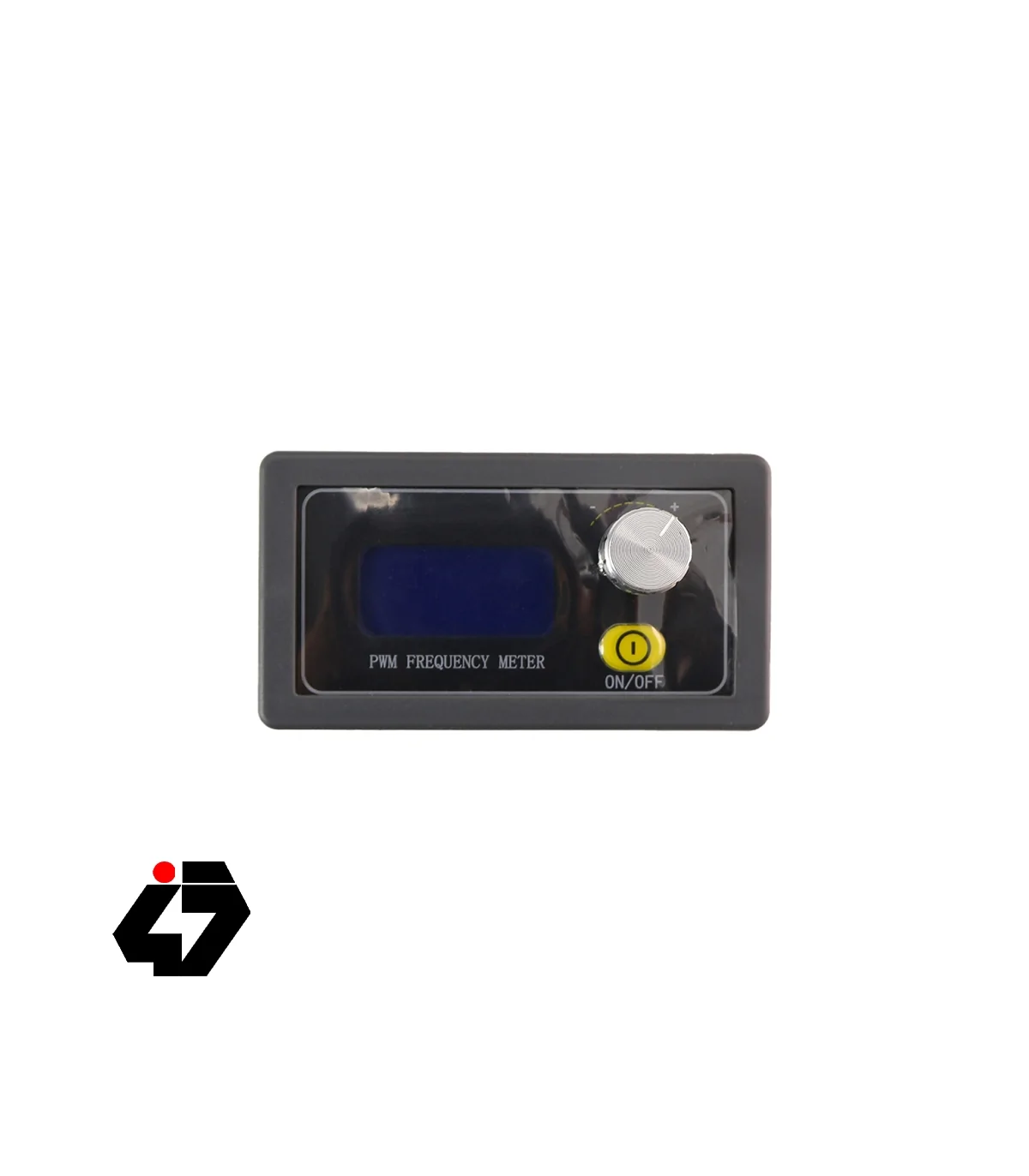

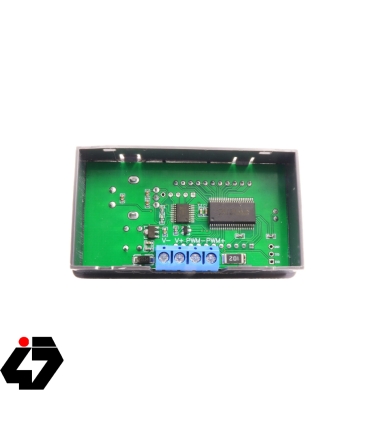

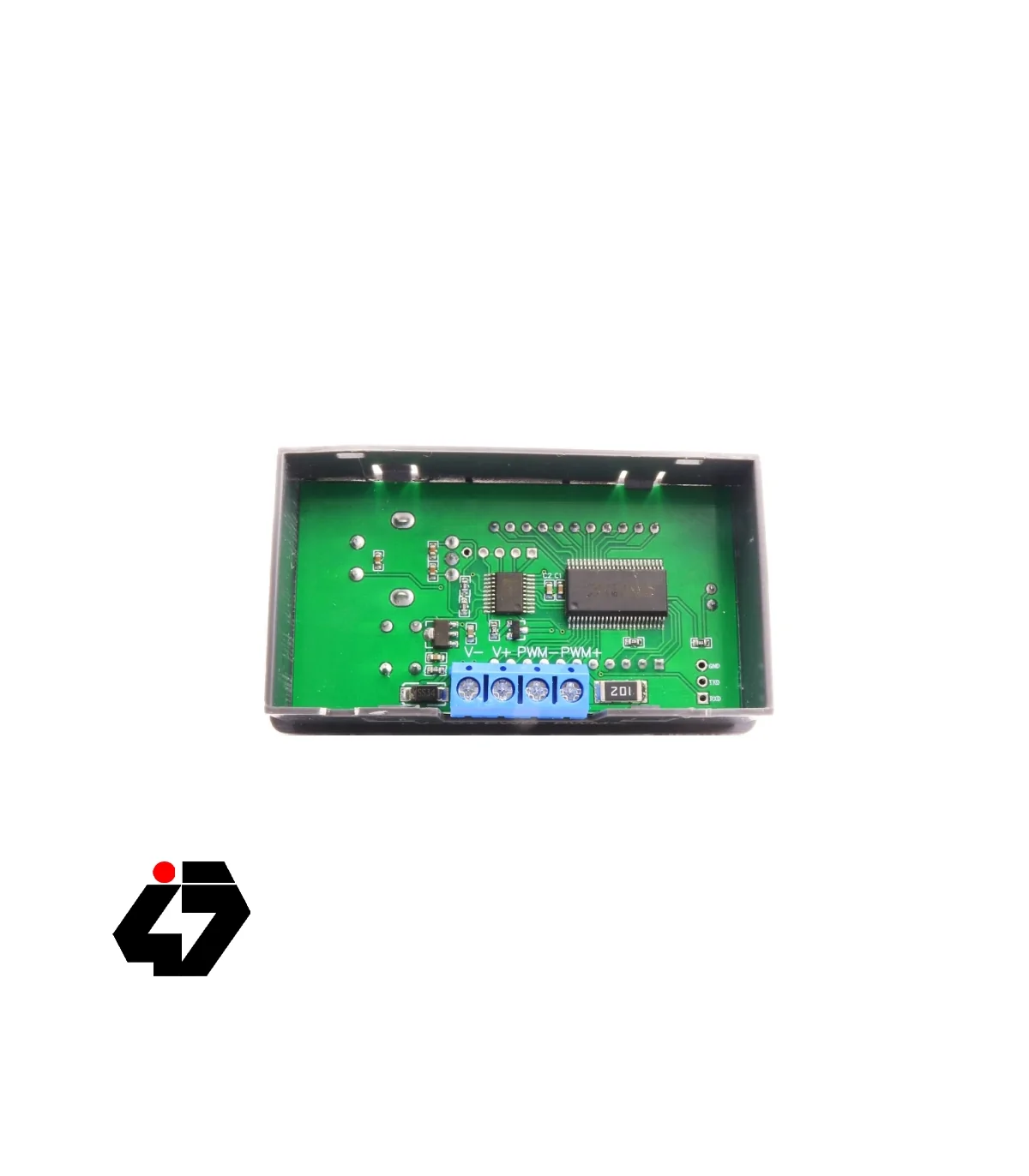

ماژول PWM ژنراتور تک کاناله روپنلی XY-KPWM

ماژول ژنراتور PWM تولید کننده سیگنال موج مربعی با فرکانس 1 هرتز تا 150 کیلو هرتز و Duty cycle قابل تنظیم مدل XY-KPWM

ادامه مطلبShow less
297,000 تومان بدون مالیات
مرجع:
473011008030
دوست داشتن0
اضافه به مقایسه0
افزودن به فهرست علاقه‌مندی‌ها
توضیحات

ماژول PWM ژنراتور تک کاناله روپنلی XY-KPWM یک دستگاه الکترونیکی پیشرفته برای تولید سیگنال‌های PWM با تنظیمات دقیق است. این ماژول با طراحی پنلی و استفاده از نمایشگر LCD و پتانسیومتر، امکان تنظیم فرکانس و duty cycle را فراهم می‌کند. دارای رنج وسیع فرکانس در دو حالت عادی و دقیق است و برای کاربردهایی مانند کنترل سرعت موتورها، تنظیم روشنایی LEDها، و کنترل دما مناسب می‌باشد. همچنین، این ماژول قابلیت‌های حفاظتی و ذخیره‌سازی تنظیمات پس از قطع برق را دارد.

ویژگی ها

دارای قاب خارجی

نمایشگر LCD با وضوح بالا

پشتیبانی از تنظیم فرکانس

پشتیبانی از تنظیم Duty cycle

دقت بالا در تنظیم

پشتیبانی از عملکرد حافظه پس از قطع برق

خروجی PWM تک کاناله

دو حالت کاری fine و Normal (تغییر مد با فشار 5 ثانیه ای ولوم)

پشتیبانی از عملکرد قفل برای دکمه‌ها جهت جلوگیری از عملکرد اشتباه

کاربرد

ژنراتور سیگنال موج مربعی: تولید سیگنال‌های موج مربعی

کنترل درایور موتور: تولید سیگنال موج مریعی برای کنترل درایورهای موتور

تولید پالس‌های قابل تنظیم: برای استفاده در میکروکنترلر (MCU)

تنظیم نور: استفاده به عنوان دیمر برای تنظیم شدت نور

کنترل سرعت: استفاده به عنوان تنظیم‌کننده سرعت انواع موتور ها

محدوده فرکانس خروجی

XXX دارای دقت 1Hz می باشد از 1 تا 999 هرتز (100 >>> 100Hz)

X.XX دارای دقت 0.01KHz از 1 تا 99.9 کیلوهرتز (1.01 >>> 1.01KHz)

XX.X دارای دقت 0.1KHz از 10 تا 99.9 کیلوهرتز (54.1 >>> 54.1KHz)

X.X.X دارای دقت 1KHz از 1 تا 150 کیلوهرتز (1.2.4<<<124KHz)

تنظیم پارامترها

برای تعیین پارامترهای فرکانس و دیوتی سایکل با فشار دادن لحظه ای ولوم وارد تنظیمات فرکانس می شویم و با زدن دوباره آن دیوتی سایکل قابل تنظیم است. با مشاهده Set پارامتر آماده تنظیم شدن است. در نهایت با حذف شدن علامت چشمک زن تنظیمات پایدار شده و  خروجی با توجه به پارامترهای تنظیم شده موج مربعی را تولید می کند. با مشاهده out شکل موج مربعی پایدار در خروجی حاصل شده است. اگر ولوم را به مدت 3 ثانیه نگه داریم به تنظیمات محدوده دیوتی سایکل دسترسی خواهیم داشت که حد بالا و پایین دیوتی سایکل را مشخص می کند.

Introduction

XY-KPWM / ZY-KPWM signal generator is a device that provides electrical signals at a variety of frequencies, square wave, and output levels.It is used as a signal source or excitation source for testing.Widely used in production practice and technology.

Feature

1>.With outer casing

2>.LCD high definition display

3>.Support UART

4>.Support frequency adjustment

5>.Support duty cycle adjustment

6>.High precision detection

7>.Support power-down memory function

8>.1-Channel PWM output

9>.Dual Work Mode

10>.Knob supports lock function to avoid misoperation

11>.Support enable output

Specification

1>.Product name: XY-KPWM PWM Signal Generator;

2>.Model: XY-KPWM;

3>.Work Voltage:DC 3.3V-30V;

4>.Frequency range(Normal mode):1Hz~150KHz;

5>.Frequency range(Precise mode):1Hz~15KHz;

6>.Frequency accuracy:2%;

7>.Duty cycle accuracy:1% at Normal mode;

8>.Duty cycle accuracy:0.1% at Precise mode;

9>.Duty cycle range:0.00%-100%;

10>.Output Current:About 5-30mA;

11>.Output amplitude:Same to input voltage;

12>.Work Temperature:-40℃~85℃;

13>.Work Humidity:0%~95%RH;

14>.Size:79*43*37mm;

Module highlights

1. Dual mode, duty cycle stepping 0.1% in fine mode ;

2. LCD liquid crystal display frequency and duty cycle, very clear, using code potentiometer adjustment, very convenient; PWM output can be set separately frequency and duty cycle;

3. With locking function to prevent misoperation;

4. Wide frequency range and high precision;

5. Serial communication

First, the module description

PWM output, you can set the frequency and duty cycle separately;

Normal mode:

Frequency range 1HZ~150KHZ  duty cycle 000~100% , duty cycle step 1%

Fine mode:

Frequency range 1HZ~15KHZ  duty cycle 00.0~100% , duty cycle step 0.1%

The frequency is divided into four ranges and is automatically switched :

1.XXX ( no decimal point ) : The minimum unit is 1Hz , and the value range is 1Hz~999Hz ;

2.X.XX (the decimal point is in the hundredth place) The minimum unit is 0.01Khz , and the value range is 1.00Khz~9.99Khz ;

3.XX.X ( decimal point is ten ) : The minimum unit is 0.1Khz ; the value range is 10.0KHz~99.9KHz

4.XXX ( decimal point in ten and hundred ) : the minimum unit is 1Khz ; the value range is 1KHz~150KHz

Eg  frequency display: 100  means PWM output 100Hz pulse;

                        1.01 indicates that the PWM outputs a pulse of 1.01K ;

                        54.1  represents the PWM output 54.1KHz pulses;

                        1.2.4 indicates that the PWM output is a pulse of 124KHz ;

The duty ratio ranges from 0 to 100% ;

All setting parameters are saved after power down.

Second, the parameter settings

This product adjusts the frequency and duty ratio by rotating the potentiometer. It can realize rapid adjustment according to the rotation speed. The default adjustment of duty ratio, short press of the adjustment frequency, long press for 2 seconds to lock, long press for 5 seconds to switch mode (normal mode / Fine mode) , the operation is simple, the parameters are automatically saved after setting, and the power is not lost.

Third, the module parameters:

1. Working voltage: 3.3~30V ;

2. Frequency range: normal mode 1Hz~150KHz ; fine mode 1HZ~15KHZ ;

3. Frequency accuracy: the accuracy in each range is about 2% ;

4. Signal load capacity: the output current can be around 5~30ma ;

5. Output amplitude: The PWM amplitude is equal to the supply voltage;

6. Ambient temperature: -20~+70 °C.

7. Weight: 42g

Fourth, the scope of application:

1. Used as a square wave signal generator to generate a square wave signal for experimental development;

2. Used to generate a square wave signal that controls the motor driver;

3. Generate adjustable pulses for use by the MCU ;

4. Generate adjustable pulses and control related circuits ( applications such as PWM dimming speed regulation).

Five, serial port control (microcontroller TTL level communication)

Communication standard : 9600 bps

Data bits  : 8

stop bits  : 1

check digit  : none

flow control  : none



    1. Set the frequency of the PWM

“F101”: Set the frequency to 101 HZ (001~999)

“F1.05”: Set the frequency to 1.05 KHZ (1.00~9.99)

“ F10.5 ”: Set the frequency to 10.5KHZ (10.0~99.9)

“F1.0.5”: Set the frequency to 105KHZ (1.0.0~1.5.0)

Note : In fine mode , the maximum frequency is 15.0Khz

    2. Set the duty cycle of the PWM

Normal mode :

“DXXX”: Set the duty cycle of PWM to XXX ; (001~100)

    For example, D050 , set the PWM duty cycle to be 50%.

Fine mode :

"DXX.X": Set the PWM duty cycle to XX.X (00.1~100)

            For example, D20.8, set the PWM duty cycle to  20.8%.

     3. Read the setup parameters

Send a " read " string and read the set parameters.

     4. Switch mode

MODE0 :  Normal mode

MODE1:  Fine mode

Set the success to return: DOWN ;

Setting failed to return: FALL .

ادامه مطلبShow less
جزئیات محصول
473011008030

مشخصات

ابعاد
78x42x26mm
ولتاژ ورودی ( کاری )
DC 3.3V-30V
ولتاژ خروجی
برابر با ولتاژ ورودی
جریان خروجی
حدود 5-30 میلی آمپر
مدل
XY-KPWM
پارت نامبر
ژنراتور سیگنال PWM XY-KPWM
دامنه فرکانس (حالت عادی)
(حالت عادی): 1%
دامنه فرکانس (حالت دقیق)
(حالت دقیق): 0.1%
دقت Duty cycle
(حالت دقیق): 0.1%
(حالت عادی): 1%
