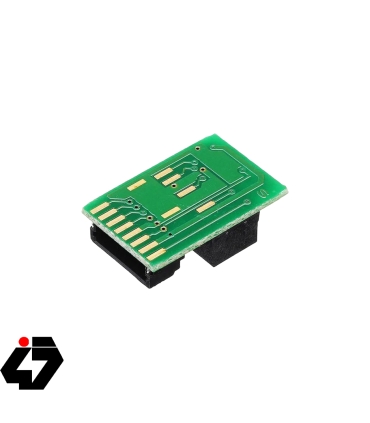

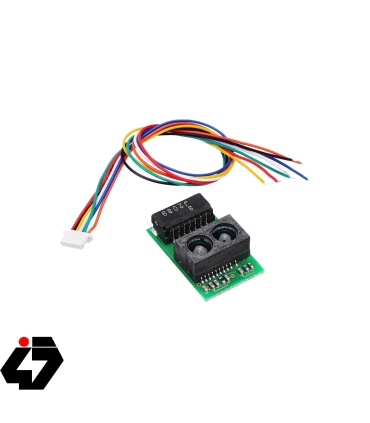

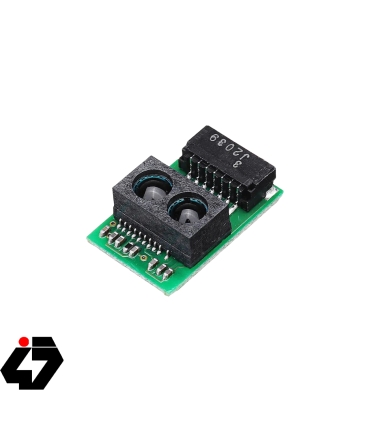

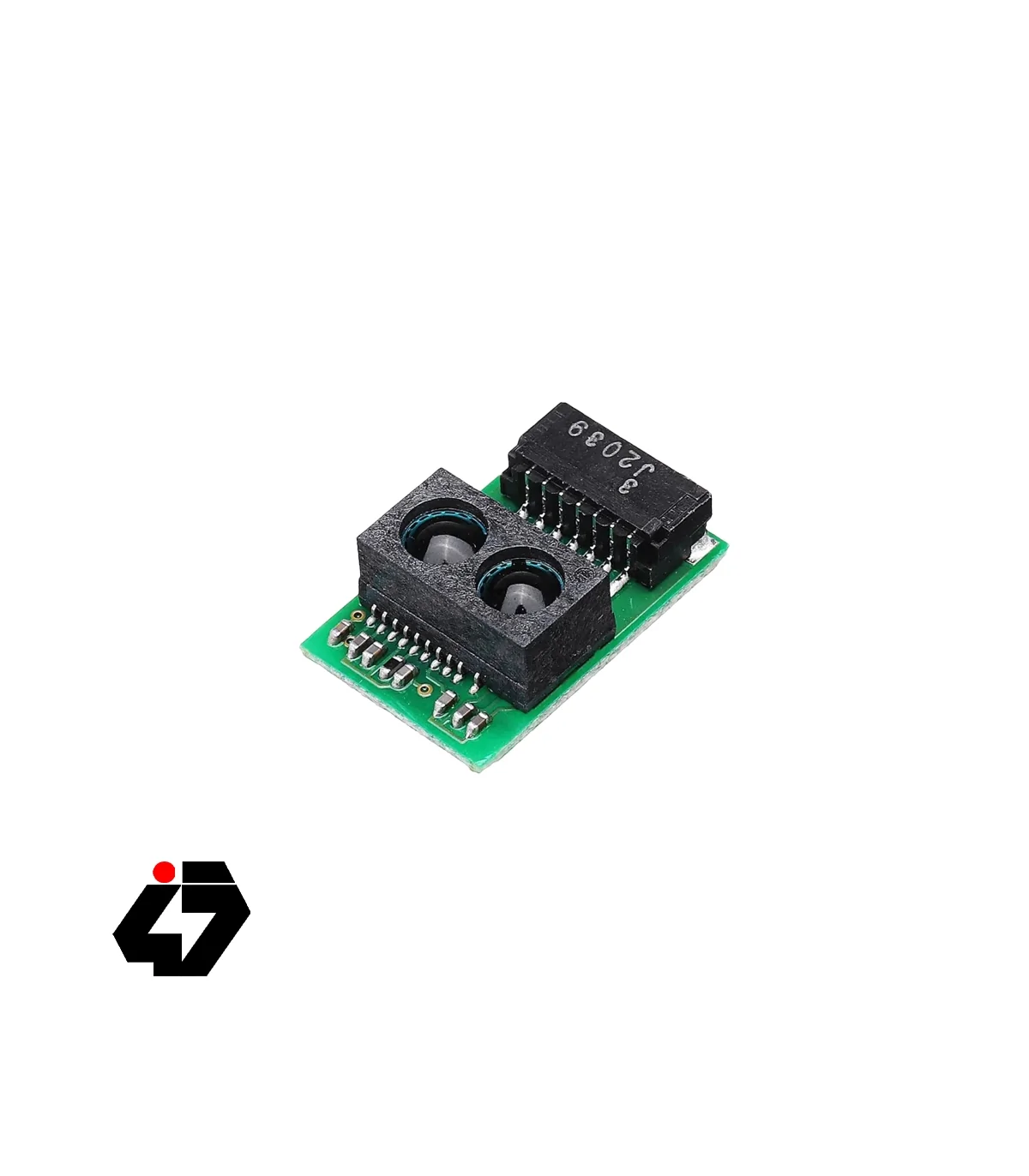

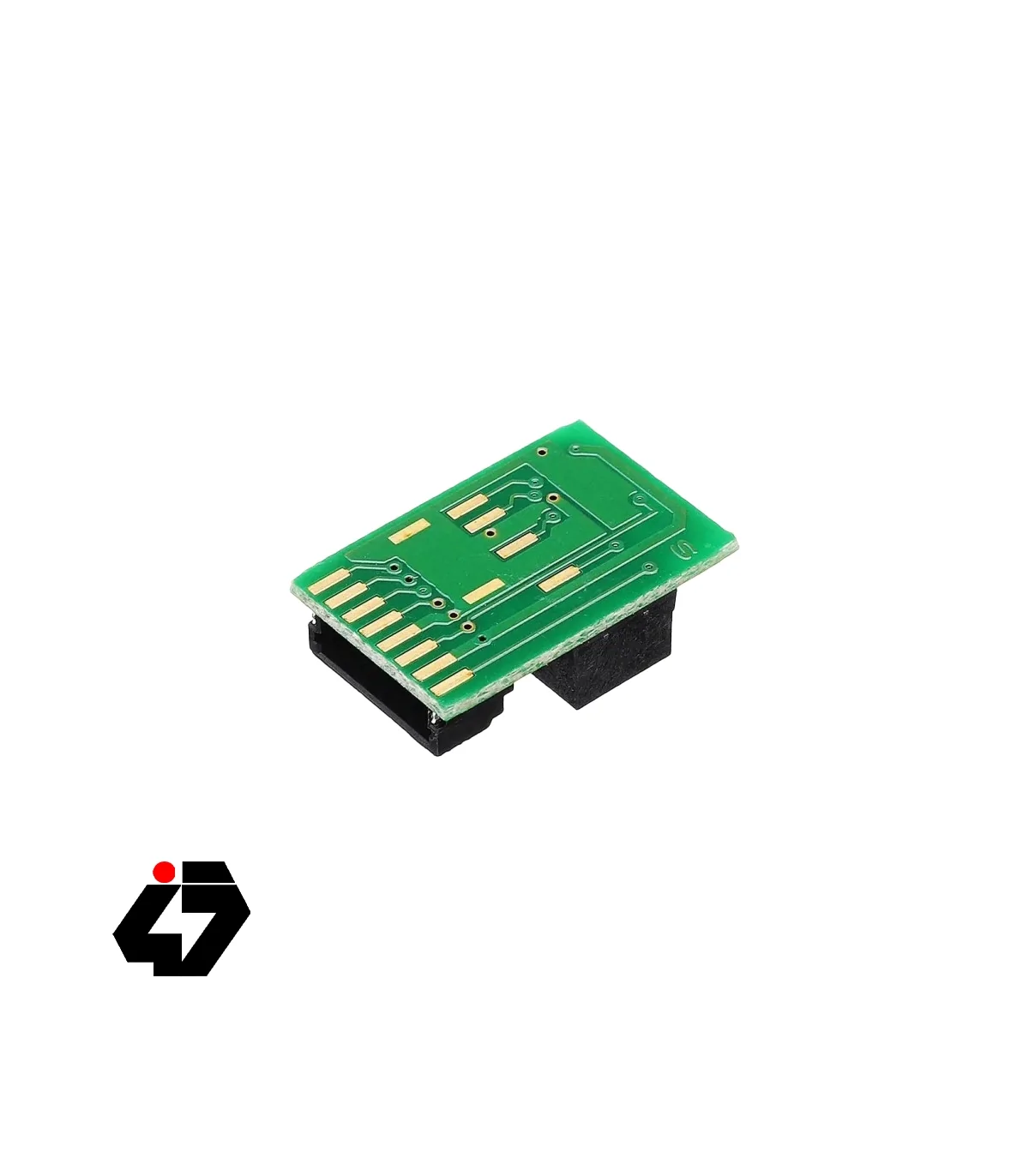

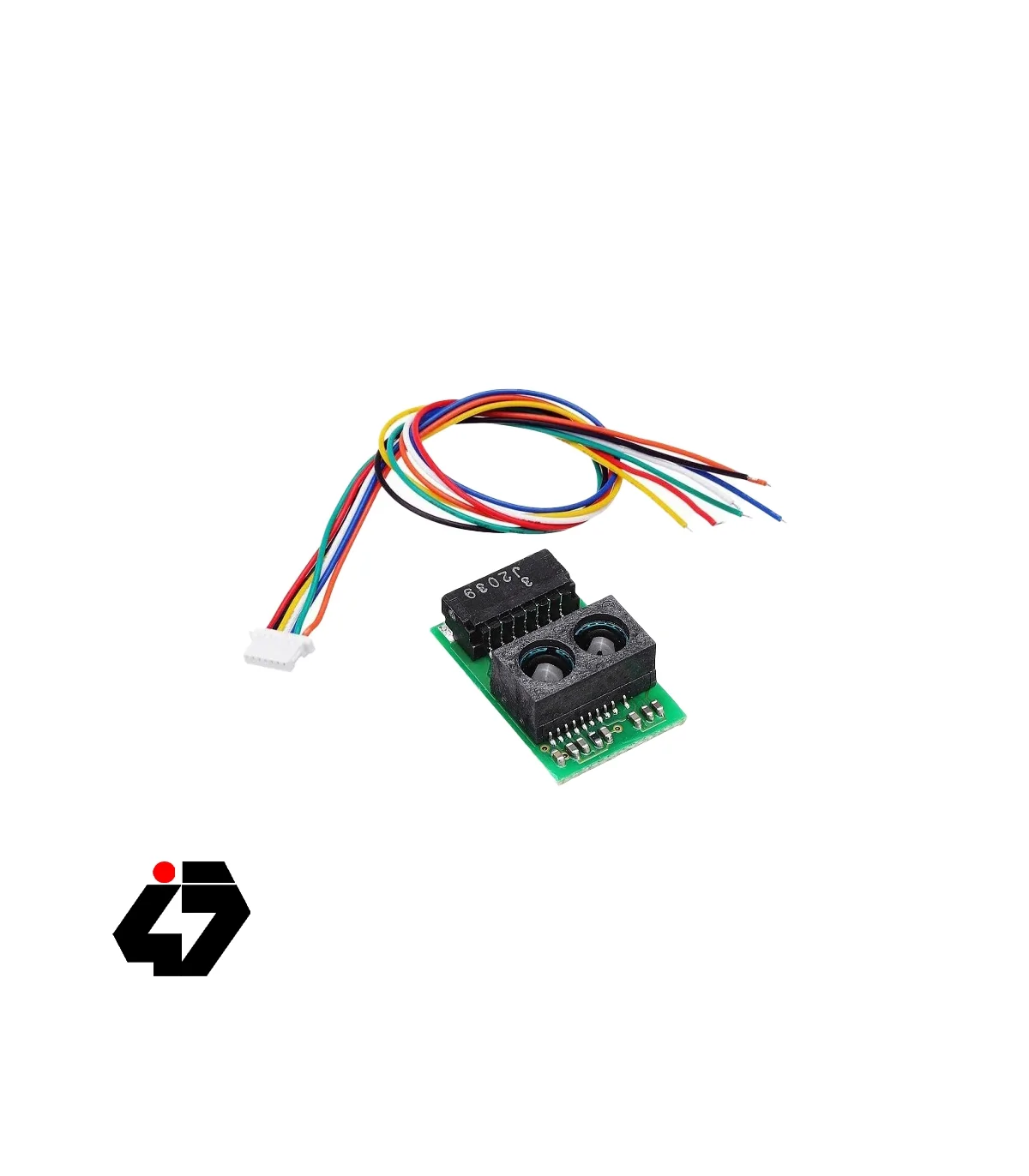

ماژول تعیین مسافت شارپ با پشتیبانی از ارتباط I2C برای استفاده با انواع میکروکنترلرها با رنج اندازه گیری فاصله 4 تا 50 سانتی متر
ماژول سنسور مسافت شارپ دارای یک سنسور اندازه گیری فاصله می باشد که از مجموعه از PSD (آشکارساز حساس به موقعیت) و IRED ( دیود مادون قرمز) و مدار پردازشگر سیگنال تشکیل شده است. در این سنسور به دلیل متد triangulation ،گوناگونی بازتاب از اشیا ،دمای محیطی و مدت عملکرد به راحتی تشخیص فاصله را تحت تاثیر قرار نمی دهد.
کاربردها:
سویچ های touchless (تجهیزات پزشکی، کنترل روشنایی و...)
ربات cleaner
سنسور برای صرفه جویی در انرژی( ATM و دستگاه کپی، و ماشین های خرید)
تجهیزات تفریحی و سرگرمی (ربات، ماشین بازی)
Introduction
GP2Y0E03 is a distance measuring sensor unit, composed of an integrated combination of CMOS image sensor and IR-LED. The variety of the reflectivity of the object, the environmental temperature, and the operating duration are not influenced easily to distance detection because of adopting the triangulation method. This device outputs the digital (I2 C) data corresponding to the detection distance. So this sensor can also be used as a proximity sensor.
Specification
Manufacturer: Sharp Microelectronics
Product Category: Distance Sensors
Sensing Distance: 4 cm to 50 cm
Operating Supply Voltage: 2.7 V to 5.5 V
Operating Supply Current: 26 mA
Minimum Operating Temperature: - 10 C
Maximum Operating Temperature: + 60 C
Mounting Style: Panel
Height: 5.2 mm
Length: 16.7 mm
Output Configuration: I2C, Analog
Sensing Method: Optical
Width: 11 mm
Barrel Size: 16.7 mm x 11 mm x 5.2 mm
Brand: Sharp Microelectronics
Product Type: Distance Sensors
Factory Pack Quantity: 1000
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 2.7 V
Applications
Cleaning robot
Humanoid robot
Non-contact switch (sanitary equipment, illuminance control, etc.)
Energy-saving sensors (ATM, copiers, LCD monitors, etc.)
Amusement equipment (robot, game console, etc.)
مشخصات
- جریان مصرفی
- 26mA
- ولتاژ تغذیه
- 2.7 تا 5.5V
- محدوده اندازه گیری فاصله
- 4 تا 50 سانتی متر
