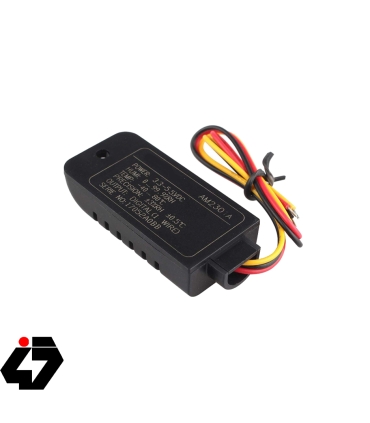

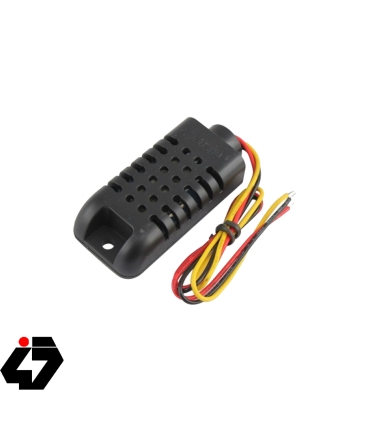

ماژول آماده سنسور دما و رطوبت - آب و هوا AM2301 / DHT21

ماژول آماده سنسور دما و رطوبت - آب و هوا AM2301 / DHT21

AM2301 / DHT21 یک ماژول اندازه گیری رطوبت و دما است که از دو حسگر رطوبت خازنی و ترمیستور تشکیل شده است . این ماژول با منبع تغذیه 3.3 تا 5.2 ولت راه اندازی می شود و از طریق پروتکل ارتباطی تک سیمه (One-Wire) با میکرو کنترلر ارتباط برقرار می کند.این ماژول دارای یک سنسور دمای دقیق وسنسور رطوبت با تکنولوژی خازنی است که به یک ریز پردازنده قدرتمند هشت بیتی متصل است که یک  خروجی سیگنال دیجیتال کالیبره شده تولید میکند .

کاربردها

سیستم های تهویه مطبوع

سیستم های تنظیم رطوبت

هواشناسی

تجهیزات آزمایشگاهی

کنترل و اتوماسیون

Introduction

AM2301 capacitive humidity sensing digital temperature and humidity module is the one that contains the compound has been calibrated digital signal output of the temperature and humidity sensor. Application of a dedicated digital modules collection technology and the temperature and humidity sensing technology, to ensure that the product has high reliability and excellent long-term stability. The sensor includes a capacitive sensor wet components and a high-precision temperature measurement devices, and connected with a high-performance 8-bit microcontroller. The product has excellent quality, fast response, strong anti-jamming capability, and high cost. Each sensor is extremely accurate humidity calibration chamber calibration. The form of procedures, the calibration coefficients stored in the microcontroller, the sensor within the processing of the heartbeat to call these calibration coefficients. Standard single-bus interface, system integration quick and easy. Small size, low power consumption, signal transmission distance up to 20 meters, making it the best choice of all kinds of applications and even the most demanding applications. Products for the 3-lead (single-bus interface) connection convenience. Special packages according to user needs.

Specification

P/N: AM2301 / AM2301A

Signal output: single-bus digital signal

Sensing element: capacitive humidity

Scope of work: humidity 0-100% RH; temperature -40 ~ 80 ℃

Accuracy: Humidity accuracy ± 2% RH;

Temperature Accuracy ± 0.5 ℃

Resolution: humidity 0.1% RH; temperature 0.1 ℃

Repeatability: humidity ± 0.5% RH; temperature ± 0.2 ℃

Hysteresis: ± 0.3RH%

Stability: ± 0.5% RH / Year

Interchangeability: fully interchangeable

Response time: 6S

Specifications: 14 * 18 * 5.5mm

Applications

HVAC

dehumidifier

testing and inspection equipment

consumer goods

automotive

automatic control

data loggers

home appliances

humidity regulator

medical

weather stations

and other humidity measurement and control and so on.
