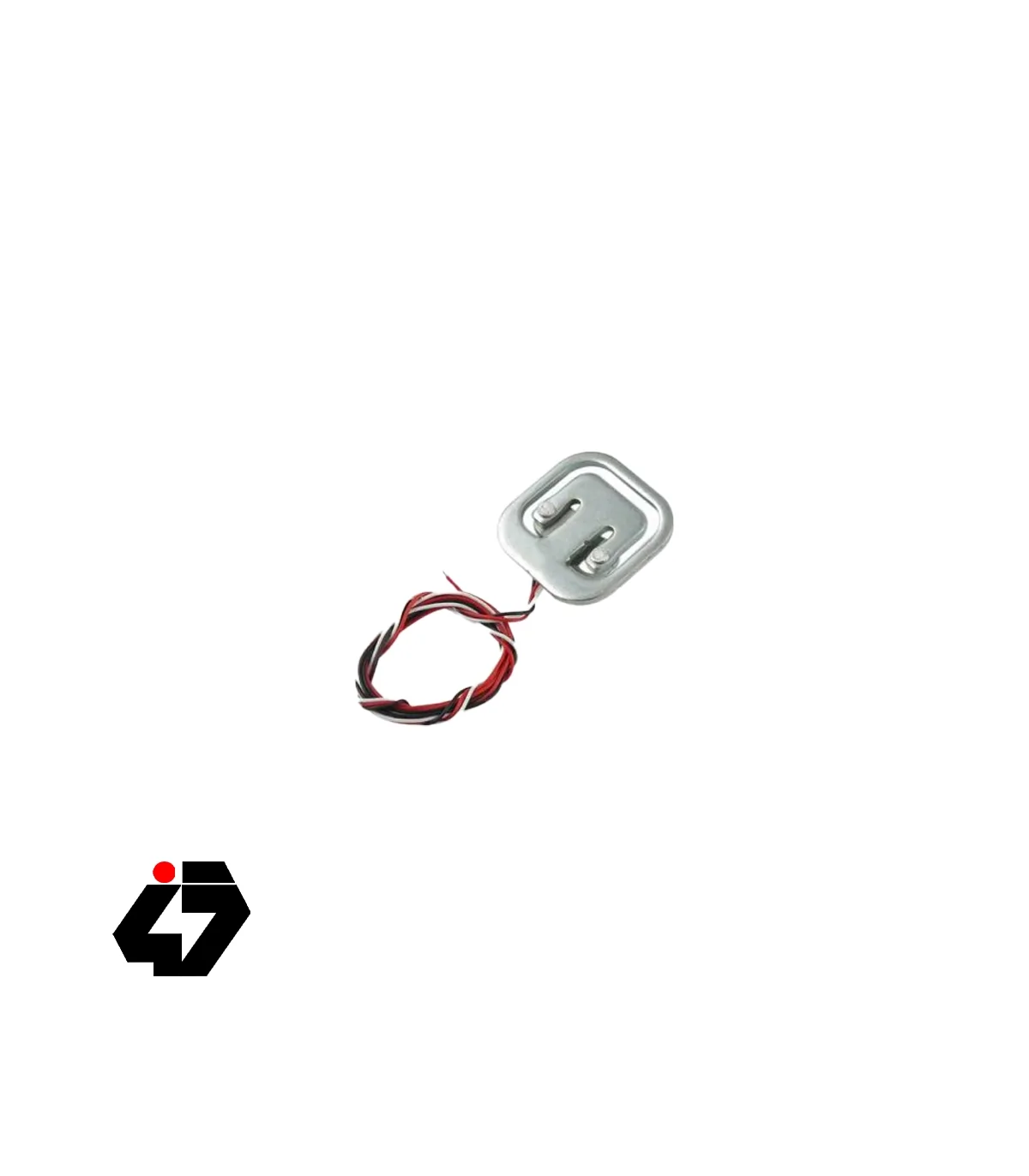

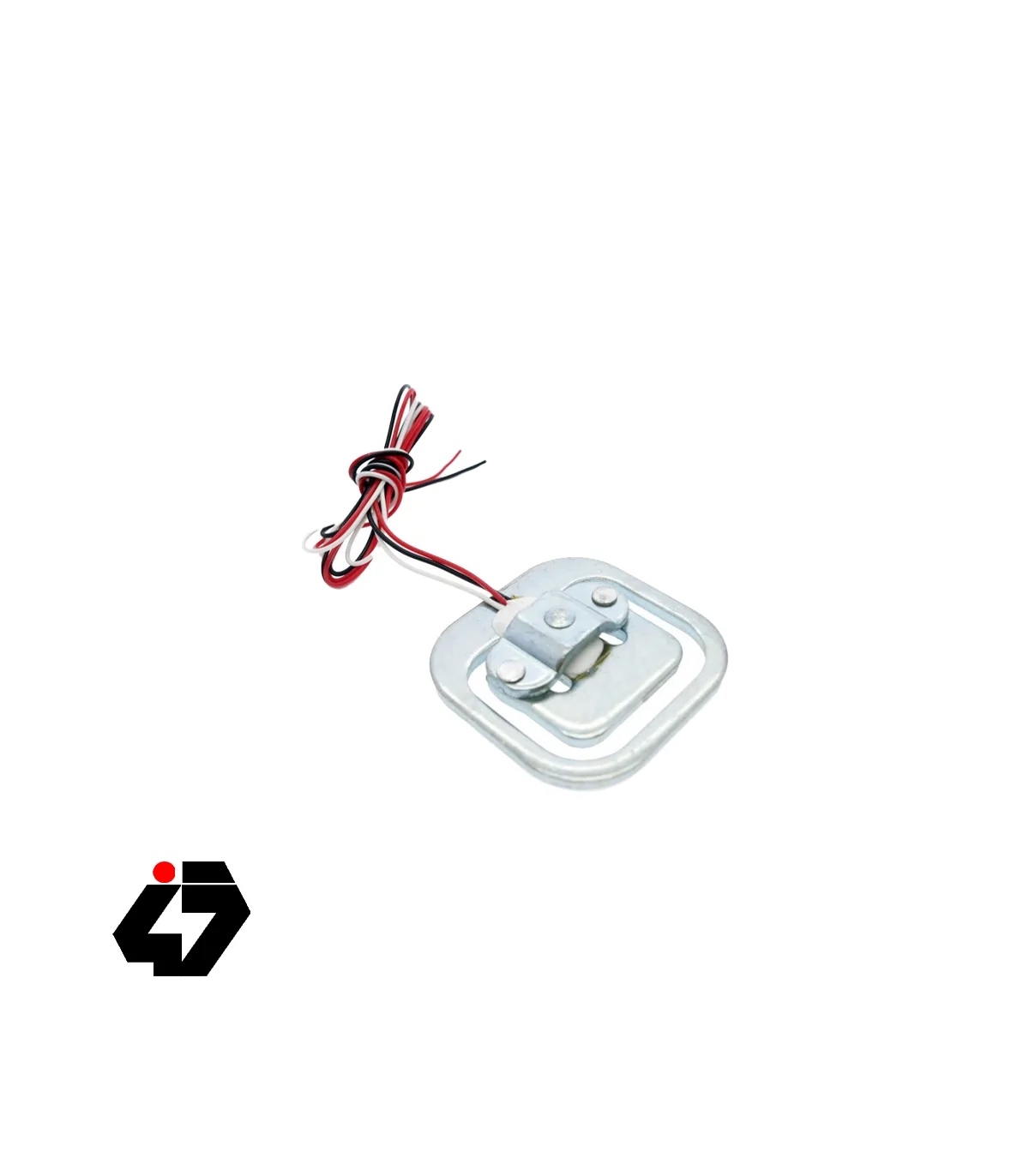

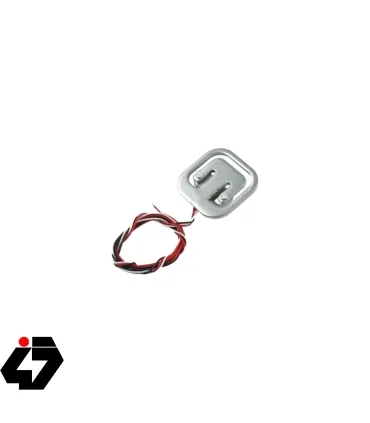

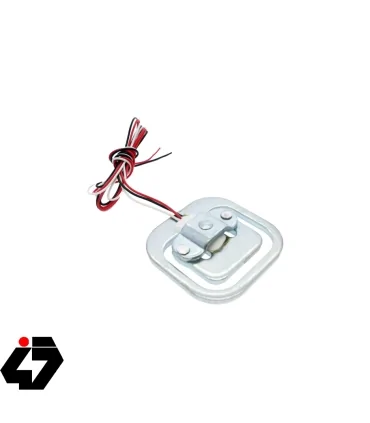

سنسور وزن - لودسل 50KG مدل GML692

لودسل یا سنسور وزن 50 کیلویی مدل GML692 مناسب برای ترازو های دیجیتال و پروژه های دانشجویی و صنعتی

ادامه مطلبShow less
58,500 تومان بدون مالیات
مرجع:
473051009009
دوست داشتن0
اضافه به مقایسه0
افزودن به فهرست علاقه‌مندی‌ها
توضیحات

ماژول سنسور وزن، به عنوان ماژول لودسل نیز شناخته می شود، یک دستگاه الکترونیکی است که برای اندازه گیری وزن یا نیرو است. در حالت کلی می توان گفت که این ماژول ها  یک حسگر وزن بوده که با توجه به نیروی وارد شده بر سطح آن یک خروجی تولید می کند و این خروجی توسط یک میکرو، پردازش و اطلاعات را می توان استفاده نمود .

این ماژول‌ها معمولاً در کاربردهای مختلفی که نیاز به اندازه‌گیری وزن یا نیرو دارند، مانند ترازوهای صنعتی، سیستم‌های نظارت بر بار، برنامه‌های روباتیک و پروژه‌های DIY که اندازه‌گیری دقیق وزن ضروری است، استفاده می‌شوند.

ماژول GML692 قابلیت سنجش وزن تا 50 کیلو را دارد.

کاربرد:

اندازه‌گیری وزن یا نیرو

ترازوهای صنعتی

سیستم‌های نظارت بر بار

برنامه‌های روباتیک

پروژه‌های DIY

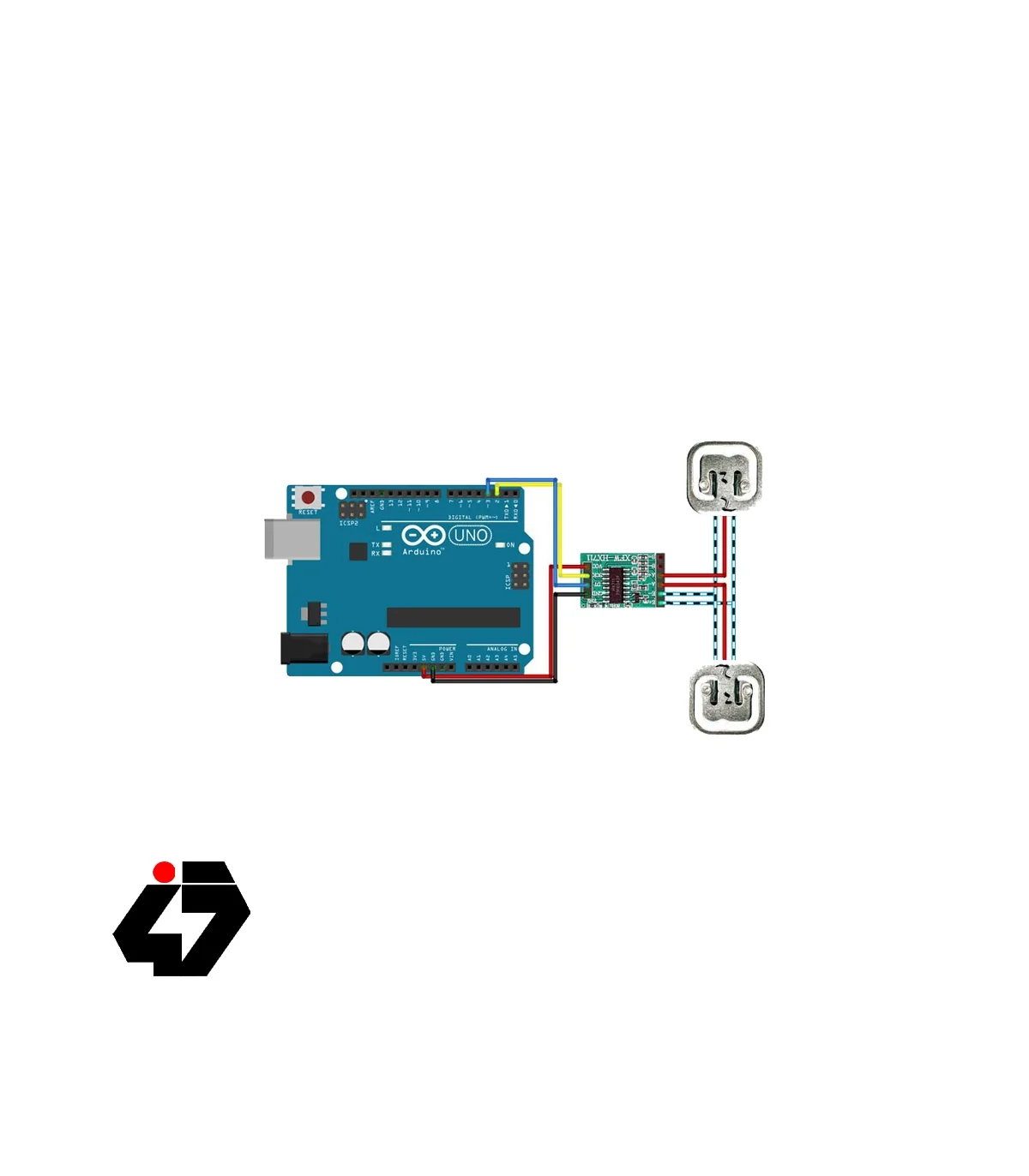

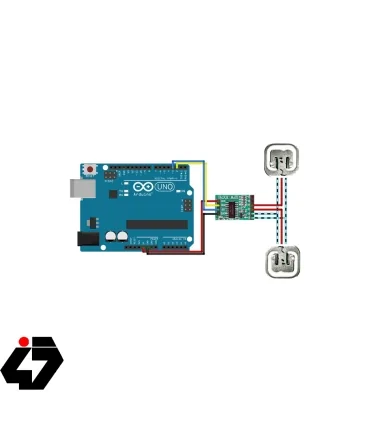

برای راه اندازی لودسل پیشنهاد می شود از ماژول لودسل مدل HX-711 استفاده شود

Introduction

A load cell is a transducer that converts force into measurable electrical output.

This straight bar load cell (sometimes called a strain gauge) can convert pressure (force) into an electrical signal. Load cells are specially shaped metal parts that have strain gauges glued to them. The strain gauges are resistors that change their resistance when they are bent. When the metal part bends, the resistance of the load cell changes

Load cells generally consist of a spring element on which strain gauges have been placed. The spring element is usually made of steel or aluminum. That means it is very sturdy but also minimally elastic. As the name "spring element" suggests, the steel is slightly deformed under load, but then returns to its starting position, responding elastically to every load. These extremely small changes can be acquired with strain gauges. Then finally, the deformation of the strain gauge is interpreted by analysis electronics to determine the weight.

Each straight bar load cell is made from an Alloy Steel and is capable of reading capacity up to 50Kg.

Additionally, these load cells offer an IP65 protection rating.

There are many varieties of load cells like Compression/Tension Load Cells, S-Beam Load Cells, Bending Beam Load Cells, Platform, and Single Point Load Cells, Canister Load Cells, Low Profile Load Cells, etc.

The method of operation can involve either the use of a weight balancing mechanism or the detection of the force developed by mechanical levers.

Load cell designs can be distinguished according to the type of output signal generated (pneumatic, hydraulic, electric) or according to the way they detect weight. (bending, shear, compression, tension, etc.)

The recommended operating voltage is 5V and it can work maximum at 10V.

Specification

Model: GML692

Input Voltage: 5V ~ 10V

Usage: Body Scale

Theory: Resistance Sensor

Output Type: Analog

Measuring Range: 50kg (Max)

Comprehensive Error: 0.2% (full Scale)

Precision: 0.2%F.S

Zero balance: 0.3mv/v

Input Impedance: 1000 +/-10ohm

Ultimate overload: 150%F.S

Creep: 0.15%F.S/3min

Operating Temperature: -10°C ~ 40°C

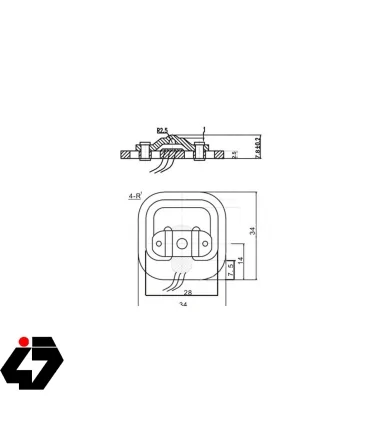

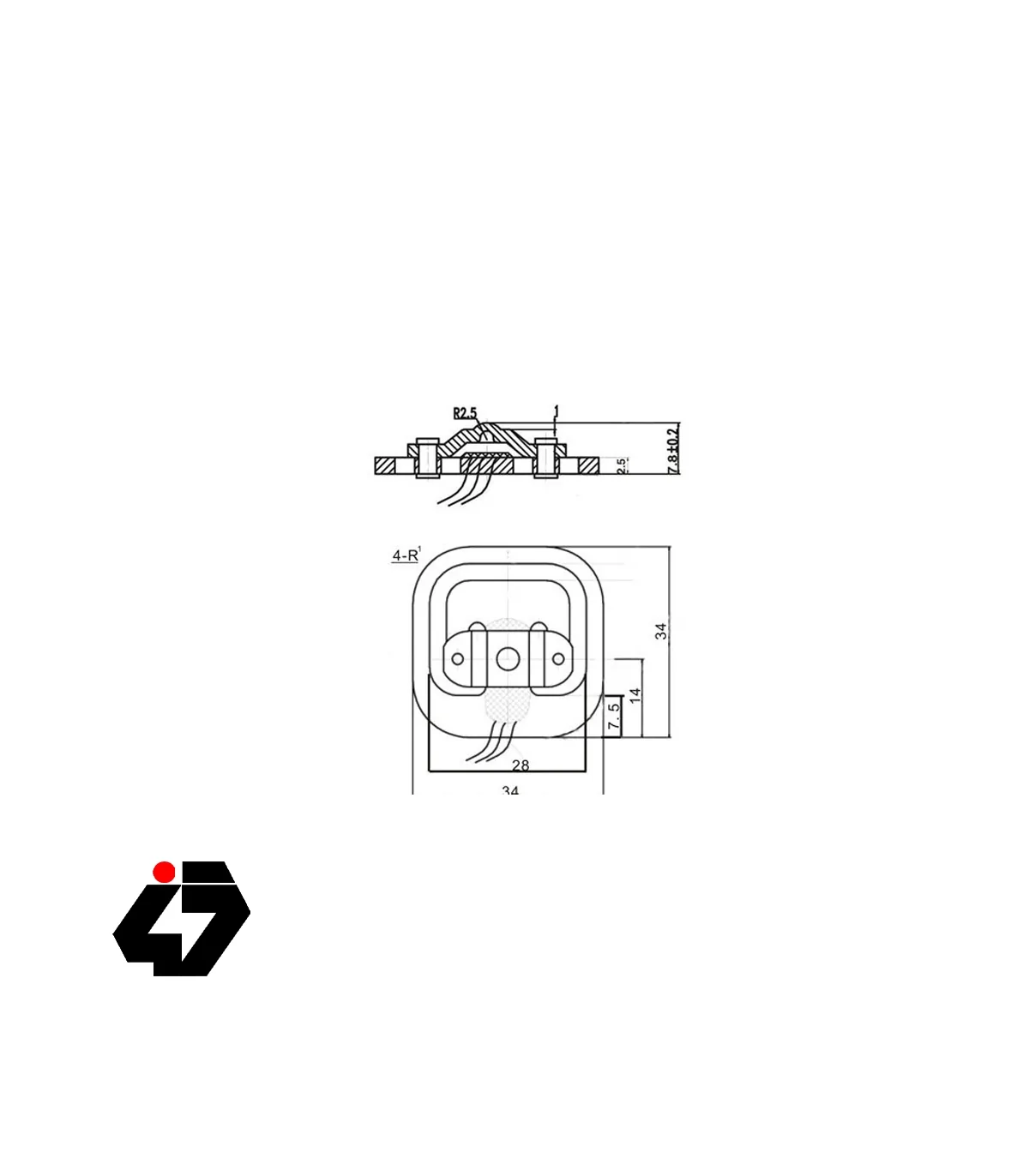

Size: 34mm x 34mm x 7.8mm

ادامه مطلبShow less
جزئیات محصول
473051009009

مشخصات

ابعاد
34x34x7.8 میلی متر
ولتاژ ورودی ( کاری )
10 ولت DC
دمای کاری
20- تا 60+ درجه سانتیگراد
خروجی
1.0 ± 0.15 میلی ولت
مدل
GML692
نوع خروجی
آنالوگ
حداکثر وزن قابل تحمل
50 کیلو گرم
خروجی صفر
0.3± میلی ولت
امپدانس ورودی
10±1000 اهم
