ماژول آمپلی فایر استریو با تراشه TPA3118 یک آمپلی فایر دوکاناله با ولتاژ کاری 12 تا 24 ولت

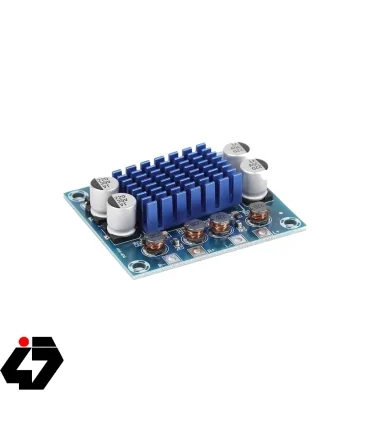

ماژول آمپلی فایر 2X30W وات استریو که با نام XH-A232 یک برد آمپلی فایر برای تقویت صدا می باشد که در این محصول دارای دو خروجی 30 وات است.
نکات ایمنی
*توجه داشته باشید که در ابتدا سیم کشی تغذیه را انجام داده و سپس از طریق منبع تغذیه، جریان برق را برقرار کنید.
*در صورت اتصال با سیم حاوی جریان برق و قطع و وصل ناگهانی ولتاژ، به علت جریان هجومی خازن، تراشه اصلی صدمه دیده و می سوزد.
*سوختن ماژول در این حالت مشمول گارانتی تعویض نمی باشد..
Specification
Input voltage: 12-24V
Amplifier type: Class D
Number of channels: dual channels
Output power: 30W+30W
Output impedance: 4Ω-8Ω
Efficiency: up to 90%
Sound quality: much less than 10% distortion.
Protection: Output short circuit protection, over temperature protection. Self-recovery
Module size: 43*55*14mm/1.69*2.17*0.55in
Package weight: 21g
Instruction
It is recommended to use a 4Ω-8Ω speaker with a power of no more than 10W.

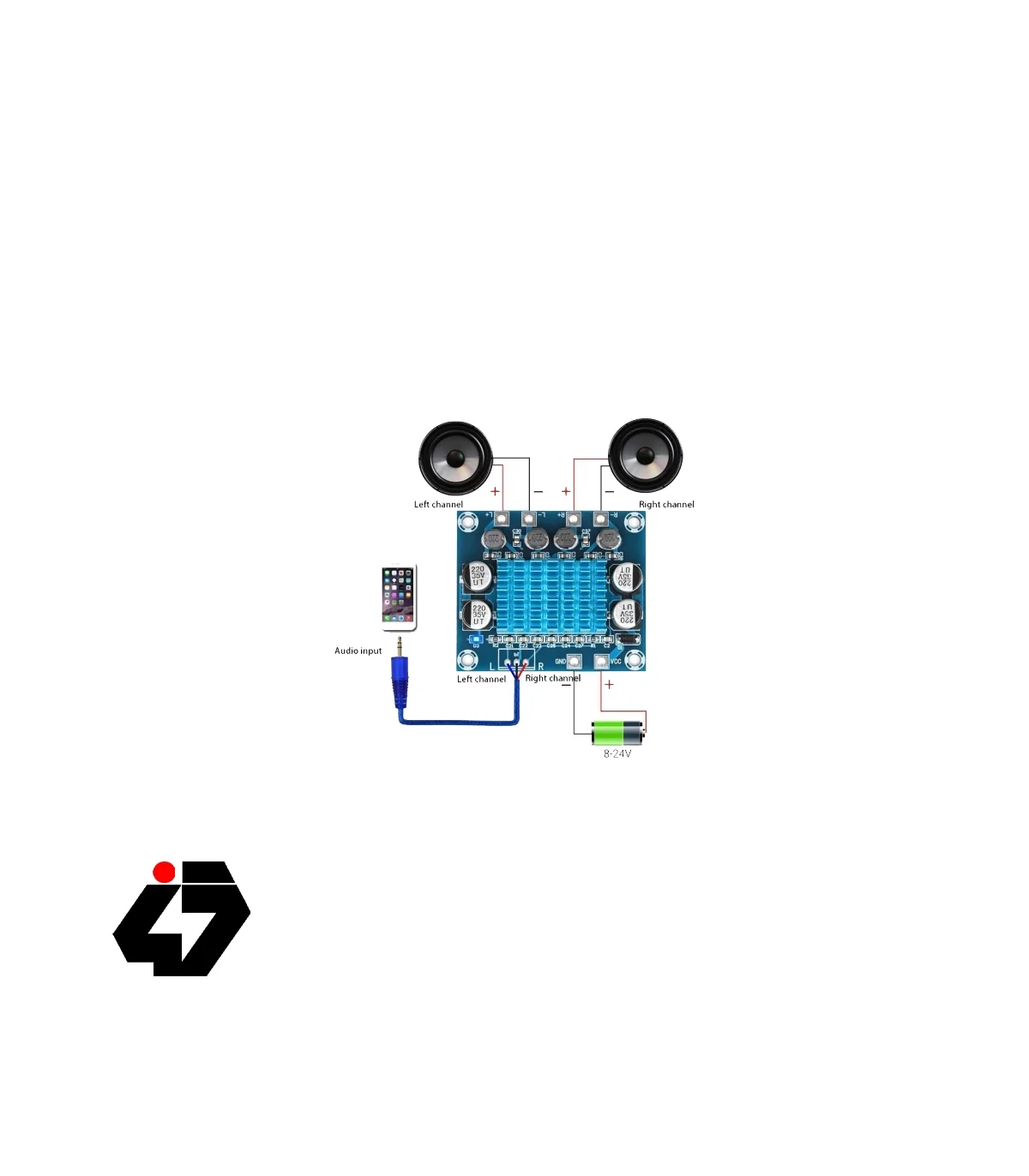

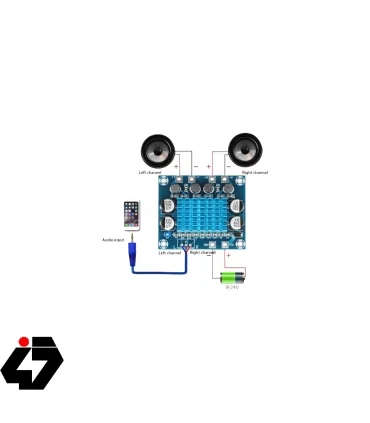

The product has the function of output short circuit protection and overheat protection, and turns off the automatic recovery function after restart. Refer to the wiring diagram for the specific connection method.
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
مشخصات
- ابعاد
- 43*55*14mm/1.69*2.17*0.55in
- ولتاژ ورودی ( کاری )
- 12-24 ولت
- کیفیت
- کمتر از 10 درصد افت
- تعداد خروجی
- 2 کانال
- توان خروجی بلندگو ها
- 30+30 وات
- راندمان
- 90 درصد
- مدار محافظ خروجی
- حفاظت از اتصال کوتاه خروجی، حفاظت از دمای بیش از حد
- کلاس دقت
- D
- امپدانس خروجی
- 4-8 اهم
