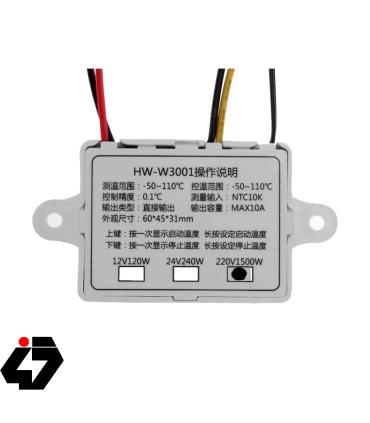

ترموستات 220V دیجیتال HW-W3001

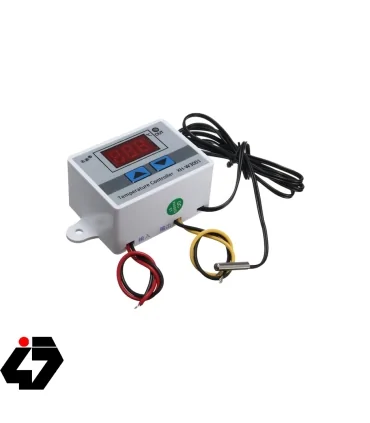

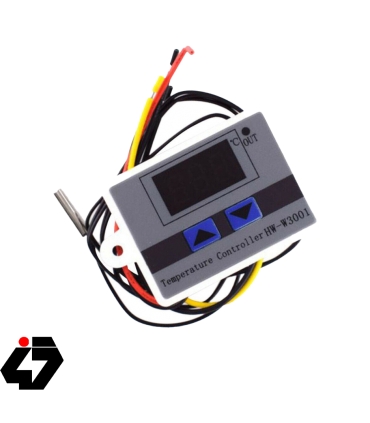

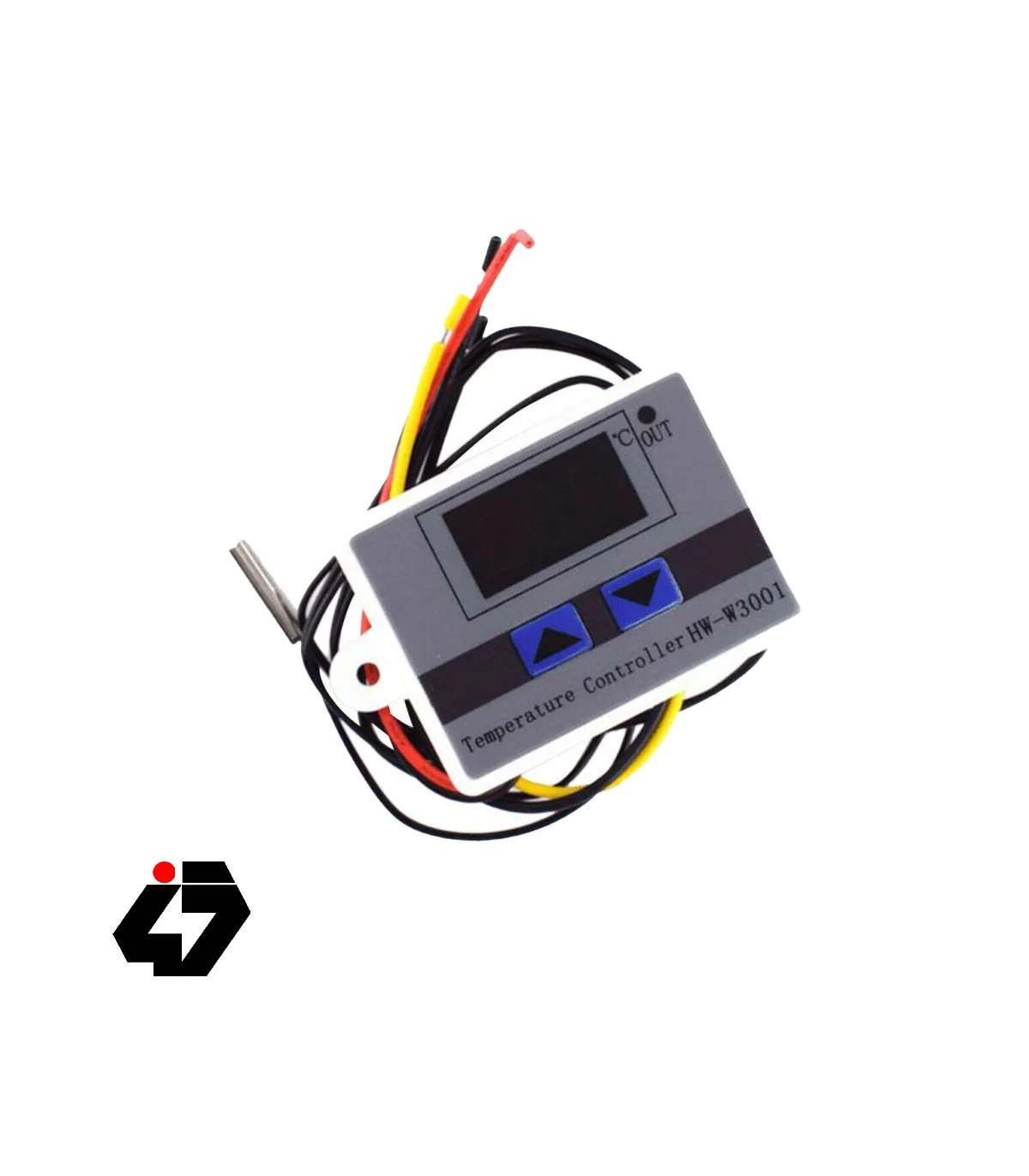

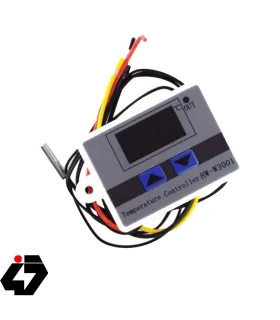

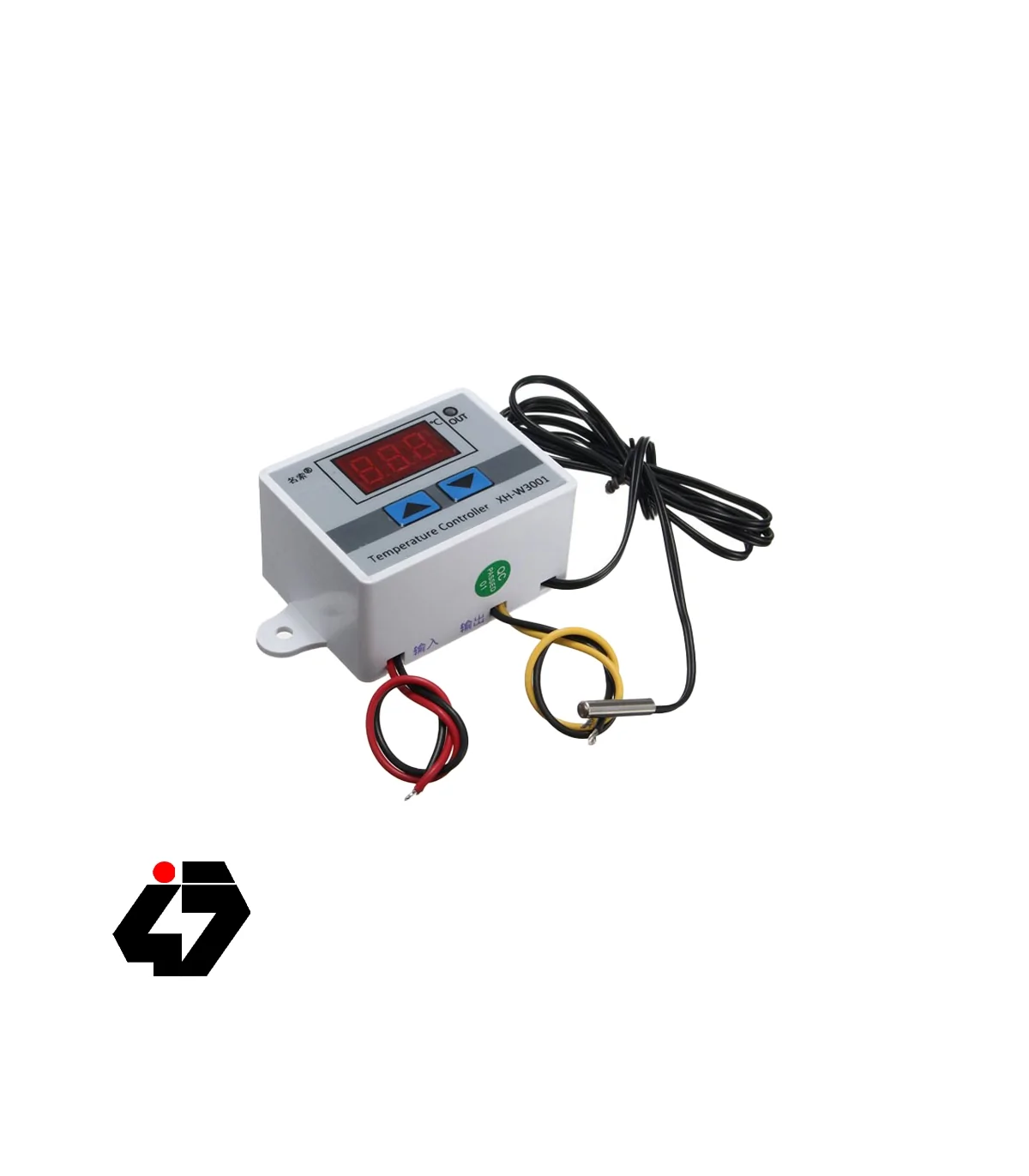

ماژول ترموستات XH-W3001 مدل ۲۲۰ ولت با محدوده دمایی -50 تا 110 درجه سانتی گراد

ادامه مطلبShow less
168,900 تومان بدون مالیات
مرجع:
473011020034
دوست داشتن0
اضافه به مقایسه0
افزودن به فهرست علاقه‌مندی‌ها
توضیحات

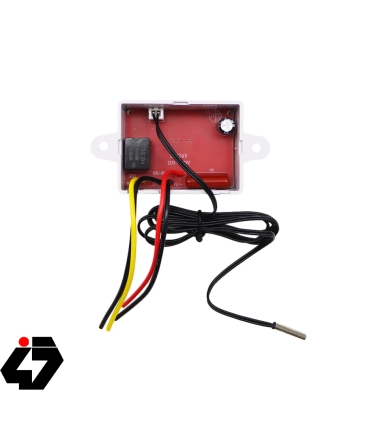

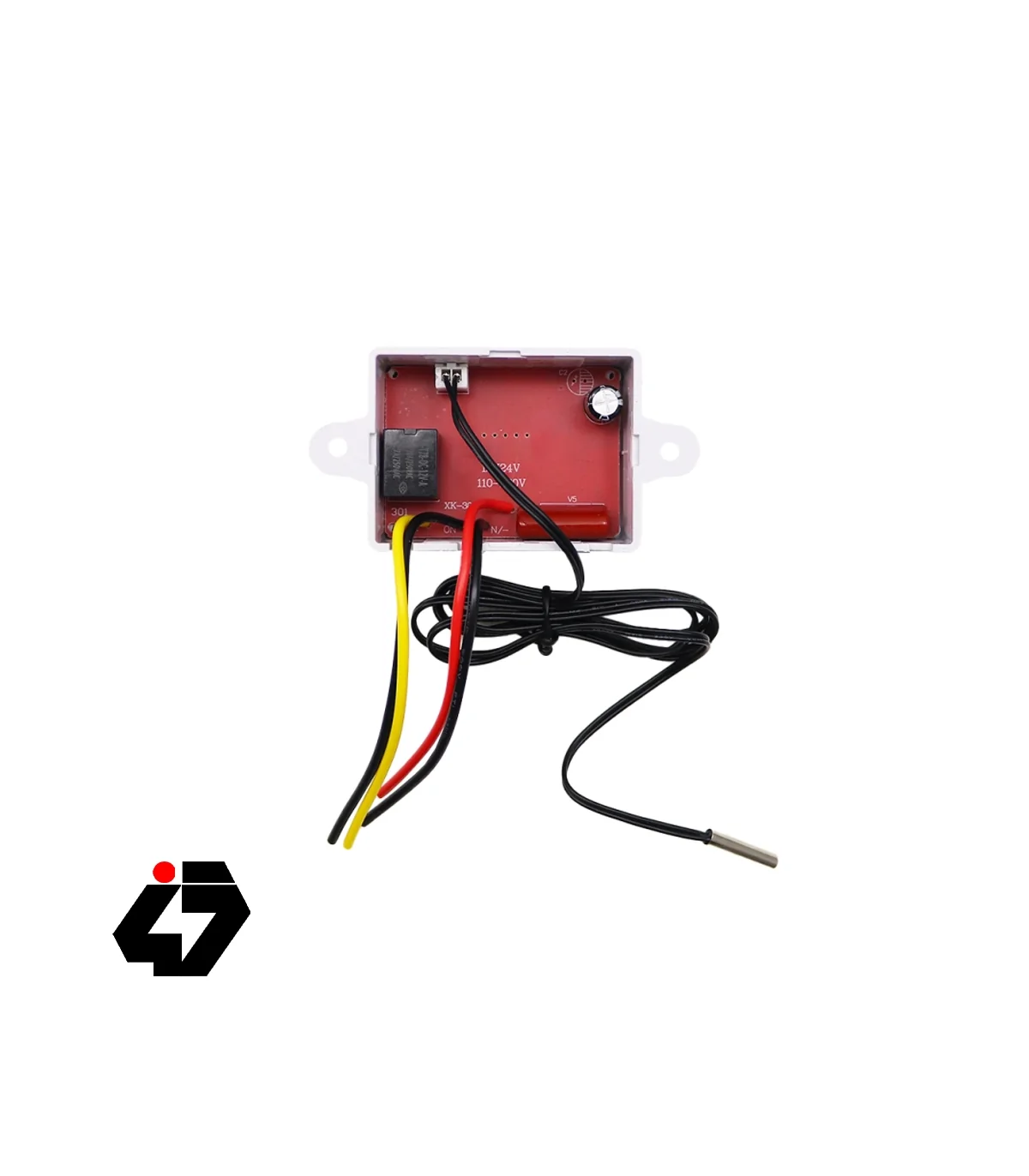

ماژول ترموستات XH-W3001 ، این ماژول یک ترموستات پرکاربرد برای اندازه گیری دما در بازه ۵۰- الی ۱۱۰ درجه سانتی گراد با دقت ۰٫۱ درجه است. ولتاژ کاری این ترموستات ۲۲۰ ولت AC است. ماژول کنترل دما XH-W3001 با خارج شدن از بازه دمایی که برای آن تعریف شده ولتاژ ۲۲۰ ولت را در دوسر خروجی رله قرار می دهد. دقت داشته باشید که در دو سر سیم زرد و مشکی در ابتدا ولتاژ صفر بوده و با وصل شدن رله ولتاژ ۲۲۰ ولت در دو سر آن قرار می گیرد. شما می توانید با استفاده از این ولتاژ ۲۲۰ ولت هیتر ، فن ، کولر و یا هر وسیله دیگری را تغذیه کنید.

با اعمال ولتاژ ۲۲۰ ولت به سیم مشکی و قرمز که مربوط به تغذیه این ترموستات است.ترموستات روشن شده و دمای محیط بروی نمایشگر آن نمایش داده می شود. شما می توانید با استفاده از دکمه هایی که بروی این ترموستات قرار دارد تنظیمات دلخواهتان را جهت کار در دو مد سرمایشی و گرمایشی اعمال کنید.

تنظیم ماژول XH-W3001 در مد گرمایشی و سرمایشی :

برای کار در مد گرمایشی می بایست با فشردن دکمه Up دمایی که میخواهید در آن دما هیتر راه اندازی شود را وارد کنید مثلا دمای ۲۳ درجه ، حال با فشردن دکمه Down دارد می توانید مشخص نمایید که هیتر در چه دمایی قطع شود مثلا در ۳۰ درجه ، حال چنانچه دما محیط به ۲۳ درجه سانتی گراد برسد هیتر متصل شده به خروجی ماژول روشن شده و باعث می شود تا دمای محیط افزایش یابد. با رسیدن دمای محیط به مقدار تعیین شده (۳۰ درجه) هیتر خاموش می شود.این فرایند بطور دائم با تغییر دما ادامه پیدا می کند.ب

رای کار در مد سرمایشی چنانچه تنظیمات انجام گرفته برای مد گرمایشی را بلعکس نمایید می توانید از ماژول در مد سرمایشی استفاده کنید. یعنی با فشردن دکمه Up دما ۳۰ درجه را تنظیم نمایید. و با فشردن دکمه Down دما ۲۳ درجه را تنظیم نمایید.حال چنانچه دمای محیط آن قدر گرم شود که به دما ۳۰ درجه برسد دستگاه کولر متصل شده به خروجی ترموستات روشن شده و سعی می کند دمای محیط را خنک کند. با روشن شدن کولر و سرد شدن محیط ، کولر در دمای ۲۳ درجه تنظیم شده خاموش می شود.واین سیکل با تغییر دما ادامه پیدا می کند تا دما در یک بازه خاص حفظ شود.

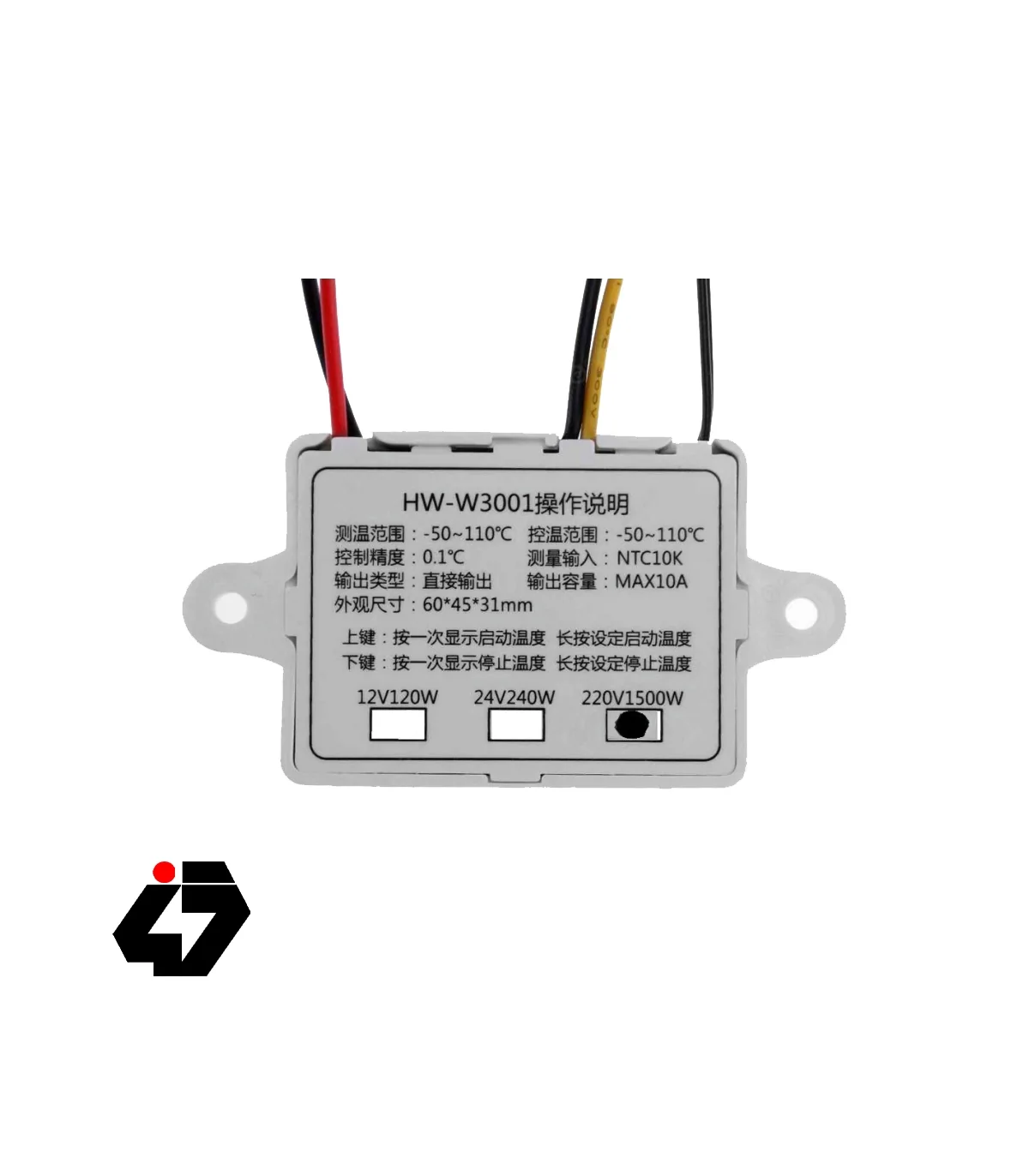

Specification

Product model: HW-W3001 / XH-W3001

Material: Electrical components

Temperature measurement range: -50℃-110℃

Temperature control range: -50℃-110℃

Accuracy of temperature measurement: +-0.2℃

Temperature Control Accuracy: +-0.1℃

Input measurement: NTC 10KL = 1m waterproof probe

Input power supply: 220V

Output power: 1500W

Output type: direct output

Output capacity: maximum of 10

Appearance size: 60mm*45mm*31mm/2.36*1.77*1.22''

Packing weight: 51g

Instruction

1. Setting the starting temperature: Press the button once to display the starting temperature. Press the button for about 3 seconds for a long time. The number of starting temperature will flicker. The required temperature can be set by the button up and down.

2. Setting the stop temperature: Press the key once to display the stop temperature. Press the key for about 3 seconds for a long time. The stop temperature number will flicker. The required temperature can be set by the up and down keys.

Heating mode:

1. Setting essentials: Start-up temperature < stop temperature (the program automatically judges working mode as a heating mode).

2. Settings:

Press the up button for a long time, after flicker, and set the start temperature by the upper and lower keys.

Press the down button for a long time, after flicker, and set the stop temperature by the upper and lower keys.

How to set it up:

1. Determine the working mode as heating mode, starting temperature < stopping temperature.

2. Press the up key button for a long time. When the temperature value flickers, press the upper and lower buttons to adjust the temperature. The starting temperature is 41°C.

3. Press the down key button long. When the temperature value flickers, the upper and lower keys are pressed to adjust the temperature, and the stop temperature is 51°C.

Refrigeration mode:

1. Setting essentials: Start-up temperature > stop temperature (the program automatically judges the working mode as refrigeration mode)

2. Settings:

Press the up button for a long time, after flicker, and set the start temperature by the upper and lower keys.

Press the down button for a long time, after flicker, and set the stop temperature by the upper and lower keys.

Use cases:

Control cabinet radiator, heat dissipation to 24°C stop, temperature rise to 32°C again start radiator.

How to set it up:

1. Determine the working mode as a refrigeration mode. Start temperature > stop temperature.

2. Press the up key button for a long time. When the temperature flickers, press the upper and lower buttons to adjust the temperature. The start-up temperature is 32 °C.

3. Press the down key button long. When the temperature flickers, press the upper and lower keys to adjust the temperature, and the starting temperature is 24 °C.

ادامه مطلبShow less
جزئیات محصول
473011020034

مشخصات

ولتاژ ورودی ( کاری )
۲۲۰ ولت
دقت اندازه گیری
۰٫۱ درجه
محدوده اندازه گیری دما
در بازه ۵۰- الی ۱۱۰ درجه سانتی گراد
دارای
قابلیت کارکردن در دو مد گرمایش و سرمایشی
