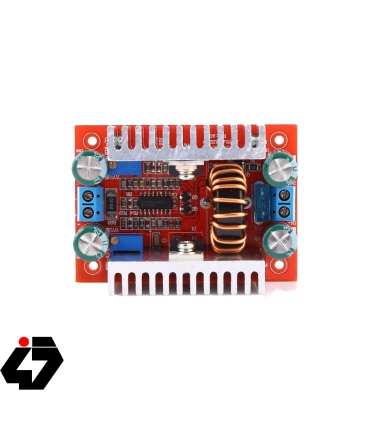

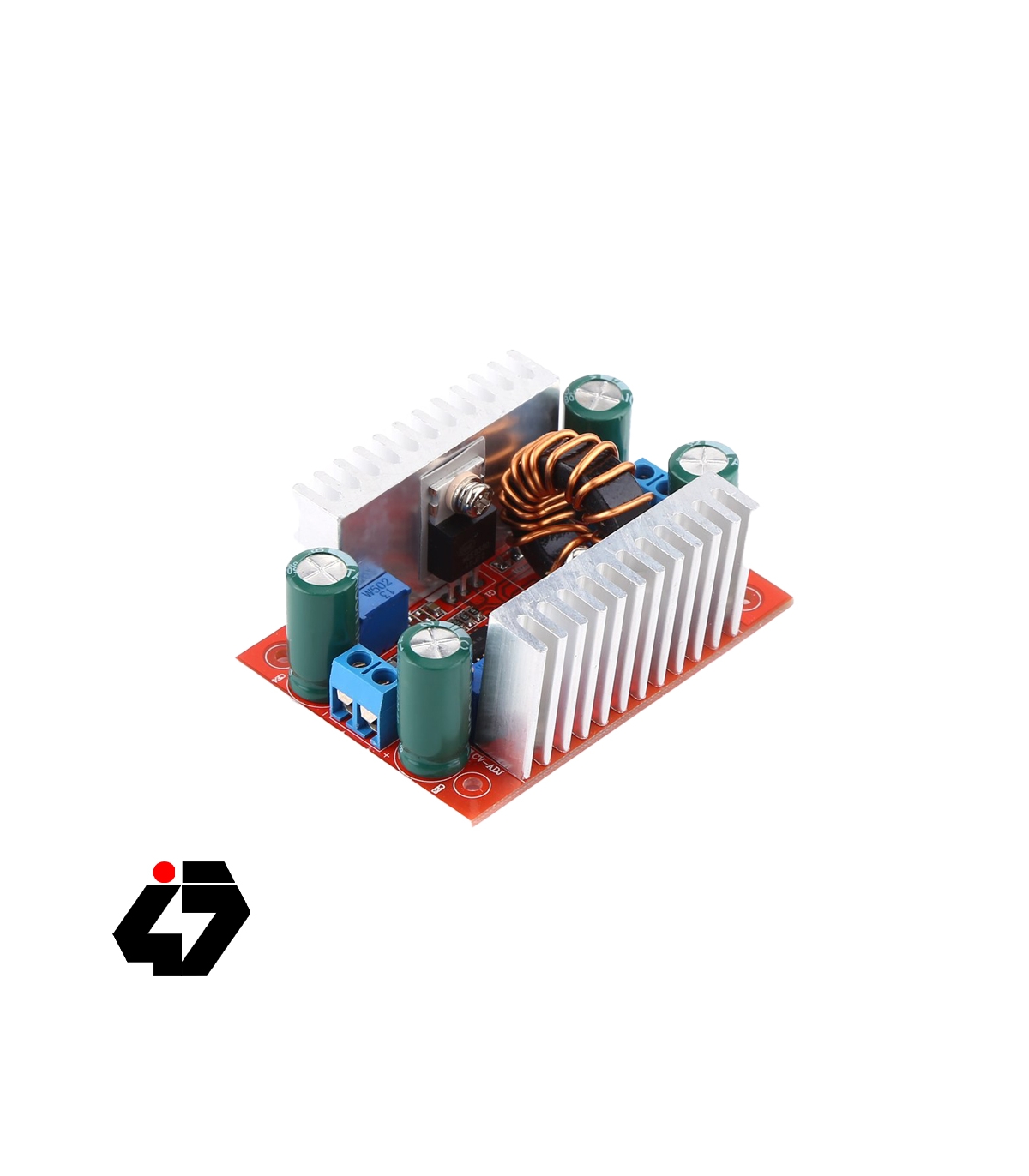

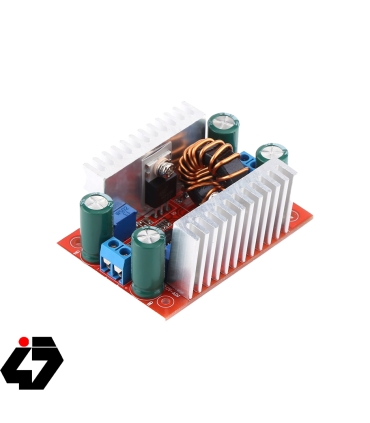

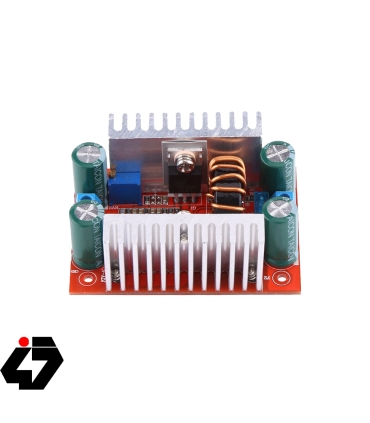

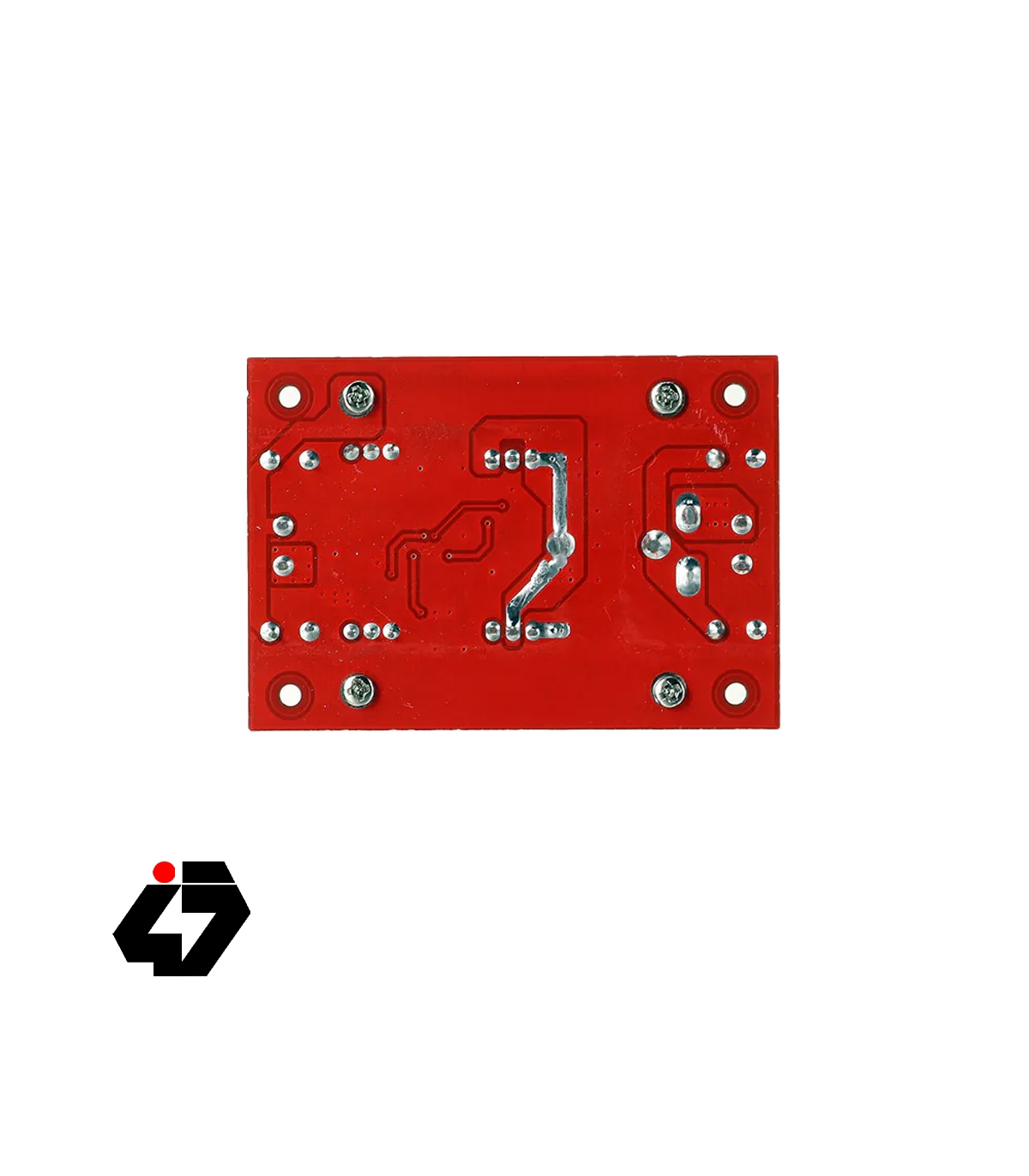

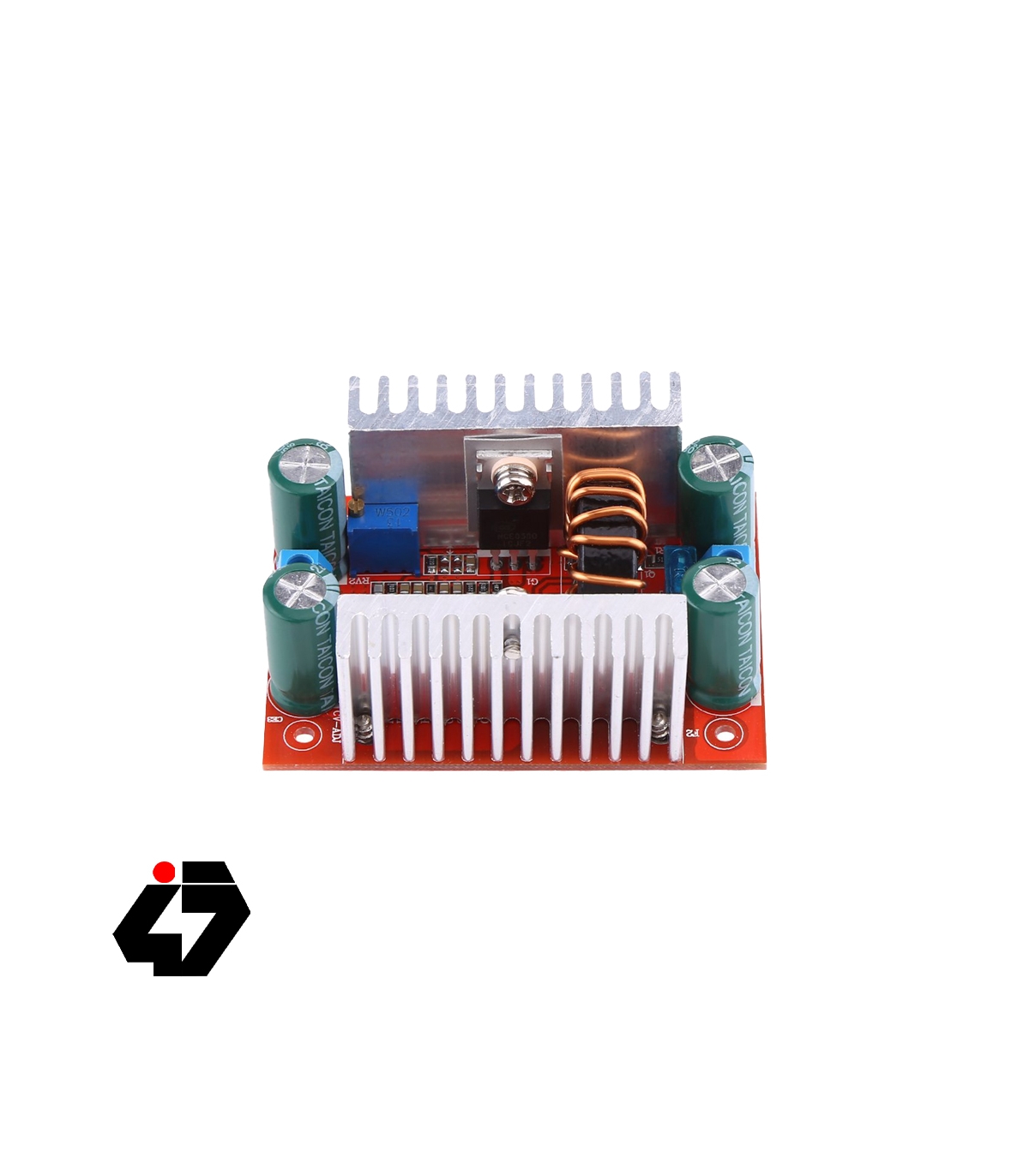

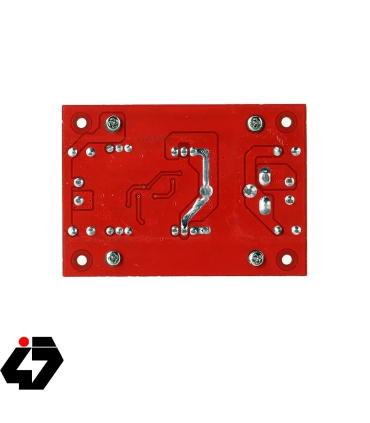

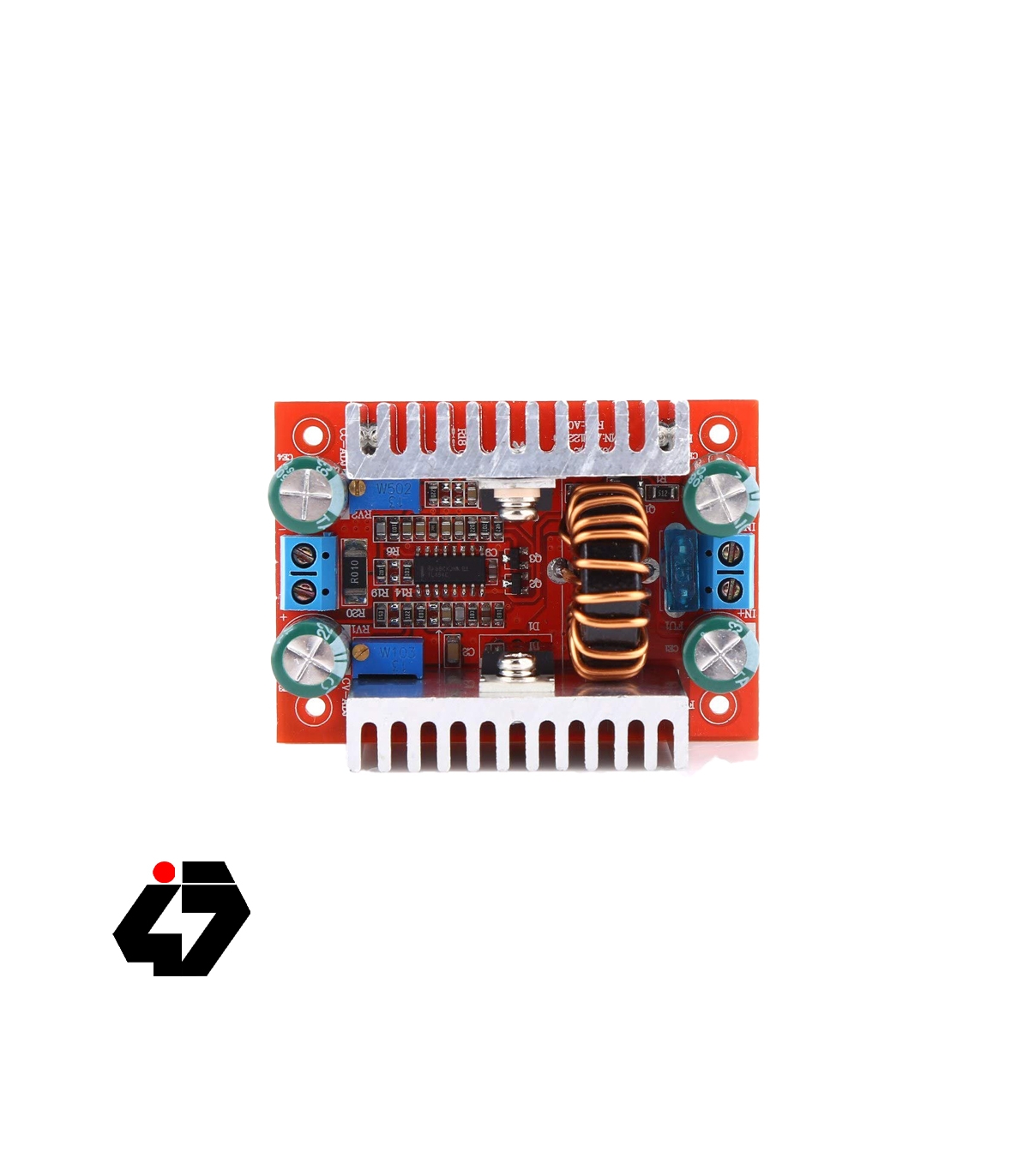

ماژول افزاینده ولتاژ 400 وات 15 آمپر 8.5-50 ولت با تنظیم جریان

این ماژول برای تقویت ولتاژ 400 وات با کیفیت عالی و بازدهی � است. ولتاژ ورودی این محصول 50-8.5 ولت DC و حداکثر جریان ورودی آن 15 آمپر است. ولتاژ خروجی این ماژول 60-10 ولت قابل تنظیم و حداکثر جریان آن 12 آمپر می‌باشد.

Description

Module Name: 400W constant voltage boost module

Module nature: Non-isolated boost module (BOOST)

Input voltage: DC8.5V-50V

Input current: 15A (MAX) more than 8A Please strengthen the heat

Static operating current: 10mA (12V liters 20V, the higher the output voltage is too static current will increase)

Output voltage: 10-60V continuously adjustable (the default output of 19V shipments, for other voltage, please note to the treasurer.)

12-80V fixed output (for bulk customers)

Output current: 12A MAX more than 7A Please strengthen the heat (with the input and output differential pressure, the greater the difference in output current smaller)

Constant current range: 0.2-12A

5A = 120W, input 36V * 5A = 180W, input 48V * 5A = 240W, input 24V * 5A = 120W, inputting the voltage *

Operating temperature: -40 ~ +85 degrees (ambient temperature is too high, please strengthen the heat)

Operating frequency: 150KHz

Conversion efficiency: up to 96% (efficiency and input and output voltage, current, pressure-related)

Over-current protection: (input more than 15A, automatically reduce the output voltage, a certain range of error.)

Input reverse polarity protection: None (if more reverse current is needed, please input the diode in series)

Installation: 4 2.5mm screw holes

Module size: Length 67mm Width 48mm Height 28mm

Module weight: 85g

First, the output voltage / current adjustment method

1- adjust the "CV-ADJ" potentiometer, according to your battery or LED, the output voltage is set to the voltage you need. Such as 10 string LED voltage adjustment 37V. (Reverse clock voltage adjustment, along the clock voltage is small)

2- counterclockwise adjust "CC-ADJ" potentiometer about 30 times, the output current is set to the minimum, connected to the LED, adjust the RV2 potentiometer to your current. For the battery charge, put the battery after the end of power, and then received the output, transfer RV2 to your current, (must be used to charge the battery when you want to put the battery is transferred, because the battery remaining in the More power, the smaller the charge current.) (Reverse clock current is small, along the clock current large)

Please do not short-circuit the way to adjust the current, boost the circuit structure of the module can not be short-circuit way.

Applications

1- DIY a regulated power supply, input 12V can, the output can be 12-50V adjustable.

2- For your electronic equipment, power supply, you can set the output voltage with your system voltage.

3- as a car power supply for your laptop, PDA or a variety of digital products.

4- DIY a high-power notebook mobile power: with large-capacity 12V lithium battery pack, so that your books where you can light to where.

5- the solar panel regulator.

6- to the battery, rechargeable lithium batteries.

7- drive high-power LED lights.
