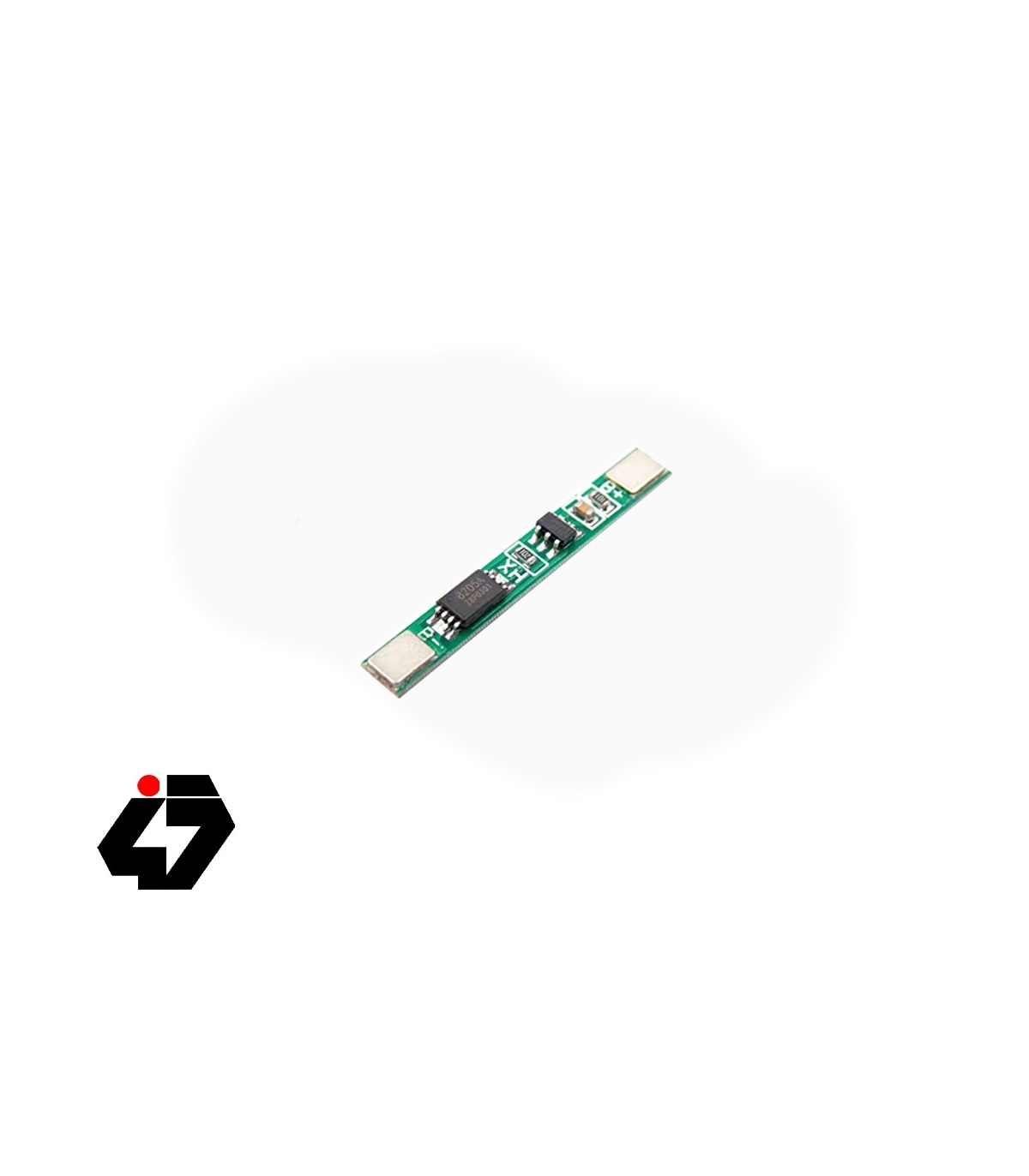

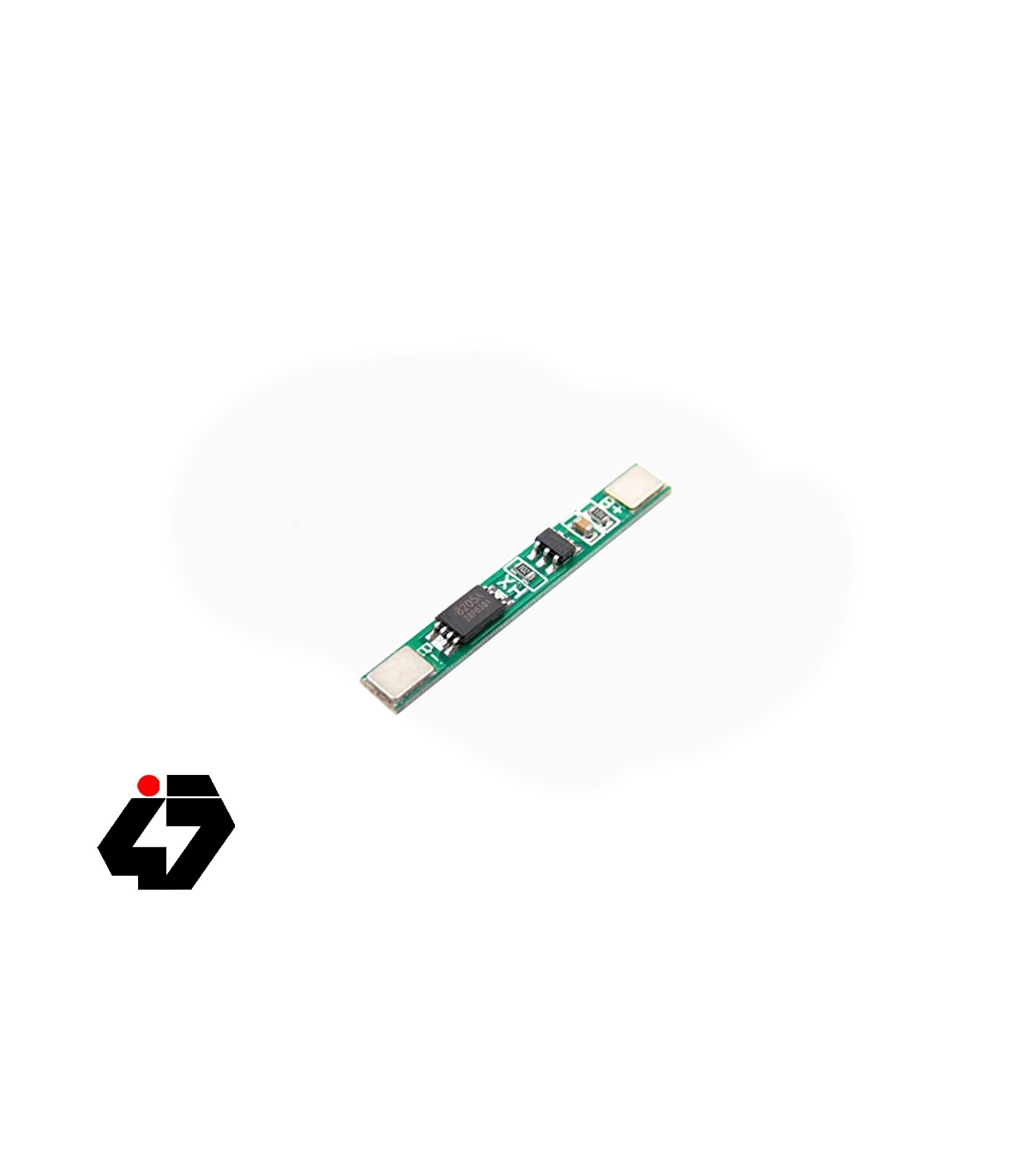

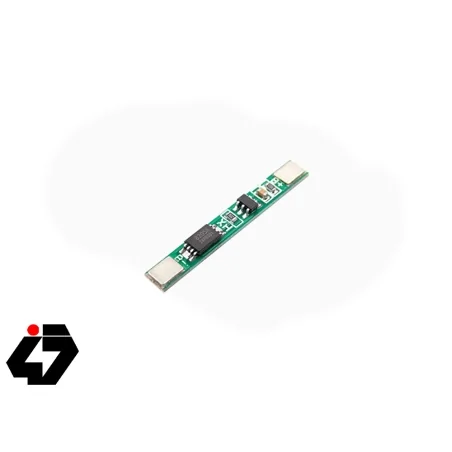

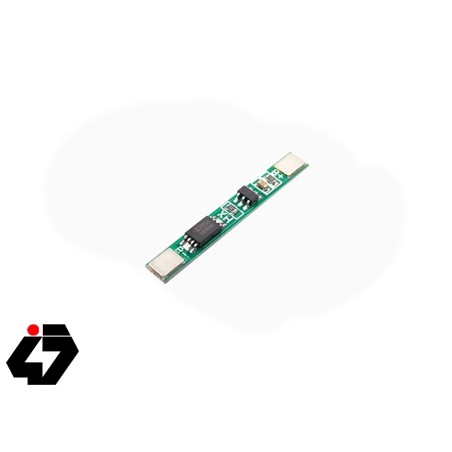

محافظ Overcharge و Discharge تک سل باتری های لیتیومی 2.5 آمپر

High-accuracy voltage detection circuit

Terminal of the charger using high voltage device

Uilt-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit)

MOS transistor can control the battery charge and discharge

It has overcharge, overdischarge, overcurrent and short circuit protection functions.

Product Name: Lithium Battery Protection Board

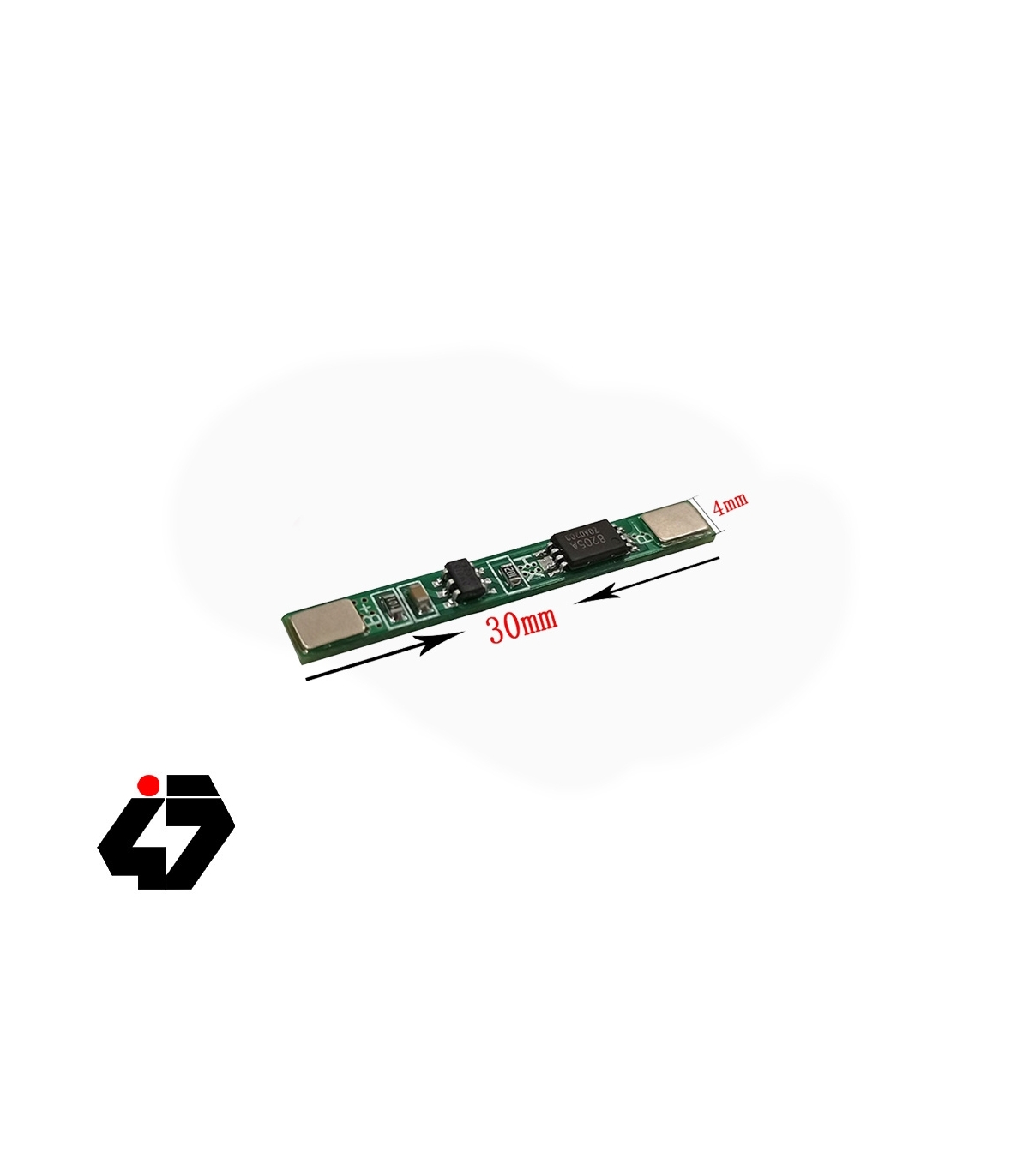

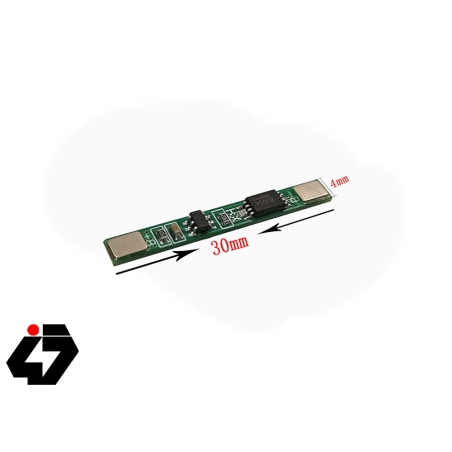

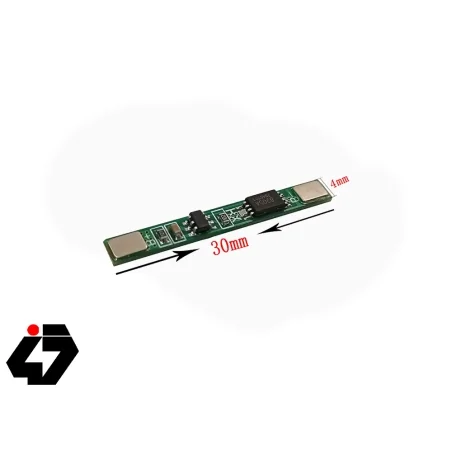

Size: 30*3.7*2.2mm

Over charge voltage: 4.25±0.05V

Over charge release voltage:4.23±0.05V

Over discharge voltage:2.54±0.1V

Maximal continuous charging current: 2A

Maximal continuous Discharging current: 2A

Over current protection: 2.5A

Functions: overcharge, overdischarge, overcurrent and short circuit protection
