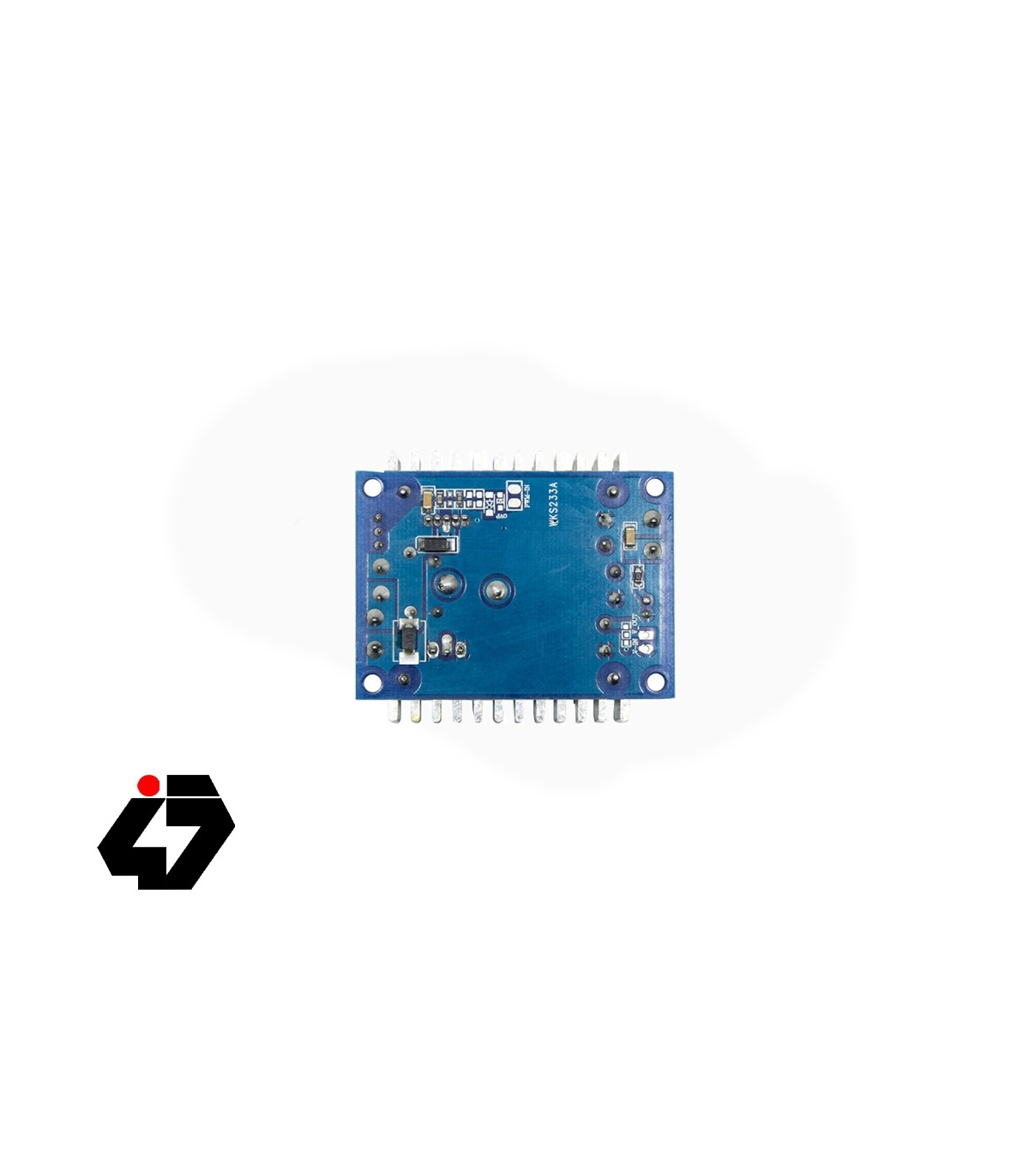

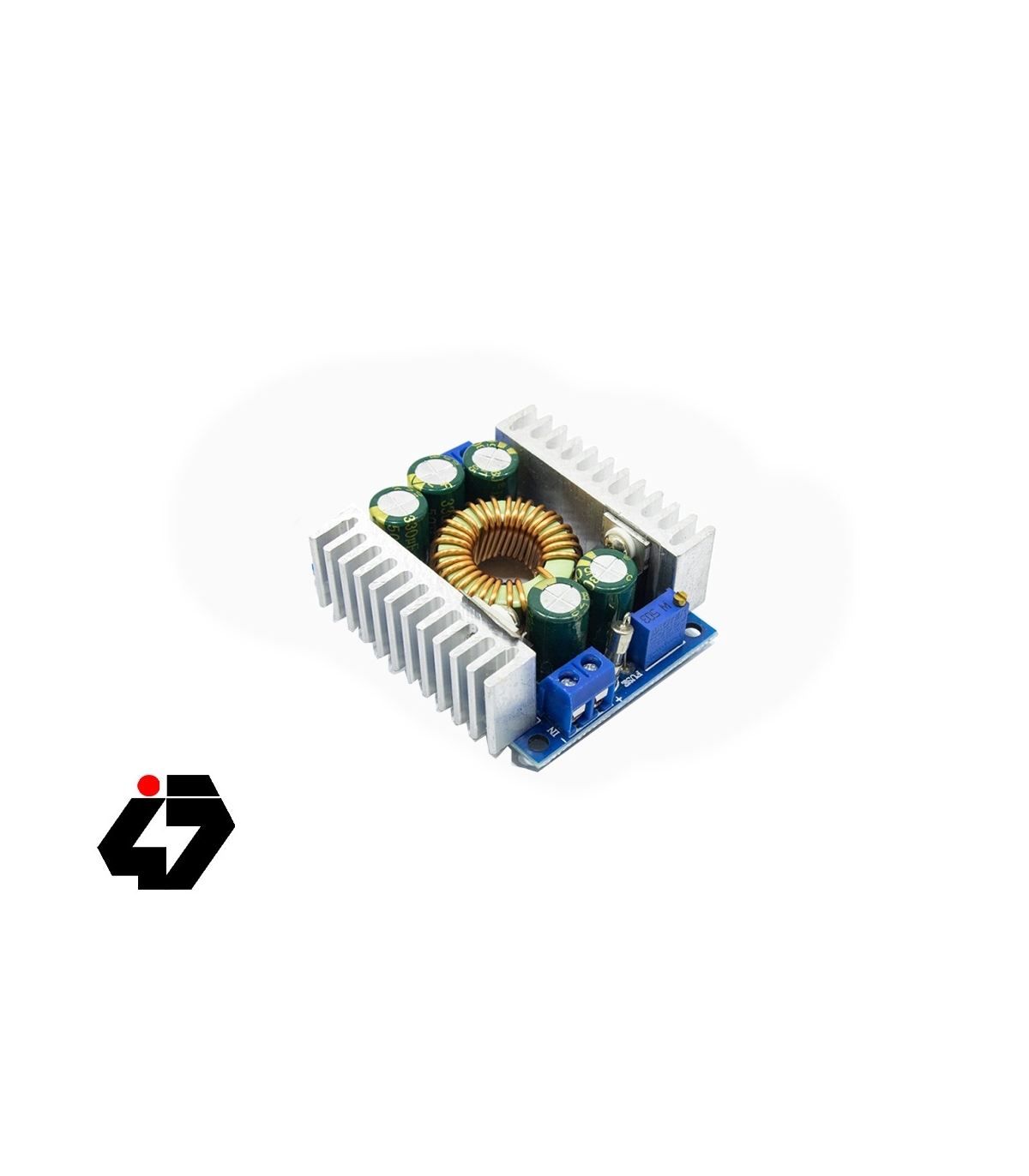

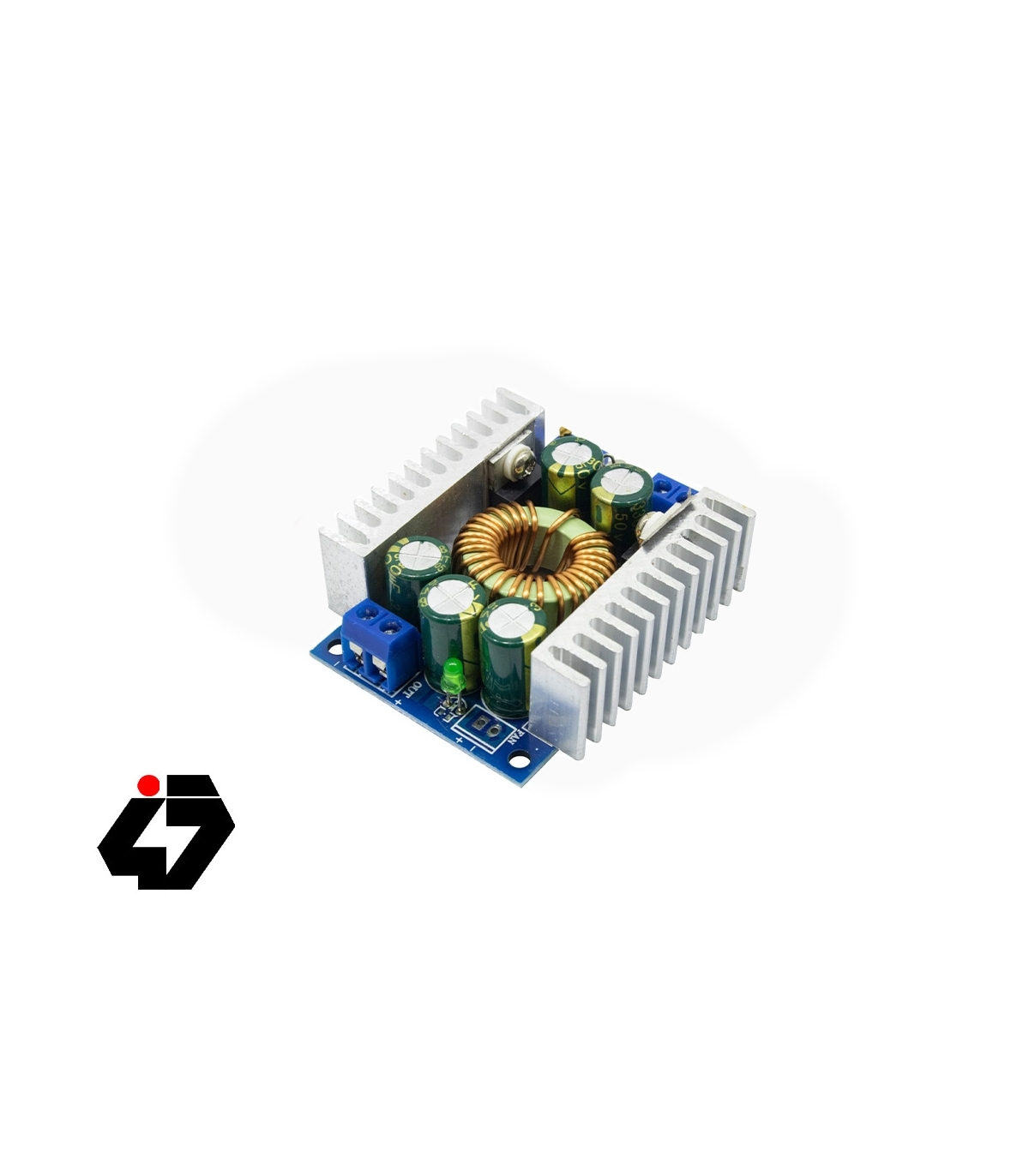

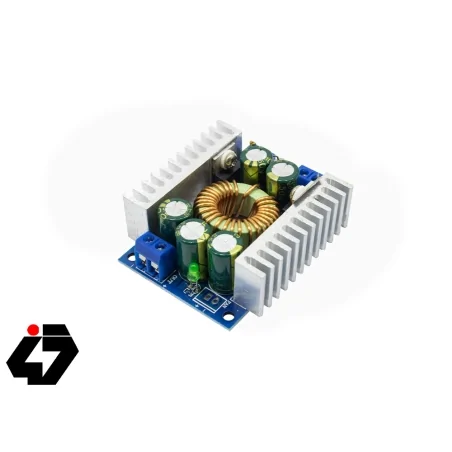

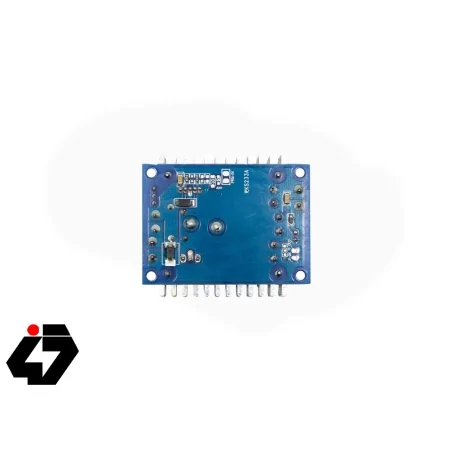

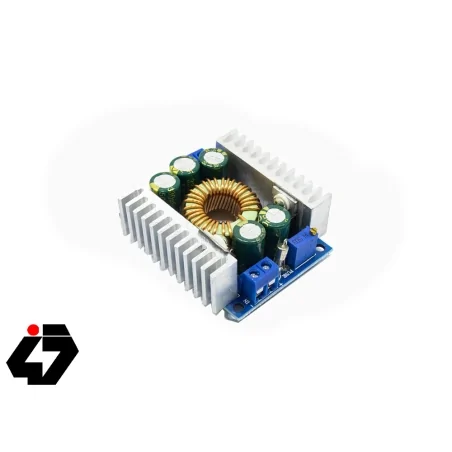

ماژول مبدل ولتاژ DC-DC کاهنده 12 آمپر

This module can be applied to fields in the input voltage is higher than the step-down output voltage, such as batteries, power transformers, DIY adjustable power supply, 24V car T of the power supply, automotive LED lights with power, industrial equipment buck, 12V switch 3.3 V, 12V turn 5V, 24V turn 5V, 24V 12V, etc. B switch

Input voltage: 4.5-30V input voltages do not exceed 30V

Output voltage: 1.25-30V continuously adjustable

Output Current: 0-12A 100W enhance heat dissipation up to 200W,

Working temperature: -40 ~ + 85 degrees

Operating frequency: 300KHz

Conversion efficiency: up to 95% (efficiency and input and output voltage, current, pressure-related)

Short circuit protection: Yes (limited current 14A), please try not to short circuit

Overtemperature protection: (automatically shut off the output after overtemperature)

Input reverse polarity protection: None, (if necessary, please enter the string into the diode)

Installation: four 3mm screws

Connection: terminals, free welding, V-IN is the input, V-OUT output, with housing for wire bonding module output.

Module dimensions: length 60mm width 51mm height 22mm

Weight: 76G
