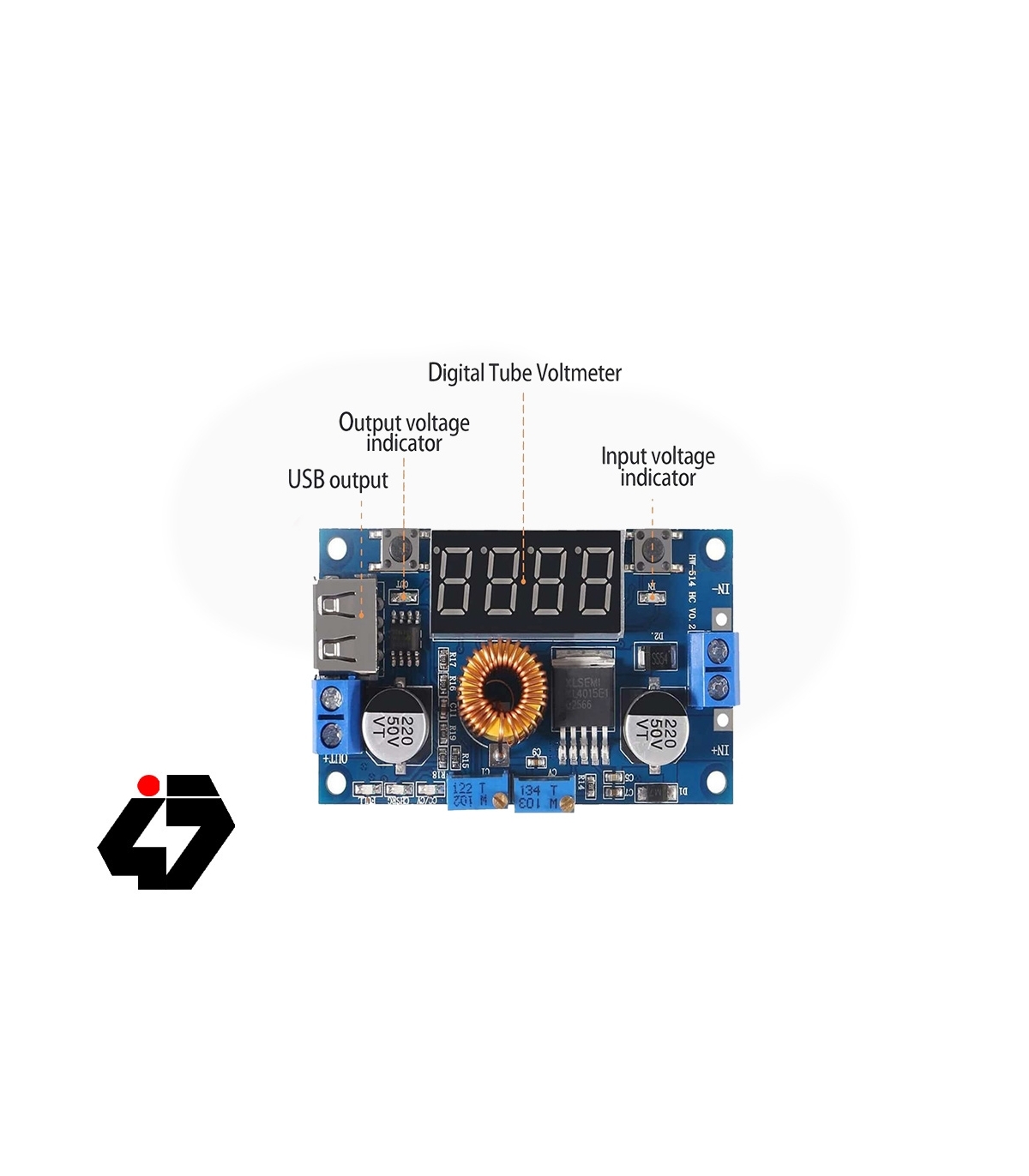

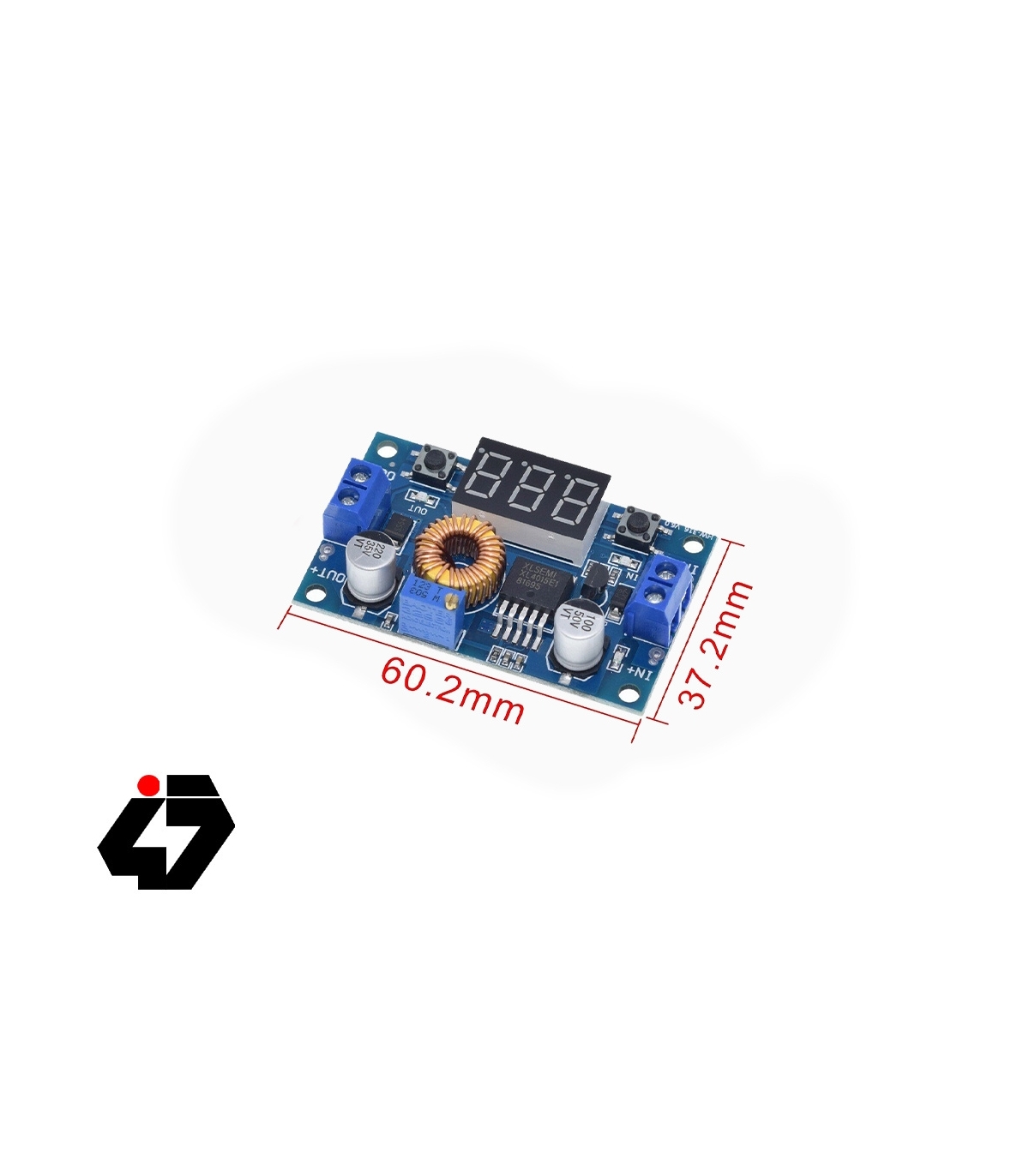

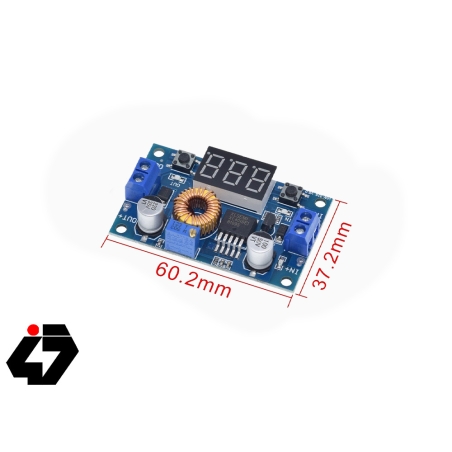

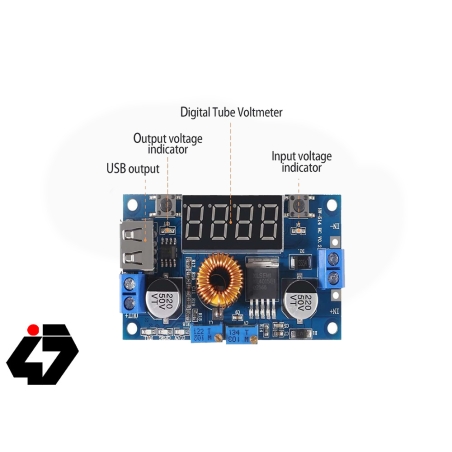

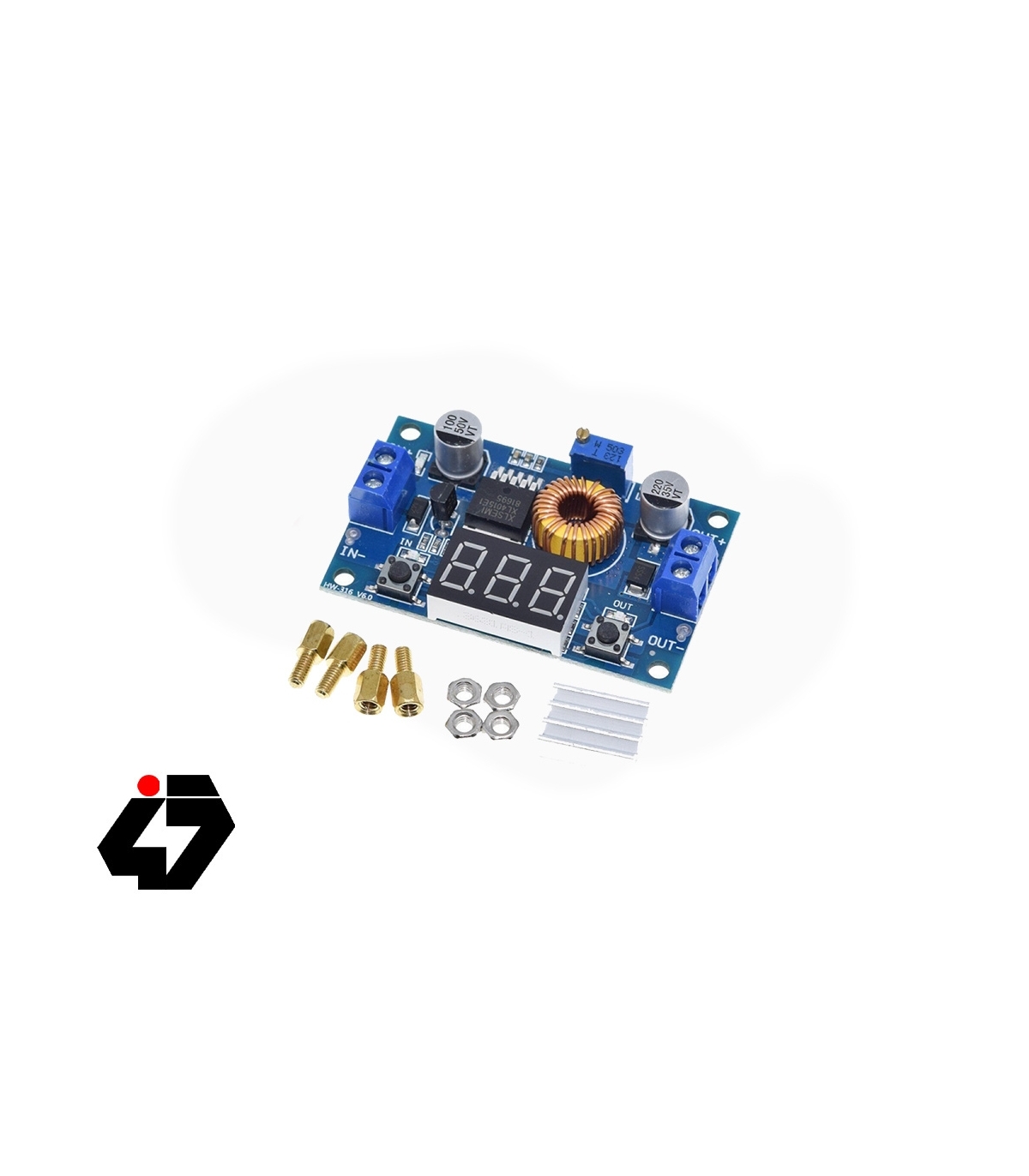

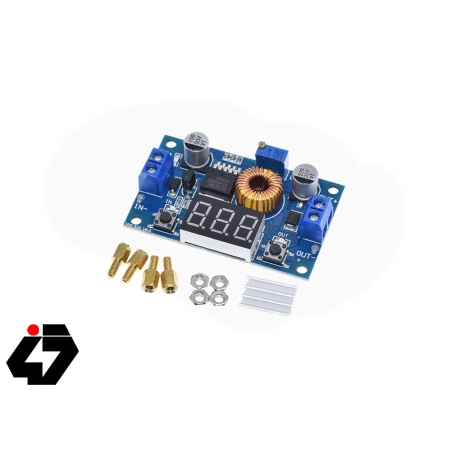

ماژول مبدل DC-DC کاهنده XL4015 دارای نمایشگر با امکان کنترل جریان و ولتاژ خروجی

Input Supply Voltage (V) 5 – 38 DC

Output voltage (V) 1.25 ~ 36 (adjustable)

Output Current (A) max 5A

Output power (W) 75

Voltmeter error ± 0.05V

Conversion efficiency 96%

Power indicator: Yes.

Short circuit protection: Yes (limit current 8A).

Over-temperature protection: Yes (shutdown output automatically after over temperature).

Input Reverse Polarity Protection: None (cascade high current diode if required).

Wiring: IN+/- Input, OUT+/- Output.

Built-in current limit function.

  Voltmeter calibration method

 Output voltage calibration steps

, adjust the right button so that the “OUT” LED lighted, the voltmeter shows the value of output voltage; Press the right button for more than 2 seconds, release, voltmeter and “OUT” LED flashes in synchronization so that you enter the output voltage calibration mode.

 press the right button (normal speed), the voltage value is adding up a unit; Press the left button, minus a unit; Due to a unit is less than 0.1V, the minimum voltage display to 0.1V, so you need to continuously press 1-5 times to see the voltmeter change 0.1V, how many times voltmeter change 0.1V by pressing the key, depending on the current display voltage, the higher the voltage, the fewer the number of press.

 press the right button for more than 2 seconds, release, to exit the output voltage calibration mode. All parameters set to automatically power down to save.

 Input voltage calibration steps

 adjust the right button so that the “IN” LED lighted, the voltmeter shows the value of input voltage; press the right button for more than 2 seconds, release, voltmeter and “IN” LED flashes in synchronization so that you enter the input voltage calibration mode.

 and 3, consistent with the output voltage calibration method.
