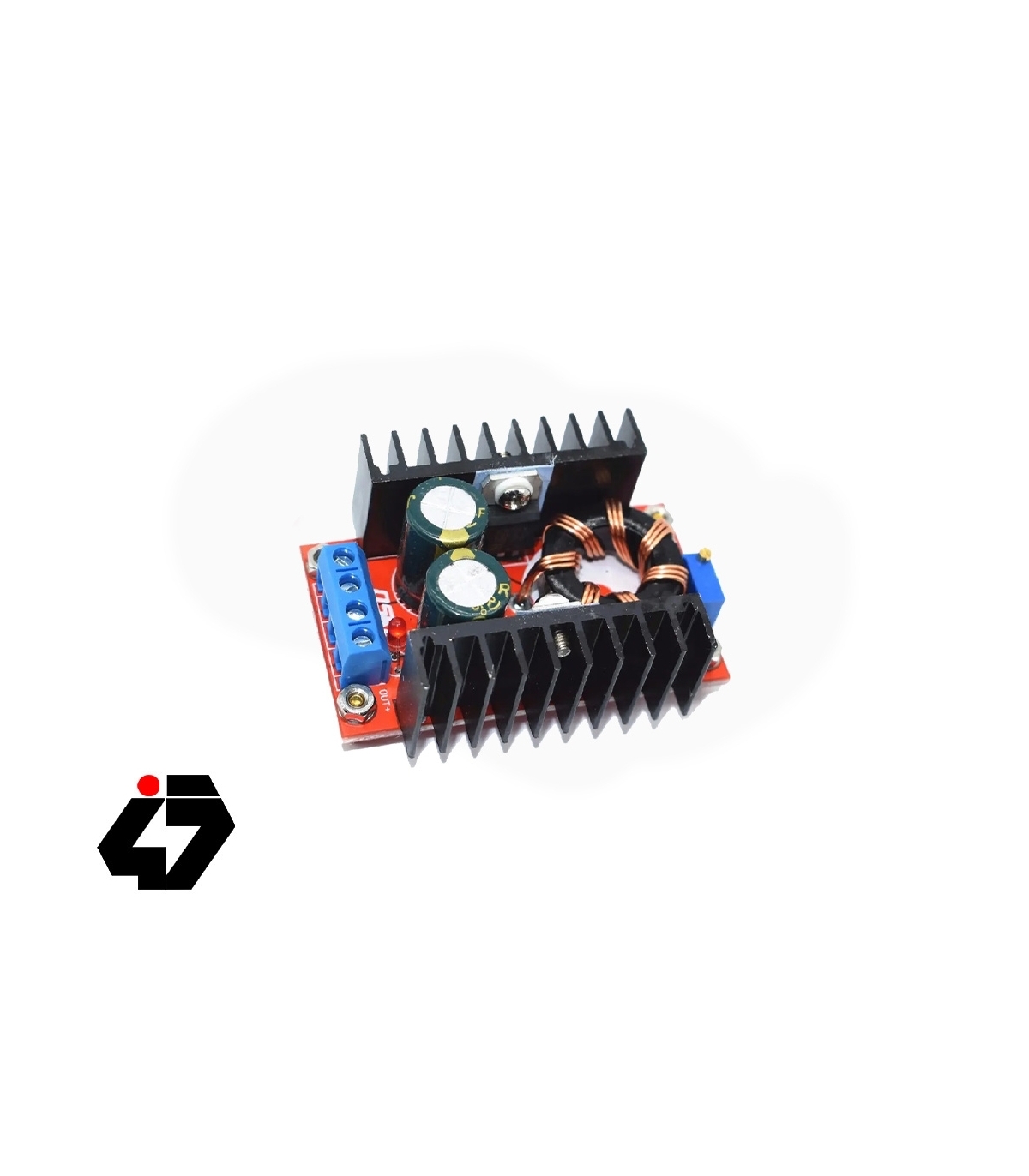

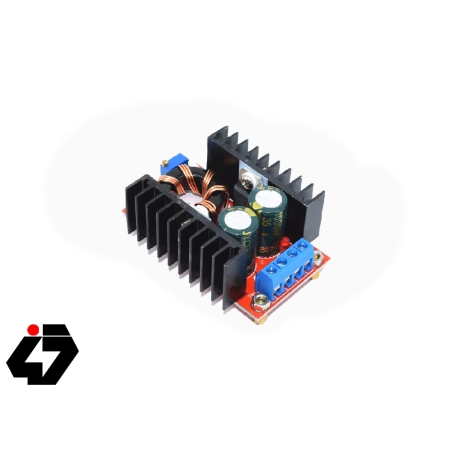

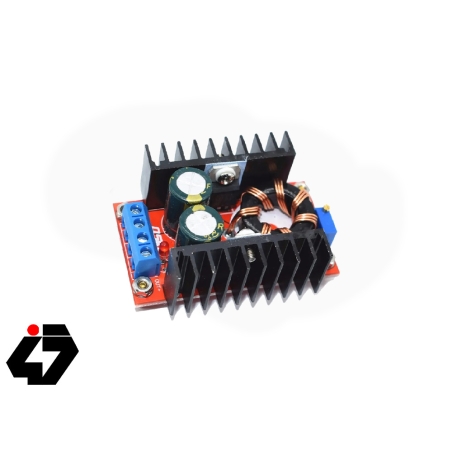

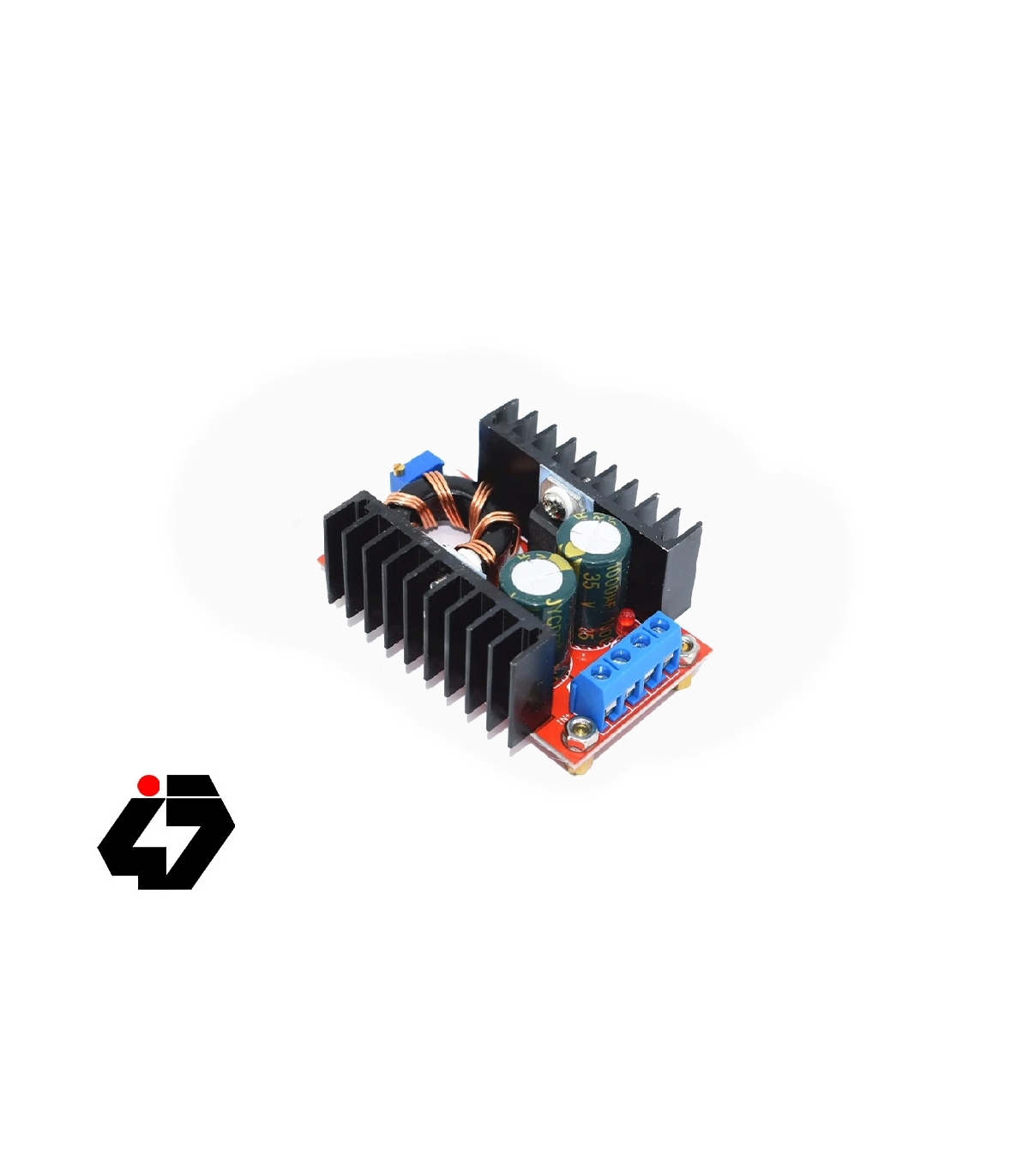

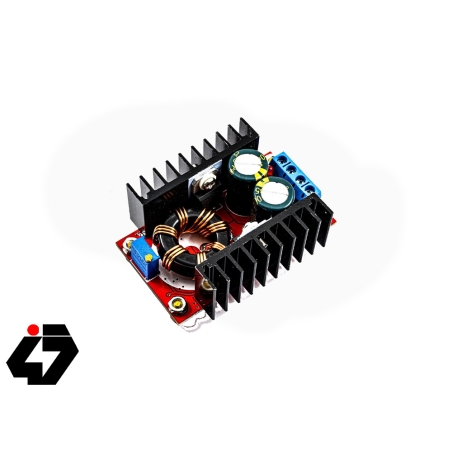

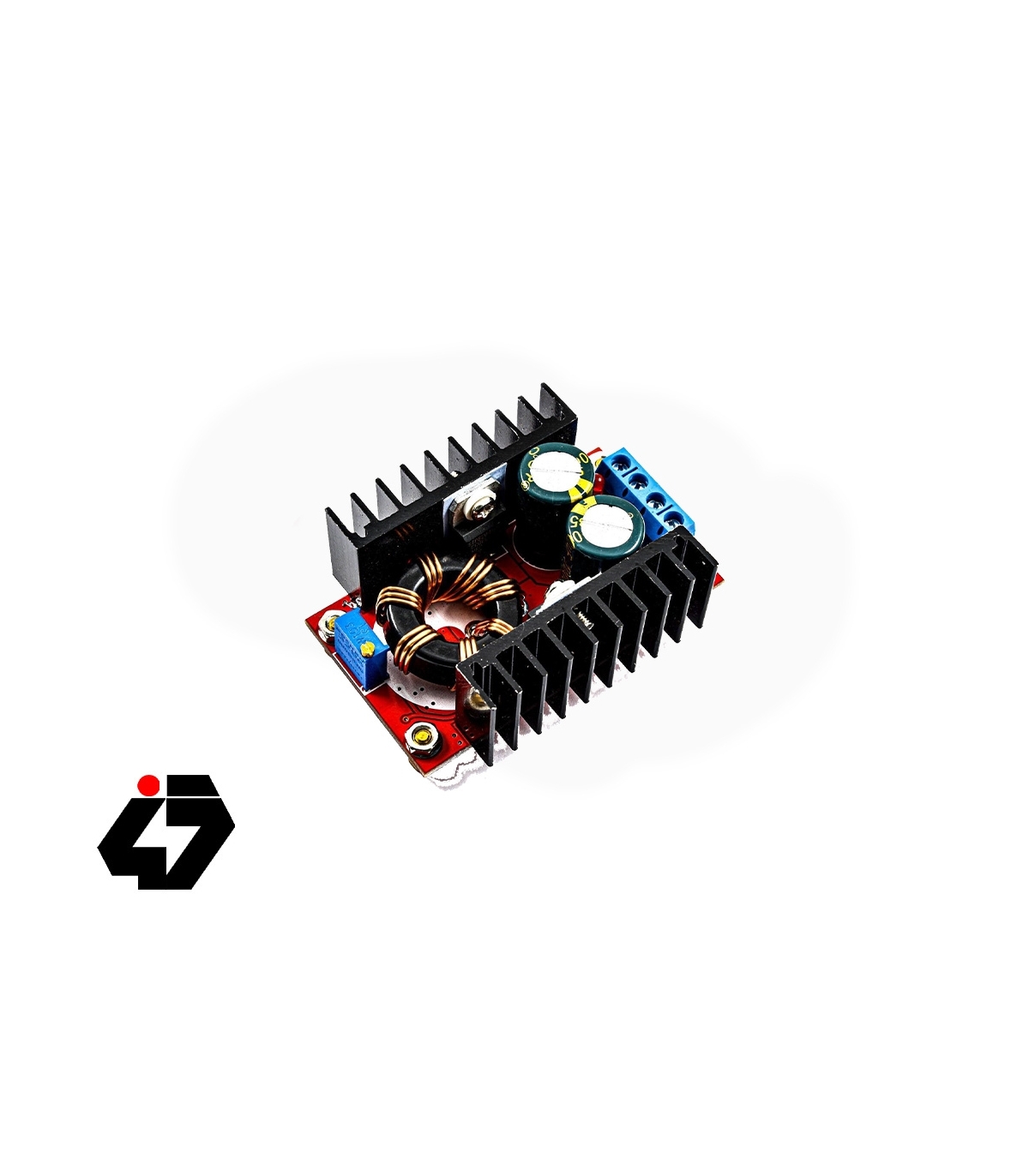

ماژول مبدل DC-DC افزاینده 150W

تبدیل 12 ولت به 24 ولت

شارژرها

منابع تغذیه

Module Properties: step-up module (BOOST)

Input voltage :10-32V

Output voltage: ( 1 ) continuously adjustable (12-35V)

( 2 ) fixed output ( choose between 12-35V)

Output Current : 10A (MAX)

Input Current : 16A (MAX) ( Please enhance heat dissipation than 10A , )

Output power : natural cooling 100W (MAX), enhance heat dissipation 150W (MAX) the actual power use when deciding whether the actual situation , please add more fans, please be sure that the heat sink temperature does not exceed 80 degrees.

Easy to drive 65W 90W dual-core laptops include

Module temperature using a laptop with ordinary 19V 3.42A 12V battery about 45 degrees

Conversion efficiency : 94% ( input 16V output 19V 2.5A when measured ) ( for reference only )

Output Ripple : 2% (MAX) 20M -bandwidth

Operating temperature : Industrial grade (-40 ℃ to +80 ℃) ( ambient temperature exceeds 40 degrees , lower power use , or add a fan )

Full load temperature rise : 45 ℃

Load Current : 25mA typical

Load regulation : ± 0.5%

Voltage regulation : ± 0.5%

Dynamic response speed : 5% 200uS

Short Circuit Protection : None ( Please enter install fuse or protective circuit )

Input Reverse Polarity Protection: No , the buyer can enter the series diode.

Dimensions : 65 (L ) * 47 ( W ) * 23.5 ( H) mm ( excluding pillars )
