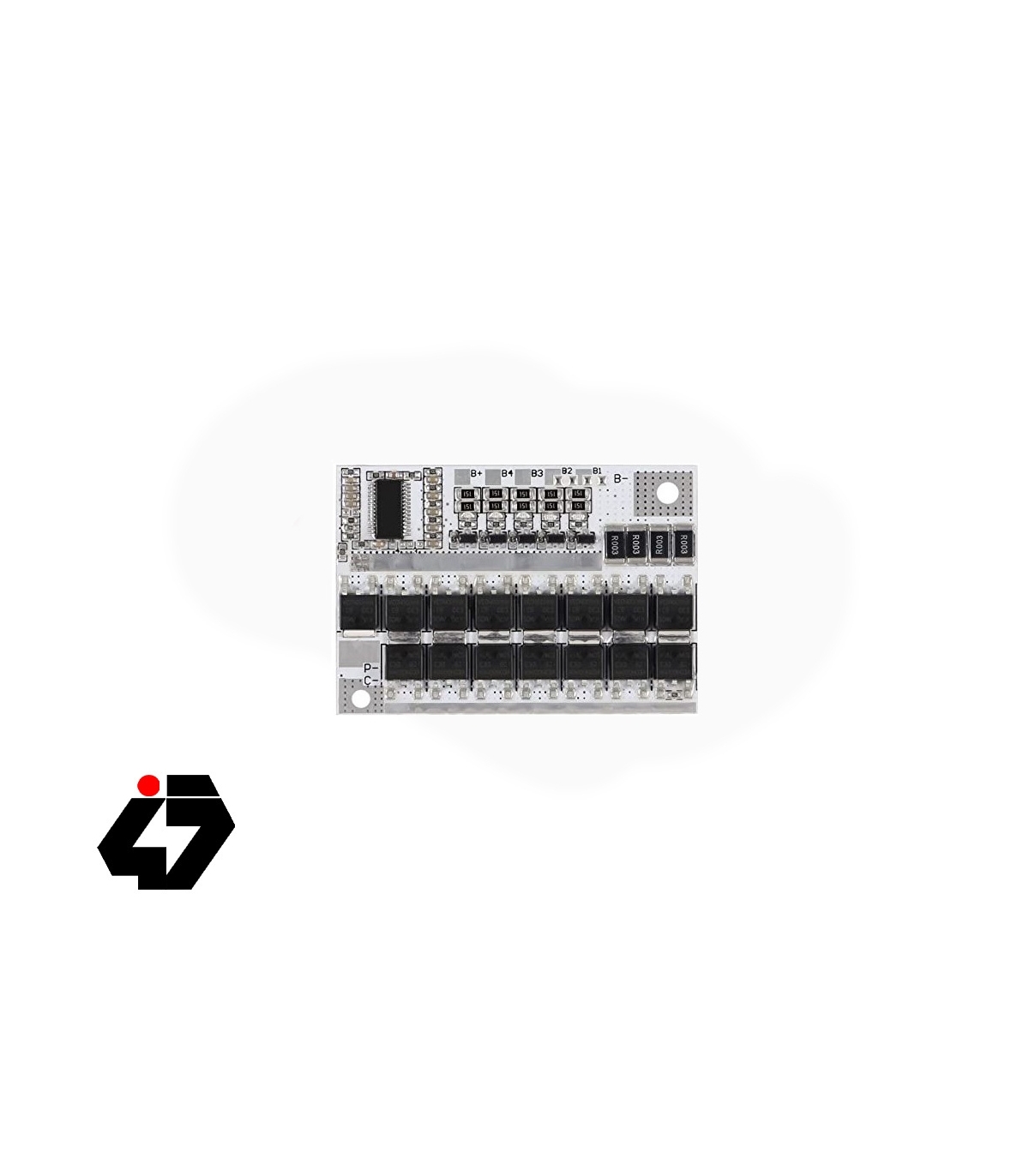

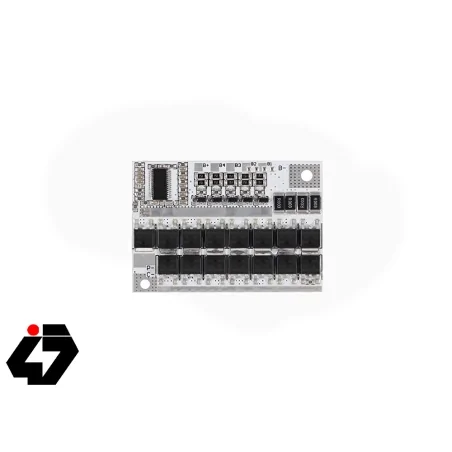

ماژول شارژ و دشارژ BMS باتری لیتیومی 3S/4S/5S به همراه محافظ 100 آمپر

3S 4S 5S BMS 12V 21V 100A Li-ion Lithium Battery Protection Circuit Board Li-POLYMER Balance Charging Board Module

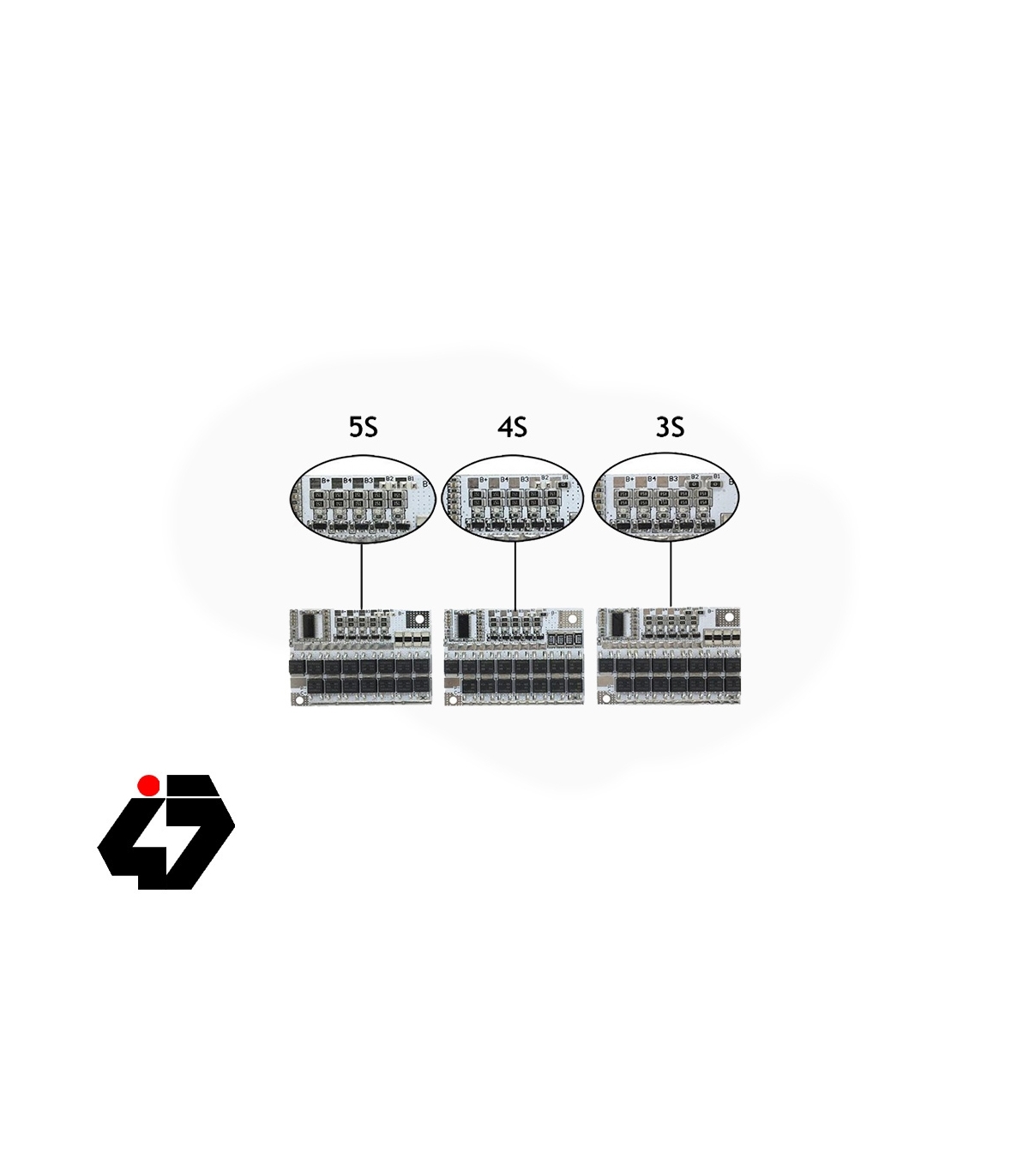

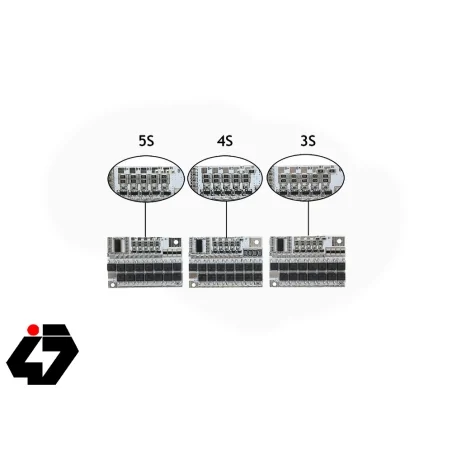

This protection board is 3s 4s 5s in common use lithium battery protection board (you can adjust for how many strings to be used), the default delivery is 4S ternary lithium.

Specified chip, stable performance, support disconnection protection, over-current protection, over discharge protection, overcharge protection, with balance, etc.

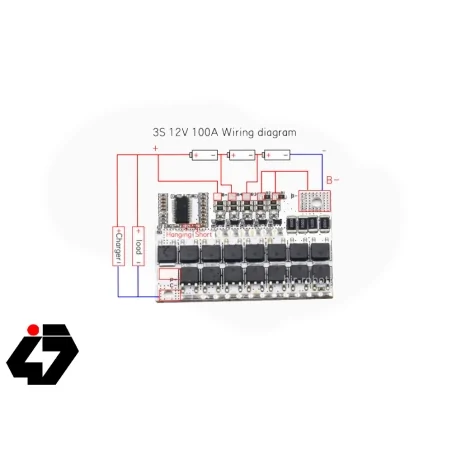

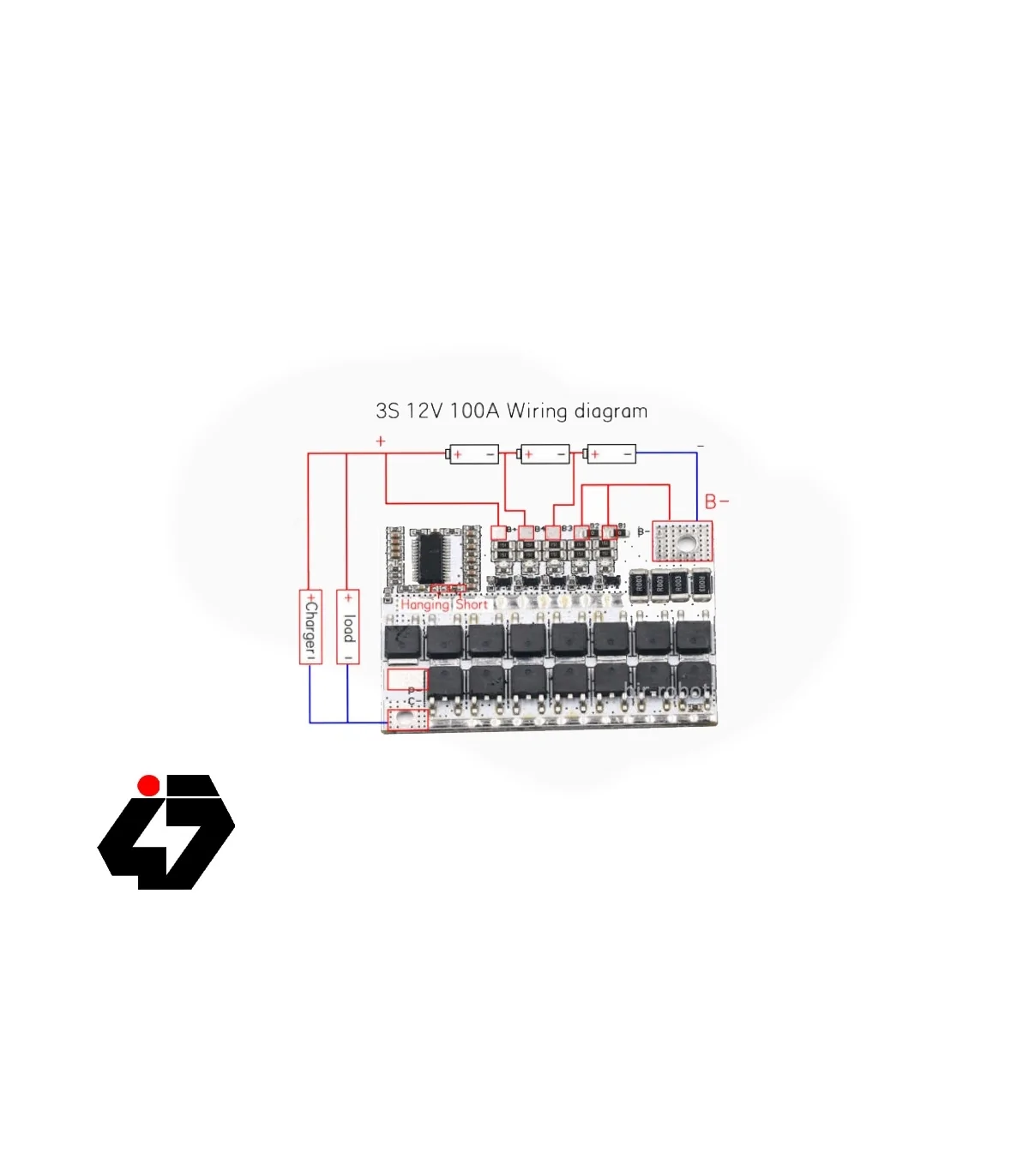

Common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tube (discharge of 8, charging of 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharge current 80A, charging current 60A.

Can use for LMO.Ternary lithium battery.LCO(3.7V)battery packs etc.

Single cell battery overcharge protect voltage : 4.2 V

Single cell battery overcharge  protect recover voltage : 3.61-3.69 V

Overcharge protect delay : 1.5-2.5S

Single cell battery over-discharge  protect voltage : 2.27-2.43 V

Single cell battery over-discharge  protect recover voltage : 2.45-2.65 V

Overcharge protect Current : 100A

Over-discharge protect Current : 100A

Over-discharge protect delay : 0.5-1.5S

Temperature protect : Yes

Disconnect protect : Yes

Shortage protect : Yes

Shortage delay : 100-600 uS

Shortage protect recover : Disconnected

Charging Current : 60A

Current Balance : Yes

Ampere balance (Current) : 50MA

Voltage alance accuracy : 3.355-3.455

Charging voltage: 3.6V * 5 = 18V
