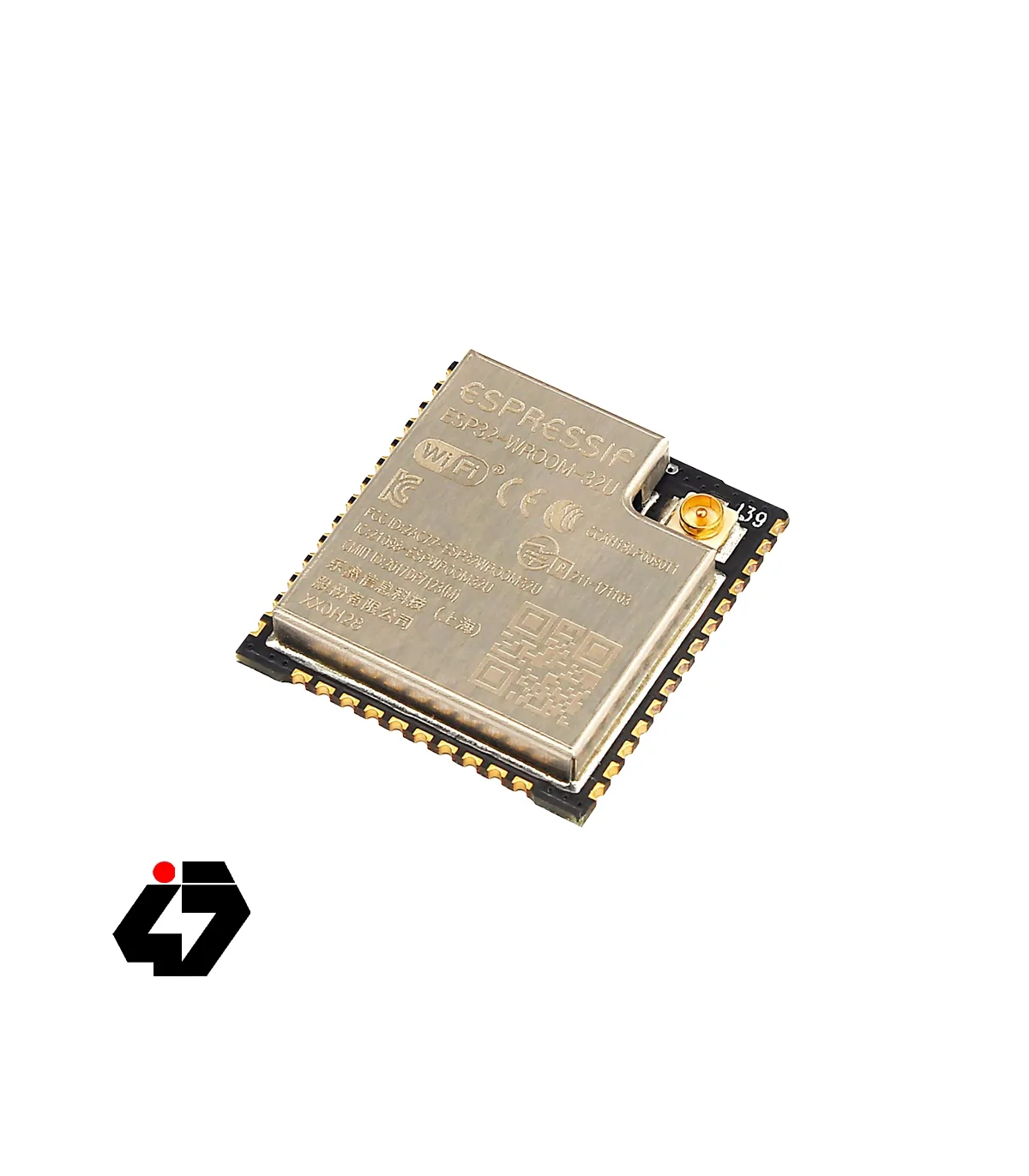

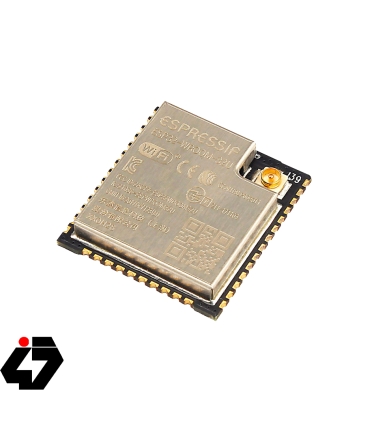

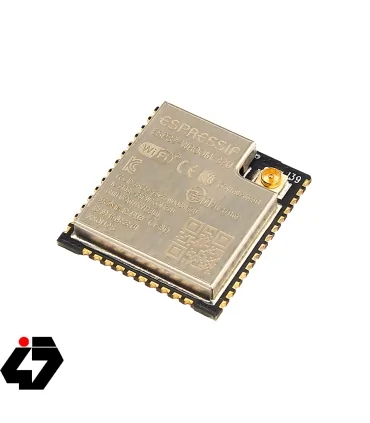

ماژول وای فای ESP32-WROOM-32U دارای بلوتوث

ماژول وای فای و بلوتوث 2.4 گیگاهرتز ESP32-WROOM-32U با دو هسته 80 تا 240 مگاهرتز و ورودی و خروجی های متنوع، مناسب برای کاربردهای اینترنت اشیا (IOT)

ادامه مطلبShow less
169,000 تومان بدون مالیات
مرجع:
473011012065
دوست داشتن0
اضافه به مقایسه0
افزودن به فهرست علاقه‌مندی‌ها
توضیحات

معرفی

 ESP32-WROOM-32U دارای بلوتوث و وای فای نسل تکامل یافته ESP8266 است که بارزترین تفاوت آن بلوتوث داخلی آن و دو هسته با فرکانس 80 تا 240 مگاهرتز است.

دارای هسته وای فای 2.4 گیگاهرتز و بلوتوث داخلی تولید شده با تکنولوژی 40 نانومتری شرکت TSMC است. این برد وای فای دارای بهترین عملکرد در مصرف انرژی است.

از سری رابط هایی که این ماژول پشتیبانی می کند می توان به SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, GPIO, capacitive touch sensor, ADC, DAC اشاره کرد. بر روی خود ماژول سنسور اثر هال و سنسور دما نیز تعبیه شده است.

Introduction

ESP32-WROOM-32D and ESP32-WROOM-32U are powerful, generic Wi-Fi+BT+BLE MCU modules that target a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding. ESP32-WROOM-32U is different from ESP32-WROOM-32D in that ESP32-WROOM-32U integrates a U.FL connector.

The chip embedded is designed to be scalable and adaptive. There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable from 80 MHz to 240 MHz. The chip also has a low-power co-processor that can be used instead of the CPU to save power while performing tasks that do not require much computing power, such as monitoring of peripherals. ESP32 integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I²S and I²C.

Specification

RF Certification: FCC/CE-RED/IC/TELEC/KCC/SRRC/NCC
Wi-Fi Certification: Wi-Fi Alliance
Bluetooth certification: BQB
Green Certification: REACH/RoHS
Reliablity: HTOL/HTSL/uHAST/TCT/ESD

Protocols: 802.11 b/g/n (802.11n up to 150 Mbps) & A-MPDU and A-MSDU aggregation and 0.4 µs guard interval support
Frequency range: 2.4 GHz ~ 2.5 GHz
Protocols: Bluetooth v4.2 BR/EDR and BLE specification
Radio: NZIF receiver with –97 dBm sensitivity & Class-1, class-2 and class-3 transmitter & AFH
Audio: CVSD and SBC
Module interfaces: SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO, capacitive touch sensor, ADC, DAC, Two-Wire Automotive Interface (TWAI®, compatible with ISO11898-1)
On-chip sensor: Hall sensor
Integrated crystal: 40 MHz crystal
Integrated SPI flash: 4 MB
Operating voltage/Power supply: 3.0 V ~ 3.6 V
Operating current: Average 80 mA
Minimum current delivered by powersupply: 500 mA
Recommended operating temperature range: –40 °C ~ +85 °C
Moisture sensitivity level (MSL): Level 3
