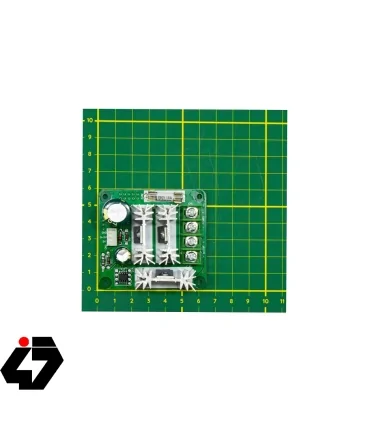

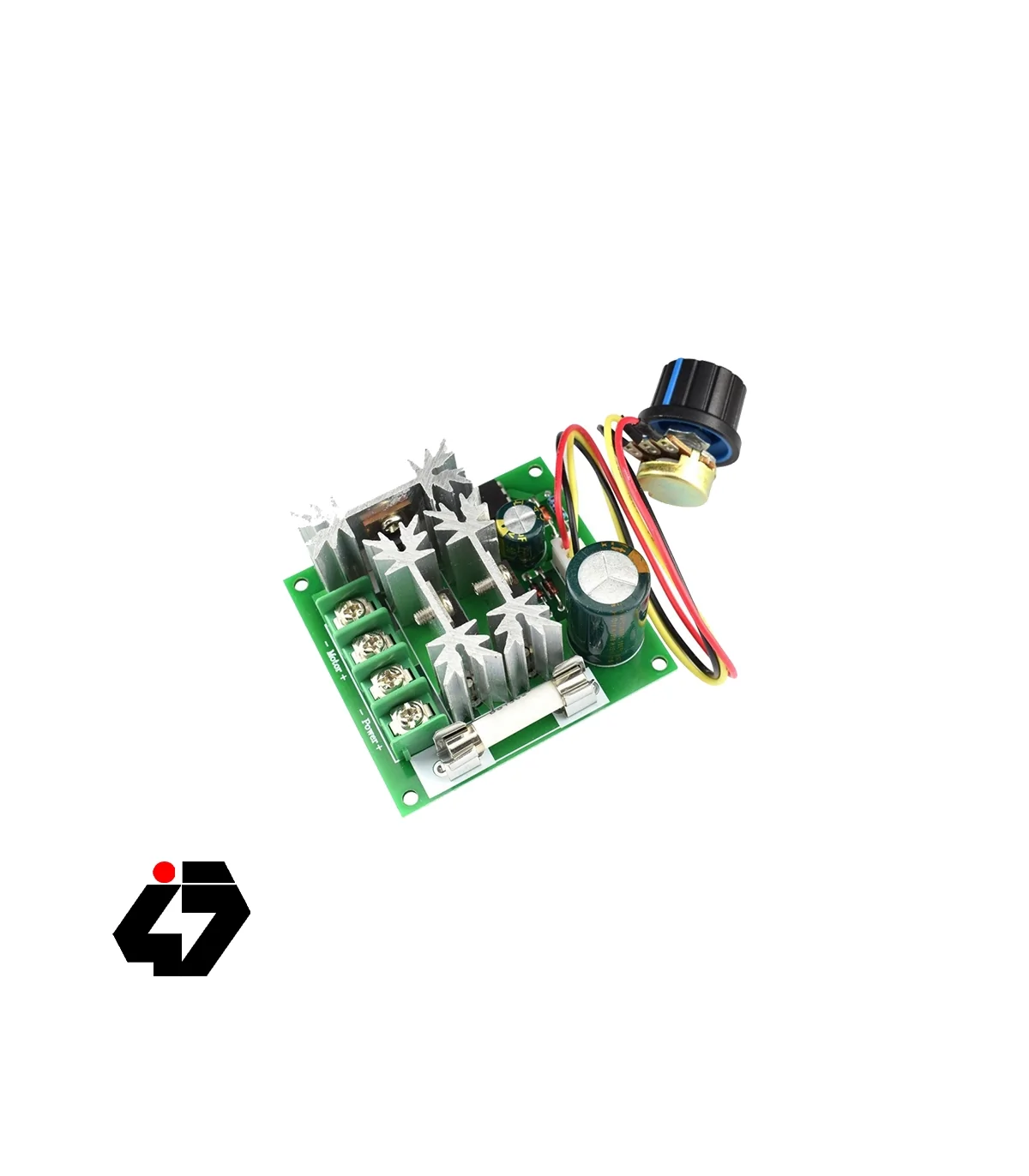

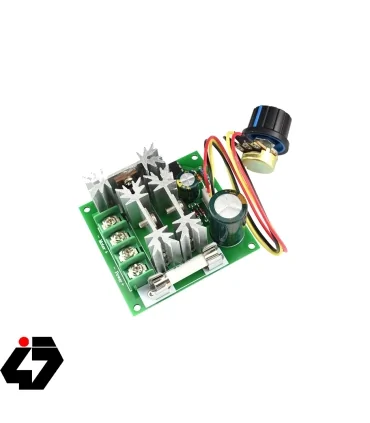

ماژول کنترلر PWM با حداکثر جریان دهی 15A با ولتاژ کاری 6 الی 90 ولت
ماژول کنترل سرعت موتور PWM یک ماژول بسیار پر کاربرد در رباتیک و صنایع مختلف میباشد. با استفاده از این ماژول و توان جریان دهی حداکثر 15 آمپر میتوانید دور موتور DC را مدیریت کنید. ولتاژ کاری بین 6 تا 90 ولت می باشد.
ویژگی
ماژول کنترل کننده سرعت موتور DC، می تواند تغذیه 6 ولت، 12 ولت، 24 ولت ،36 ولت، 48 ولت، 72 ولت، 90 ولت را کنترل کند.
حفاظت از قطبیت معکوس منبع تغذیه
عملکرد حفاظت از ولتاژ بیش از حد
در صورت نیاز به کنترل مثبت/منفی، می توانید یک سوئیچ خارجی مثبت/منفی استفاده نمایید.
Introduction
DC 15A 6V-90V motor speed control drive module with regulator governor switch With power supply reverse polarity protection, overvoltage protection, 15A quick fuse ceramic fuse over-load protection, more safer and reliable. 60V-90V ultra wide working voltage, 0% -100% PWM duty cycle, 0.01-1000W control power, high efficiency, high torque, speed promise. Rated Current: 8A, Max Current: 15A, Quiescent Current: 0.005A (Standby)
Specification

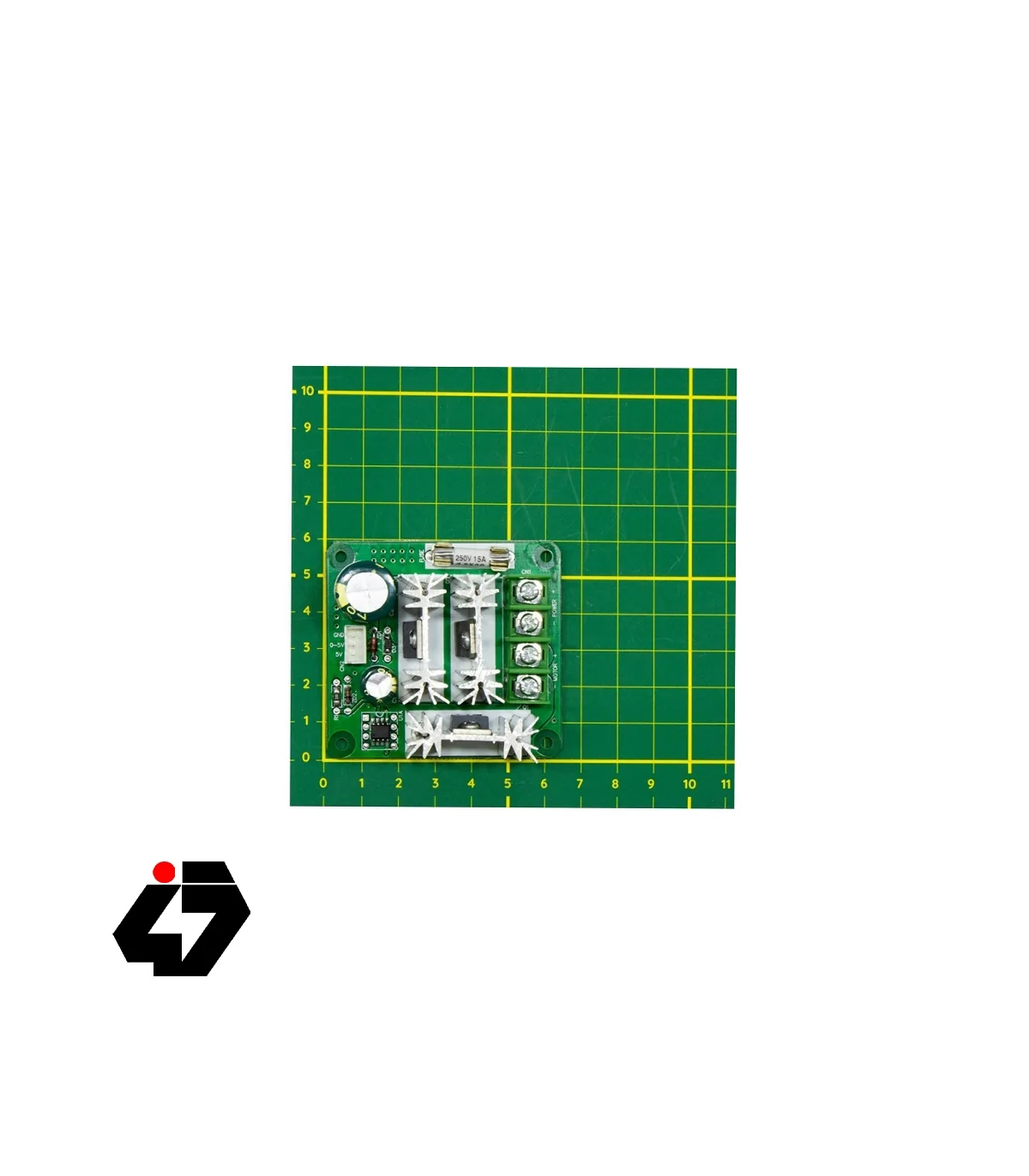

Module Size: 64x59x28mm
Work Voltage: DC 6V-90V
Rated Current: 8A
Max Current: 15A
Quiescent Current: 0.005A (Standby)
Output Voltage: 0%-100% of input voltage
Power Range: 0.01-1000W
PWM Frequency: 16KHz
Knob Potentiometer: ResistanceB10K, Length 20cm, Trepanning 8mm
Fuse Wire: 5x20mm standard size 15A quick fuse ceramic fuse
Voltage Control: 0-5v (Voltage-mode control ,can use PLC to control the motor speed directly)
DC motor speed controller, speed promise, can control 6V 12V 24V 36V 48V 72V 90V large power, with power supply reverse polarity protection, over-voltage protection funcion. The external 0-5v voltage signal of knob interface, can used for PLC to control motor speed directly. If need positive/negative control, can get an external positive/negative switch.
Applications
Suitable for DC motor speed control
external 0-5V signal
speed contro
مشخصات
- ابعاد
- 65x60x30mm
- ولتاژ ورودی ( کاری )
- 6 الی 90 ولت DC
- ولتاژ خروجی
- 0 تا 100 درصد ولتاژ ورودی
- مدل
- DC Motor Speed Controller + PWM DC 15A
- جریان
- standby : مقدار 0.005A (آماده به کار)
