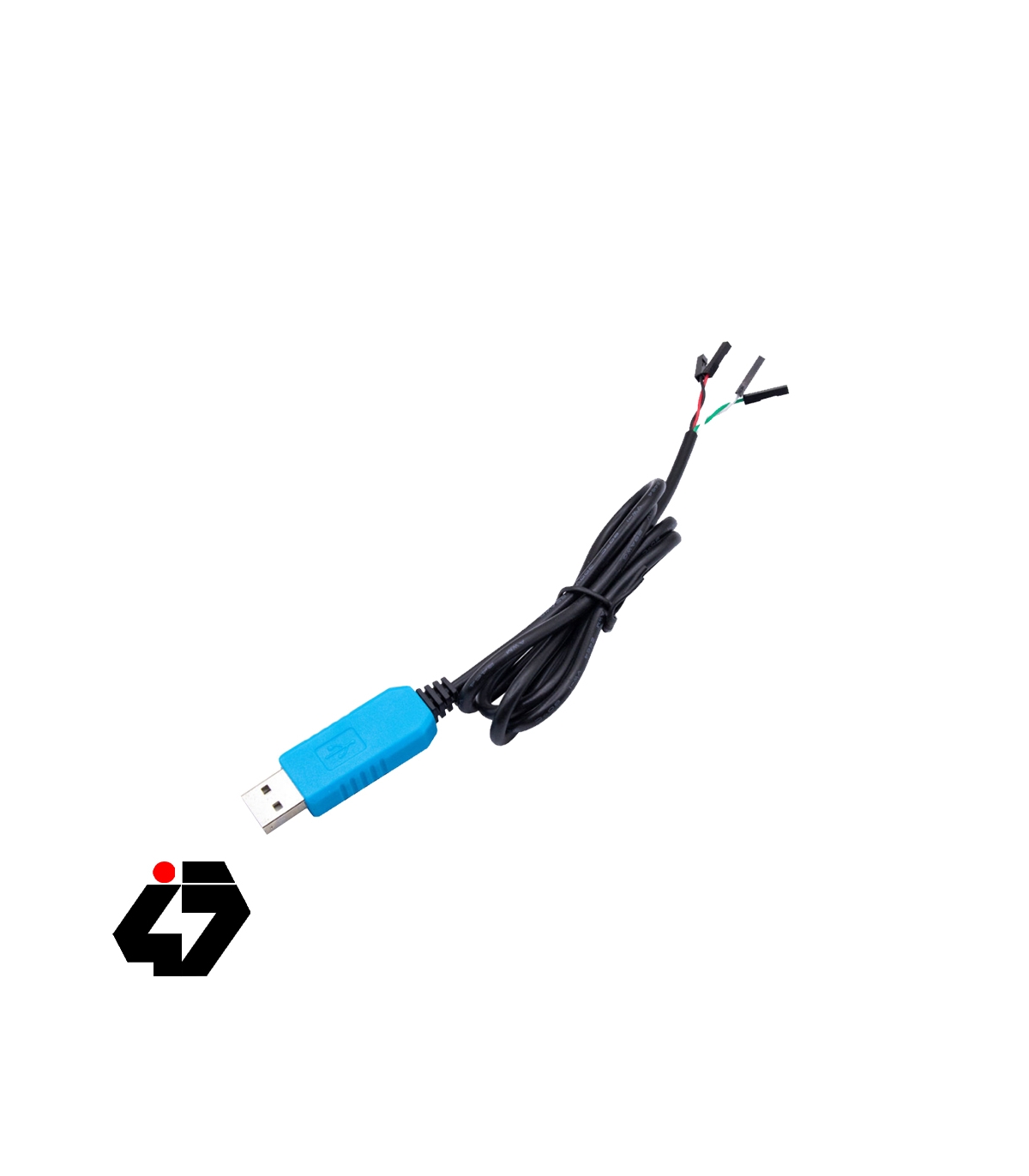

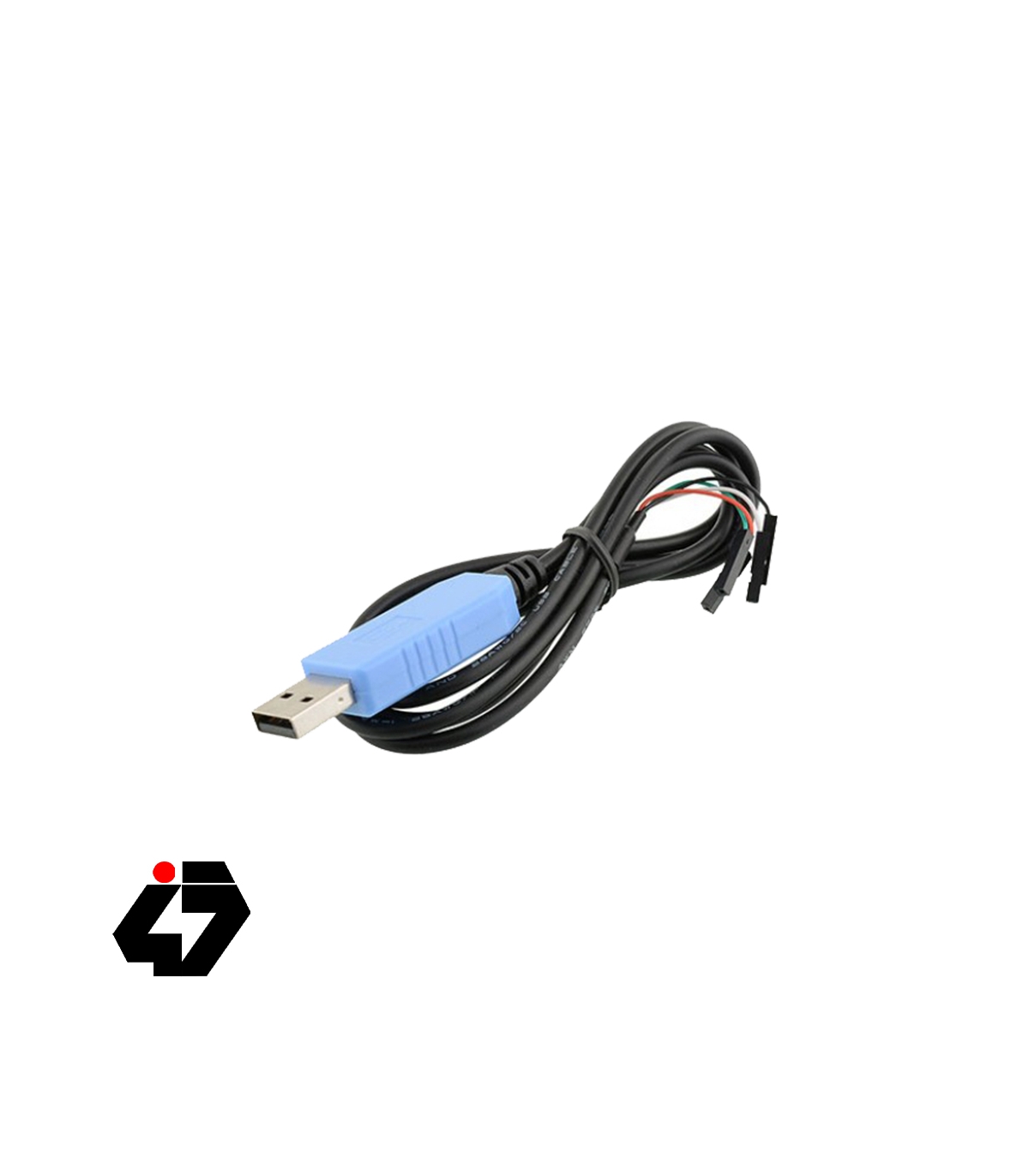

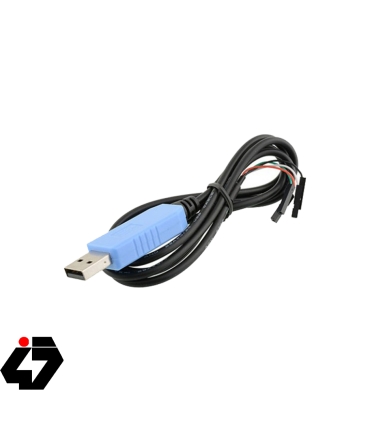

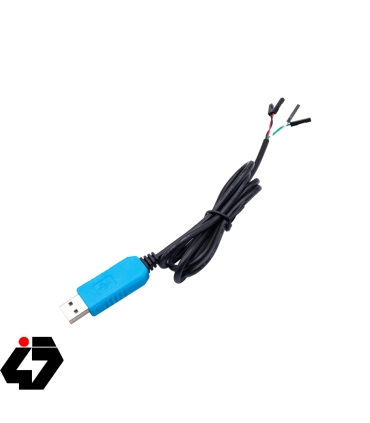

کابل مبدل usb به سریال PL2303TA USB To TTL سازگار با WIN10

کابل مبدل usb به سریال PL2303TA USB To TTL سازگار با WIN10

مبدل USB به سریال PL2303TA یک ماژول ارتباطی است که امکان برقراری ارتباط بین کامپیوتر و دستگاه‌های مبتنی بر سریال (RS232) مانند میکروکنترلرها، بارکدخوان‌ها و سیستم‌های صنعتی را فراهم می‌کند. این مبدل از طریق پورت USB به سیستم متصل شده و یک پورت سریال مجازی ایجاد می‌کند. با پشتیبانی از نرخ انتقال داده تا 6Mbps و سازگاری با ویندوز، گزینه‌ای ایده‌آل برای انتقال داده در کاربردهای مختلف صنعتی و الکترونیکی است.

Introduction

This is a newly designed product, using Taiwan's prolific production company PL2303TA chips, PL2303TA provides a full-duplex asynchronous RS232 serial devices like connected to any Universal Serial Bus (USB) host can be a convenient solution. PL2303TA perfectly compatible with win XP / VISTA / 7/8 / 8.1/10 systems can be simulated in most operating systems allow existing applications based on COM ports can be easily transplanted and USB connectivity, and COM port software without having to re-write application of traditional COM port.

By using USB bulk transfer mode, the advantages of large data buffers and automatic flow control, PL2303TA able to achieve higher throughput compared to traditional UART does not need (Universal Asynchronous Receiver Transmitter) real RS232 signal transmission rate higher than 115200 bps can be used for even higher performance. PL2303TA flexible baud rate generator can be programmed to produce any rate 75 basis points and 6,000,000 bps between.

PL2303TA is designed for use in mobile and embedded solutions, provides a compact, can be easily adapted to any connectors and handheld devices. With a very small business or suspend mode power consumption, PL2303TA is perfect with plenty of power left for the devices connected to the bus-powered operation.

This product is designed for laboratory, product testing, low-cost MCU communications and other applications, there are four lead :Red + 5V - Black GND-White RXD-Green TXD

Applications

For conventional RS232 devices to a single USB interface chip solution upgrade

USB to RS232 converter / cable / dongle

Data transmission line health / medical USB interface

Personal information and entertainment / media player docking USB interface

Mobile / Pocket PC's USB interface data transmission lines

Serial - over-IP wireless solutions

USB barcode / smart card reader

GPS / Navigation USB interface

Point of Sale (POS) terminal / printer

Computer docking station / port replicator

Industrial / Instrumentation / automation control USB interface

USB modem / wireless / Zigbee USB interface

USB interface set-top box (STB) / home gateway

BatteryCharger Applications

MCU-based device's USB interface
