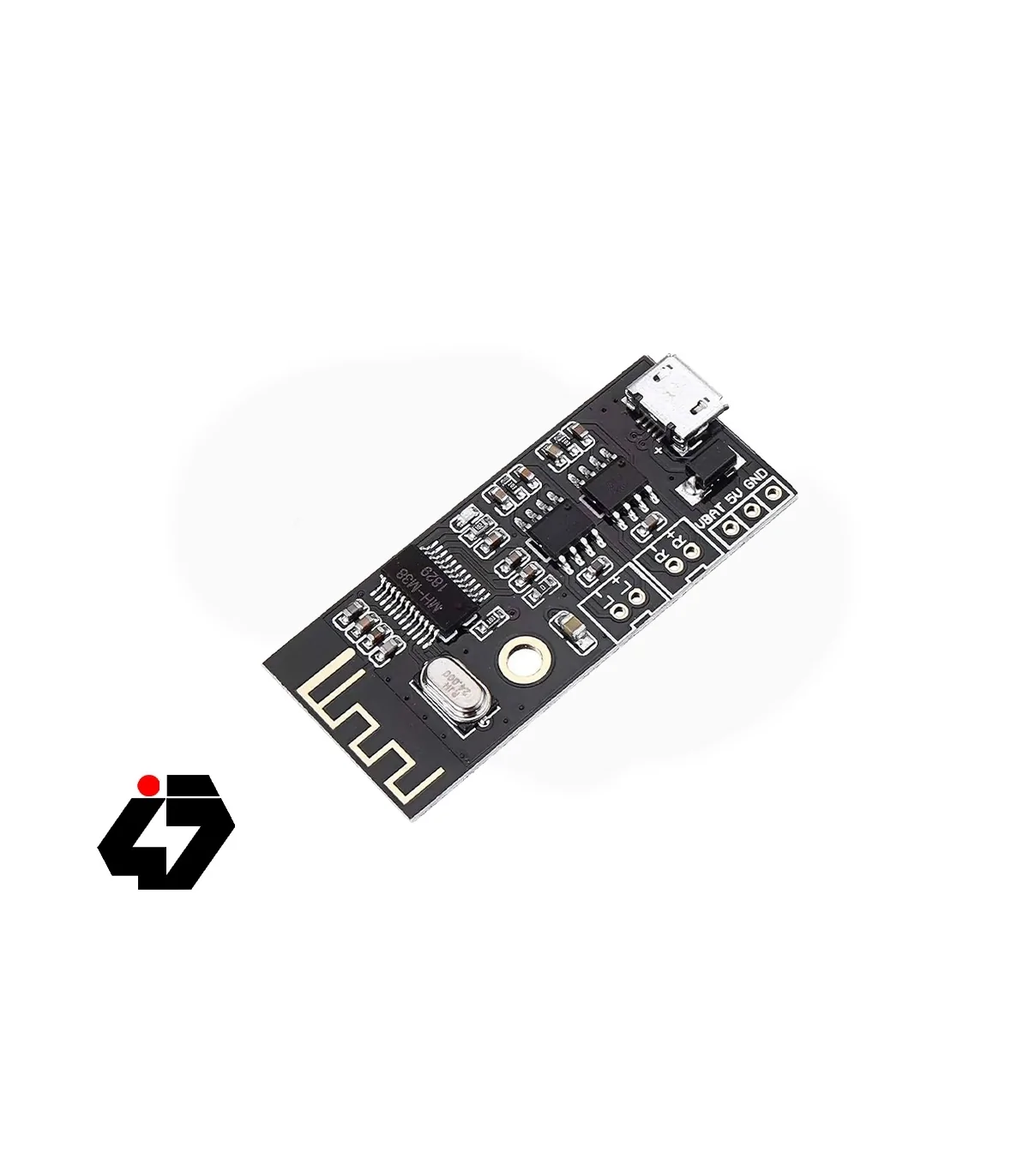

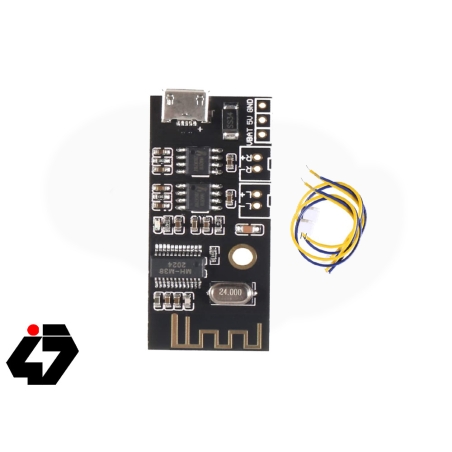

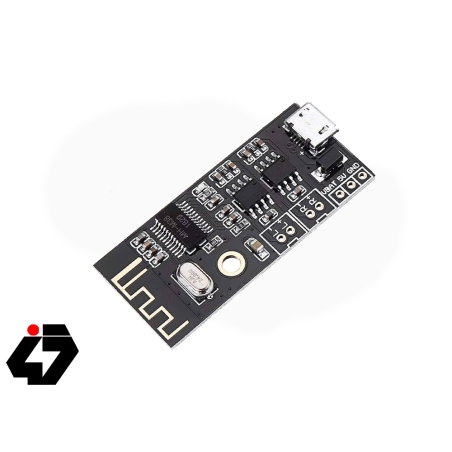

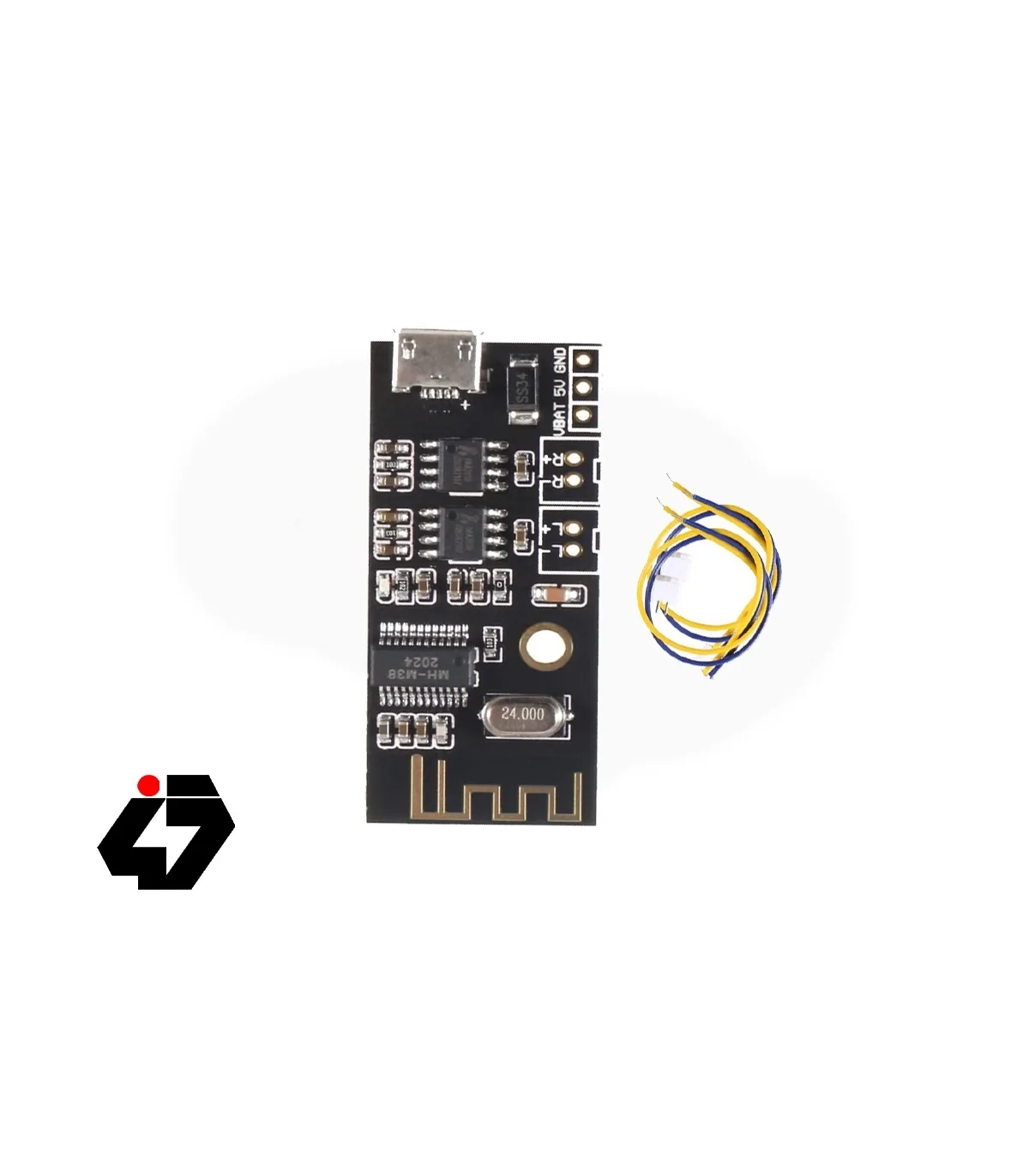

ماژول بلوتوث صوتی MH-M38 دارای 2 خروجی آمپلی فایر 5W
ماژول بلوتوث صوتی با آمپلی فایر داخلی 10 وات و ورودی میکرو USB
ا
این ماژول قابلیت پشتیبانی فاصله 20 متر در قضای باز را دارد . ماژول M38 یک گیرنده بلوتوث صوتی دارای آمپلی فایر استریو ۲x5W، بلوتوث نسخه ۴.۲ و پورت تغذیه میکرو USB بوده و از باتری لیتیومی جهت تغذیه پشتیبانی می کند. این ماژول برای ساخت یک هدفون بلوتوث با کیفیت مناسب است.
ماژول بلوتوث صوتی MH-M38 یک بلوتوث کم مصرف است که از آخرین ورژن بلوتوث 4.2، پخش استریو دو کاناله بدون قطعی و انتقال بی سیم بلوتوث در هنگام اتصال ماژول به بلوتوث پشتیبانی می کند.
Specification
Bluetooth V4.2 version, support Bluetooth automatic connection technology, support WAV/WMA/FLAC/APE/MP3 lossless decoding, stereo dual channel output
After the module is powered on, the mobile phone searches for the Bluetooth name MH-M18/MH-M28/MH-M38, and can play music after connecting Bluetooth
module blue indicator light
When the Bluetooth is not connected, the indicator light flashes quickly
When the Bluetooth connection is on, the indicator light is always on
The following is an introduction to each version

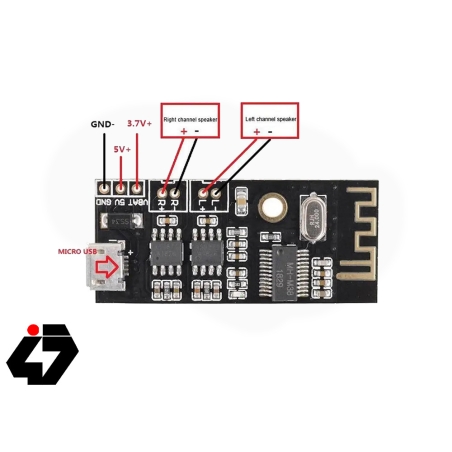

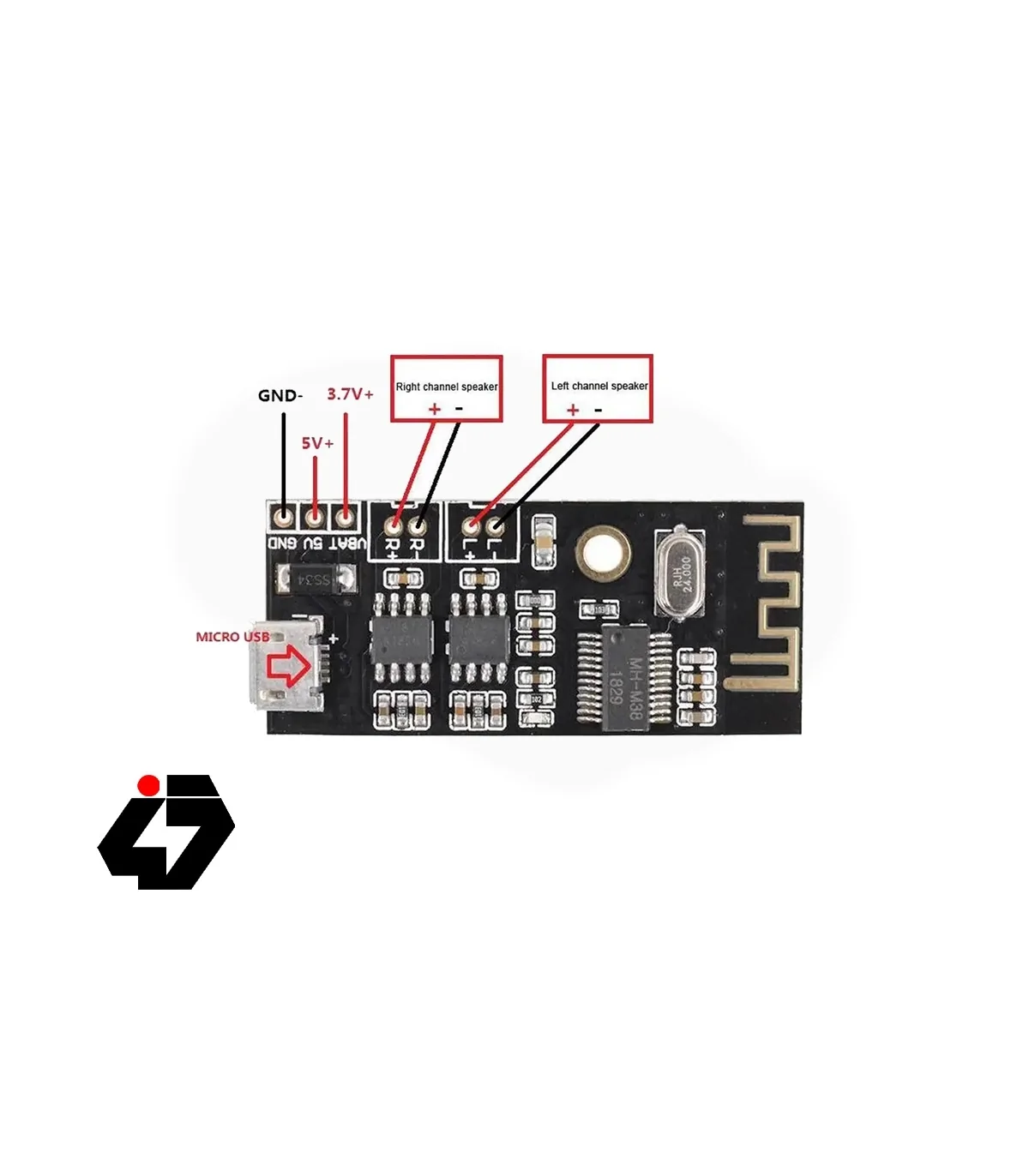

Power supply: You can directly use the MICRO USB Android cable 5V for direct power supply, or you can also connect 5V power supply or 3.7V lithium battery (as shown below). Note that the 5V and 3.7V power supply interfaces are different. The 5V voltage is connected to 5V and GND, and the 3.7V lithium battery is connected to VBAT and GND.
The maximum operating current is 5V2A. It is recommended to use a regulated 5V2A power supply for better sound quality.
Support USB sound card, free drive (plug and play). Connect the module to the computer with a USB cable, and the computer can play music through the module amplifier output.
Audio output: output left and right stereo audio signals, which can be connected to two 2-8 ohm, 3-5W speakers, and 4 Euro 5W speakers.
5W power amplifier on board :This product has its own dual 5W power amplifier circuit, and must not be connected to another amplifier! The outputs of the two amplifiers may not be connected in parallel or the negative poles may be connected together, otherwisethe power amplifier chip may be damaged
مشخصات
- ابعاد
- ۴۵X20 میلیمتر
- ساخت کشور
- چین
- ولتاژ ورودی ( کاری )
- ۳.۷ الی ۵ ولت
- پشتیبانی از
- باتری لیتیومی
- نوع تغذیه
- میکرو USB
- وات
- ۲ خروجی ۵ وات
- ورژن بلوتوث
- ۴.۲
