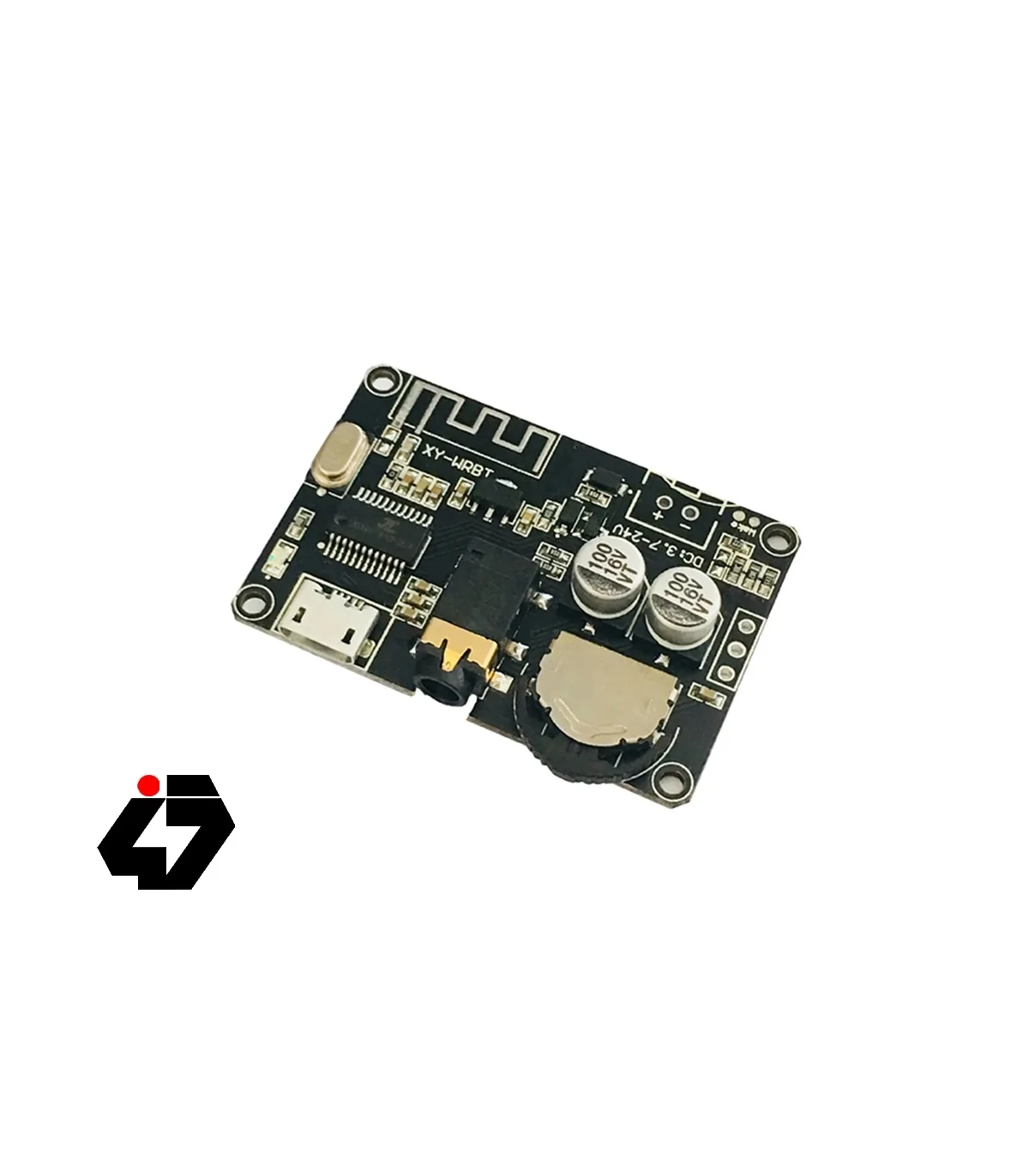

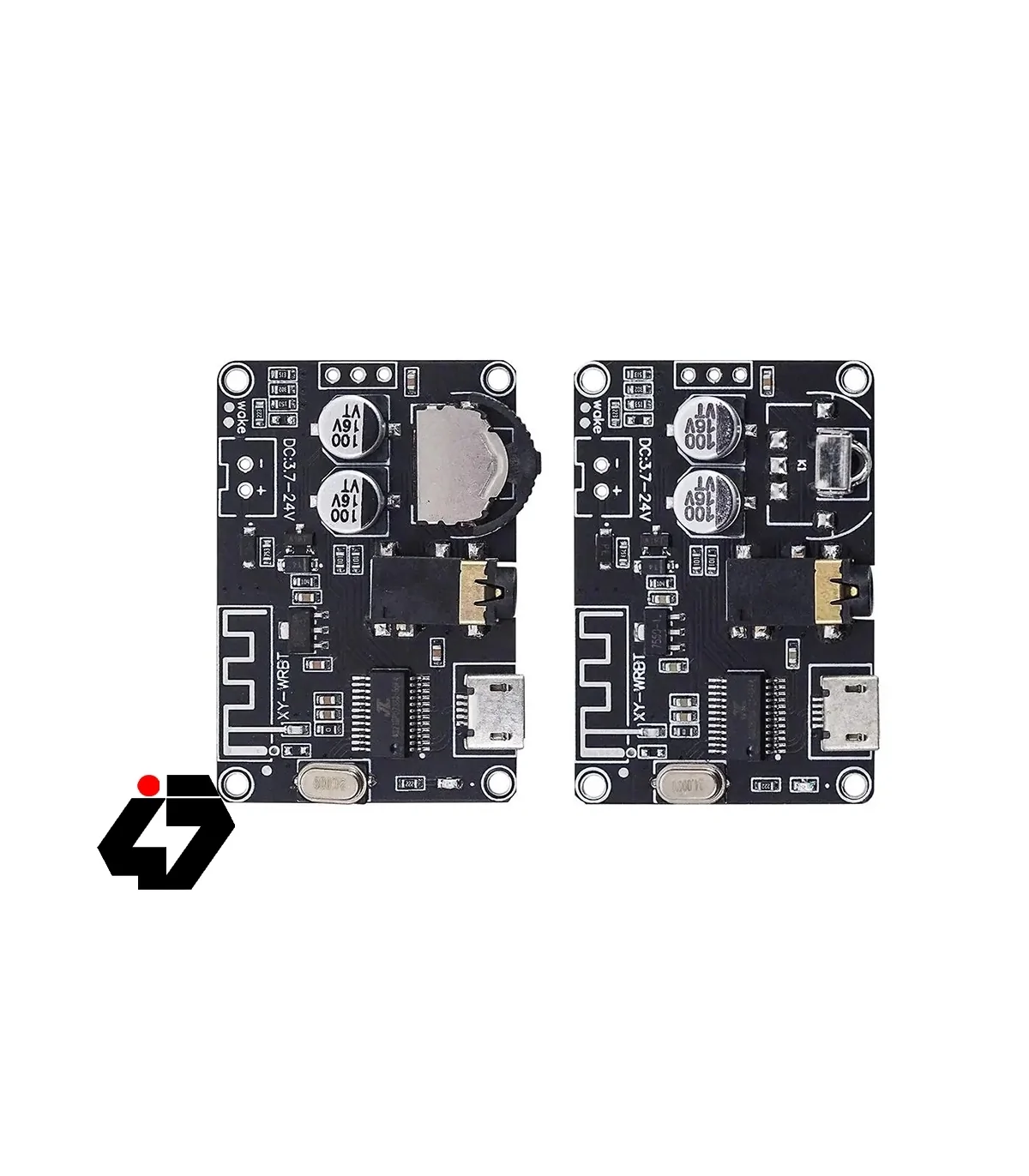

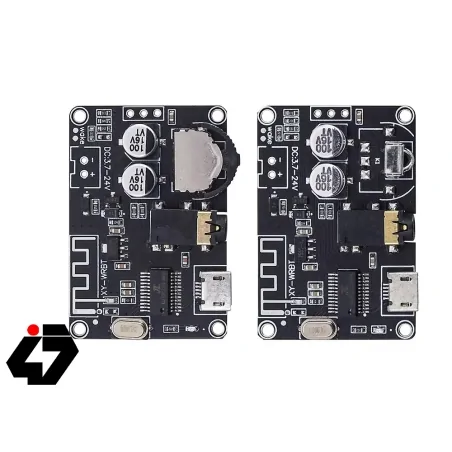

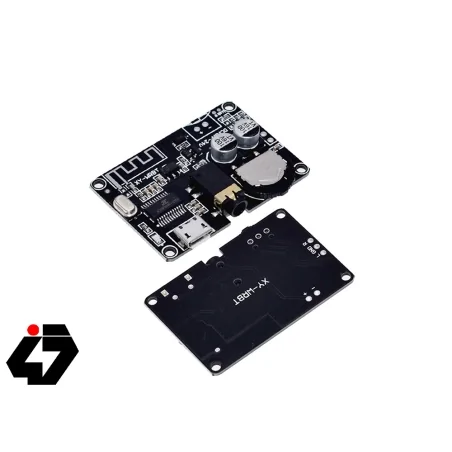

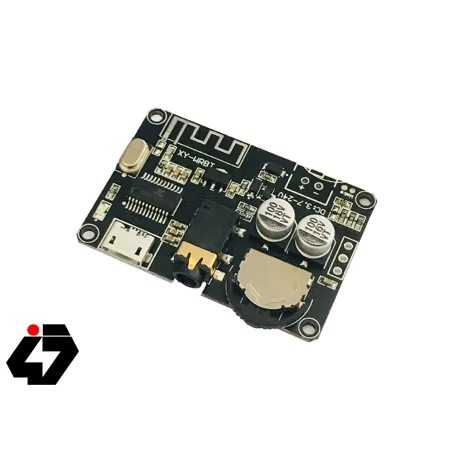

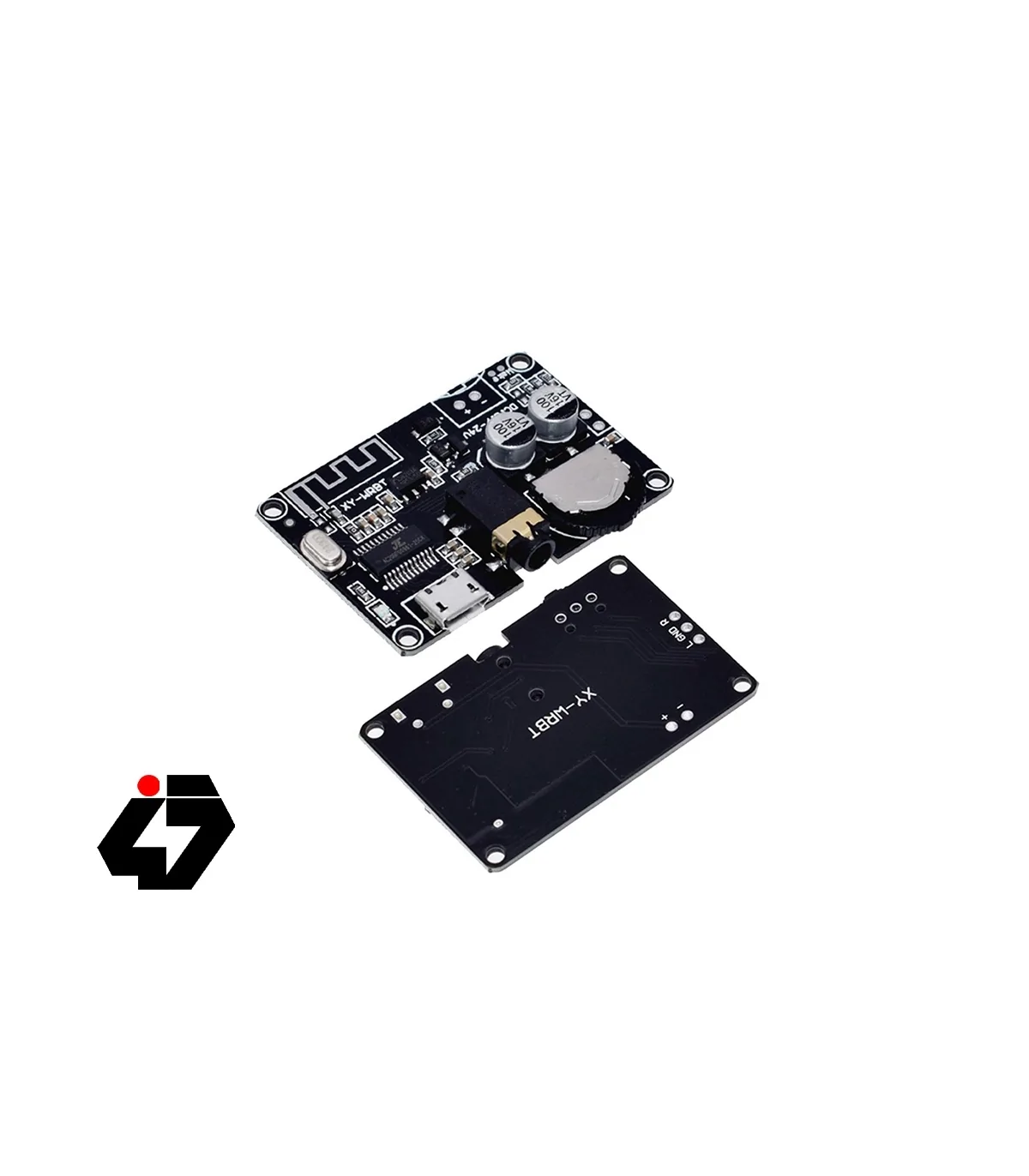

ماژول گیرنده بلوتوث صوتی XY-WRBT دارای بلوتوث ورژن 5
ماژول بلوتوث XY-WRBT دارای ورودی میکرو USB و پورت جداگانه مخصوص اتصال برای تغذیه است.
ماژول بلوتوث XY-WRBT دارای ورودی میکرو USB و پورت جداگانه مخصوص اتصال برای تغذیه است.
از طریق بلوتوث می توانید به این ماژول متصل شوید و خروجی صدا را با استفاده از خروجی AUX یا به صورت سیمی به منظور اتصال به آمپلی فایر یا هندزفری دریافت کنید.
Specification
Item Type: Bluetooth Decoder Board
Material: PCB
Application: Wide voltage and volume adjustable speaker power amplifier
Working Voltage: 3.7~24V DC
Bluetooth Version: 5.0
Transmission Distance: Approx. 15m / 49.2ft (visible without obstruction)
Signal-to-noise Ratio: 290dB
Distortion: ≤-70dB
Number of Channels: Dual channel (stereo)
Audio Interface: 3.5mm audio interface
Module Protection Mechanism: Power reverse connection protection
How to use
After the power is turned on, the blue indicator light flashes quickly and enters the Bluetooth mode; after the "prompt tone" is broadcast, it enters the pairing mode and waits for pairing; the mobile phone Bluetooth searches for "XY-WRBT" (the name of the power amplifier board device).
Click "XY-WRBT" to connect, after the connection is successful, the "prompt tone" indicator light will be on, you can play mobile music, and the indicator light flashes slowly when playing music; after the Bluetooth is disconnected, the amplifier board prepares for the next pairing and playing. After the prompt tone, enter the pairing mode and wait for pairing.
مشخصات
- ابعاد
- 30*44 میلی متر
- ساخت کشور
- چین
- ولتاژ ورودی ( کاری )
- 3.7 تا 24 ولت
- جریان مصرفی
- حداکثر 2 آمپر
- توان USB
- 5 ولت میکرو USB
- پشتیبانی از
- بلوتوث 5، اتصال اتوماتیک
- خروجی
- استریو ، جک 3.5 میلی متری ، دارای خروجی با سه نقطه اتصال قابل لحیم کاری
- نوع تغذیه
- MICRO USB با ورودی تغذیه
- نشانگر
- LED
