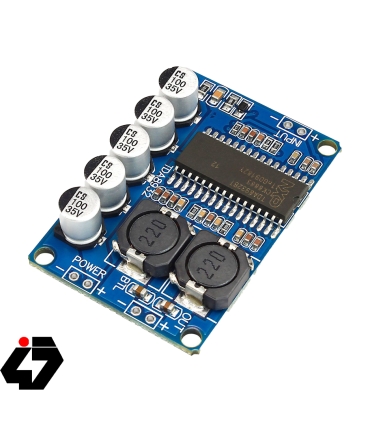

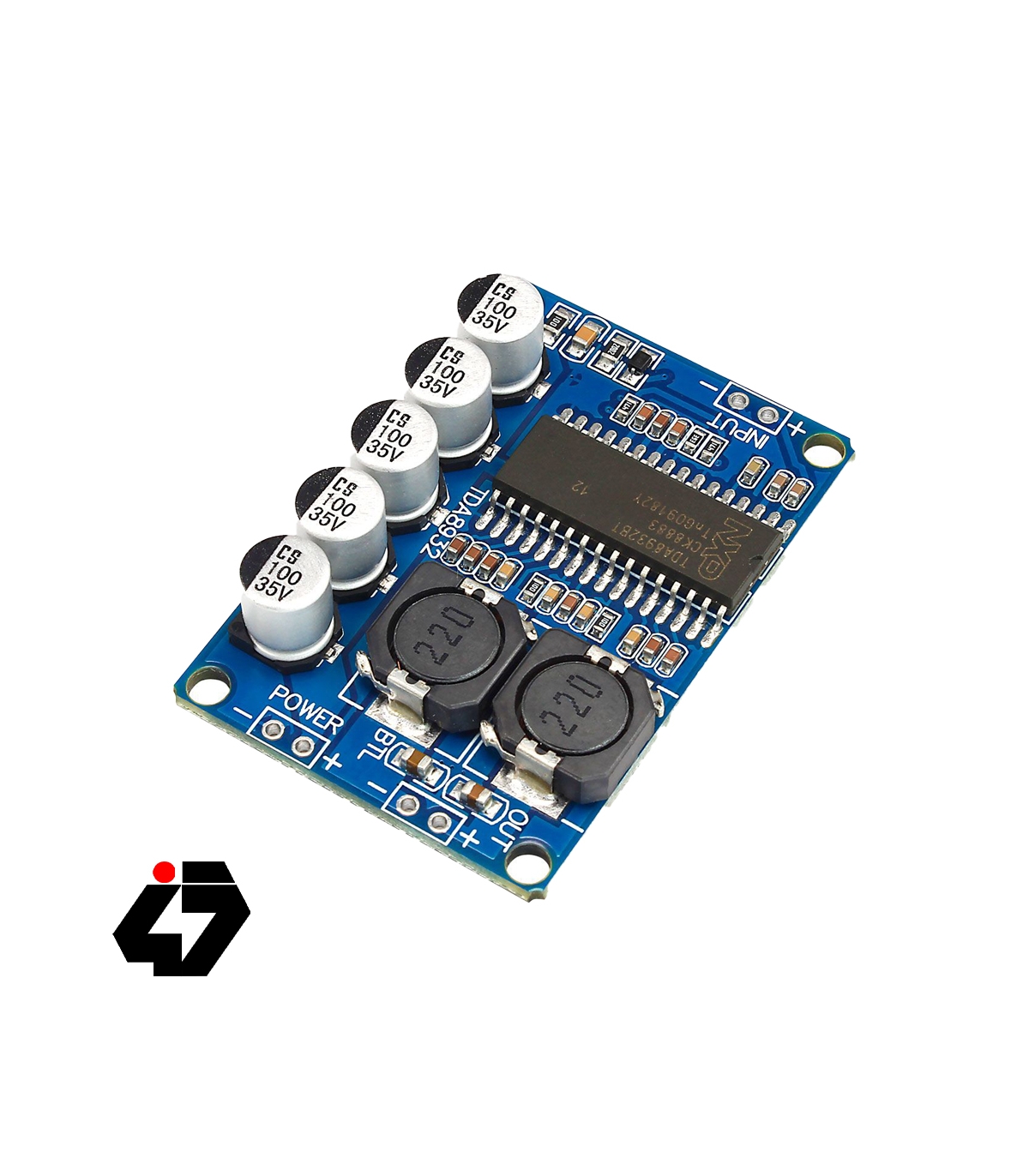

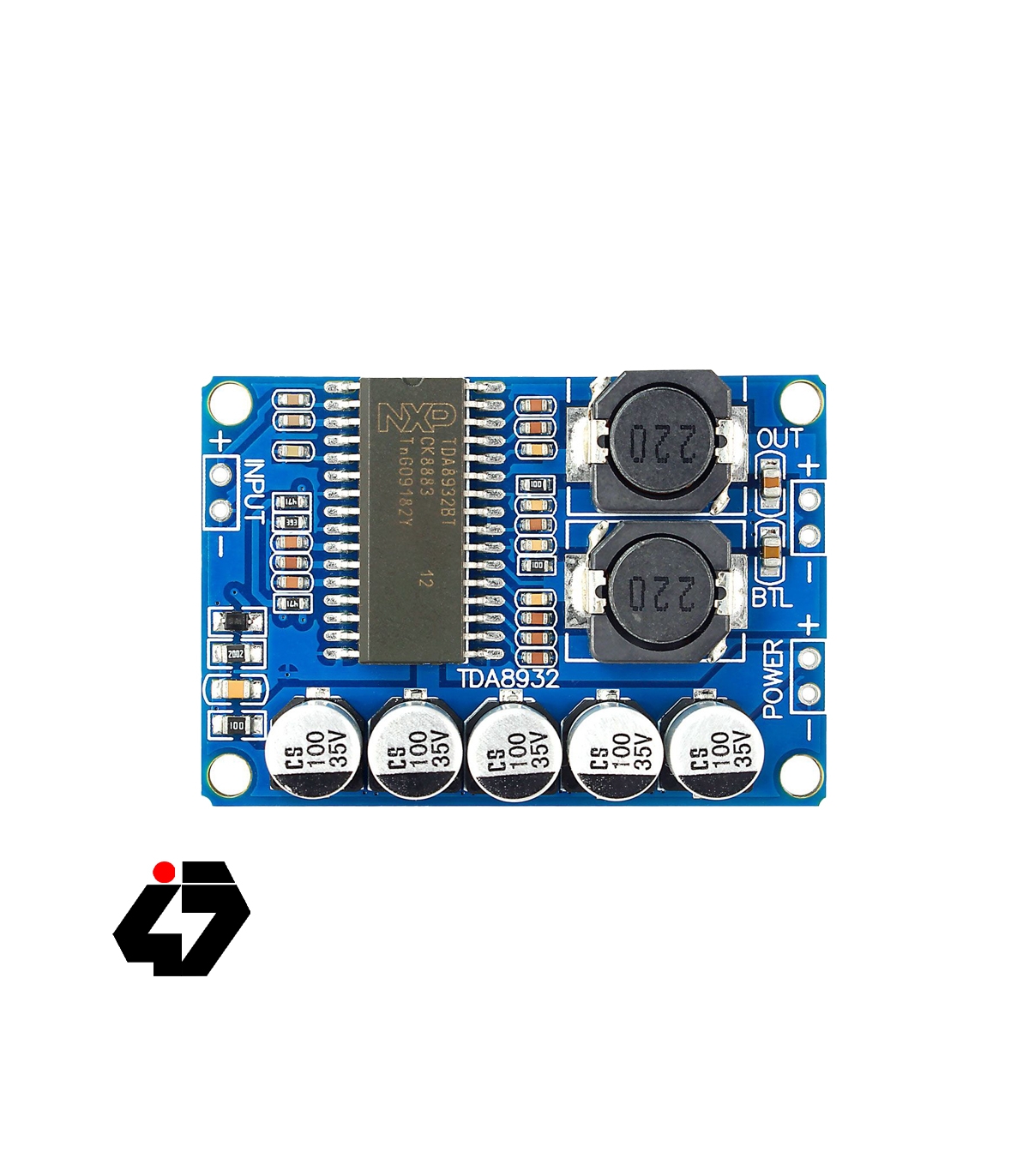

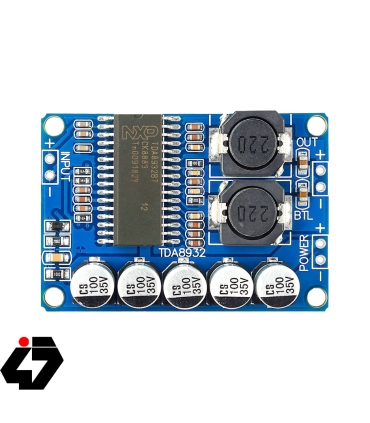

ماژول آمپلی فایر تک کاناله 35 وات TDA8932

ماژول آمپلی فایر تک کاناله از تراشه تقویت کننده دیجیتال با کارایی بالا TDA8932، اندازه کوچک، راندمان بالا، قدرت بالا، کیفیت صدای خوب، بدون نصب اضافی رادیاتور، بسیار مناسب برای تبدیل بلندگوهای فعال، اجرای پروژه الکتروآکوستیک، توسعه محصول و سایر برنامه های صوتی است .

ازماژول آمپلی فایر تک کاناله 35 وات TDA8932در سیستم‌های صوتی خانگی ،ارتقاء تجهیزات صوتی ، دستگاه های صوتی قابل حمل ،  آموزش و نمونه ساز استفاده میشود.

:Description

Single-channel amplifier module of TDA8932 high-performance digital amplifier chip, small size, high efficiency, high power, good sound quality, no additional radiator installation, very suitable for active speaker conversion, electroacoustic project implementation, product development and other applications It is audio.

The TDA8932 is a digital power amplifier integrated circuit (IC) commonly used in audio amplifier applications. When integrated into a circuit board, it can be used to create a single-channel audio amplifier with an output power of about 35 watts.

:Application

Home Audio Systems: Can be used to enhance the audio capabilities of home audio systems, especially for driving a subwoofer or dedicated audio channels.

Audio Equipment Upgrades: Some users may upgrade the amplifier part of their audio equipment, such as integrated amplifiers in home theater receivers.

Portable audio devices: Due to their efficiency and low power consumption, TDA8932-based amplifiers are suitable for battery-powered audio devices such as portable speakers and headphone amplifiers.

Training and prototyping: Educational institutions and engineers may use these amplifier boards for prototyping and training purposes.

:Specifications

Working voltage: single DC10~30V, recommended voltage 24V, current above 2A switching power supply

Output power: 35W*1

Speaker impedance: 4-8 ohms, best 8 ohms

Circuit configuration: BTL mono output

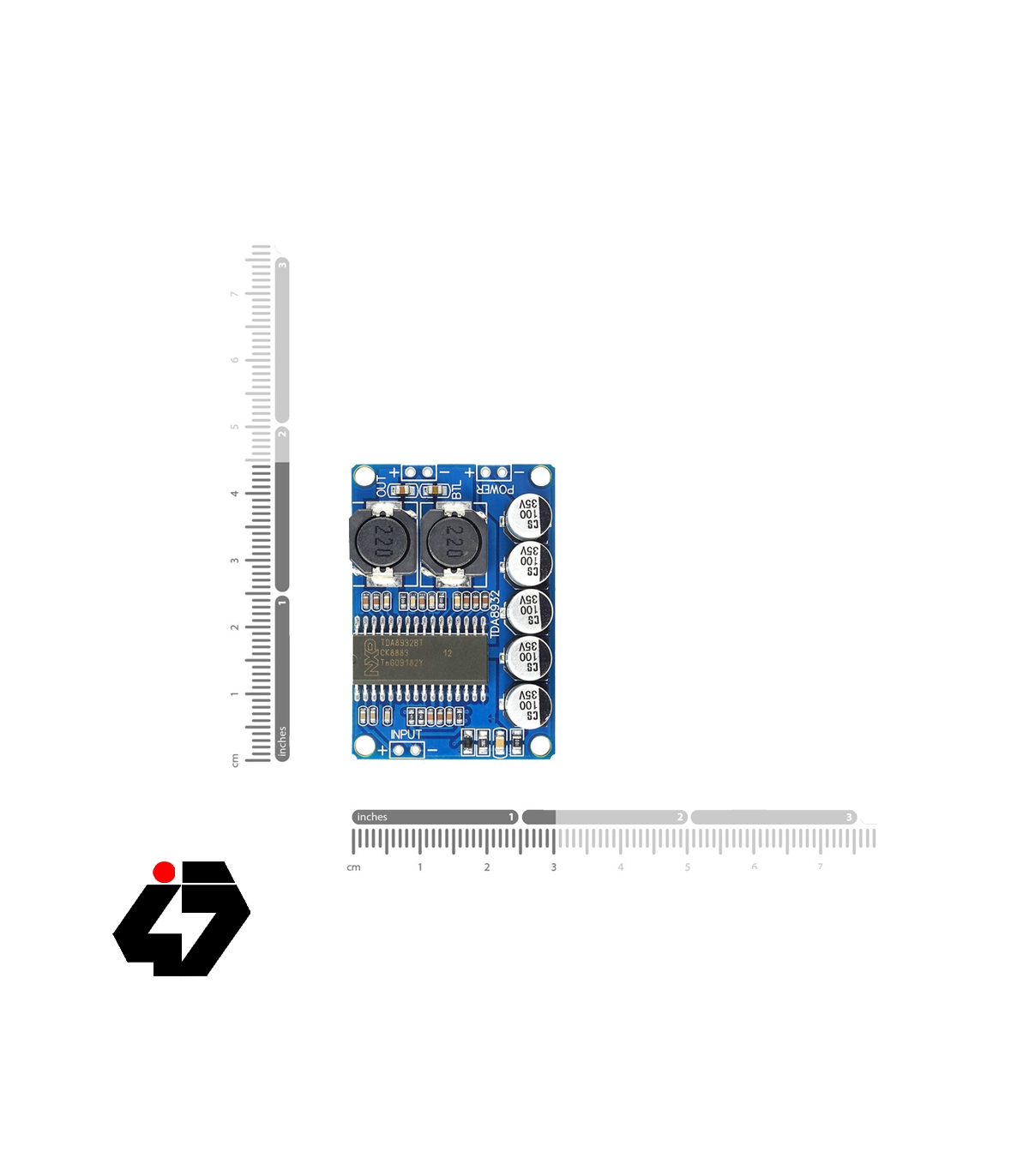

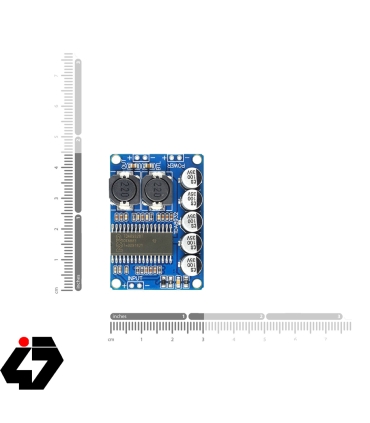

Board size: 45x31 mm

 :Features

Digital Amplifier: The TDA8932 is a Class D amplifier, which means it operates in digital switching mode. This design leads to high efficiency and low power consumption.

Mono configuration: The TDA8932 is typically used to create a single-channel amplifier, suitable for single-channel audio applications such as subwoofers or center channel speakers in a home theater system.

High Output Power: It can deliver approximately 35 watts of power into an 8 ohm speaker load when powered by a suitable power supply.

Low power consumption: One of the advantages of class D amplifiers such as the TDA8932 is their low power consumption, especially compared to traditional linear amplifiers (class A or class AB).

Built-in protection features: Many TDA8932-based amplifier boards have built-in protection features such as overcurrent protection and thermal shutdown that help prevent damage to the amplifier and connected speakers.

Compact Design: Amplifier boards typically have a compact form factor that makes them suitable for integration with a variety of audio equipment and speaker systems.

Ease of Use: These amplifier boards are often designed to be easy to use, with labeled input and output connectors and mounting holes for easy installation.
