ماژول بلوتوث صوتی HIFI مدل JDY-64

ماژول بلوتوث صوتی HIFI مدل JDY-64

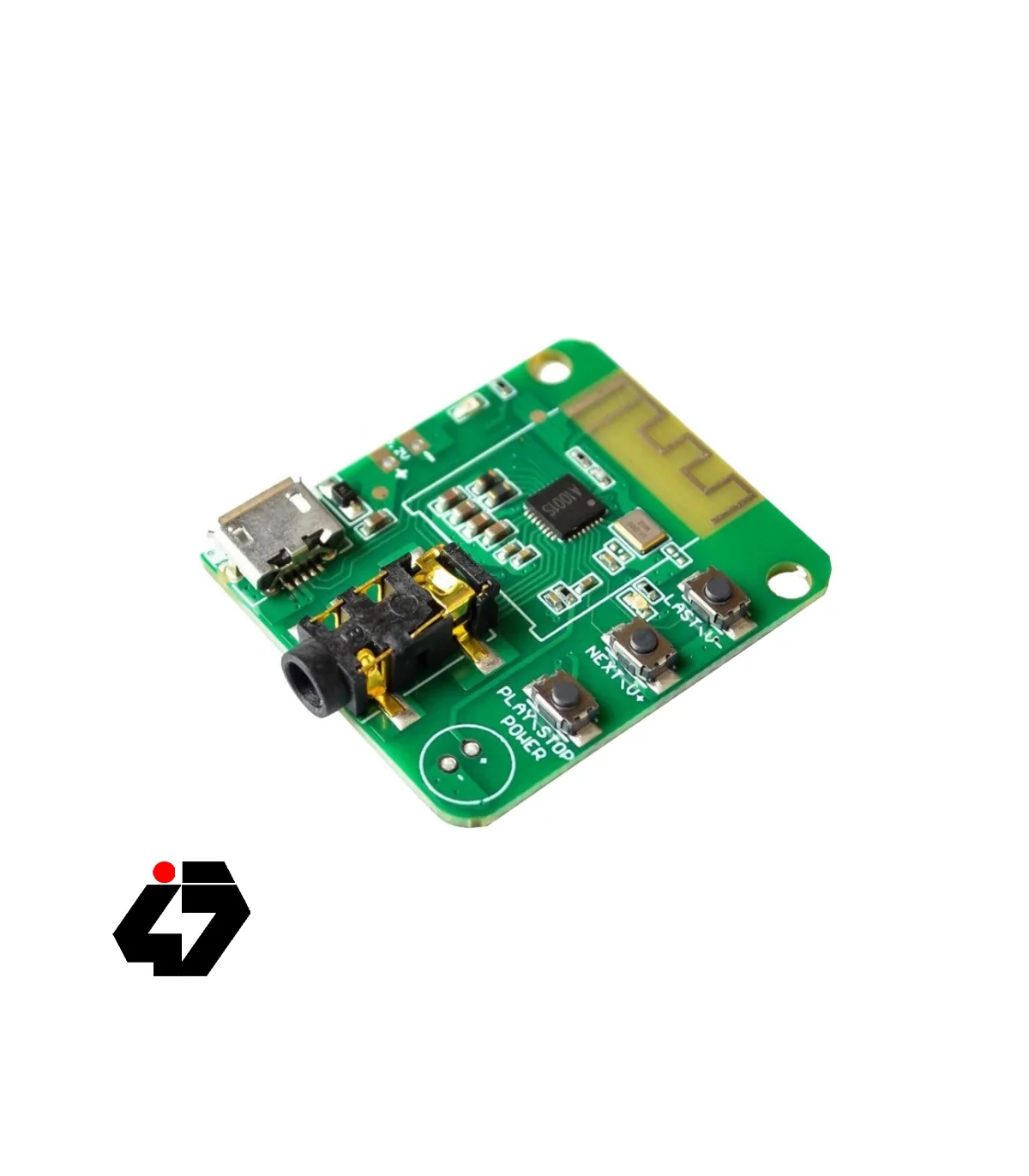

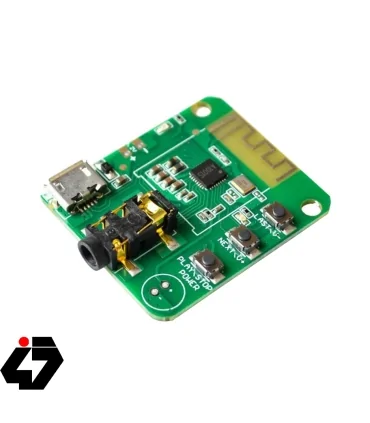

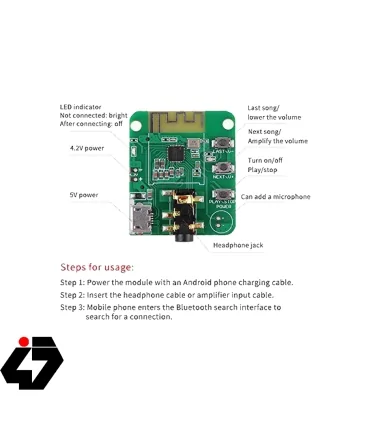

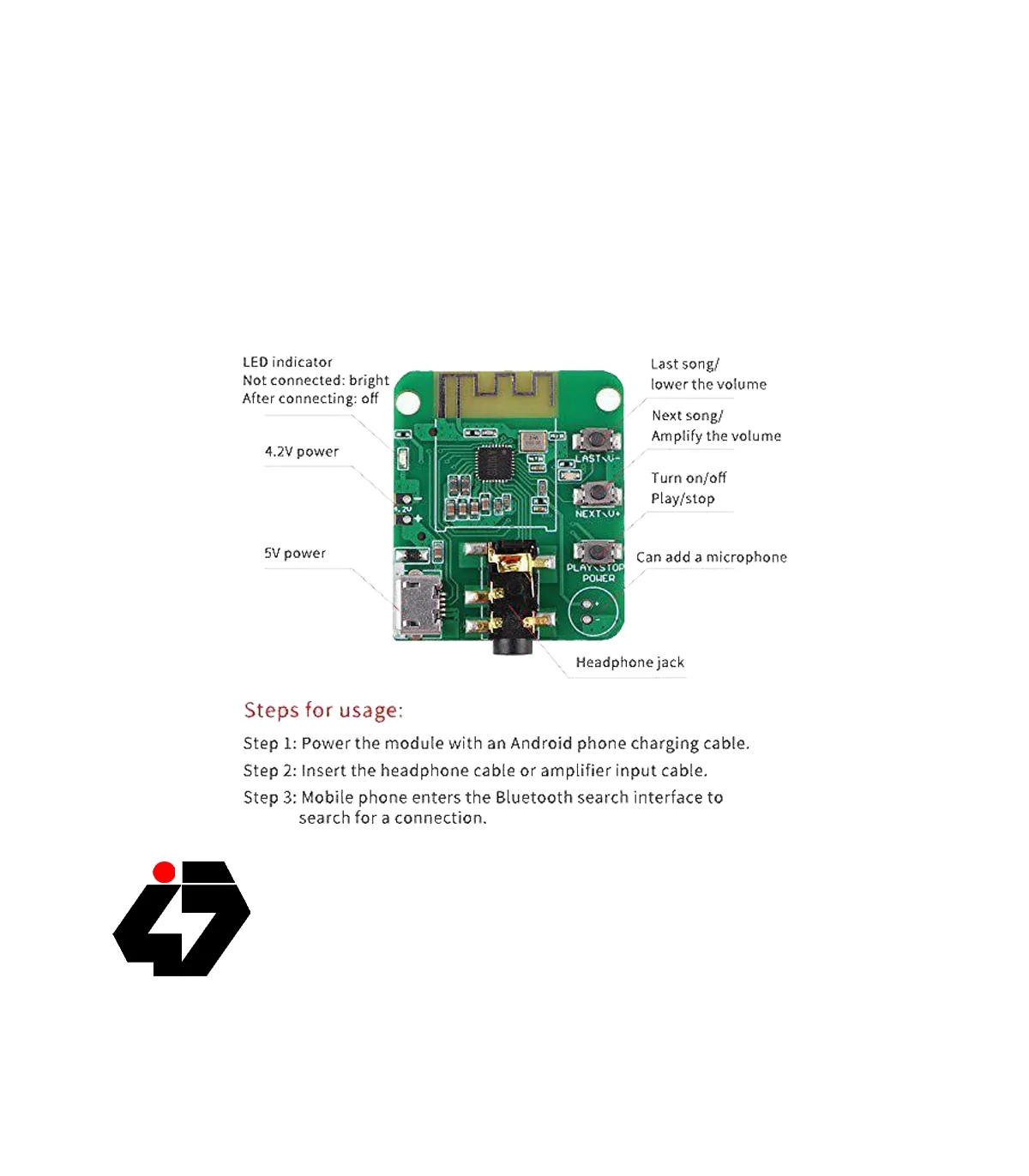

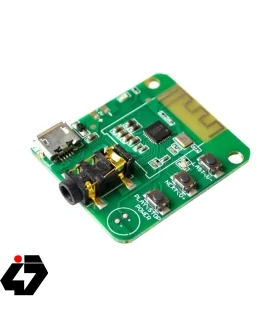

این برد بمنظور توسعه و راه اندازی ماژول بلوتوث صوت بکار میرود. بر روی این بورد کلیدهایی به منظور کاهش یا افزایش صدا،پخش یا توقف،و... و همچنین جک خروجی صدا استریو 2 کاناله درنظر گرفته شده است.

Introduction

JDY-64 is designed for a low-power lossless two-channel stereo solution. The overall performance is very advantageous. Users only need to connect the module to the application product, and they can quickly realize wireless music transmission. By default, there is no prompt sound of a button, switch, connection, and Fragment opening. The default is the headset function (does not support SD card), supports button control (music up and down, play and stop, switch machine, volume addition and subtraction) and other functions.

Specification

Model: JDY-64

Bluetooth version: Bluetooth V4.2

Support Bluetooth protocol: HFPV1.7, A2DPV1.2, AVRCPV1.5, AVCTPV1.2, AVDTPV1.2

Working voltage: DC3.3-4.2V (5V MicroUSB)

Broadcast status current not connected: 3.5mA

Working state after connection: 20MA

Deep sleep current: 3uA

Working temperature: -40°C - 80 °C

Transmission distance: 15m

Sensitivity: -87dbm

Patch temperature: andlt;260°C

Applications

Mainly used in mobile phones, computers, PAD, etc. It can be applied to Bluetooth mono headphones, headphones, Bluetooth two-channel headphones, Bluetooth audio, Bluetooth audio receiver.
