JT-500 پمپ آب براشلس 6 ولت تا 12 ولت با توان 17 وات 600L/H مناسب برای تجهیزات پزشکی، آکواریوم و ...
CPS30A 1.4W 150L/H Floating Solar Power Fountain Solar Water Pump Miniature
پمپ آب براشلس خورشیدی از المانهای هال با حساسیت بالا و مصرف انرژی پایین استفاده میکند، با مدار الکترونیکی کارآمد و هوشمند همکاری میکند، و با طراحی مخروطی در مکانیک سیالات برای حفره پره، مقاومت جریان آب را کاهش میدهد تا عملکرد جامع بهتری نسبت به ساختار سنتی انرژی خورشیدی داشته باشد. با افزایش کارایی پمپ آب تا 20٪. همچنین نقایص پمپ آب خورشیدی بدون برس را که شروع کردن دشوار، کارایی پایین و پایداری ضعیفی دارد، حل میکند. این پمپ آب میتواند با نازلهای مختلفی به اشکال متفاوت آب پاشی کند. ارتفاع پاشش: 30 تا 60 سانتیمتر، با اتصال سرهای پاشش مختلف، ارتفاع پاشش تغییر خواهد کرد.
Introduction
The solar brushless water pump uses Hall elements with high sensitivity and low power consumption, cooperates with efficient and intelligent electronic circuit drive, and adopts the volute design in the fluid mechanics for the impeller cavity to reduce the resistance of the water flow so that the comprehensive performance is better than the traditional structure of solar energy. The efficiency of the water pump is increased by 20%. It also solves the shortcomings of the current brushless solar water pump is difficult to start, low efficiency, and poor stability. The water pump can be connected with nozzles of various shapes to spray different types of water. spray height: 30--60cm, connect different spray heads, spray height will be different. When the solar panel receives sufficient sunlight, the pump will start within 3 seconds.
Specification
Material: sponge, ABS
Product Weight: 0.57lb/260g
Solar Panel: 7V/1.4W

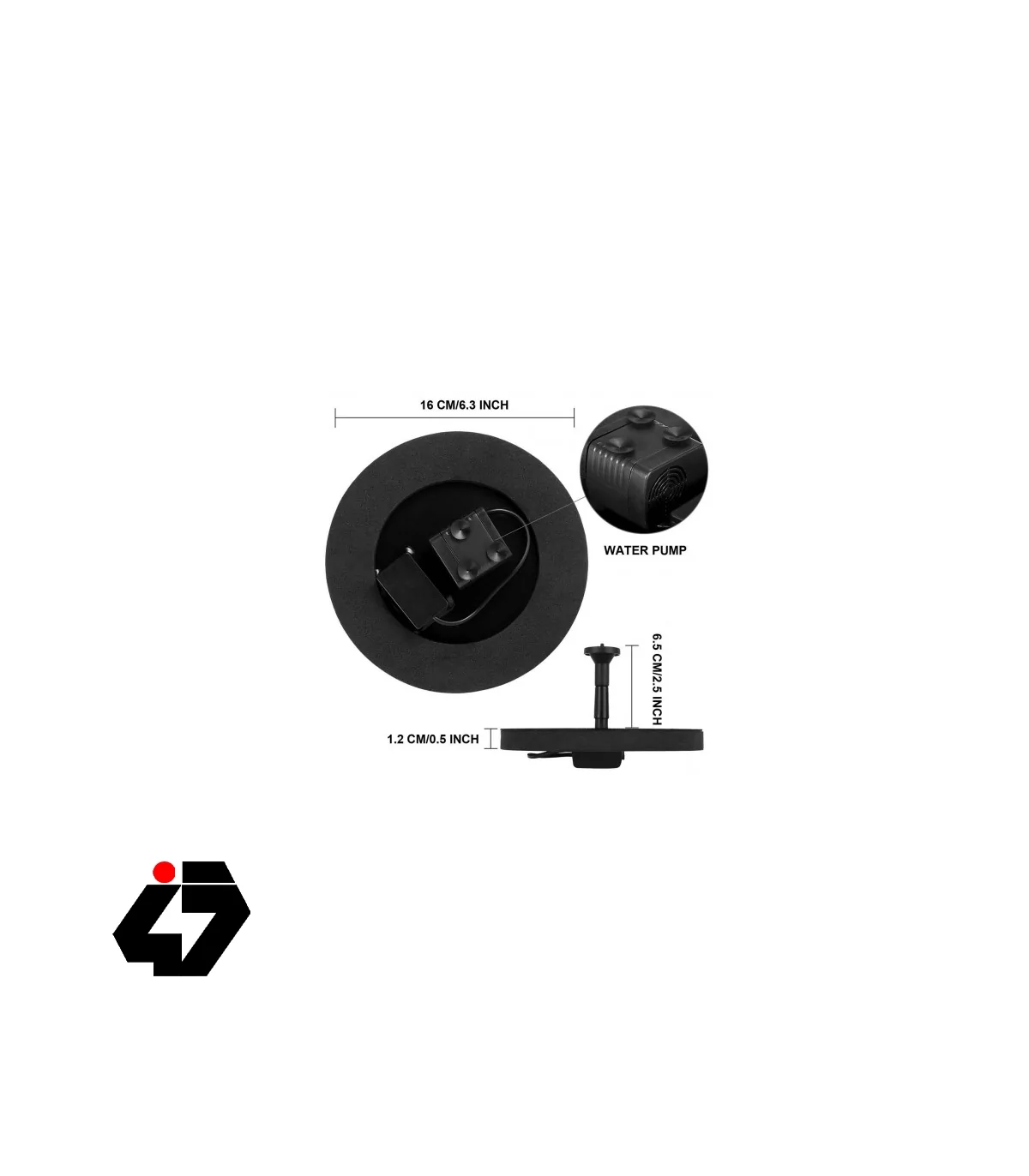

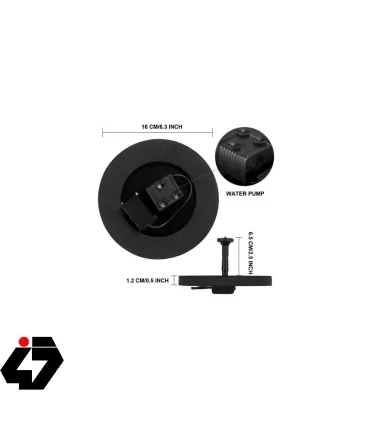

Diameter: 16cm
Brushless Pump Input: DC 4.5-10V
Maximum Quantity of Flow: 150L/H
Maximum Delivery Height: 18", Regular:10~15";
Minimum Water Depth in Fountain Should Be 1 3/4"
Life Span: >10,000 hours
Specification

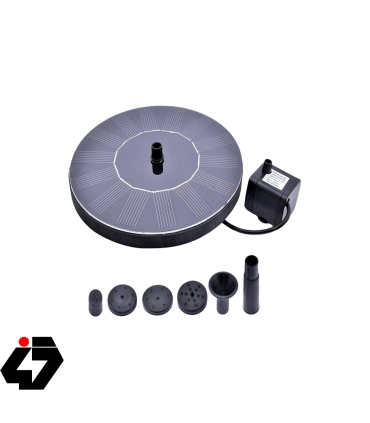

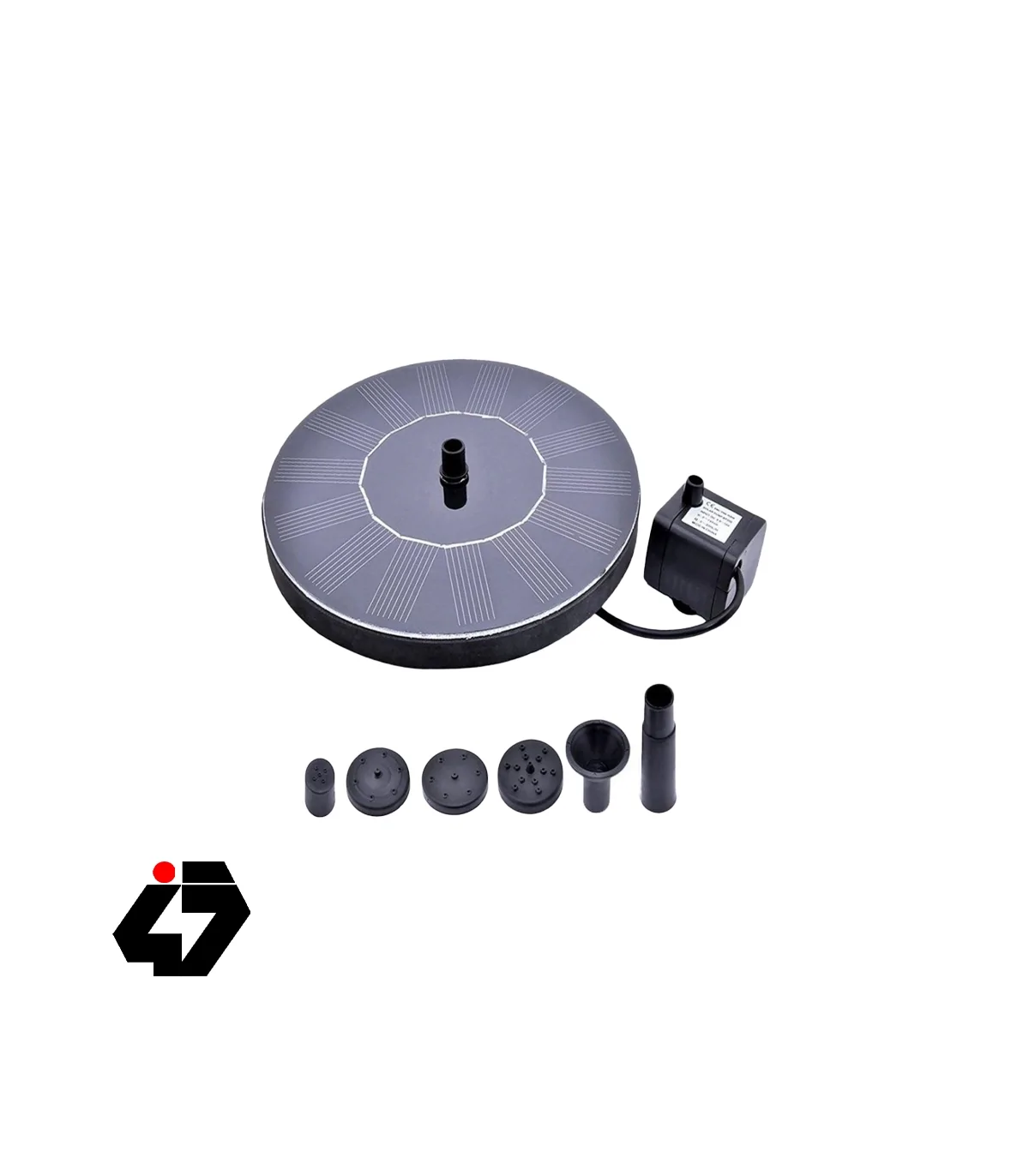

1 x Solar Pump

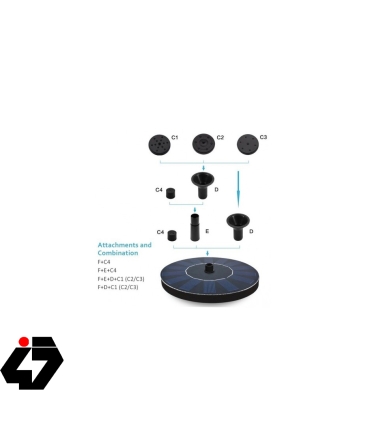

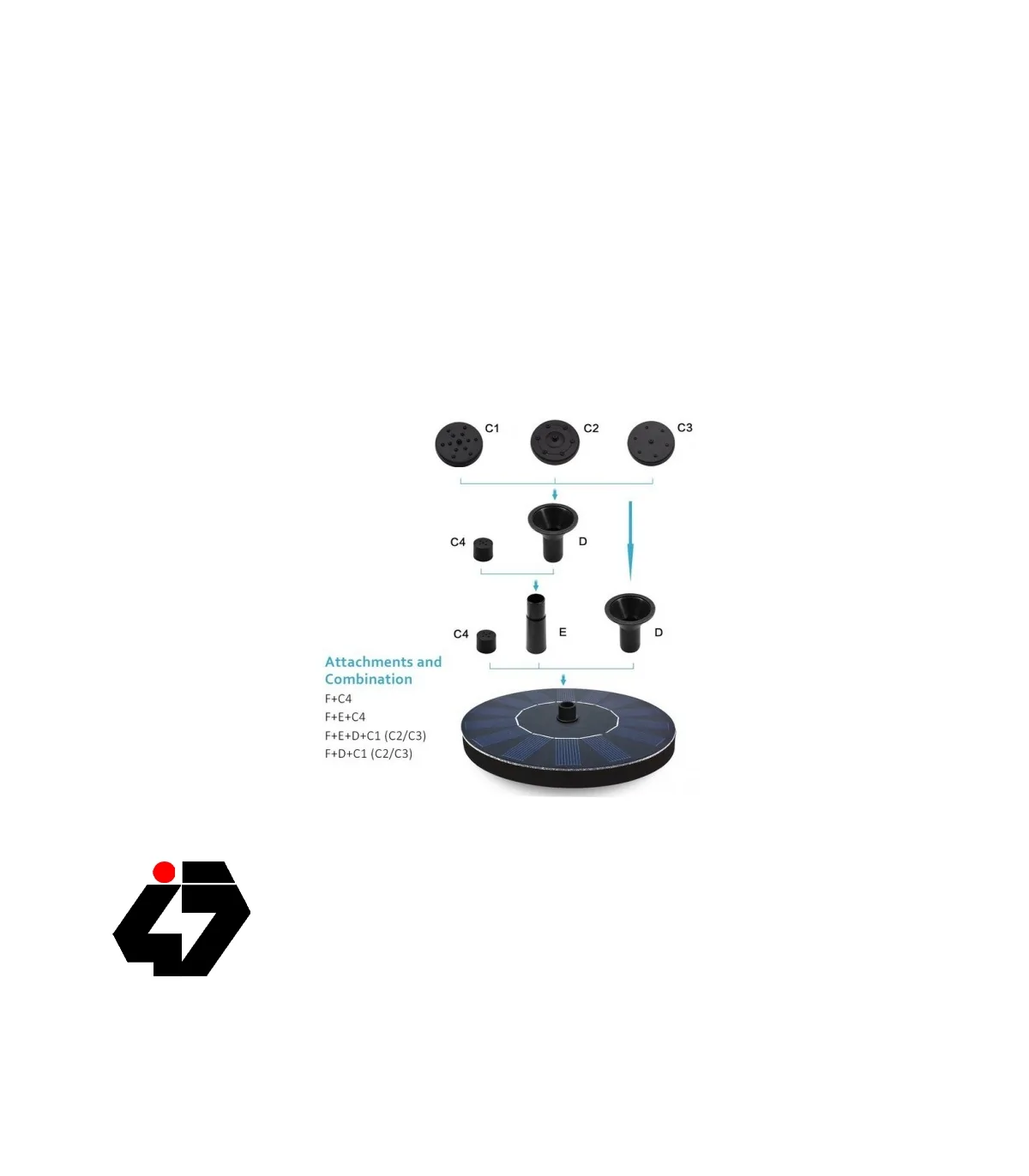

3 x Nozzles
4 x Nozzle Connector
مشخصات
- وزن
- 260 گرم
- قطر
- 16 سانتیمتر
- پنل خورشیدی
- 1.4 ولت / 7 وات
- ورودی پمپ بدون برس
- 4.5-10 ولت DC
- حداکثر حجم جریان
- 150 لیتر در ساعت
- حداکثر ارتفاع دلیوری
- 18 اینچ، معمولی: 10 تا 15 اینچ
- عمر مفید
- بیش از 10,000 ساعت
