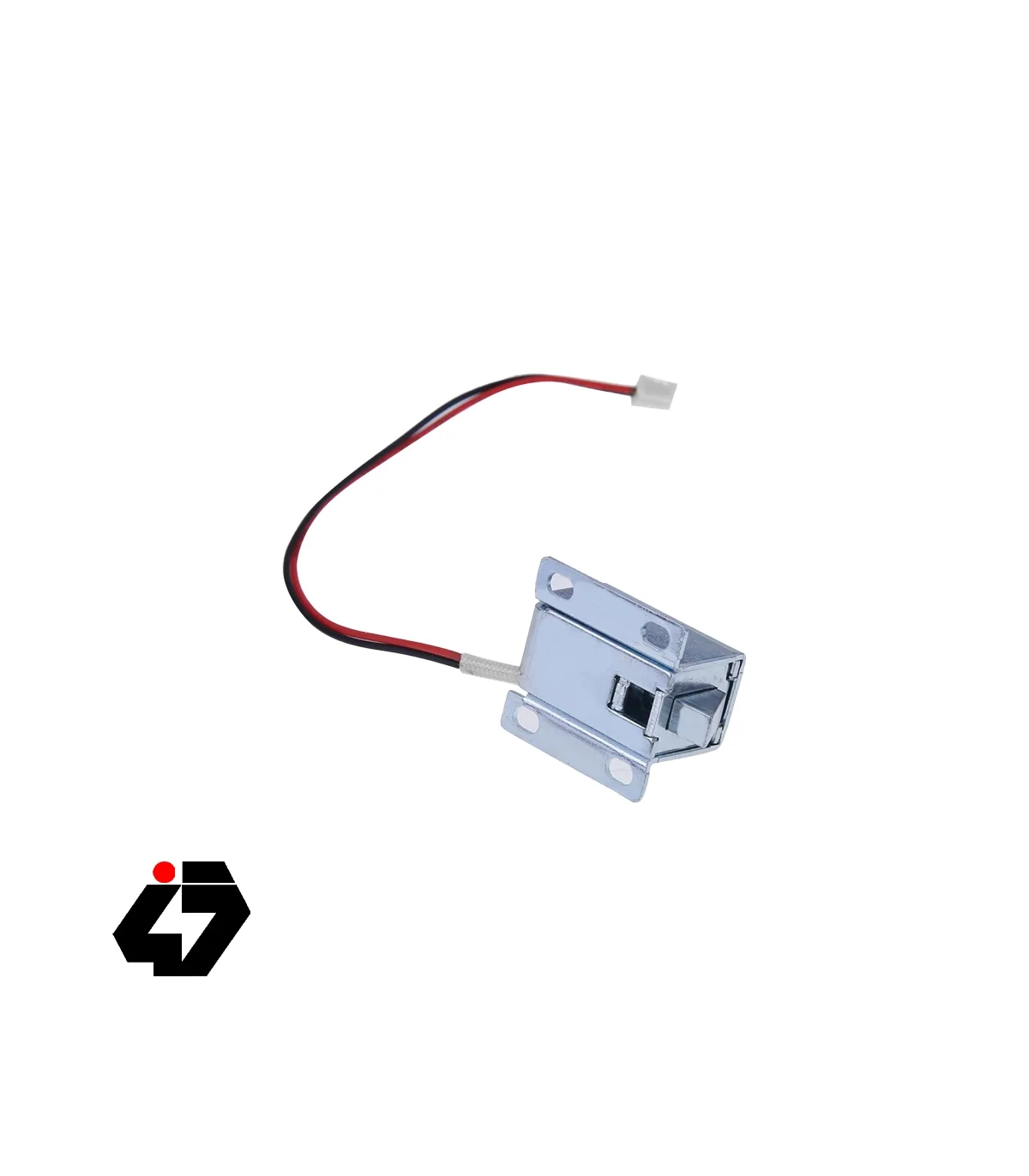

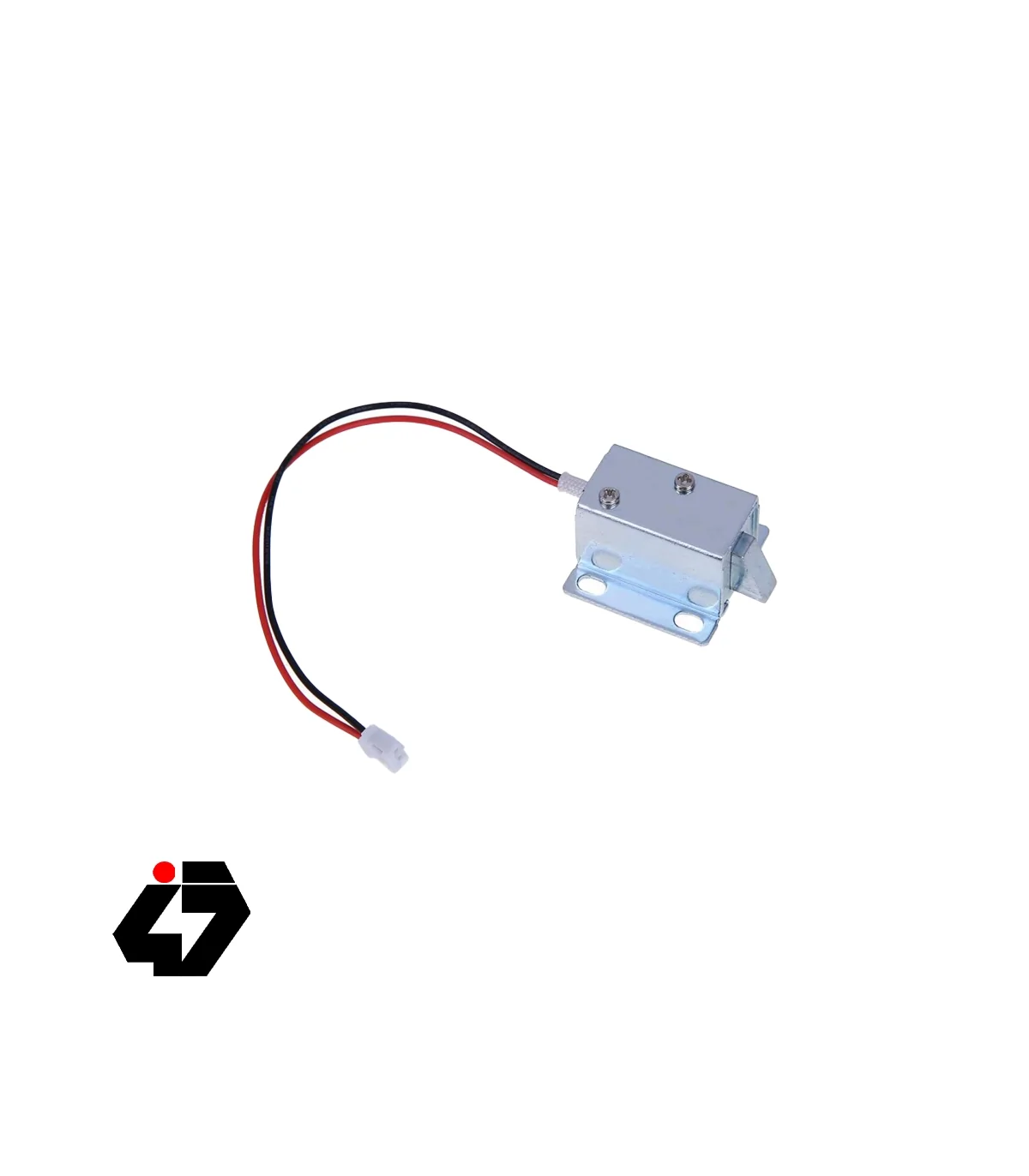

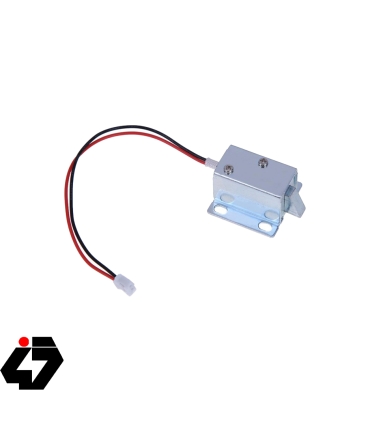

قفل الکترونیکی درب 12 ولتی Solenoid Lock مدل Push-Pull زبانه ای کوچک سایز 27X15X17mm

 با هسته سلونوئید و حالت Push-Pull مناسب برای مصارفی همچون درب کابینت، درب کمد و ...

ادامه مطلبShow less
239,500 تومان بدون مالیات
مرجع:
472330001015
دوست داشتن0
اضافه به مقایسه0
افزودن به فهرست علاقه‌مندی‌ها
توضیحات

در این قفل الکترونیکی که از هسته سلونوئید استفاده شده است در واقع زبانک قفل حکم هسته این سیم پیچ سلونوئید را دارد و در هنگام فرمان دادن به این سیم پیچ که با ولتاژ 12 ولت DC کار میکند ، سیم پیچ هسته یا همان زبانک را به داخل میکشد و درب را باز میکند. این قفل الکترونیکی که محدوده ولتاژ کاری آن بین 9 تا 12 ولت DC و جریان نامی آن در محدوده 1 آمپر است، برای مصارفی همچون درب کابینت، درب کمد و ... طراحی شده است.

Introduction



Mini DC 12V Electric Lock Smart Electromagnetic Lock for Door Cabinet Drawer

12V Electronic Intelligent Auto Cabinet Lock Door Drawer Electromagnetic Lock



Specifications



Product Name: 99-S12 smart cabinet electromagnetic lock

Product type: it can be used as the executing organ of electronic lock

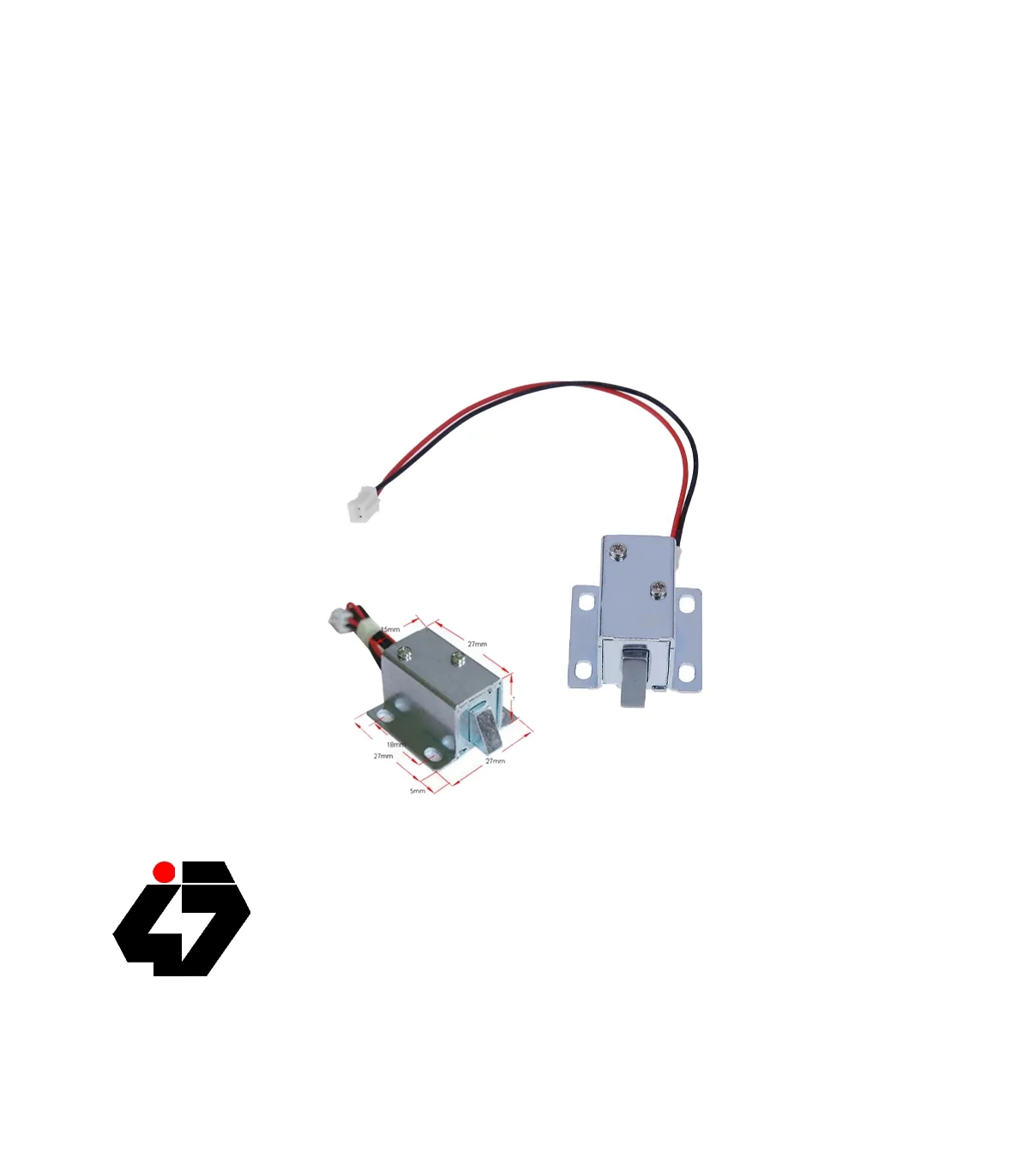

Product size: 1.5x2.7x1.7cm

Product weight: 35g

Product category: 12V universal

Packing: 1pc in OPP bag, 10pcs in Kraft carton packing, so can sell 1 or 10



Scope of work

Pull stroke: 0~4mm

Suction: 4mm≥80g(0.35A)kg

Retention: 0mm≥120g

Mode of operation: power on 90%, interval

Ambient temperature: -25 ~ 80 degree celsius

Relative humidity: 45%~80%

Atmospheric pressure: 86~106Kpa

Medium withstand voltage: AC 1000V

Insulation resistance: 50MΩ

Lead out form: lead

Life expectancy: 10000000 times



Features



1, ultra-thin design, compact and delicate, easy installation!

2, safety and stability: the lock body is made of iron material, hard and stable!

3, work mode: electrify unlock, close door lock way, application simple!

4, low power consumption: voltage 6V/12v/24v three specifications, current is only about 350mA/600mA/1.2A, power instant trigger unlock!

5, long life: aging test: 100 thousand times, durable!

6, directional: symmetrical design, bright processing, regardless of the positive, negative, left, right, universal installation, convenient!

7, installation methods: mounted, hidden, embedded arbitrary installation, 360 degrees from all angles applicable!

8, security: anti vibration, anti prying, drilling, open design technology for a variety of products of cabinet!



Working principle



Power on, the lock retract, unlock;

Power off, the lock pops up, closes the lock



Application principle



Unlock: control the power on or off

Lock: push door, lock automatically locked



Scope of application



Express cabinets, lockers, newspaper boxes, storage cabinets, storage shelves, file cabinets, filing cabinets, drawers, meter box, locker, intensive cabinets and other products, and is widely used in factories, mines, schools, banks, troops, prisons, courts, hotels, farms, bathing centers.

ادامه مطلبShow less
جزئیات محصول
472330001015

مشخصات

ابعاد
27X15X17 میلیمتر
ولتاژ ورودی ( کاری )
12-9 ولت
جریان
0.5A
طول زبانه
0.6 میلیمتر
