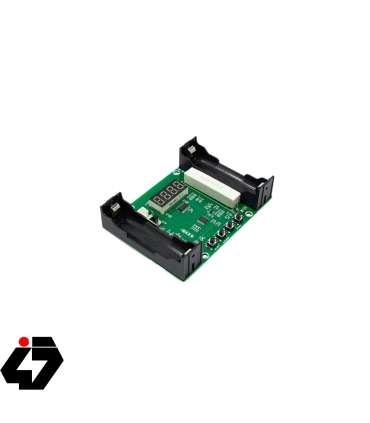

تستر ظرفیت واقعی باتری های لیتیومی XH-M240

تستر ظرفیت واقعی باتری های لیتیومی استاندارد 18650 با قابلیت مشخص نمودن مقدار واقعی mAh mWh

ادامه مطلبShow less
365,000 تومان بدون مالیات
مرجع:
473301003189
دوست داشتن0
اضافه به مقایسه0
افزودن به فهرست علاقه‌مندی‌ها
توضیحات

این تستر مخصوص باتری های لیتیومی با استاندارد 18650 می باشد

توسط این تستر می توانید ظرفیت واقعی باتری ها شامل دشارژ واقعی ظرفیت و توان را مشاهده کنید.

 این دستگاه با دو روش تغذیه مختلف قابل استفاده است:

تغذیه با باتری: با قرار دادن باتری لیتیومی سایز ۱۸۶۵۰ در جایگاه سمت چپ و باتری تستی در جایگاه سمت راست، تستر به صورت مستقل عمل می‌کند. این روش به دلیل سهولت استفاده و عدم وابستگی به منبع تغذیه خارجی، پیشنهاد می‌شود.

تغذیه با منبع تغذیه DC: برای این روش، یک کانکتور XH دو پین روی برد تستر قرار دارد که به منبع تغذیه ۵ ولت DC متصل می‌شود.

ویژگی‌ها و نحوه عملکرد:

آماده‌سازی و راه‌اندازی:

باتری تستی را به طور کامل شارژ کنید.

تستر را با استفاده از یکی از روش‌های تغذیه روشن کنید.

باتری تست را در جایگاه مشخص قرار دهید.

اگر تک سوئیچ های روی برد ماژول را از سمتی که مقاومت آجری قرار دارد، به ترتیب با شماره های ۱, ۲ , ۳ و ۴ شماره گذاری کنیم، با استفاده از دو تک سوئیچ ۱ و ۲ که علامت های + و – هم بالای آن ها قرار دارد، ولتاژ دشارژ باتری را تنظیم کنید.

تنظیم ولتاژ دشارژ:

با استفاده از دو تک سوئیچ + و – که روی برد قرار دارند، ولتاژ دشارژ باتری را تنظیم کنید.

انتخاب واحد اندازه‌گیری:

با استفاده از تک سوئیچ‌های شماره ۳، واحد اندازه‌گیری (mAh برای ظرفیت، mWh برای انرژی و ولتاژ) را انتخاب کنید. LED مربوط به واحد انتخابی روشن می‌شود.

شروع تست:

با فشار دادن کوتاه مدت تک سوئیچ شماره ۴، عملیات تست آغاز می‌شود. این تست ممکن است بسته به ظرفیت باتری چندین ساعت به طول بینجامد. پس از اتمام تست، ظرفیت دشارژ واقعی باتری نمایش داده می‌شود. برای توقف یا ریست کردن تست، تک سوئیچ شماره ۴ را به مدت چند ثانیه فشار دهید و نگه دارید.



Introduction

It is a Lithium battery capacity tester.It is used to test the voltage, discharge capacity and discharge energy of a 18650 lithium battery.



Feature

1>.Dual working power supply

2>.18650 battery special tester

3>.Support display discharge capacity

4>.Support display discharge energy

5>.Support parameter memory function





Parameter

1>.Model: XH-M240

2>.Work Voltage:DC 5V~12V or 18650 battery

3>.Stand-by current:5~7mA

4>.Discharge current:500mA

5>.Load power: 10W 8ohm

6>.Measuring voltage accuracy:0.1V

7>.Discharge capacity accuracy:1mAh

8>.Discharge energy accuracy:1mWh

9>.Work Temperature:-25℃~85℃

10>.Work Humidity:5%~95%RH

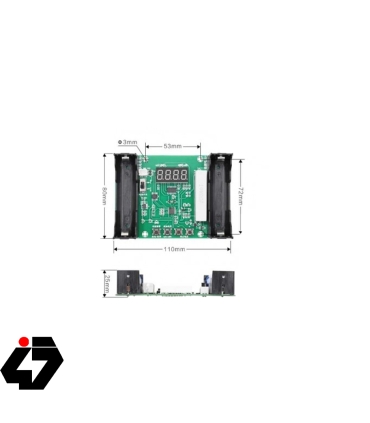

11>.Size:110*80*25mm





18650 battery introduction

1>.The rated voltage of the 18650 battery is generally 3.7V.

2>.The discharge stop voltage of the 18650 battery is generally 2.75V.

3>.It should start charging the battery when the voltage of the 18650 battery drops to 0.875 times(3.24V) the rated voltage.

4>.Excessive battery discharge will reduce battery life.

5>.It is recommended that the 18650 battery stop discharge voltage be set to 3.5V.

6>.The charging voltage is generally 4.2V/4.3V/4.35V

7>.Measuring time formula.The discharge current of this product is 500mA.If the battery capacity is 2000mAh.Then the measuring time is about (2000/500) 4 hours.

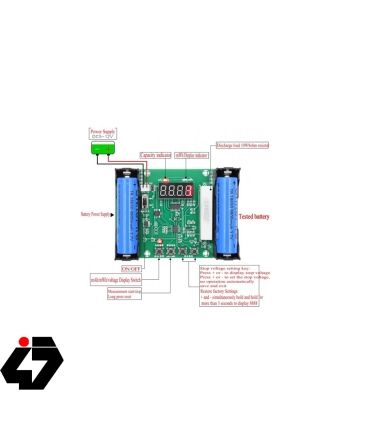

Use Steps

1>.Connect work voltage DC 5V~12V from white XH2.54-2P socket or install a 18650 battery at left battery socket.

2>.Install a measured 18650 battery at right battery socket.

3>.Turn on power supply switch. Then the screen will display current battery voltage.

4>.Set discharge stop voltage.Press button + and - to set discharge stop voltage.Parameters can be saved automatically.It is recommended that the 18650 battery stop discharge voltage be set to 3.5V.

5>.Short press the first(left) button to start measuring.Then the LED indicator D3 will turn ON.

6>.Short press the second button to switch dispaly capacity(mAh), energy(mWh) and voltage.

7>.Long press first(left) button to clear dispaly capacity(mAh) and energy(mWh).

8>.The battery is tested and shows the battery test value when D3 LED indicator start blinking.





Package

1pcs 18650 Battery Capacity Tester

Made of high quality electronic components, it is solid, durable and good conductivity and performance, long service life.

This battery capacity tester is used to test the voltage, discharge capacity and discharge energy of a 18650 lithium battery.

With dual working power supply, it has high working efficiency, and saves your time.

It can display discharge capacity and discharge energy.

And it supports parameter memory function, convenient for checking next time.

Battery capacity tester only, other accessories demo in the picture is not included!



Product Parameters

Model: XH-M240

Display accuracy: 0.1

Measurement accuracy: 1mAH

Power supply: DC 5V-12V/18650 battery (Not included)

Standby current: 5-7mA

Discharge current: About 500mA

Load power: 10W, 8Ω

Installation hole: 3mm



Specification

Material: Circuit Board, Electronic Components

Size: app.11 x 8cm/4.33 x 3.15in

Color: Green



How to use

1: Put in the power supply battery to test the battery, turn on the power switch and display 4.1u, that is, the voltage of the test battery is 4.1v

2:Set termination voltage:Press + or - to display the termination voltage, and press + or - to set the termination voltage.(default: 3V)

3: Press the start button to start discharging (discharge current is about 500mA). At this time, the LED displays to detect the remaining battery voltage of 4V

4: Press the battery voltage switch key to mAh , display the discharged 20mAh

5: Press the second button to display 77mWH discharge in mW

6: When the discharge is completed, the display has been discharged 1900mAH, the red indicator light above the reset key is flashing state

ادامه مطلبShow less
جزئیات محصول
473301003189

مشخصات

ابعاد
۱۱۰x80x25 میلی‌متر
دمای کاری
۲۵ الی ۸۵ درجه سانتی‌گراد
ولتاژ تغذیه ماژول
۵ الی ۱۲ ولت
دقت اندازه‌گیری ولتاژ
۰٫۱ ولت
مدل
XH-M240
نوع باتری تست و تغذیه
لیتیوم-یون سایز ۱۸۶۵۰
جریان استندبای
۵ الی ۷ میلی‌آمپر
جریان دشارژ
۵۰۰ میلی‌آمپر
توان بار
۱۰ وات
دقت اندازه‌گیری ظرفیت دشارژ
۱ میلی‌آمپر ساعت
دقت اندازه‌گیری توان دشارژ
۱ میلی‌وات ساعت
