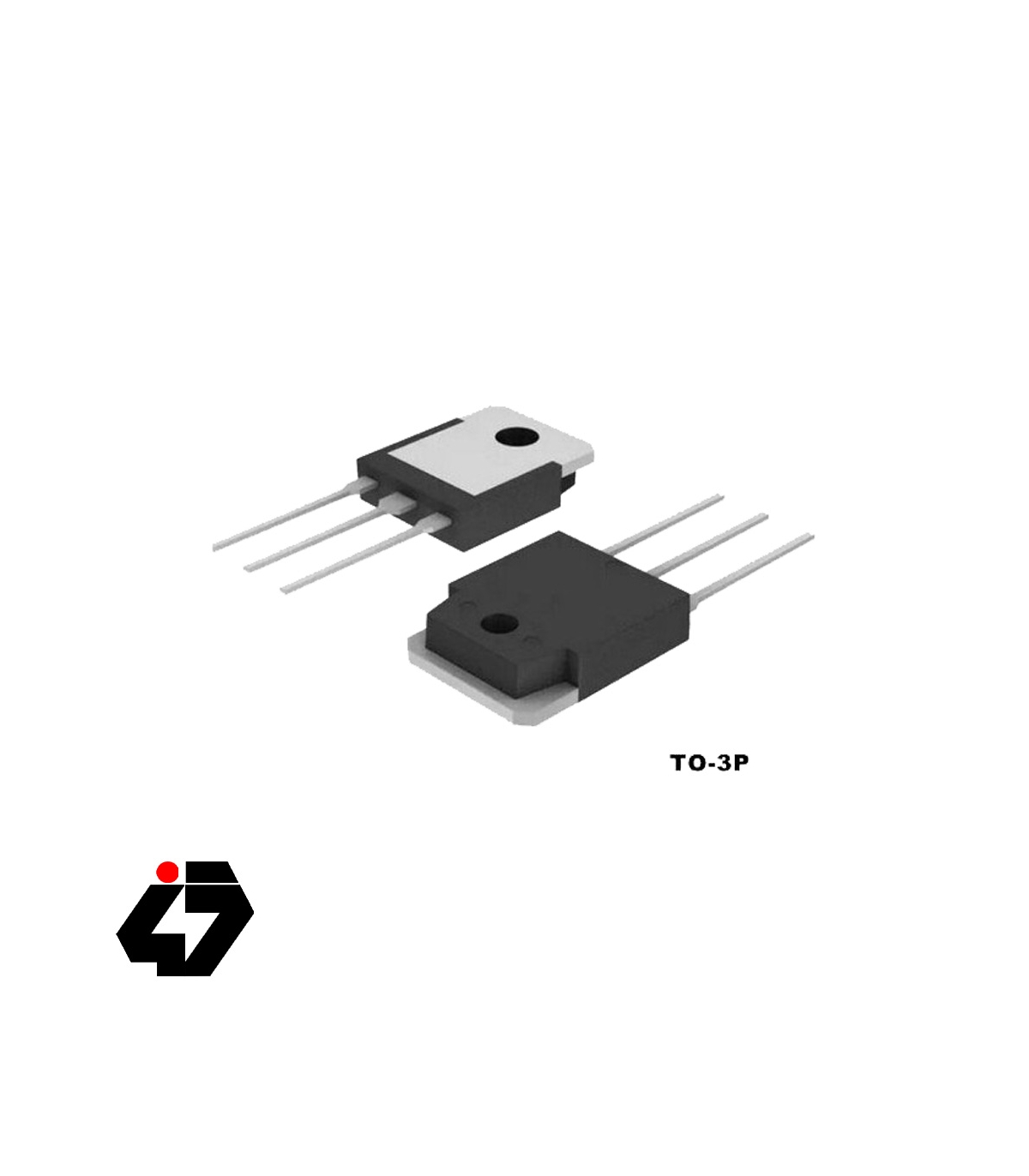

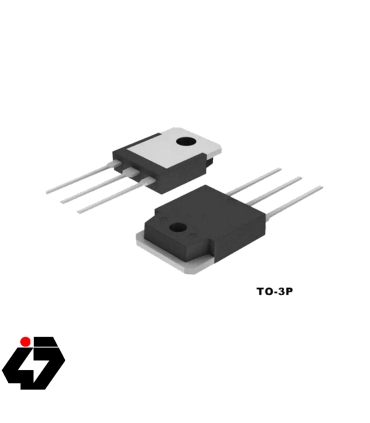

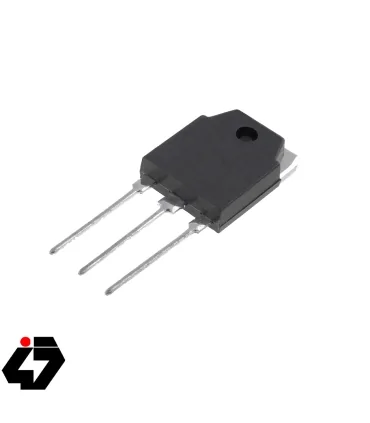

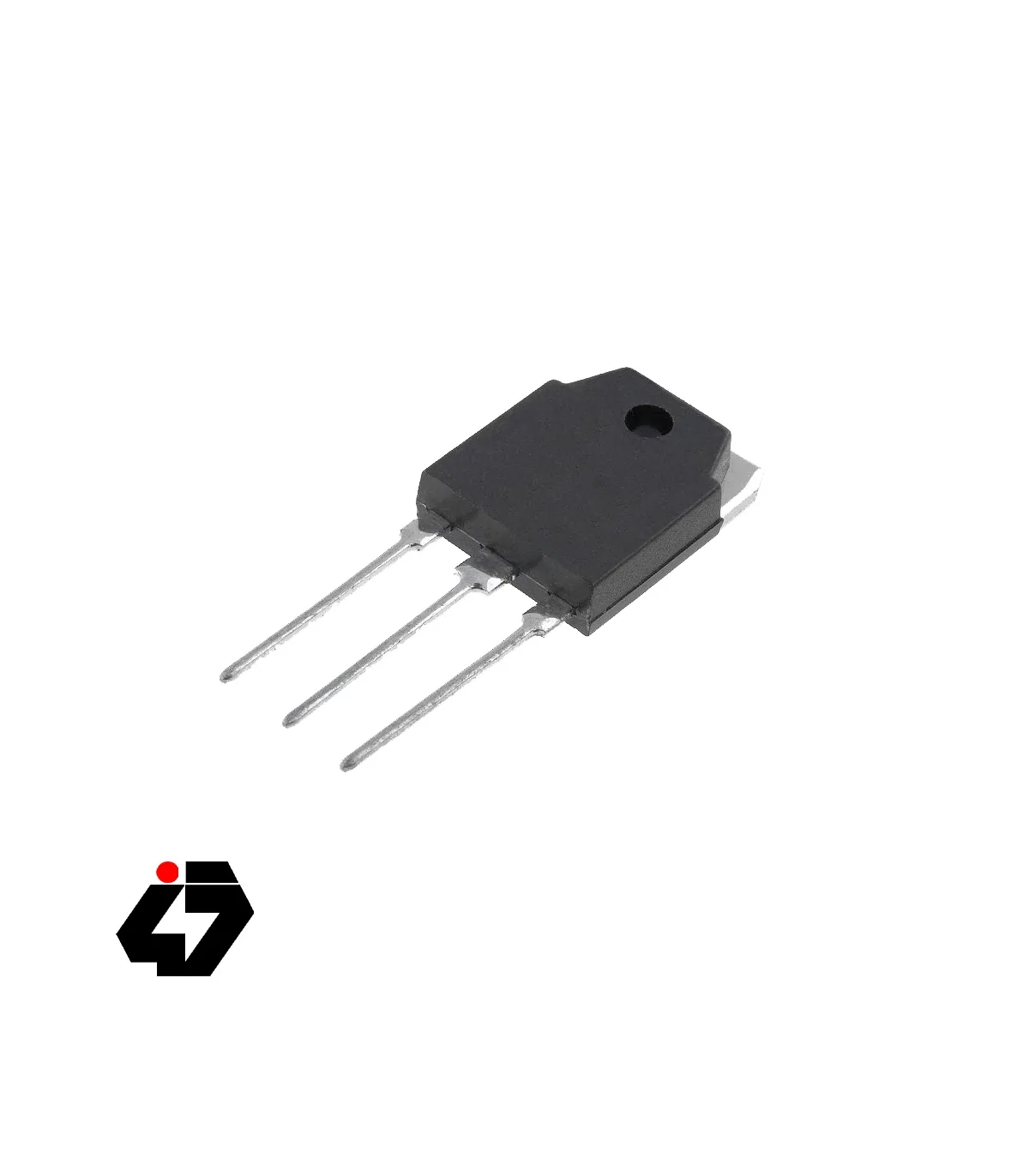

ترانزیستور 2SD1047 نوع NPN پکیج TO-3P

ترانزیستور 2SD1047 نوع NPN پکیج TO-3P

Specification

Product Category: Bipolar Transistors - BJT

Mounting Style: Through Hole

Package / Case: TO-3P-3

Transistor Polarity: NPN

Configuration: Single

Collector- Emitter Voltage VCEO Max: 140 V

Collector- Base Voltage VCBO: 200 V

Emitter- Base Voltage VEBO: 6 V

Collector-Emitter Saturation Voltage: 700 mV

Maximum DC Collector Current: 12 A

Pd - Power Dissipation: 100 W

Gain Bandwidth Product fT: 20 MHz

Continuous Collector Current: 12 A

DC Collector/Base Gain hfe Min: 50

Product Type:BJTs - Bipolar Transistors

Series: 500V Transistors

Continuous Collector Current: 25 A

DC Collector/Base Gain hfe Min: 10

DC Current Gain hFE Max: 50

Height: 20.15 mm (Max)

Length: 15.75 mm (Max)

Width: 5.15 mm (Max)

Packaging: Tube

Pd - Power Dissipation: 125 W
