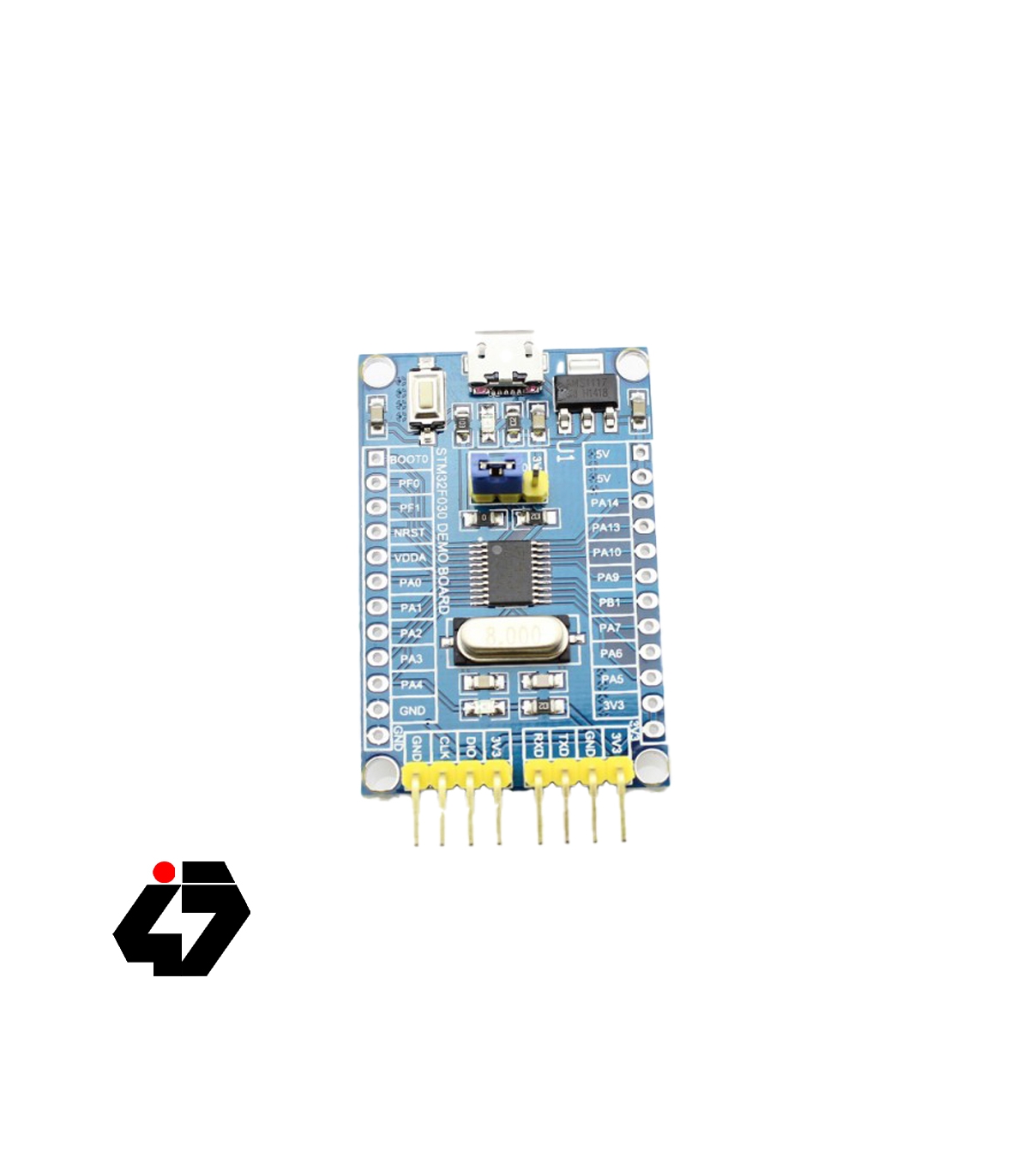

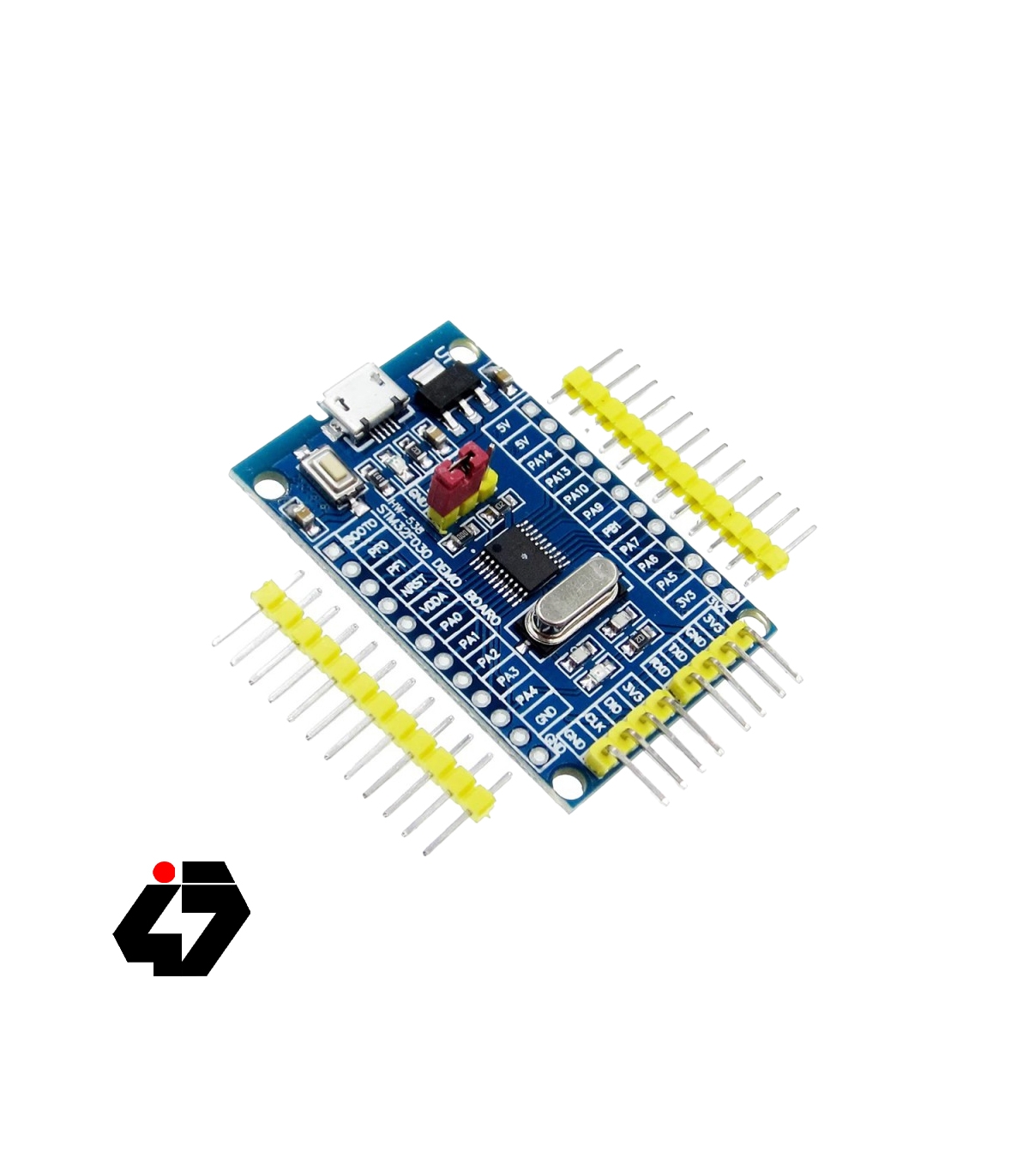

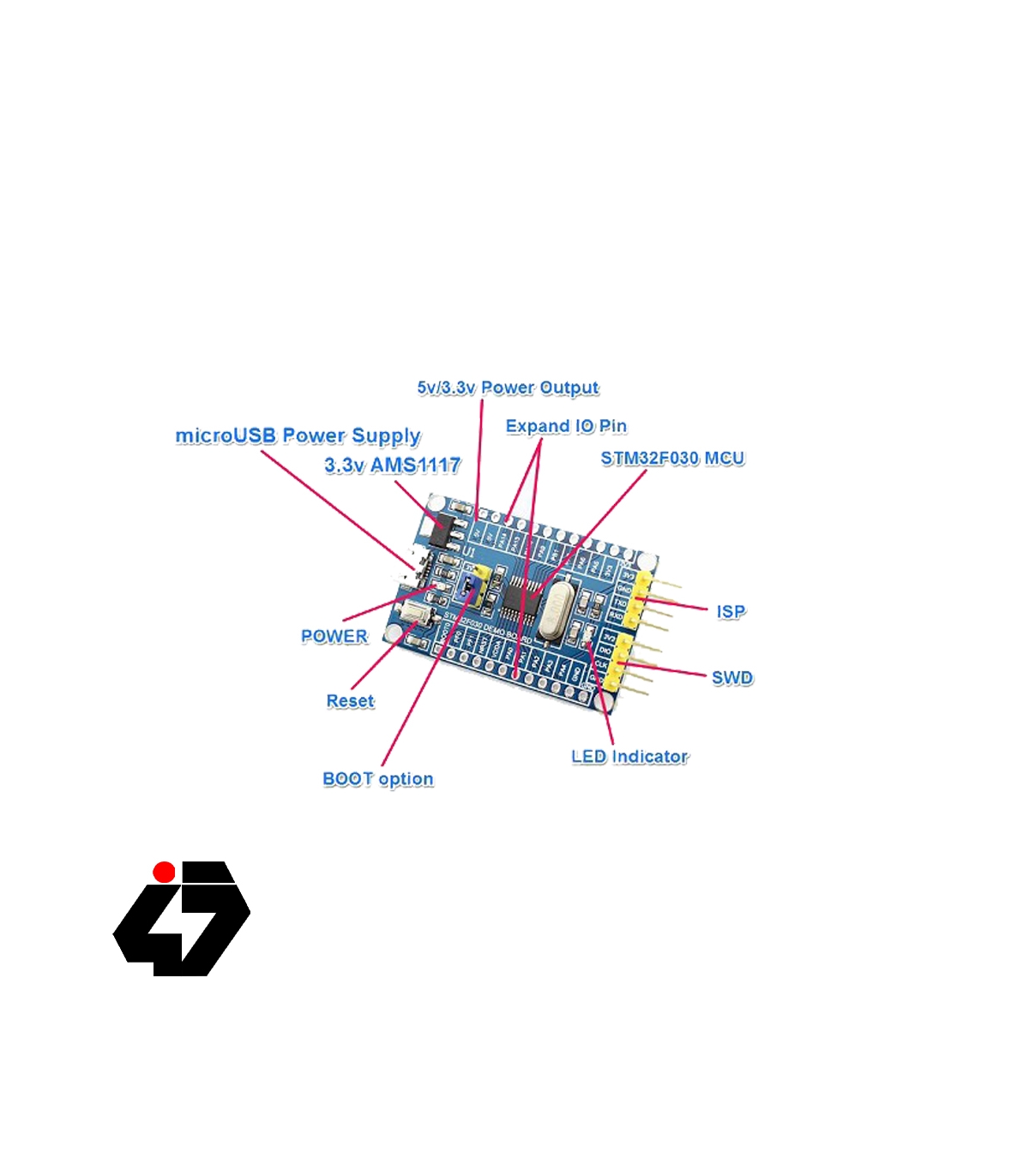

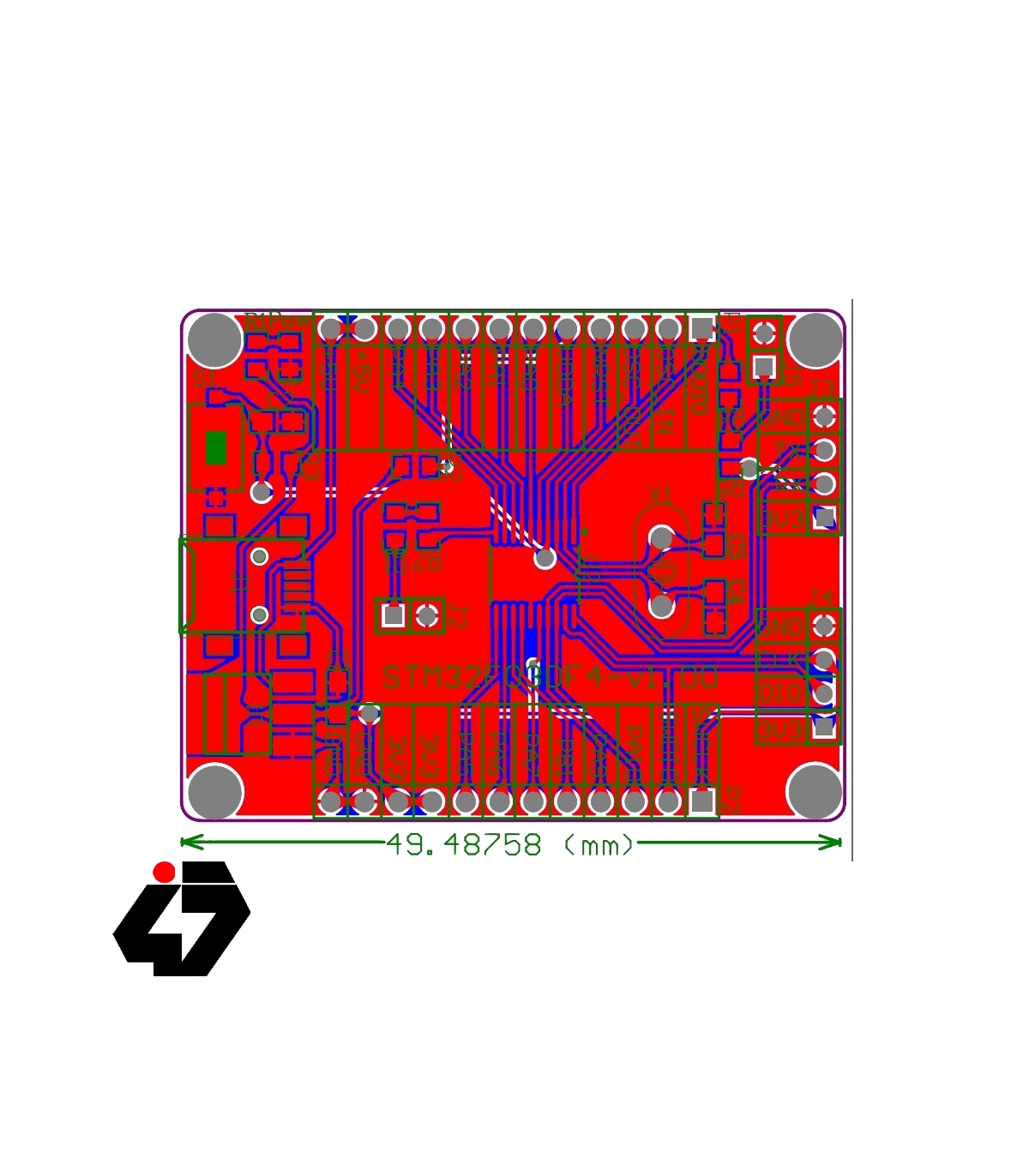

مینی هدر برد STM32F030F4P6 Cortex-M0

مینی هدر برد STM32F030F4P6 Cortex-M0

خانواده STM32 از سری میکروکنترلرهای 32 بیتی مبتنی بر پردازنده ARM Cortex می باشد که با هدف ایجاد معنای جدیدی از آزادی عملکرد برای کاربران میکروکنترلرها ایجاد گشته است. در این خانواده از میکروکنترلرها تلفیقی از کارایی بالا، عملکرد همزمان، پردازش سیگنال های دیجیتال و کاربردهای کم توان در بالاترین سطح کیفی و با حفظ یکپارچگی کامل و سهولت توسعه، ارائه می گردد.از جمله امکانات مهم میکرکنترلر STM32F030F4P6 ، هسته Cortex-M0 با سرعت 48MHZ، اینترفیس موازی ، ADC 12 بیتی، و دارا بودن اینترفیس های متنوعی از جمله I2C، USART، SDIO و ... می باشد.

Introduction

The STM32F030x4/x6/x8/xC microcontrollers incorporate the high-performance Arm® Cortex®-M0 32-bit RISC core operating at a 48 MHz frequency, high-speed embedded memories (up to 256 Kbytes of Flash memory and up to 32 Kbytes of SRAM), and an extensive range of enhanced peripherals and I/Os. All devices offer standard communication interfaces (up to two I2Cs, up to two SPIs and up to six USARTs), one 12-bit ADC, seven general-purpose 16-bit timers and an advanced-control PWM timer.

The STM32F030x4/x6/x8/xC microcontrollers operate in the -40 to +85 °C temperature range from a 2.4 to 3.6V power supply. A comprehensive set of power-saving modes allows the design of low-power applications.

The STM32F030x4/x6/x8/xC microcontrollers include devices in four different packages ranging from 20 pins to 64 pins. Depending on the device chosen, different sets of peripherals are included. The description below provides an overview of the complete range of STM32F030x4/x6/x8/xC peripherals proposed.

These features make the STM32F030x4/x6/x8/xC microcontrollers suitable for a wide range of applications such as application control and user interfaces, handheld equipment, A/V receivers and digital TV, PC peripherals, gaming and GPS platforms, industrial applications, PLCs, inverters, printers, scanners, alarm systems, video intercoms, and HVACs.

Feature

Core: Arm® 32-bit Cortex®-M0 CPU, frequency up to 48 MHz

Memories

16 to 256 Kbytes of Flash memory

4 to 32 Kbytes of SRAM with HW parity

CRC calculation unit

Reset and power management

Digital & I/Os supply: VDD = 2.4 V to 3.6 V

Analog supply: VDDA = VDD to 3.6 V

Power-on/Power down reset (POR/PDR)

Low power modes: Sleep, Stop, Standby

Clock management

4 to 32 MHz crystal oscillator

32 kHz oscillator for RTC with calibration

Internal 8 MHz RC with x6 PLL option

Internal 40 kHz RC oscillator

Up to 55 fast I/Os

All mappable on external interrupt vectors

Up to 55 I/Os with 5V tolerant capability

5-channel DMA controller

One 12-bit, 1.0 µs ADC (up to 16 channels)

Conversion range: 0 to 3.6 V

Separate analog supply: 2.4 V to 3.6 V

Calendar RTC with alarm and periodic wakeup from Stop/Standby 11 timers

One 16-bit advanced-control timer for six-channel PWM output

Up to seven 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding

Independent and system watchdog timers

SysTick timer

Communication interfaces

Up to two I2C interfaces

Up to six USARTs supporting master synchronous SPI and modem control; one with auto baud rate detection

Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames

Serial wire debug (SWD)

All packages ECOPACK®2
